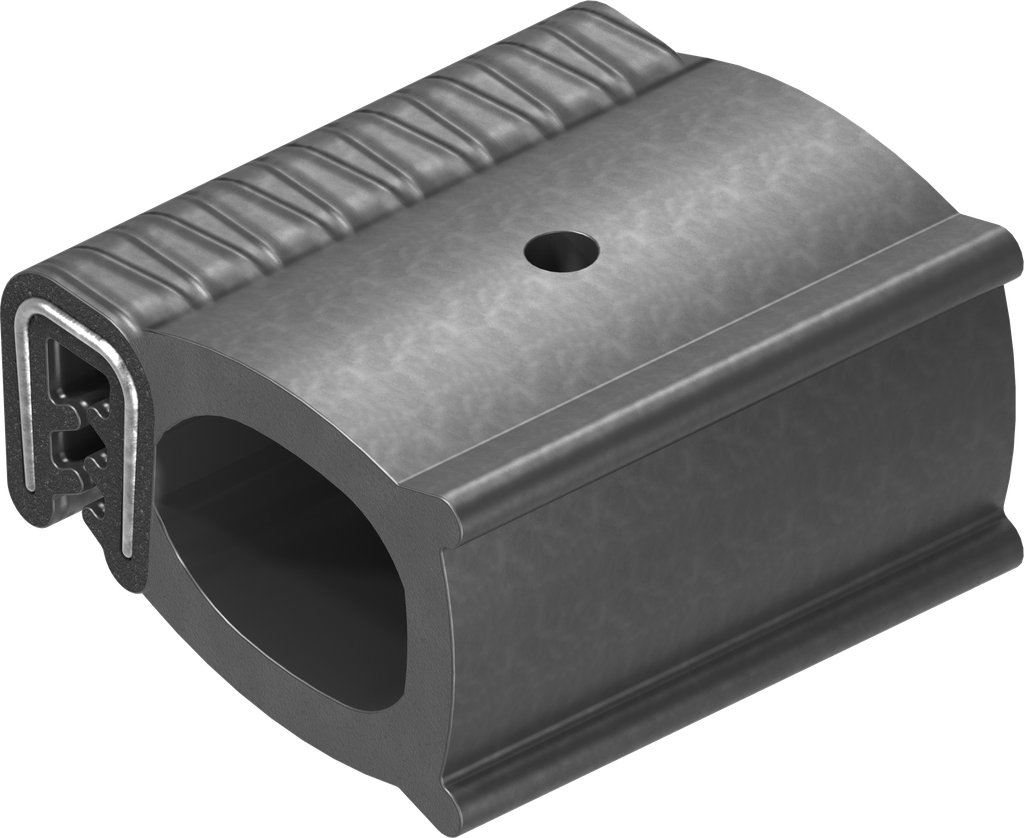

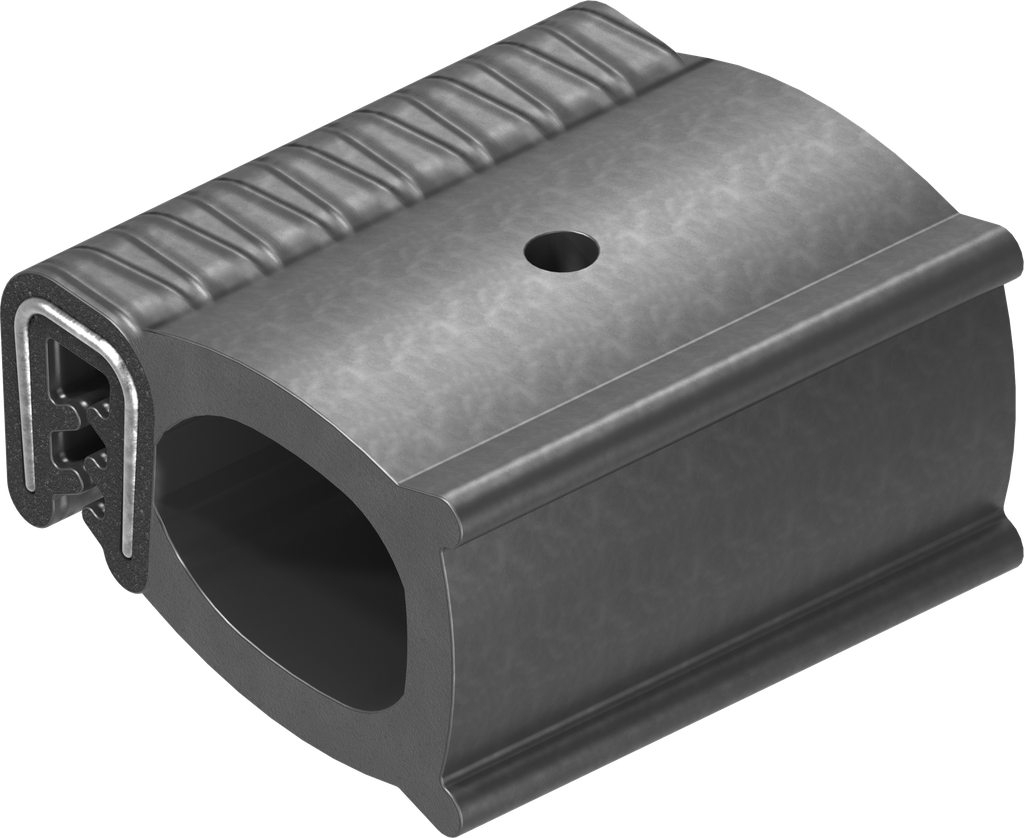

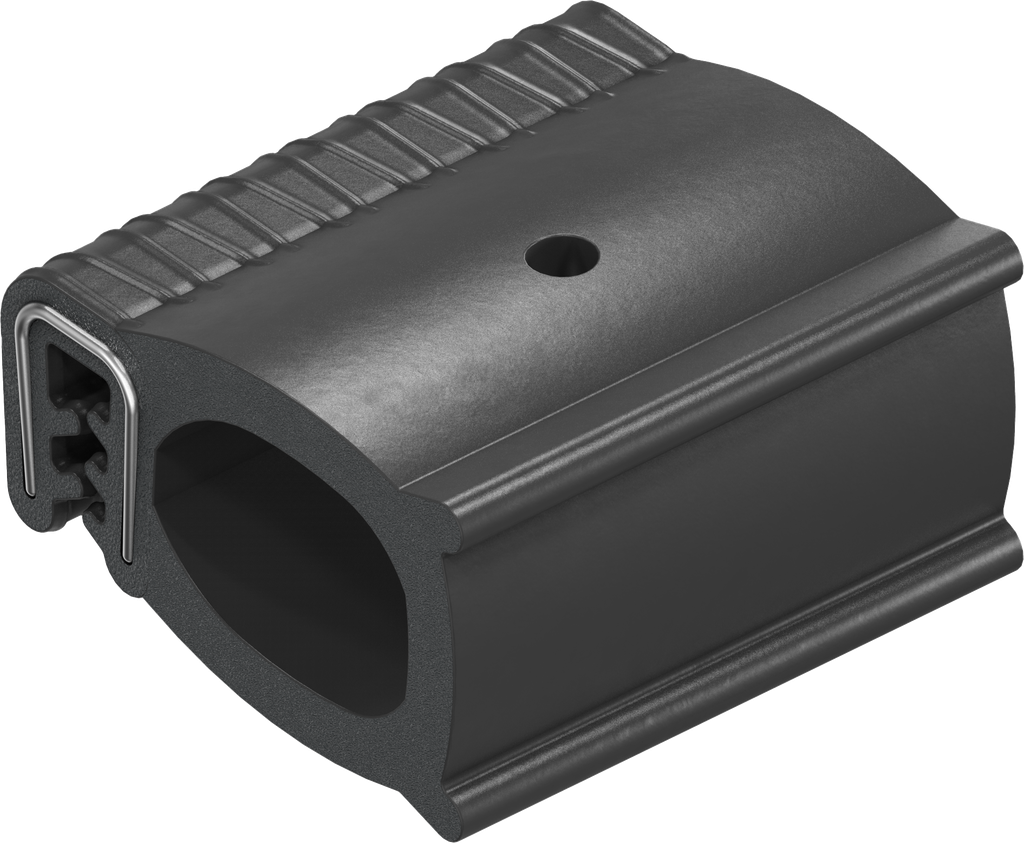

Sealing profile made of fire protection material, self-clamping, Foam rubber EPDM; clamping profile foam rubber EPDM black
Sealing profile made of fire protection material, self-clamping, Silicon solid material 65 ± 5 Shore A blue black
Sealing profile made of fire protection material, self-clamping, Foam rubber EPDM; clamping profile foam rubber EPDM black; 1011-S24
Product Benefits:
- Flame resistant for more safety
- Readily customised frames and rings according to customer specifications possible
- Profile shapes also individually according to customer specifications
- Reliable top quality from in-house production in Europe
Product information:

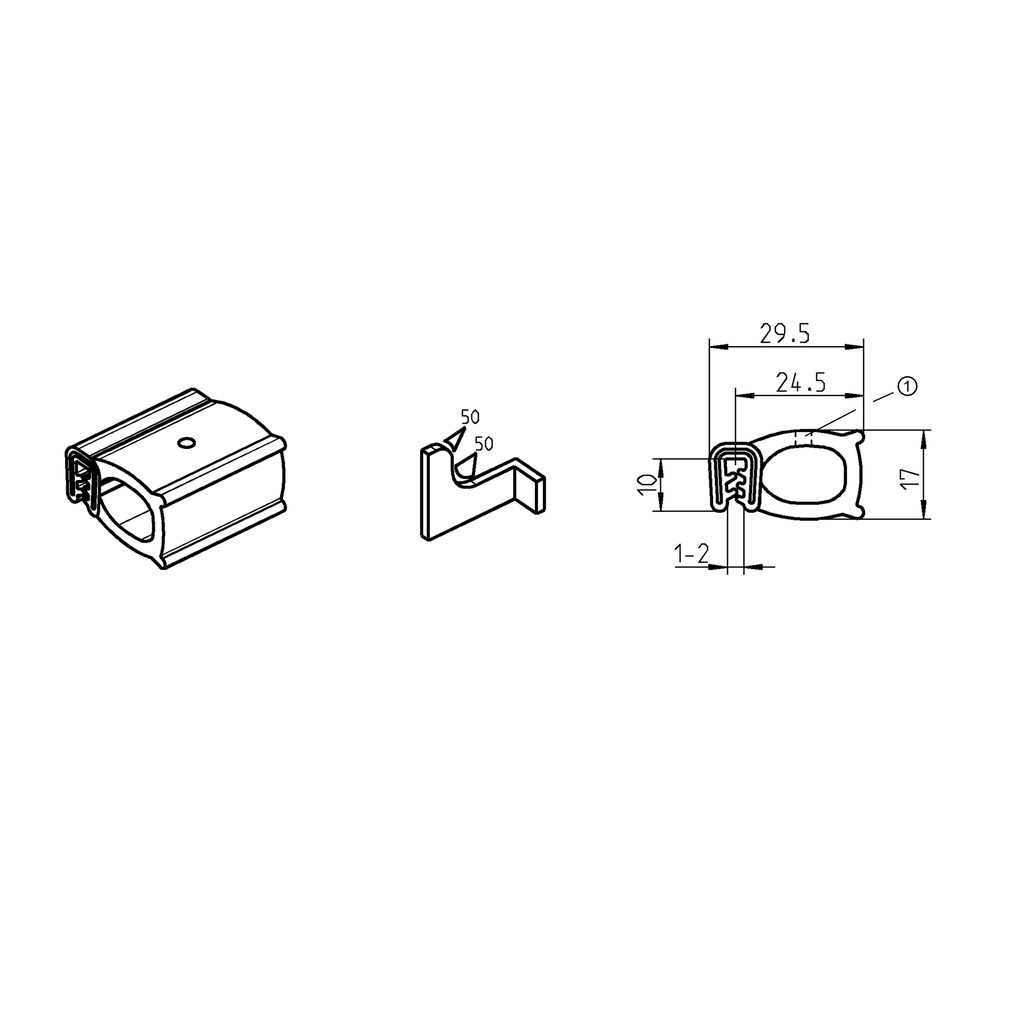

① = Bore holes approx. every 300 mm
Internal Reference:
1011-S24
Product Type:
Seal
Material:
Foam rubber EPDM; clamping profile foam rubber EPDM
Program:
1011
Surface:
black
Special industrial requirements:
Fire protection standard
Seal element:
Sealing balloon, lateral
Seal Type:
Clip-on profile self-clamping
Spring Core:
Steel spring core
Clamping edge is or is up to:
2
Terminal Edge Of:
1
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
