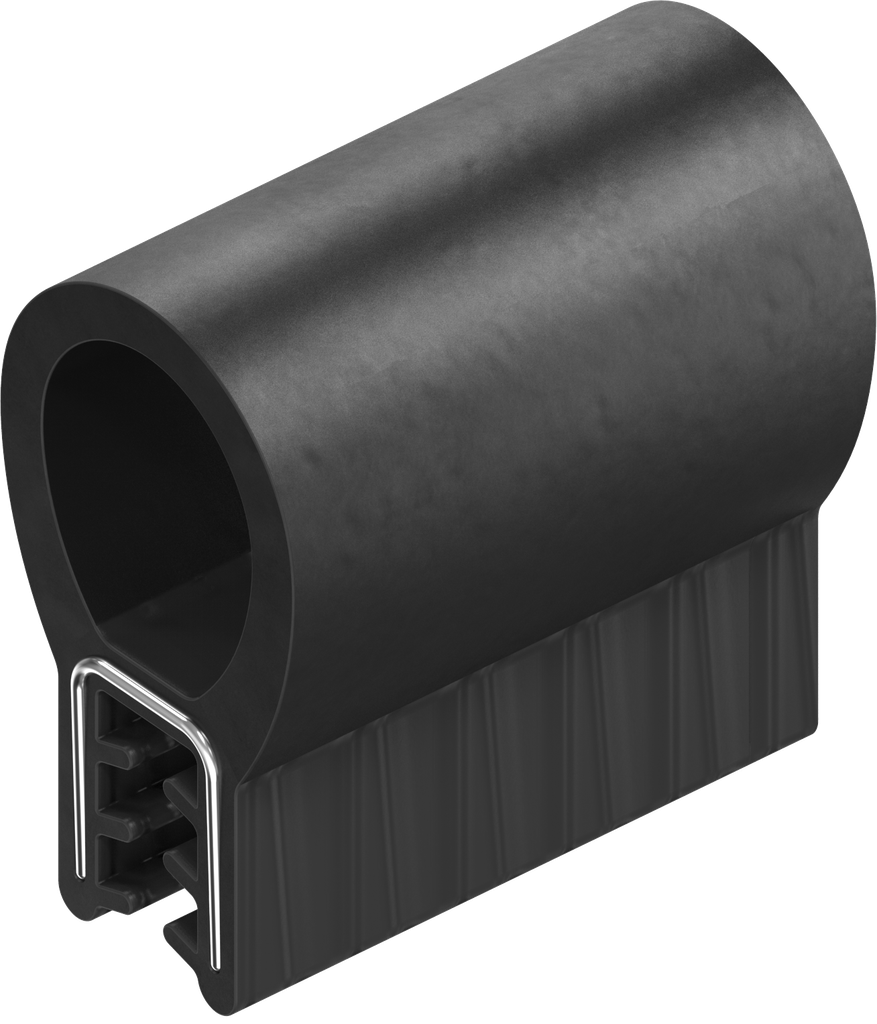

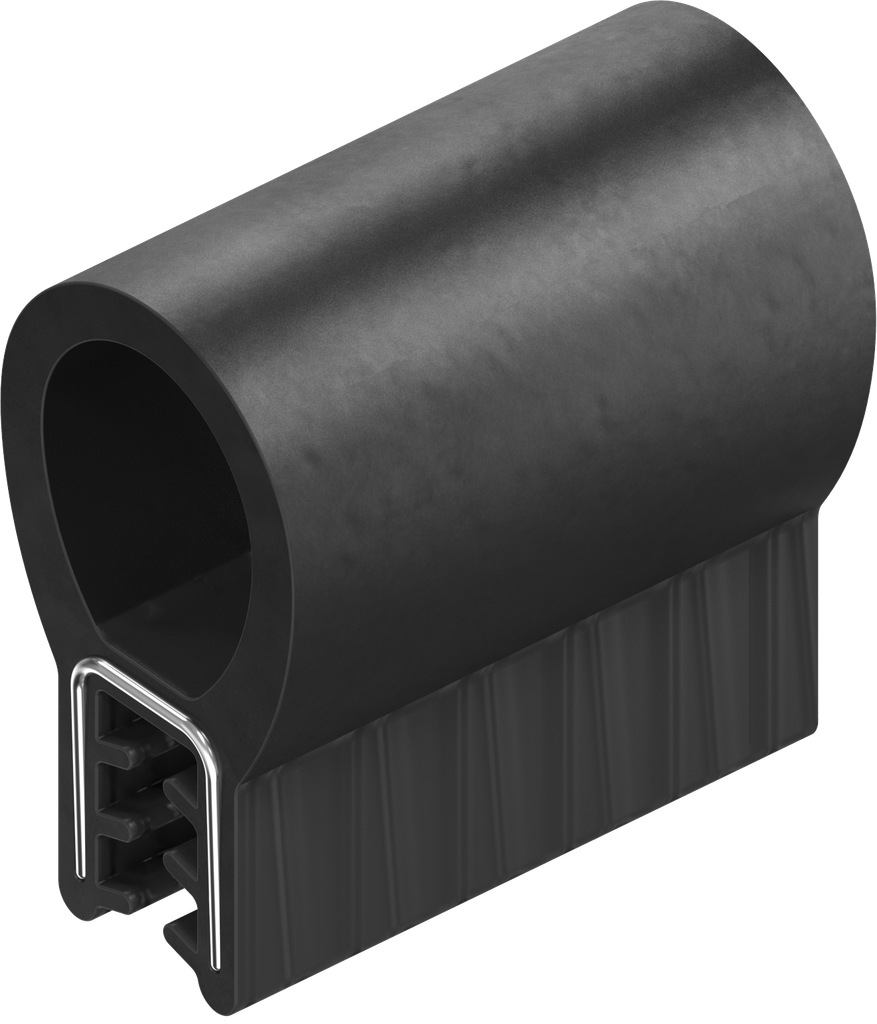

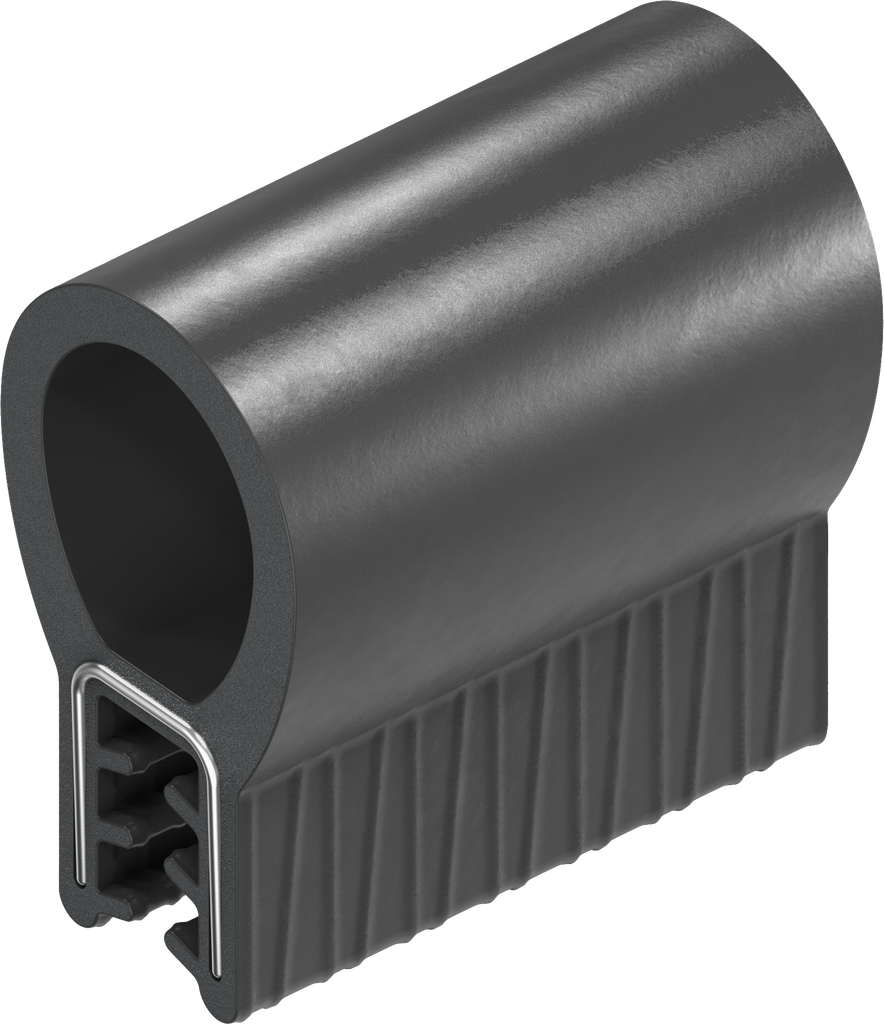

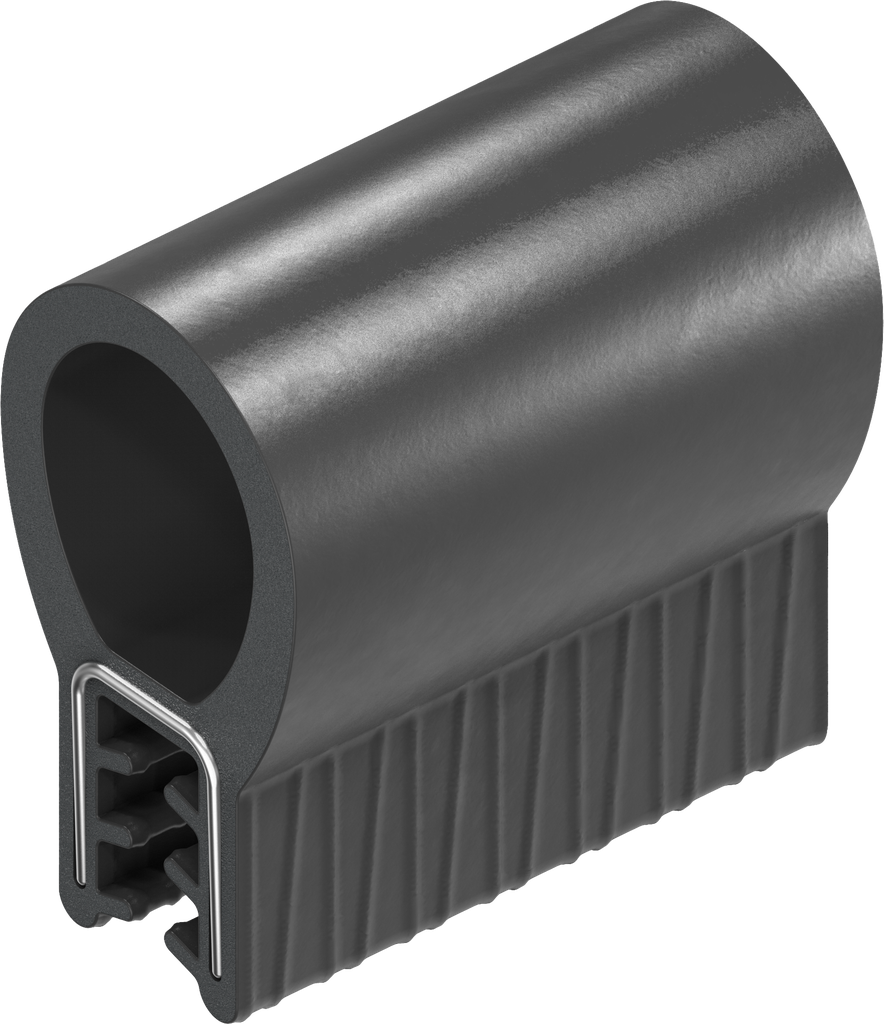

Sealing profile made of fire protection material, self-clamping, Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A black
Toothed lock washer, Steel zinc-plated
Sealing profile made of fire protection material, self-clamping, Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A black; 1011-S119-FR01
Product Benefits:
- Flame resistant for more safety
- Readily customised frames and rings according to customer specifications possible
- Profile shapes also individually according to customer specifications
- Reliable top quality from in-house production in Europe
Internal Reference:
1011-S119-FR01
Product Type:
Seal
Material:
Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A
Program:
1011
Surface:
black
Special industrial requirements:
Fire protection standard
Seal element:
Sealing balloon, top
Seal Type:
Clip-on profile self-clamping
Spring Core:
Steel spring core
Clamping edge is or is up to:
4.5
Terminal Edge Of:
3.5
No Specifications
No Matching Products

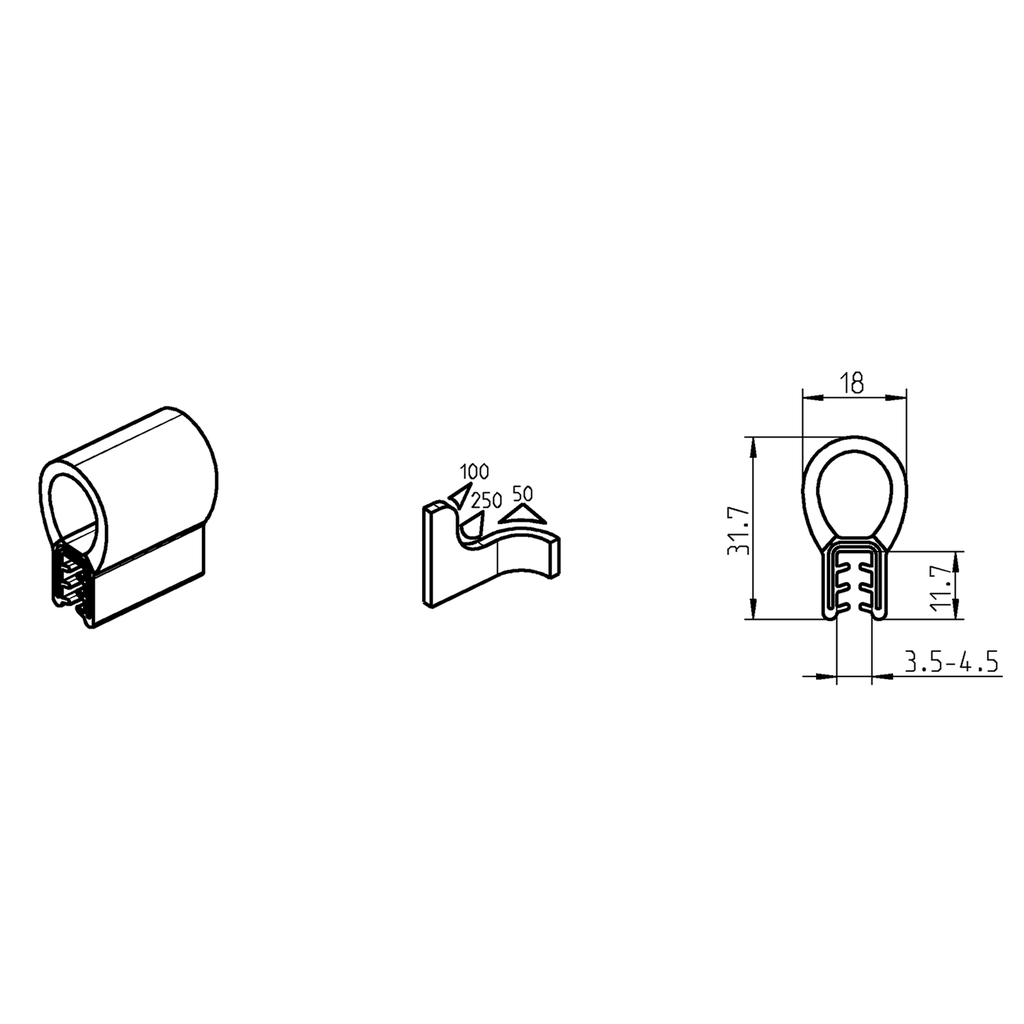

Here you can find the product data sheets and CAD files of this product
