Sealing profile made of fire protection material, self-clamping, Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A black
Sealing profile made of fire protection material, self-clamping, Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A black
Sealing profile, self-clamping, Foam rubber EPDM; clamping profile EPDM 65 ± 5 Shore A black
Sealing profile, self-clamping, Foam rubber EPDM; clamping profile EPDM 65 ± 5 Shore A black

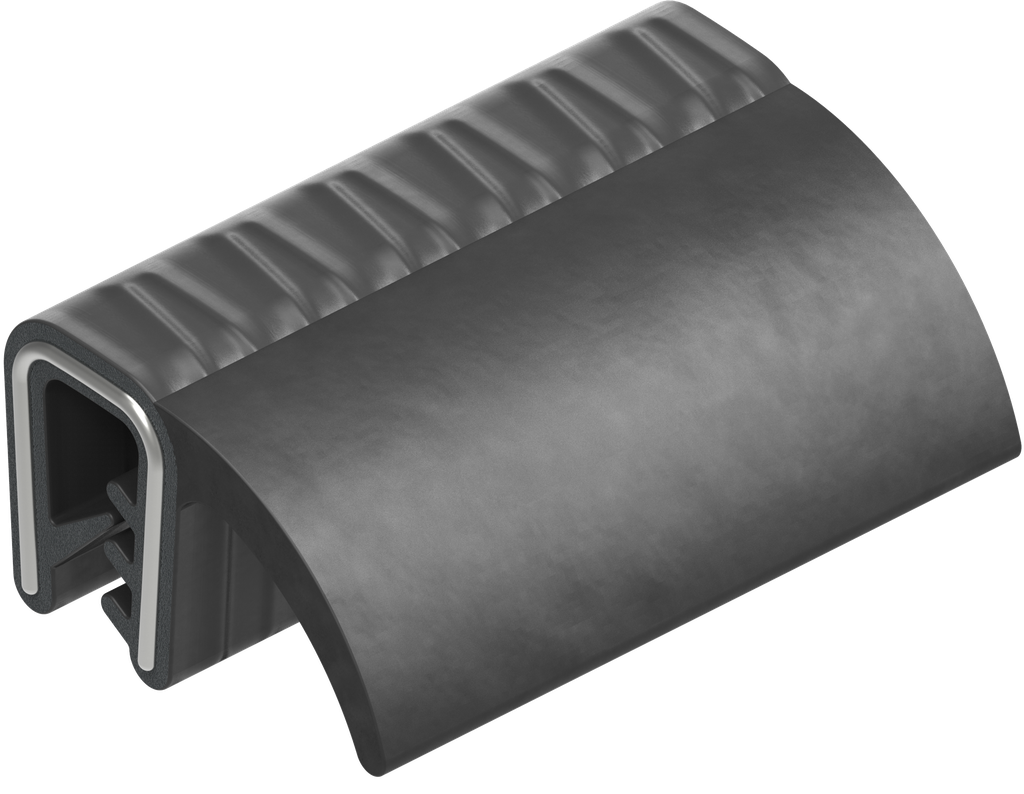

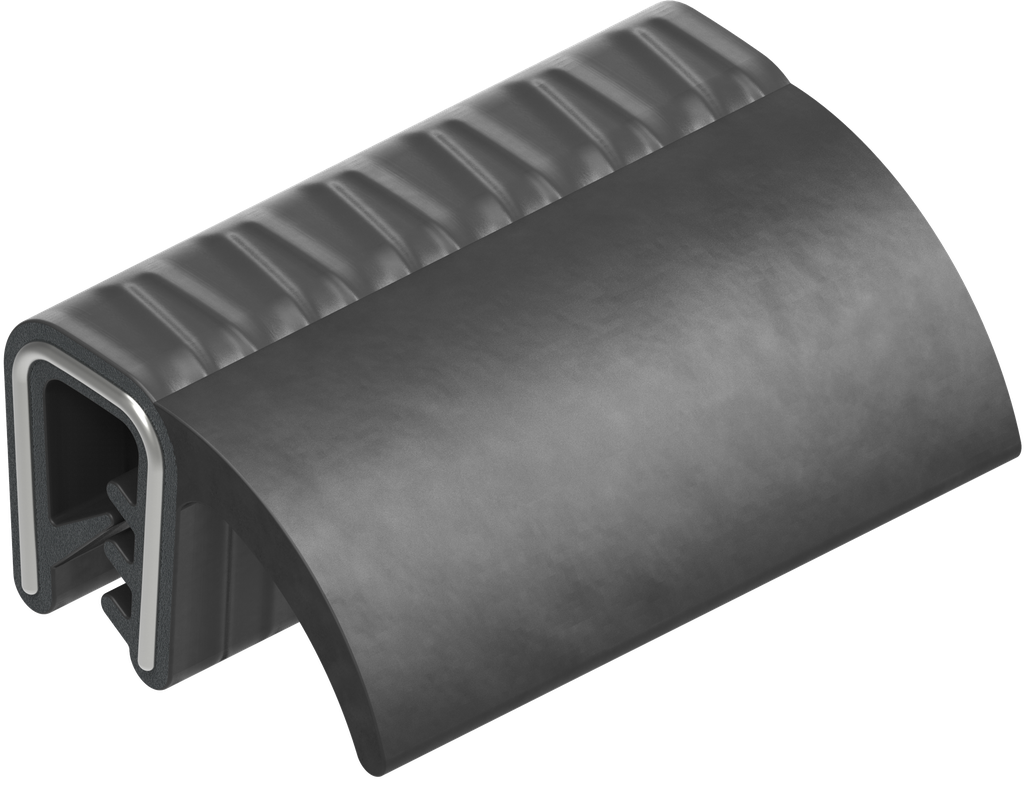

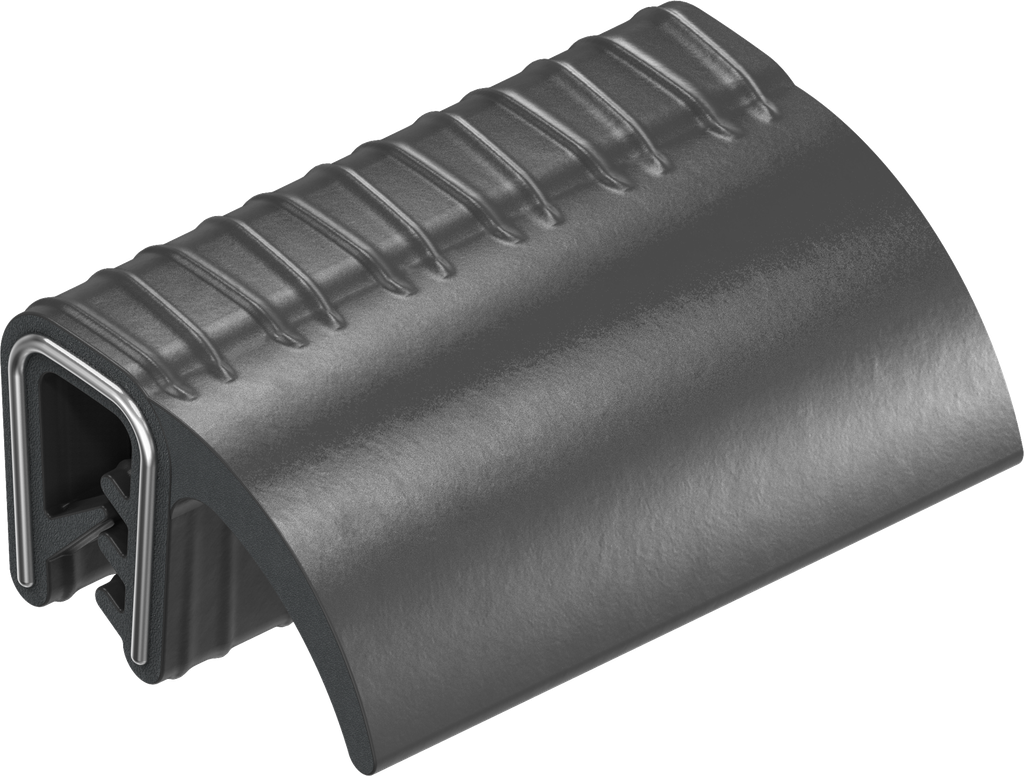

Sealing profile, self-clamping, Foam rubber NBR; clamping profile NBR 60 ± 5 Shore A black; 1011-48

https://www.emka.com/products/1011-48 https://www.emka.com/web/image/product.template/207511/image_1920?unique=7fe8353

    This combination does not exist.

    Contact Us
    Internal Reference: 1011-48
    Product Type: Seal
    Material: Foam rubber NBR; clamping profile NBR 60 ± 5 Shore A
    Program: 1011
    Surface: black
    Catalog sheet: 5A-150
    Seal element: Sealing lip, lateral
    Seal Type: Clip-on profile self-clamping
    Spring Core: Steel spring core

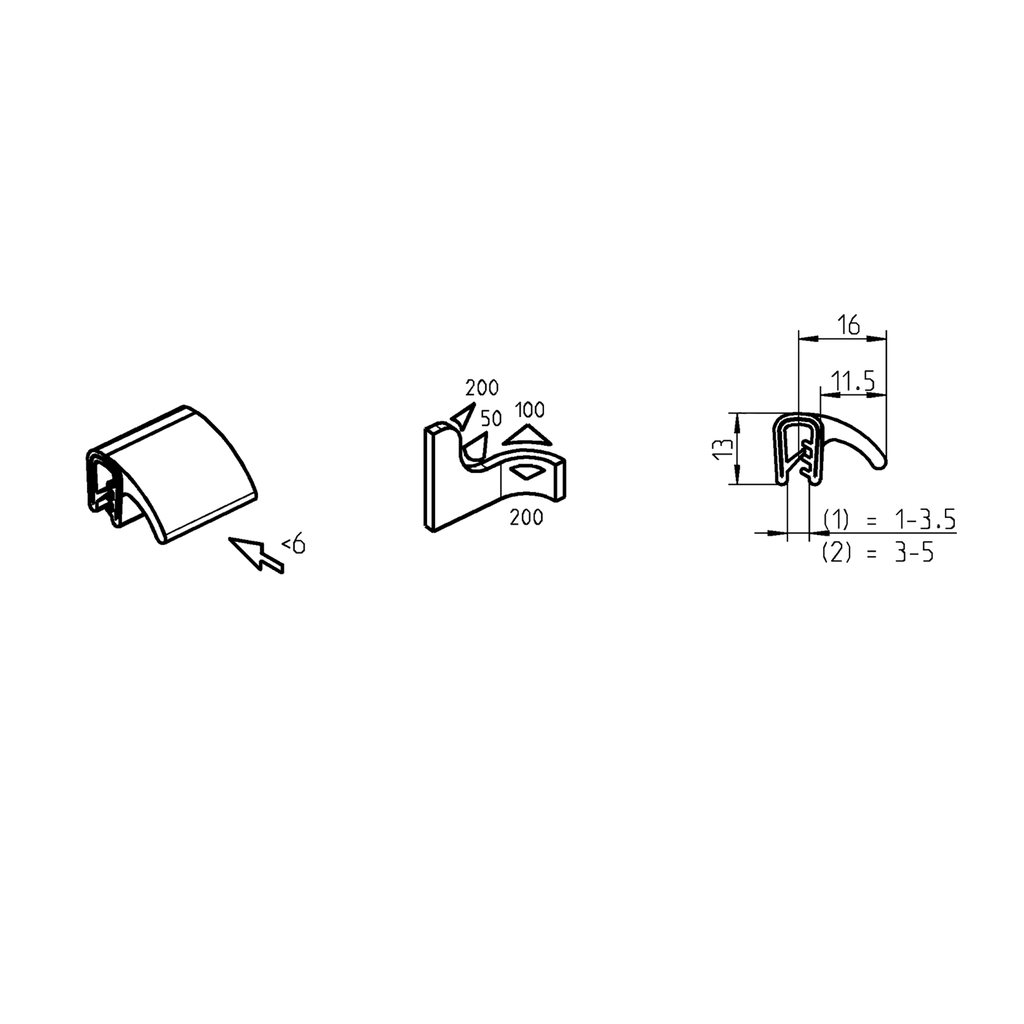

    Clamping edge is or is up to: 5
    Terminal Edge Of: 3
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 5A-150
    Product data sheet
    CAD file | 1011-48_igs
    CAD file | 1011-48_stp
