Sealing profile, self-clamping, Foam rubber EPDM; clamping profile EPDM 65 ± 5 Shore A black
Sealing profile, self-clamping, Foam rubber EPDM; clamping profile EPDM 65 ± 5 Shore A black
Sealing profile, self-clamping, Foam rubber NBR; clamping profile NBR 60 ± 5 Shore A black
Sealing profile, self-clamping, Foam rubber NBR; clamping profile NBR 60 ± 5 Shore A black

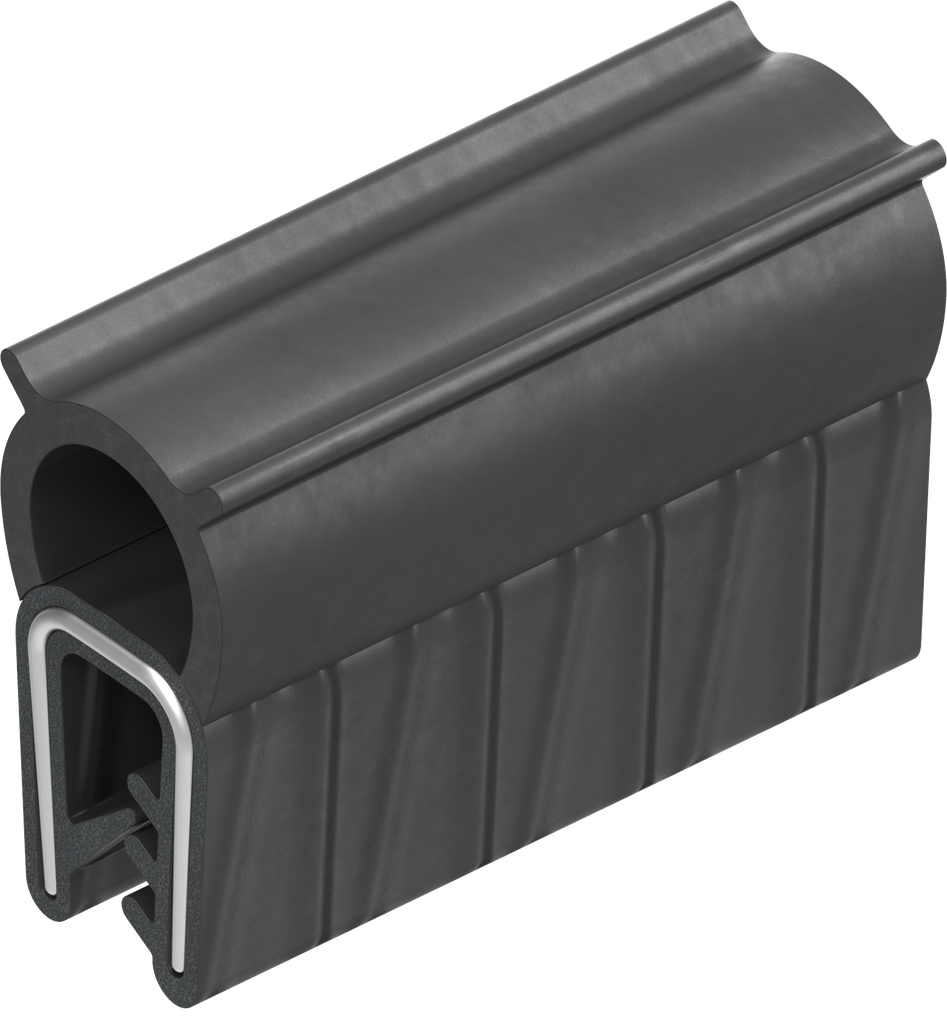

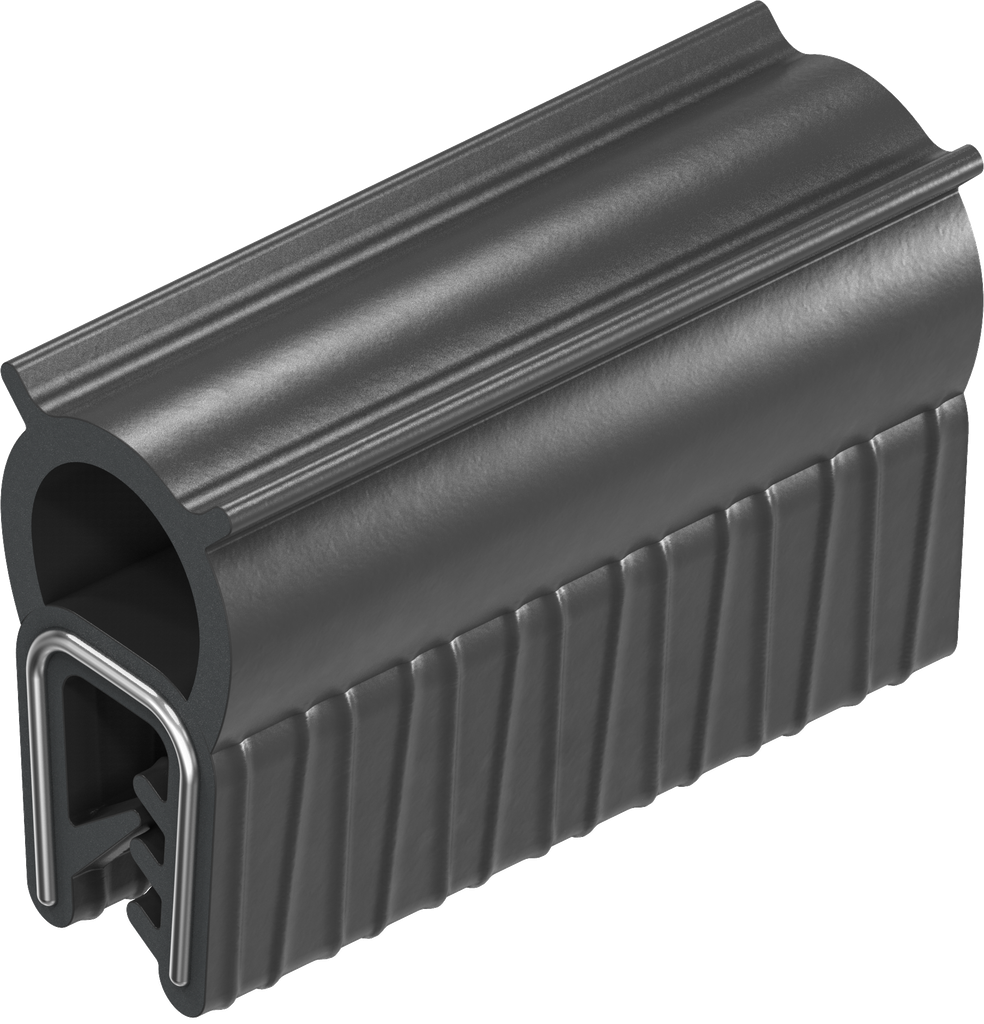

Sealing profile, self-clamping, Foam rubber NBR; clamping profile NBR 60 ± 5 Shore A black; 1011-15

https://www.emka.com/products/1011-15 https://www.emka.com/web/image/product.template/60672/image_1920?unique=59ae87d

    This combination does not exist.

    Contact Us
    Internal Reference: 1011-15
    Product Type: Seal
    Material: Foam rubber NBR; clamping profile NBR 60 ± 5 Shore A
    Program: 1011
    Surface: black
    Catalog sheet: 5A-130
    Seal element: Sealing balloon, top
    Seal Type: Clip-on profile self-clamping
    Spring Core: Steel spring core
    Clamping edge is or is up to: 3.5
    Terminal Edge Of: 1
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
