Sealing profile, self-clamping, Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A black
Sealing profile, self-clamping, Foam rubber EPDM; clamping profile EPDM 65 ± 5 Shore A black

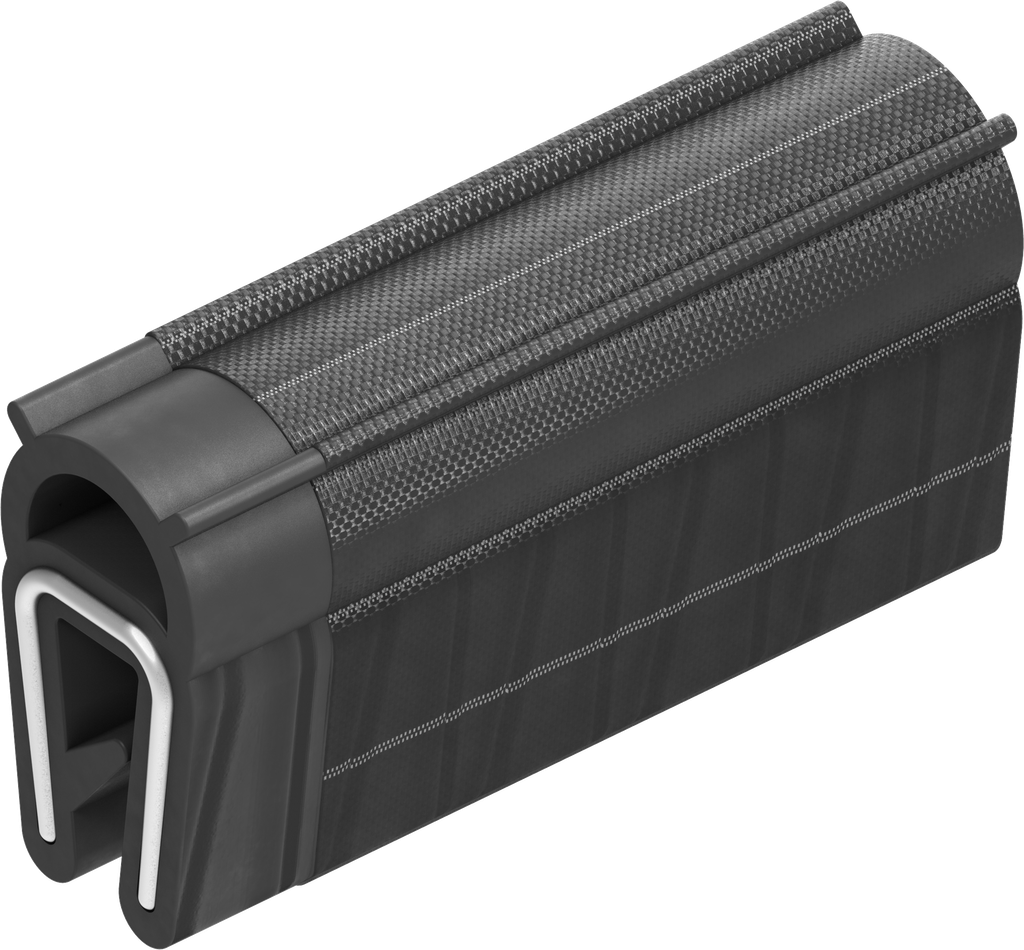

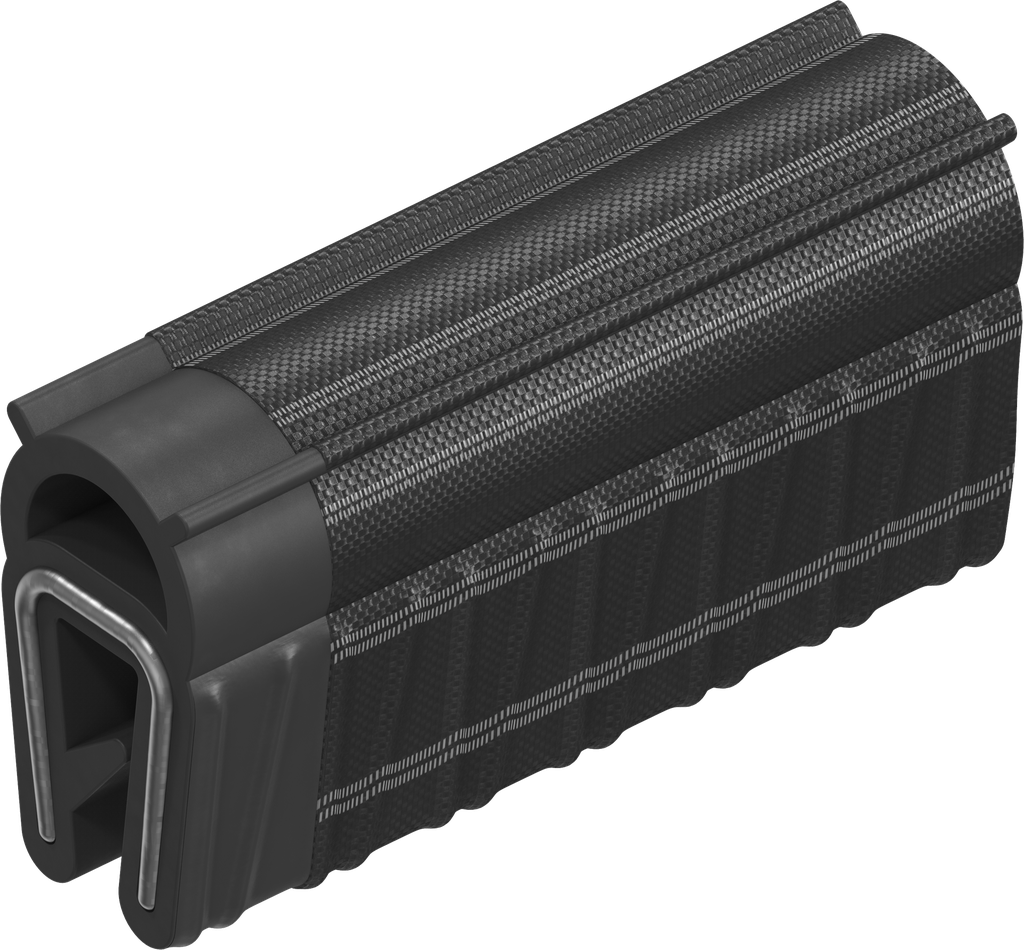

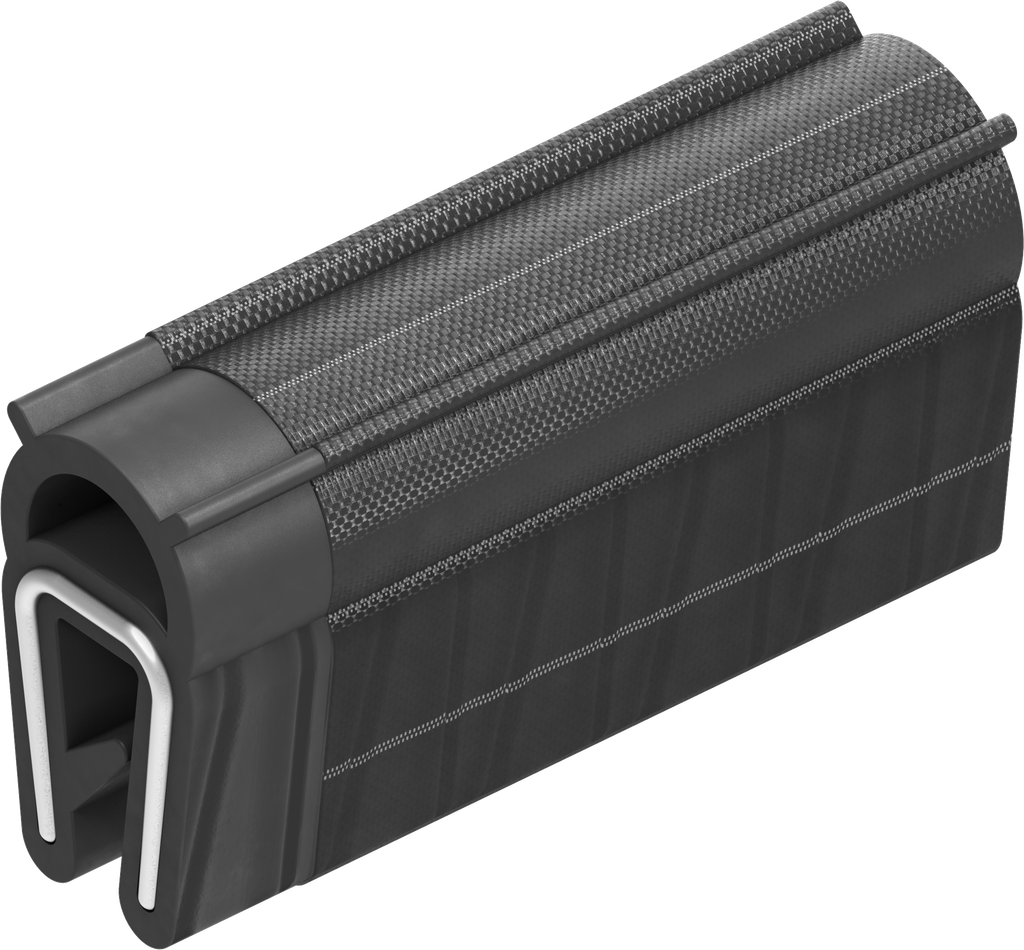

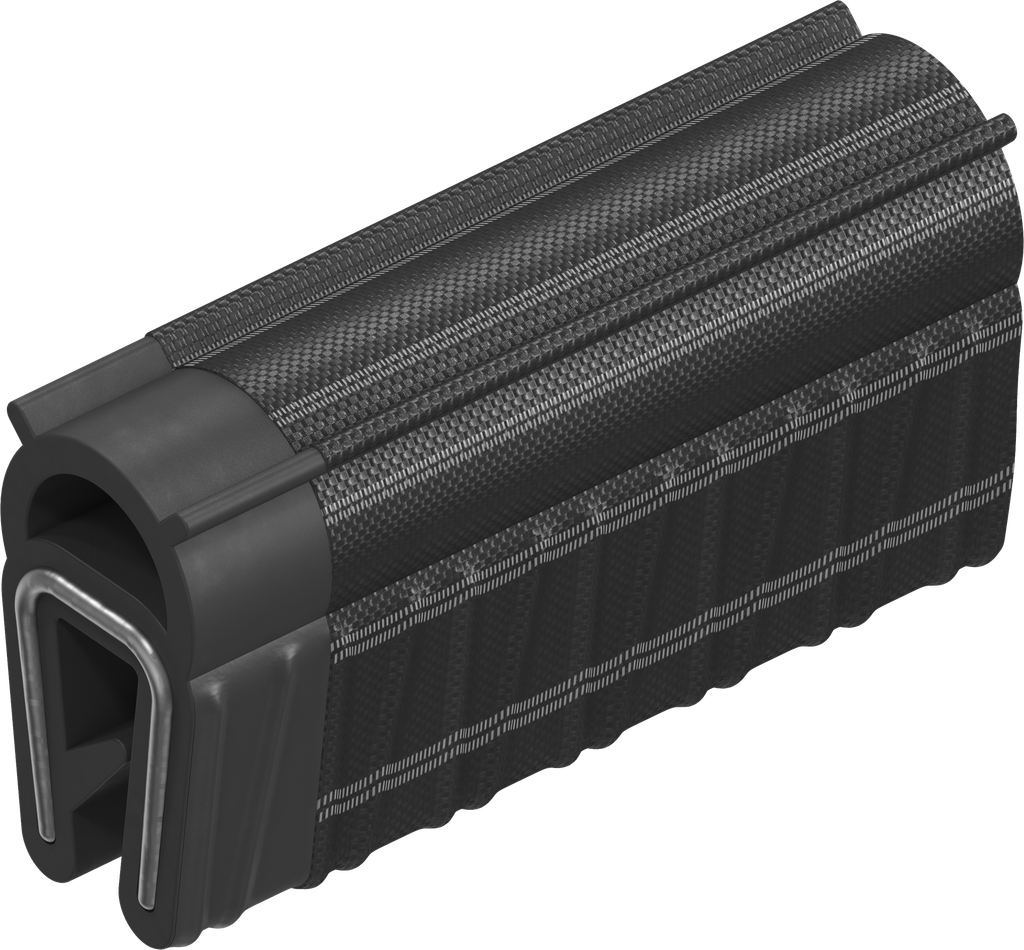

EMC sealing profile, self-clamping, Soft foam rubber EPDM with conductive overall coating; 1011-10-E
Product information:
Please provide a contact area for all EMC seals.For painted or powder-coated cabinets see: EMC conductive tape.
Internal Reference:
1011-10-E
Product Type:
Seal
Material:
Soft foam rubber EPDM with conductive overall coating
Program:
1011
Catalog sheet:
5A-210
Special industrial requirements:
EMC (electromagnetic compatibility)
Seal element:
Sealing balloon, top
Seal Type:
Clip-on profile self-clamping
Spring Core:
Steel spring core

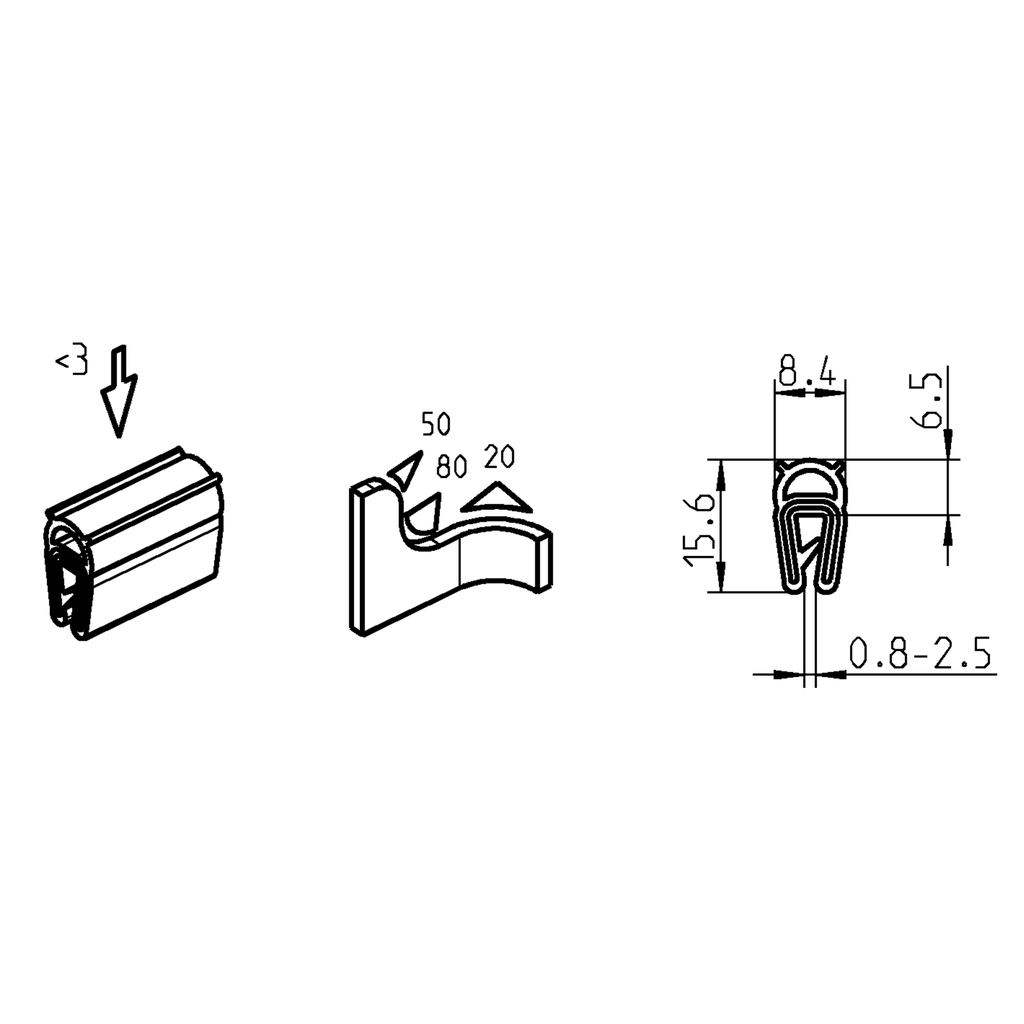

Clamping edge is or is up to:
2.5
Terminal Edge Of:
0.8
No Specifications
