Sealing profile, self-clamping, EPDM 45 ± 5 Shore A; clamping profile EPDM 60 ± 5 Shore A black
Sealing profile, self-clamping, EPDM 45 ± 5 Shore A; clamping profile EPDM 60 ± 5 Shore A black
EMC sealing profile, self-clamping, Soft foam rubber EPDM with conductive overall coating
EMC sealing profile, self-clamping, Soft foam rubber EPDM with conductive overall coating

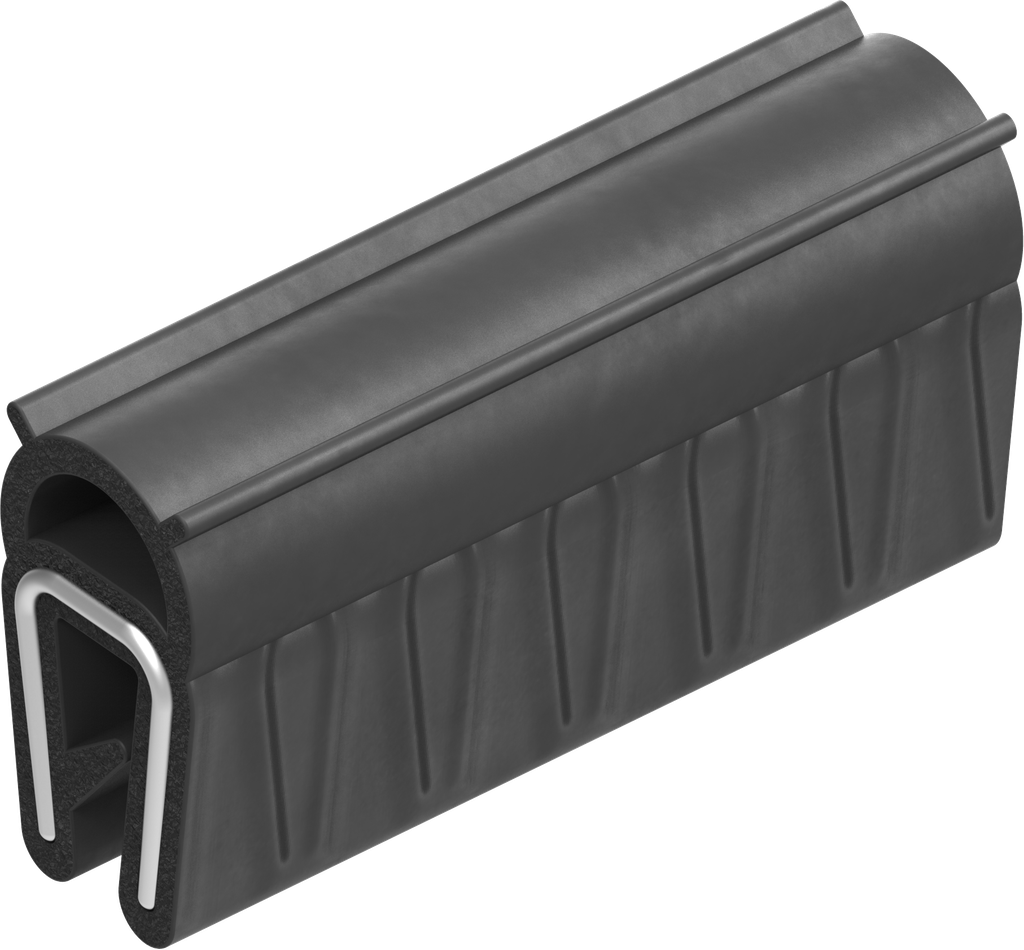

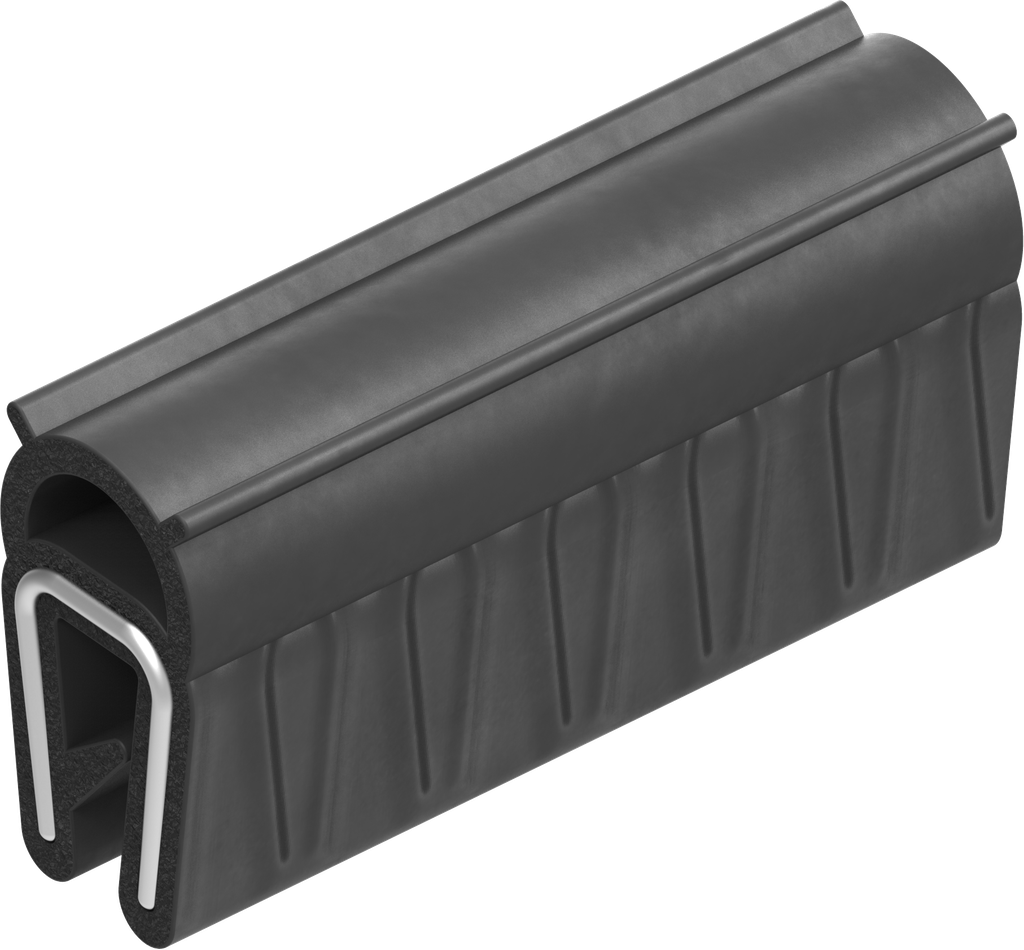

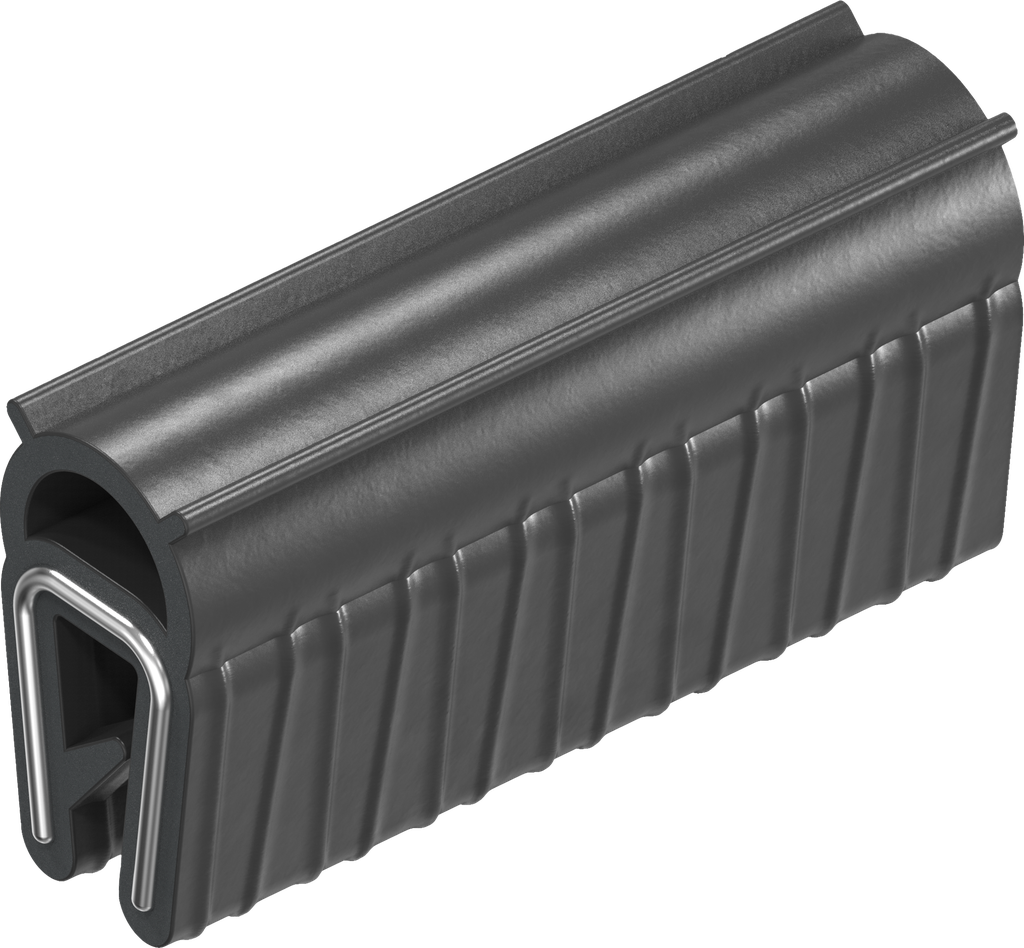

Sealing profile, self-clamping, Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A black; 1011-10

https://www.emka.com/products/1011-10 https://www.emka.com/web/image/product.template/60668/image_1920?unique=975f804

    This combination does not exist.

    Contact Us
    Internal Reference: 1011-10
    Product Type: Seal
    Material: Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A
    Program: 1011
    Surface: black
    Catalog sheet: 5A-130
    Seal element: Sealing balloon, top
    Seal Type: Clip-on profile self-clamping
    Spring Core: Steel spring core

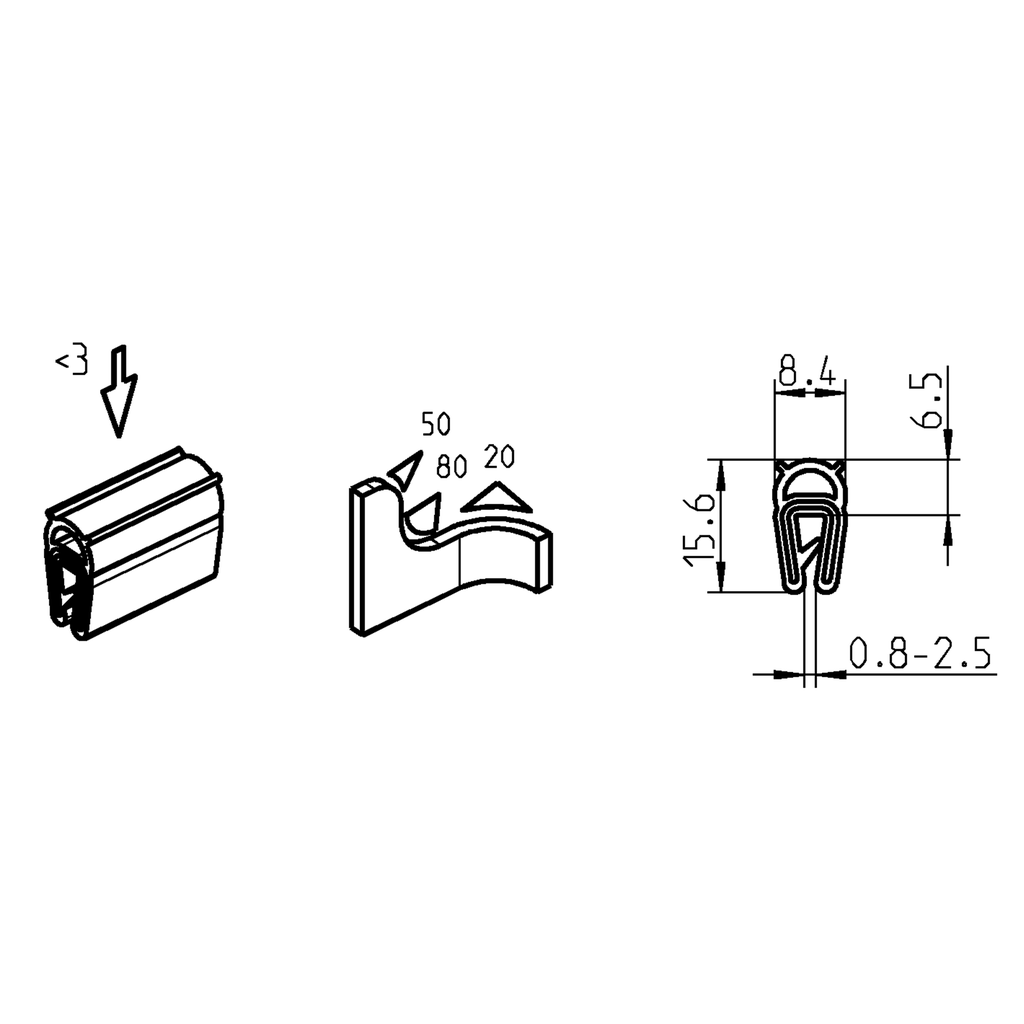

    Clamping edge is or is up to: 2.5
    Terminal Edge Of: 0.8
    UL standard: UL 50,UL 94-HB
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
