Edge protection self-clamping, PVC 70 ± 5 Shore A dark grey
Sealing profile, self-clamping, Foam rubber NBR; clamping profile NBR 60 ± 5 Shore A black

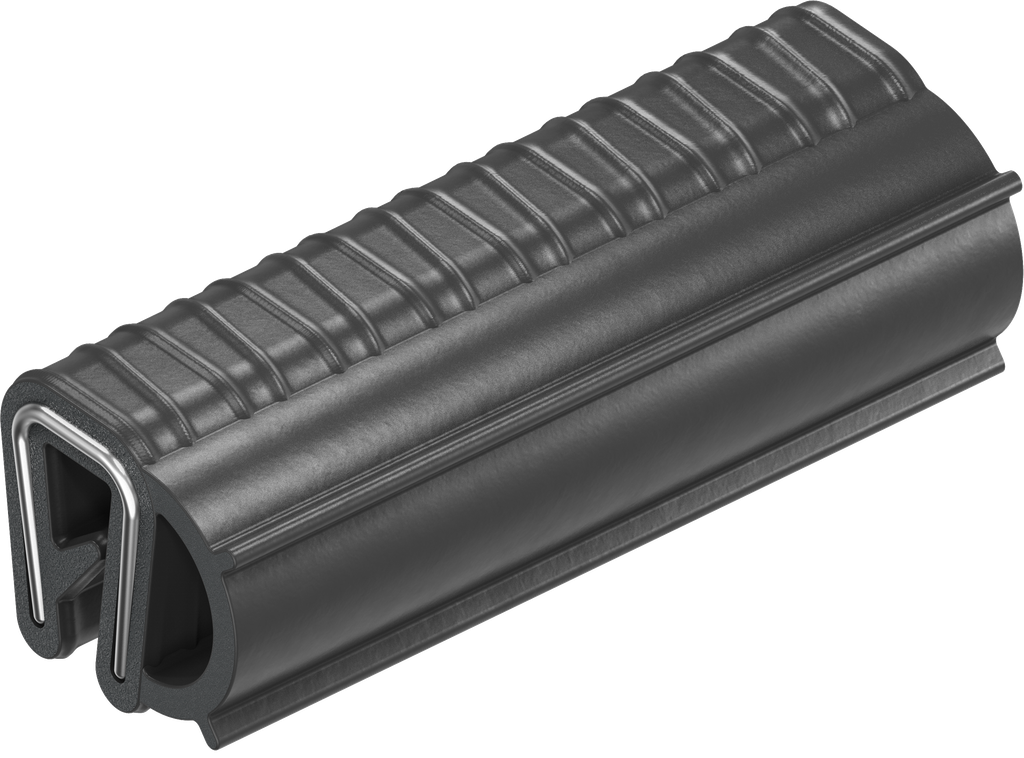

Sealing profile made of fire protection material, self-clamping, Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A black; 1011-09-FR01
Product Benefits:
- Flame resistant for more safety
- Significant cost savings compared to silicone seals
- Readily customised frames and rings according to customer specifications possible
- Profile shapes also individually according to customer specifications
- Reliable top quality from in-house production in Europe
Internal Reference:
1011-09-FR01
Product Type:
Seal
Material:
Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A
Program:
1011
Surface:
black
Catalog sheet:
5A-240
Special industrial requirements:
Fire protection standard
Seal element:
Sealing balloon, lateral
Seal Type:
Clip-on profile self-clamping
Spring Core:
Steel spring core

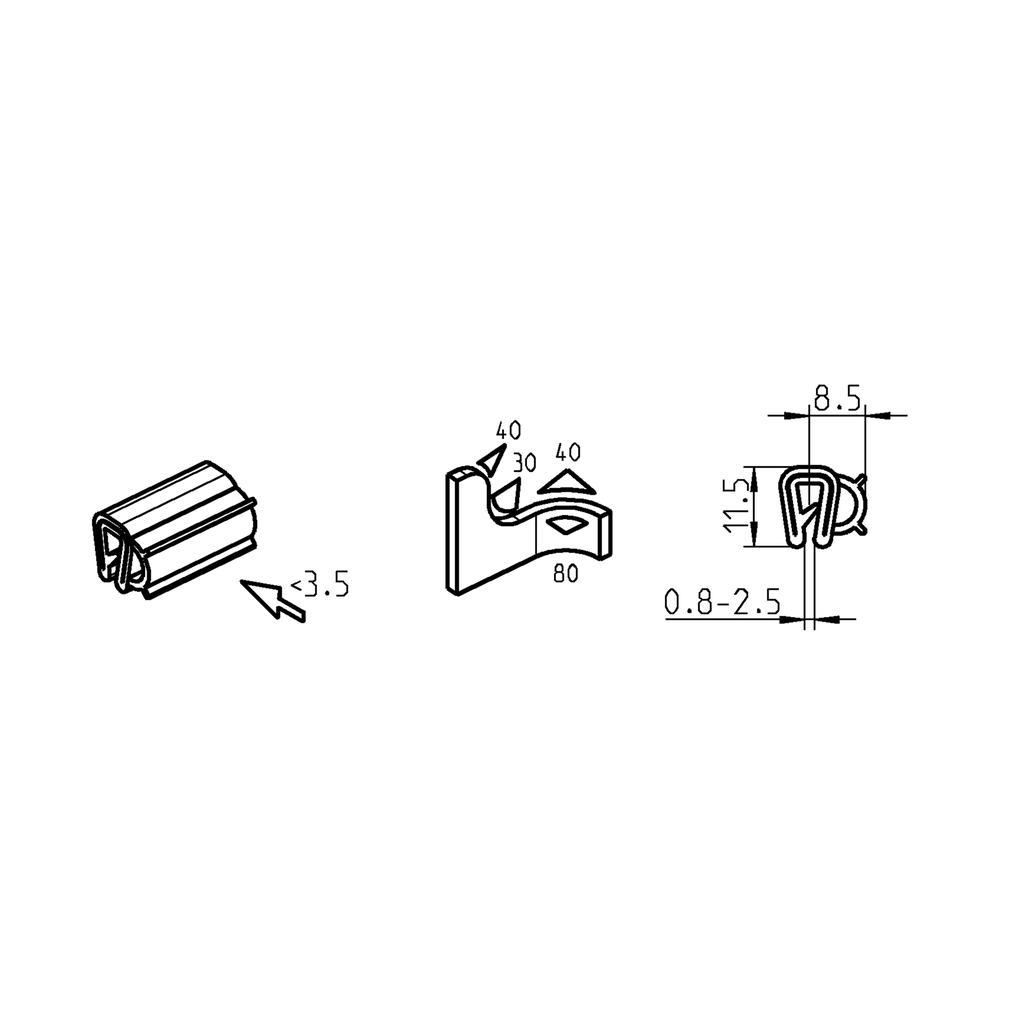

Clamping edge is or is up to:
2.5
Terminal Edge Of:
0.8
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
