Sealing profile, self-clamping, Foam rubber EPDM; clamping profile EPDM 65 ± 5 Shore A black
Sealing profile, self-clamping, Foam rubber EPDM; clamping profile EPDM 65 ± 5 Shore A black
Sealing profile, self-clamping, EPDM 45 ± 5 Shore A; clamping profile EPDM 60 ± 5 Shore A black
Sealing profile, self-clamping, EPDM 45 ± 5 Shore A; clamping profile EPDM 60 ± 5 Shore A black

EMC sealing profile, self-clamping, Soft foam rubber EPDM with conductive overall coating; 1011-09-E

https://www.emka.com/products/1011-09-e https://www.emka.com/web/image/product.template/60665/image_1920?unique=8e18b93

    This combination does not exist.

    Contact Us

    Product information:


    Please provide a contact area for all EMC seals.For painted or powder-coated cabinets see: EMC conductive tape.
    Internal Reference: 1011-09-E
    Product Type: Seal

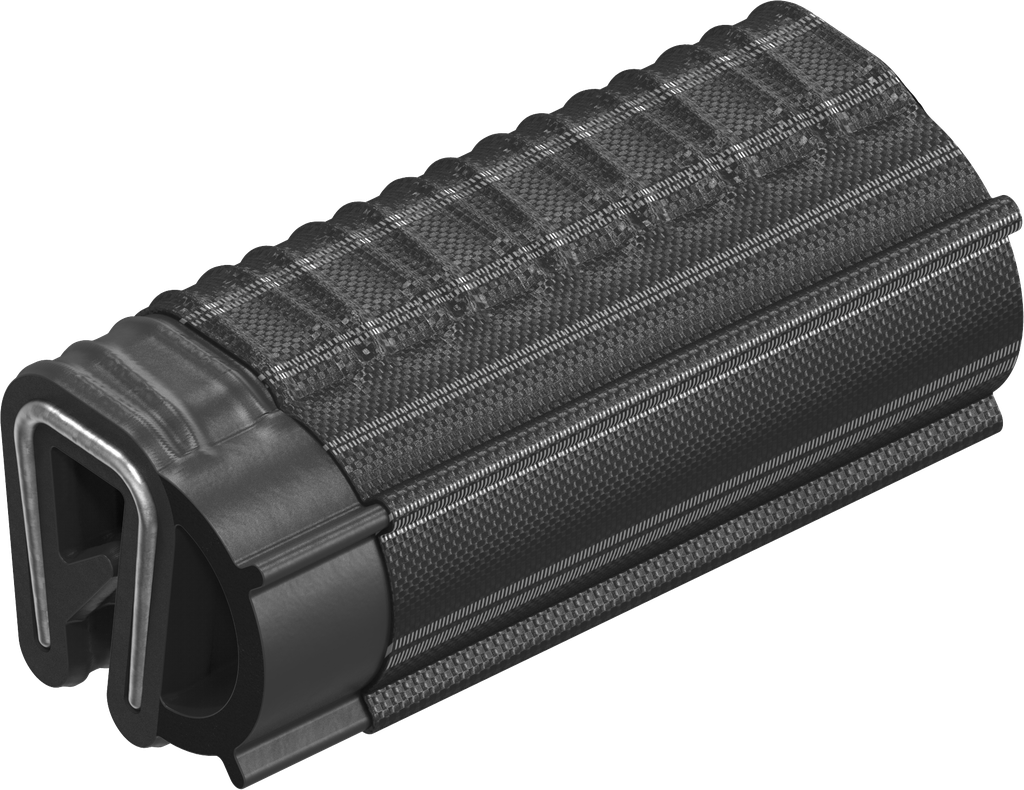

    Material: Soft foam rubber EPDM with conductive overall coating
    Program: 1011
    Catalog sheet: 5A-220
    Special industrial requirements: EMC (electromagnetic compatibility)
    Seal element: Sealing balloon, lateral
    Seal Type: Clip-on profile self-clamping
    Spring Core: Steel spring core

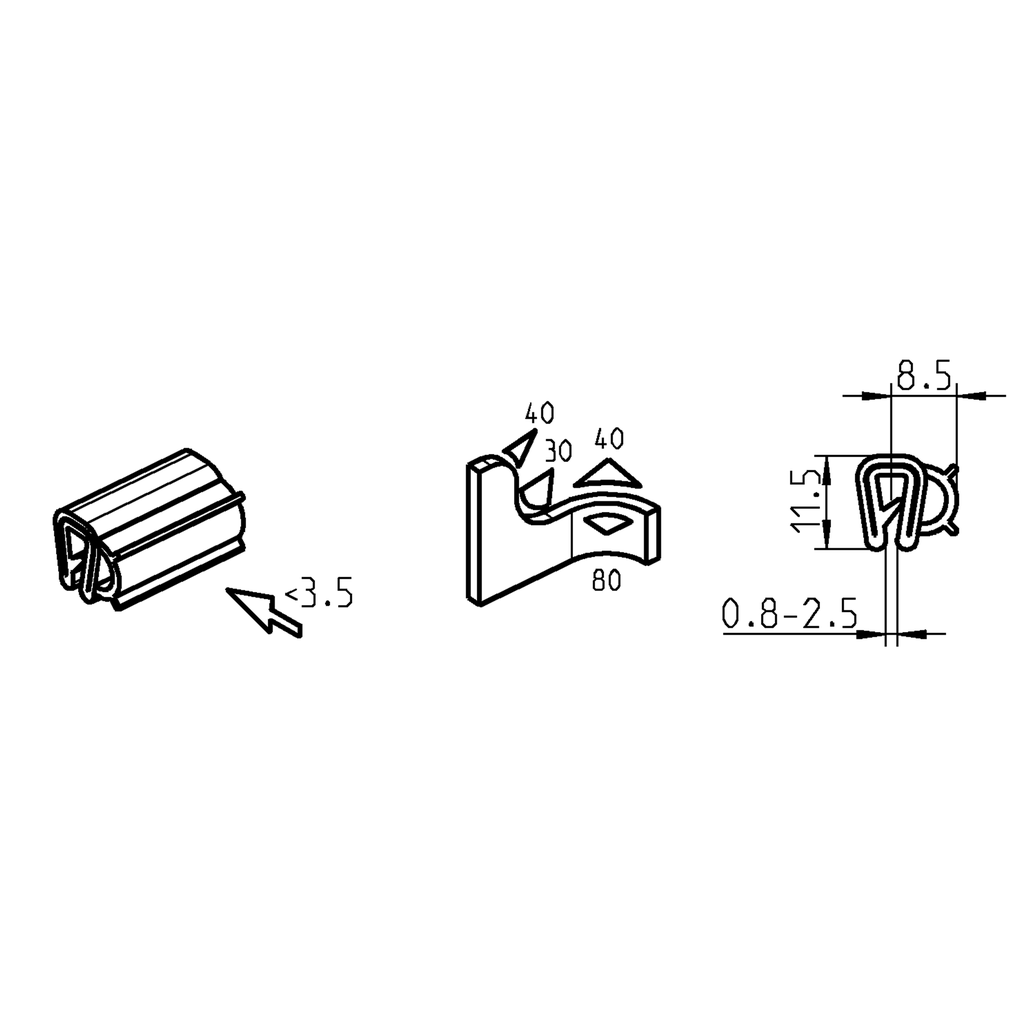

    Clamping edge is or is up to: 2.5
    Terminal Edge Of: 1
    No Specifications
    View All Products

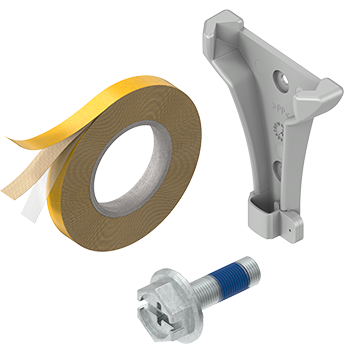

    Accessories general
    Here you can find the product data sheets and CAD files of this product
