Compression latch hexagon male SW 10, right version, Stainless steel AISI 316
Sealing profile made of fire protection material, self-clamping, Foam rubber EPDM; clamping profile EPDM 60 ± 5 Shore A black

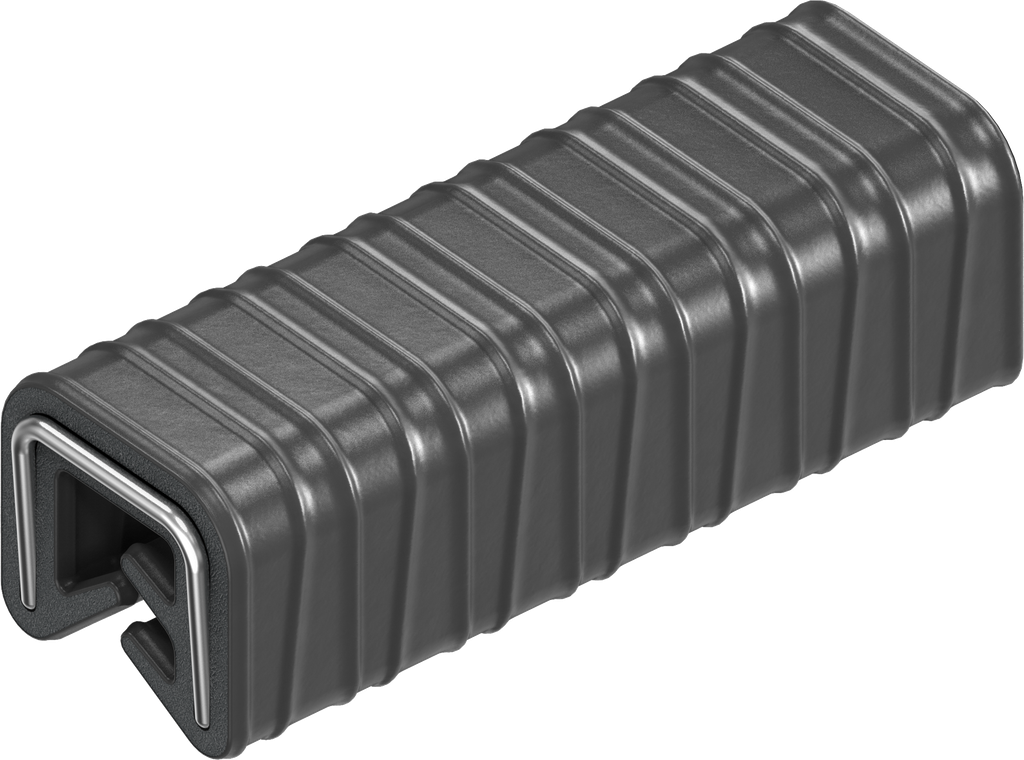

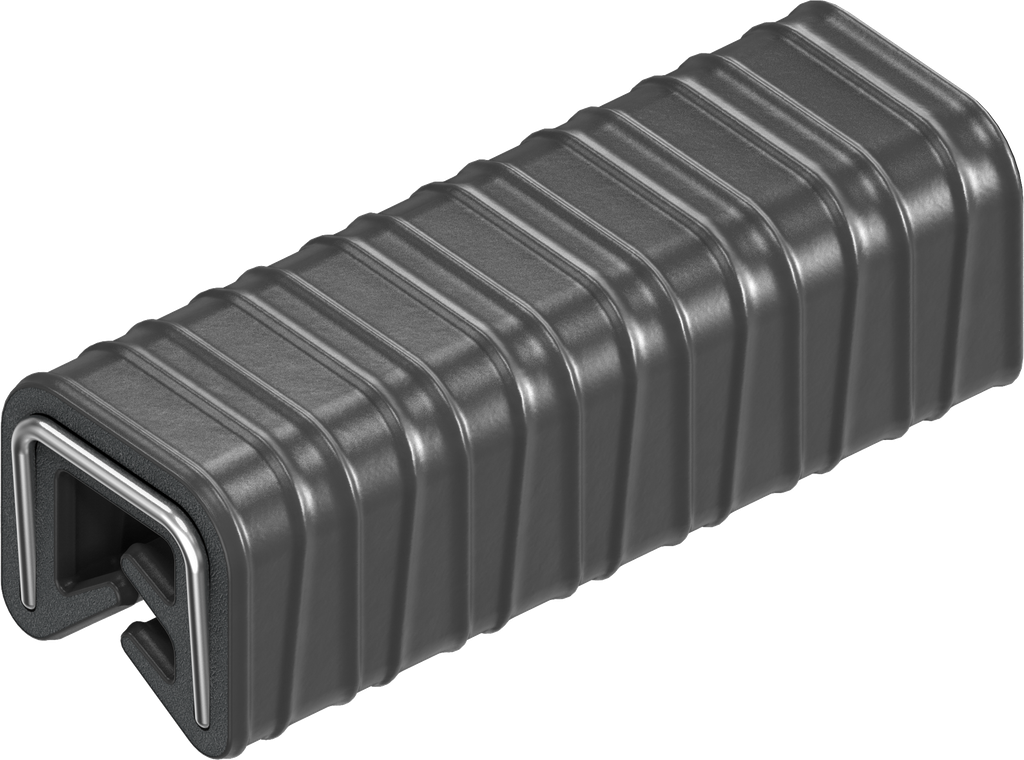

Edge protection made of fire protection material, self-clamping, EPDM 60 ± 5 Shore A black; 1010-S14-01
Product information:
50 m coil
Internal Reference:
1010-S14-01
Standards:
DIN EN 45545-2 (fire protection), ASTM C1166 (fire protection), ASTM E662 (fire protection), BSS 7239 (fire protection), ASTM E1354 (fire protection)
Barcode:
1010-s00014-0000001
Product Type:
Edge protection
Material:
EPDM 60 ± 5 Shore A
Program:
1010
Surface:
black
Special industrial requirements:
Fire protection standard
Seal Type:
Edge protection
Spring Core:
Steel spring core
Clamping edge is or is up to:
3
Terminal Edge Of:
1
Delivery Length:
50 m
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
