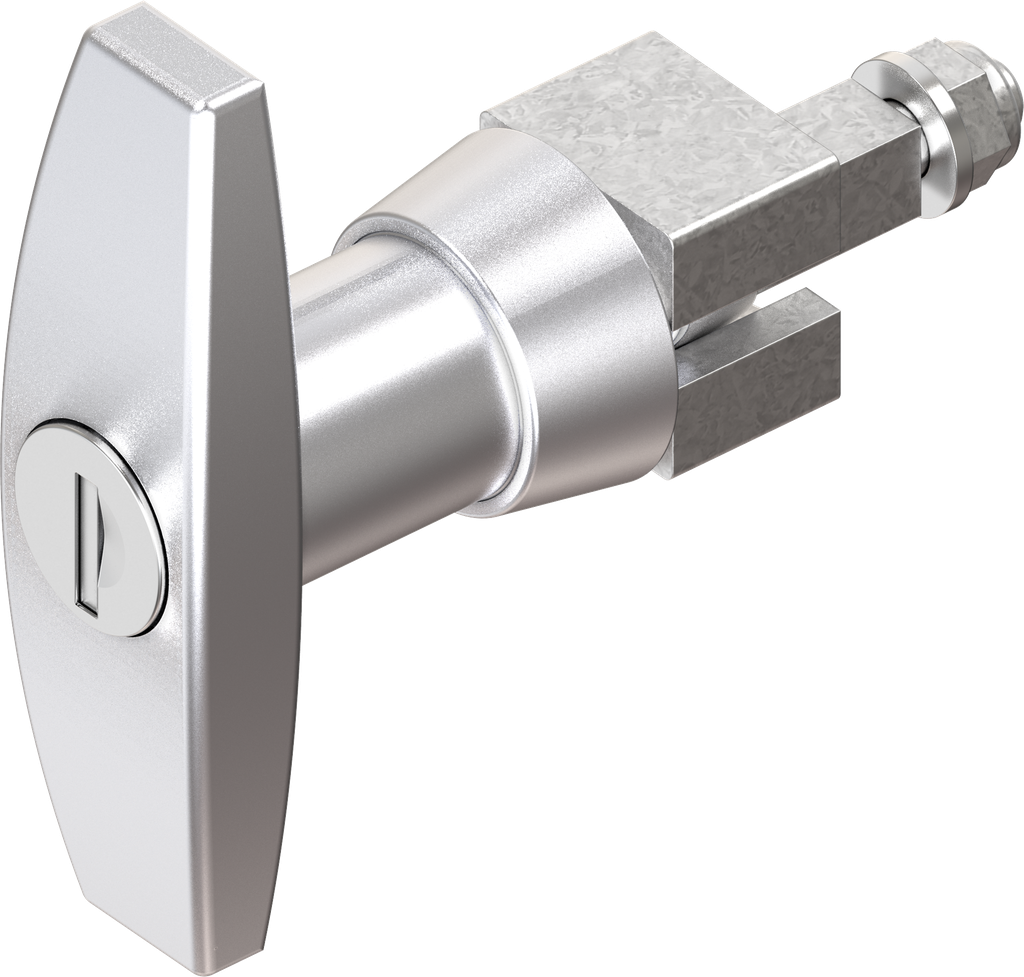

T-handle, keyed EK 333, Zinc die chrome-plated; 1005-U5

https://www.emka.com/products/1005-u5 https://www.emka.com/web/image/product.template/60598/image_1920?unique=7fe8353

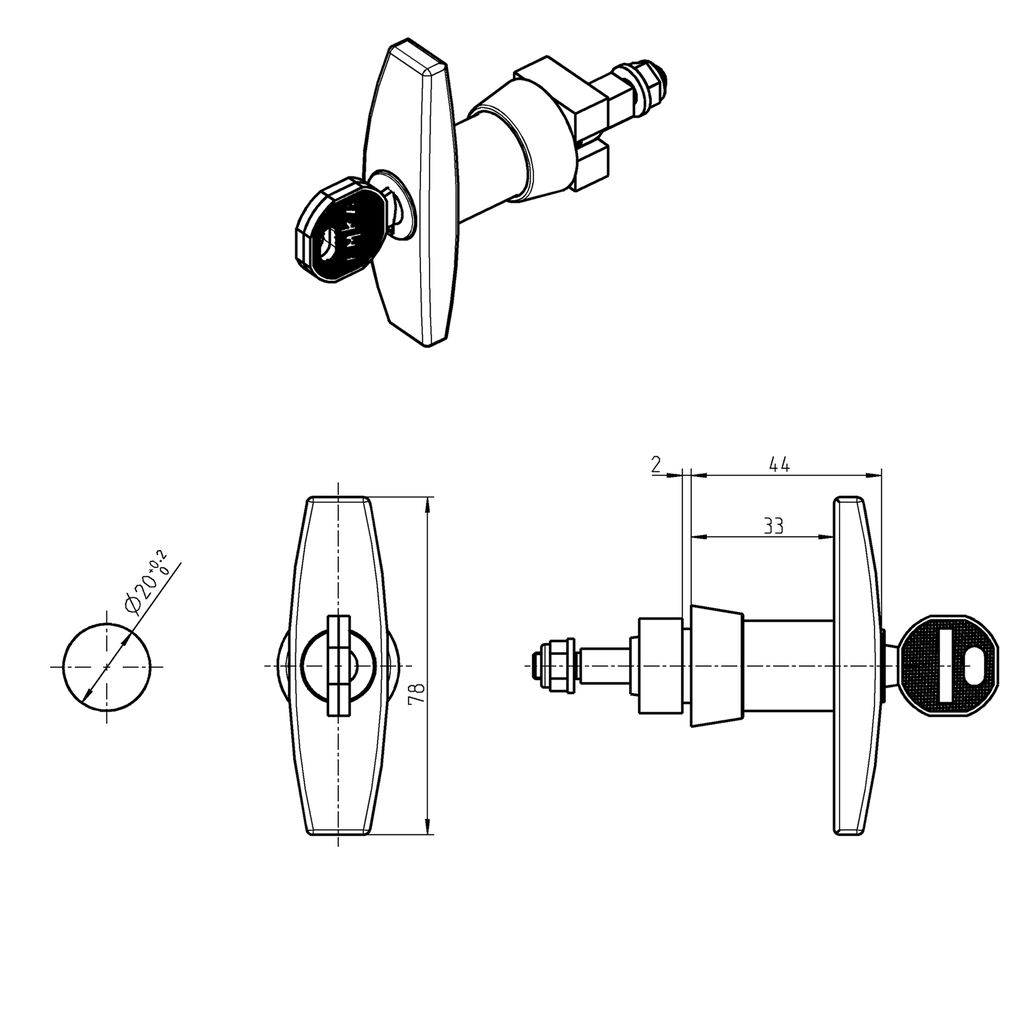

for weld-on version, A = 26 mm

    This combination does not exist.

    Left Right
    Contact Us
    Internal Reference: 1005-U5
    Product Type: Quarter turn
    Program: 1005
    Catalog sheet: 2B-160
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Dimention A: A 26
    Housing Head Shape: Round
    Handle Art: T-handle
    Round Cylinder Type: EMKA EK, keyed EK 333
    Locking set: Round cylinder
    Door Version : Left,Right
    Quarter turn types: Quarter turn with handle
    No Specifications
    View All Products
    Quarter turn accessories
    Rod control accessories
    Rod control
    Keys
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 2B-160
    Product data sheet
    CAD file | 1005-U5_igs
    CAD file | 1005-U5_stp
