Key for insert railway with outer rack, Zinc die black powder-coated
Key for insert railway with outer rack, Zinc die black powder-coated
T-handle, keyed different, Zinc die chrome-plated
T-handle, keyed different, Zinc die chrome-plated

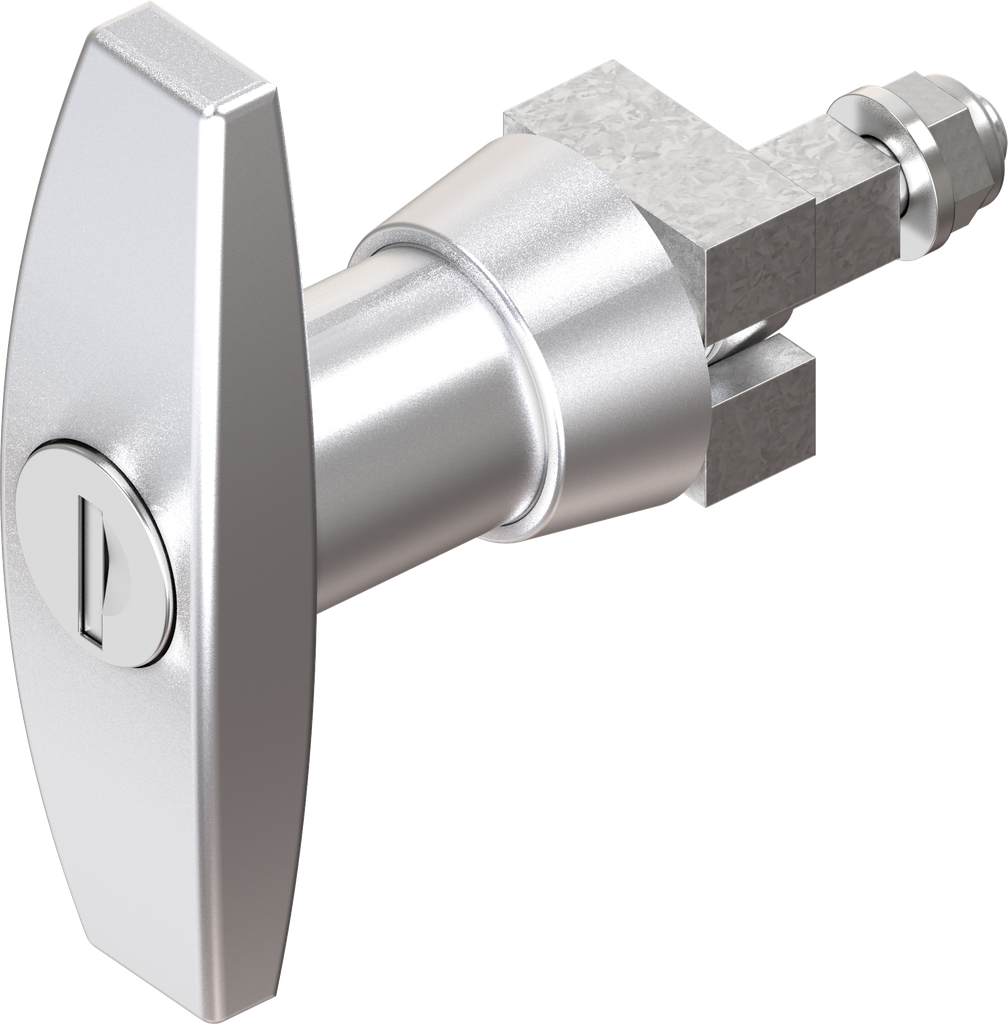

T-handle, keyed different, Zinc die chrome-plated; 1005-U3

https://www.emka.com/products/1005-u3 https://www.emka.com/web/image/product.template/207080/image_1920?unique=7fe8353

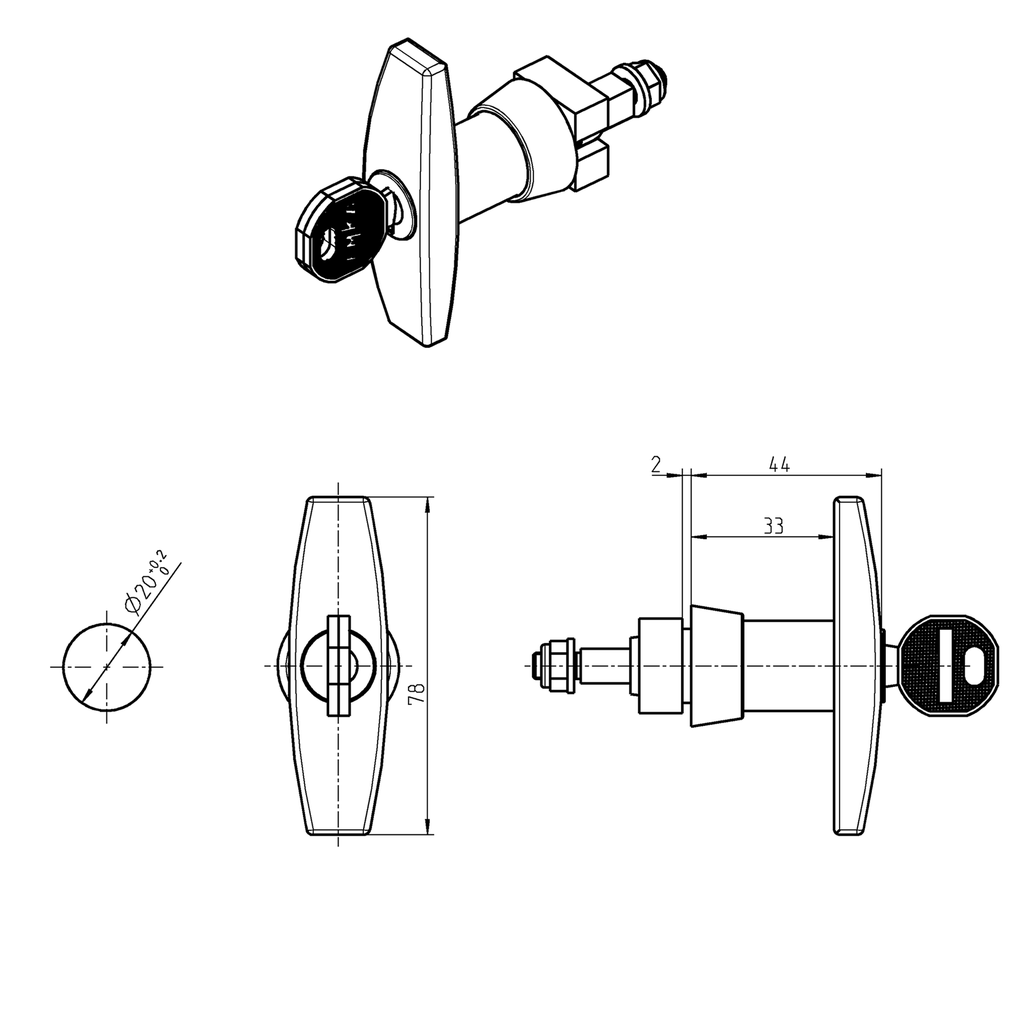

for weld-on version, A = 20 mm

    This combination does not exist.

    Left Right
    Contact Us
    Internal Reference: 1005-U3
    Product Type: Quarter turn
    Program: 1005
    Catalog sheet: 2B-160
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Dimention A: A 20
    Fixing type of housing : weld-on
    Housing Head Shape: Round
    Handle Art: T-handle
    Round Cylinder Type: EMKA EK, differently keyed
    Locking set: Round cylinder
    Door Version : Left,Right
    Quarter turn types: Quarter turn with handle
    No Specifications
    View All Products
    Quarter turn accessories
    Rod control accessories
    Rod control
    Keys
    Here you can find the product data sheets and CAD files of this product
