Compression latch version railway with outer rack, right version, Stainless steel AISI 316
4-Lip profile made of fire protection material, Silicon solid material 50 ± 5 Shore A blue black

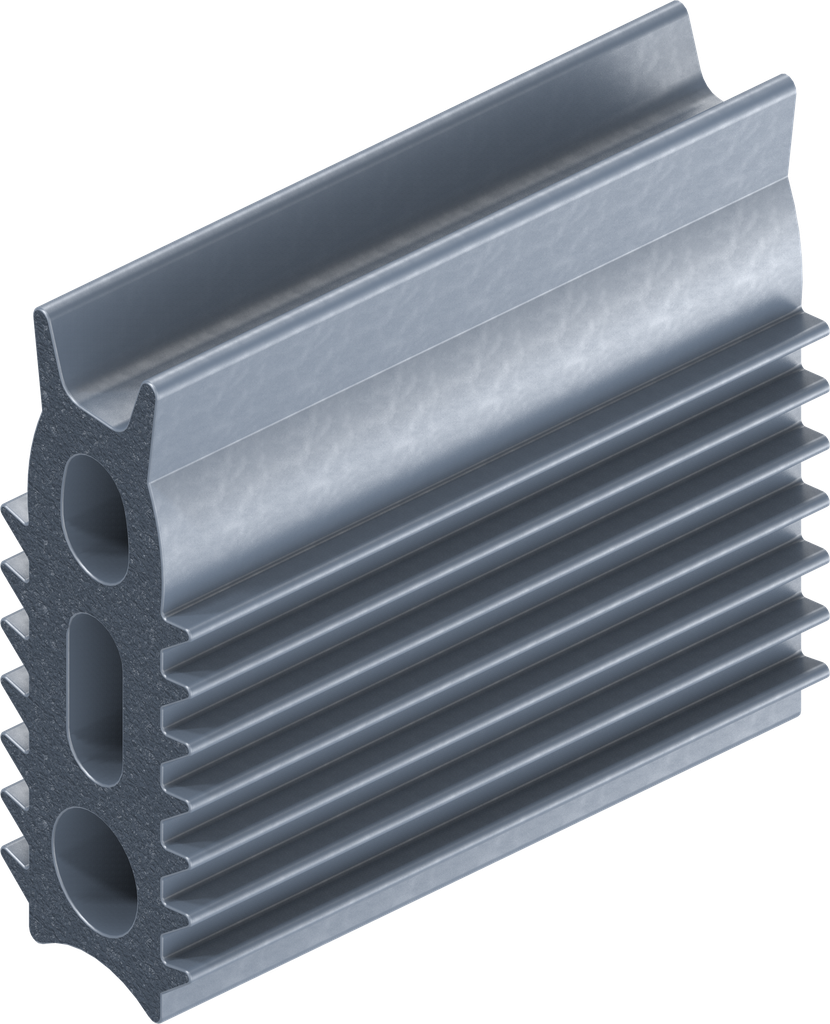

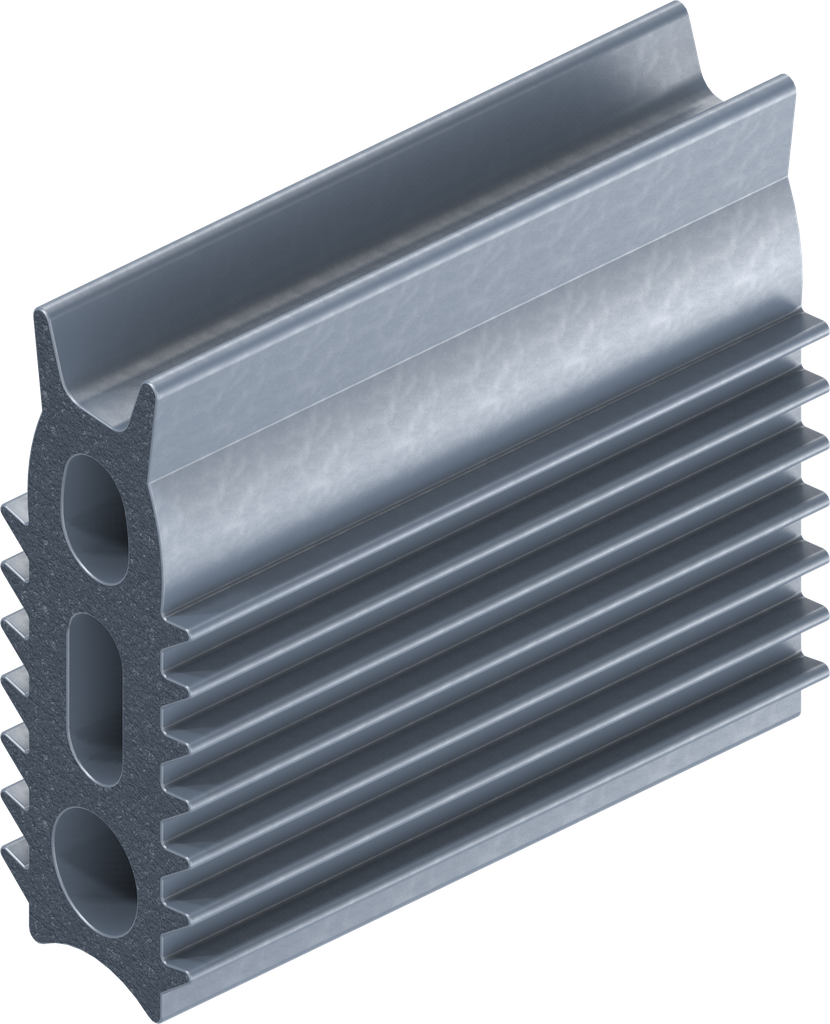

Sealing profile made of fire protection material, Silicon solid material 50 ± 5 Shore A blue black; 1003-S29-BF
Internal Reference:
1003-S29-BF
Standards:
DIN EN 45545-2 (fire protection)
Barcode:
1003-S00029-00000BF
Product Type:
Seal
Material:
Silicon solid material 50 ± 5 Shore A
Program:
1003
Surface:
blue black
Special industrial requirements:
Fire protection standard
Seal element:
Sealing balloon, top
Seal Type:
Insertable profile

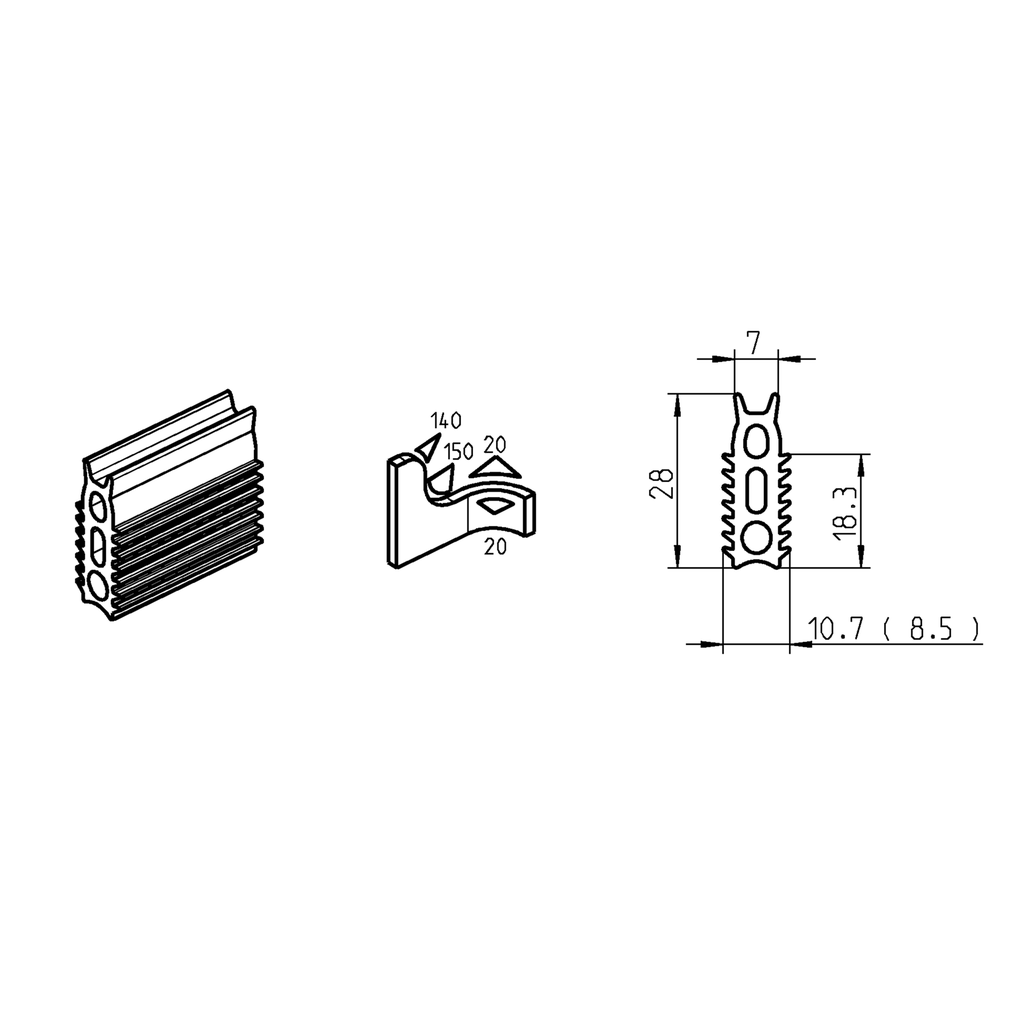

Clamping Channel:
8.5
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
