4-Lip profile H = 24.5 mm, Foam rubber EPDM 25 ± 5 Shore A black
4-Lip profile H = 24.5 mm, Foam rubber EPDM 25 ± 5 Shore A black
Sealing profile made of fire protection material, Silicone foam blue black
Sealing profile made of fire protection material, Silicone foam blue black

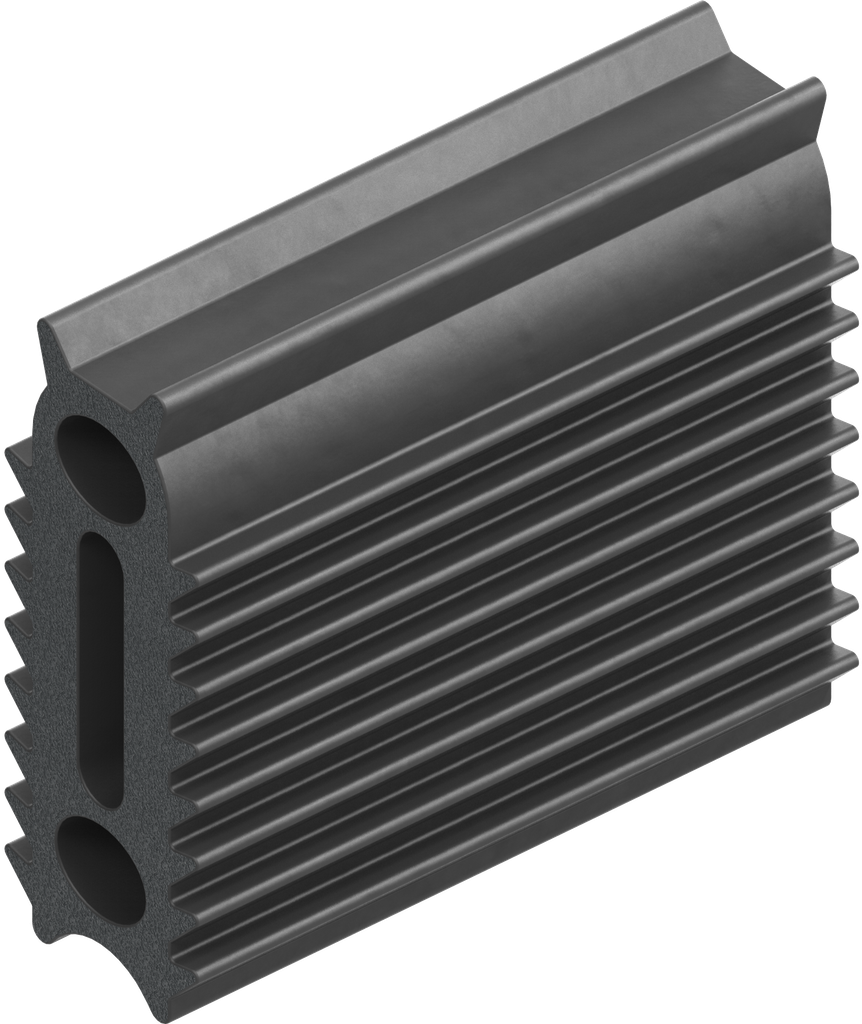

4-Lip profile H = 26.5 mm, Foam rubber EPDM 25 ± 5 Shore A black; 1003-24-N

https://www.emka.com/products/1003-24-n https://www.emka.com/web/image/product.template/60542/image_1920?unique=ec00a31

    This combination does not exist.

    Contact Us
    Internal Reference: 1003-24-N
    Product Type: Seal
    Material: Foam rubber EPDM 25 ± 5 Shore A
    Program: 1003
    Surface: black
    Catalog sheet: 5A-190
    Dimension AH: 24 mm
    Seal element: Sealing balloon, top
    Seal Type: Insertable profile
    Dimension H: 26.50 mm
    Clamping Channel: 8.5
    UL standard: UL 50,UL 94-HB
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
