4-Lip profile H = 22.5 mm made of fire protection material, EPDM black
4-Lip profile H = 22.5 mm made of fire protection material, EPDM black
Key for insert Eastern Europe Ø 13 half-round, Zinc die black powder-coated
Key for insert Eastern Europe Ø 13 half-round, Zinc die black powder-coated

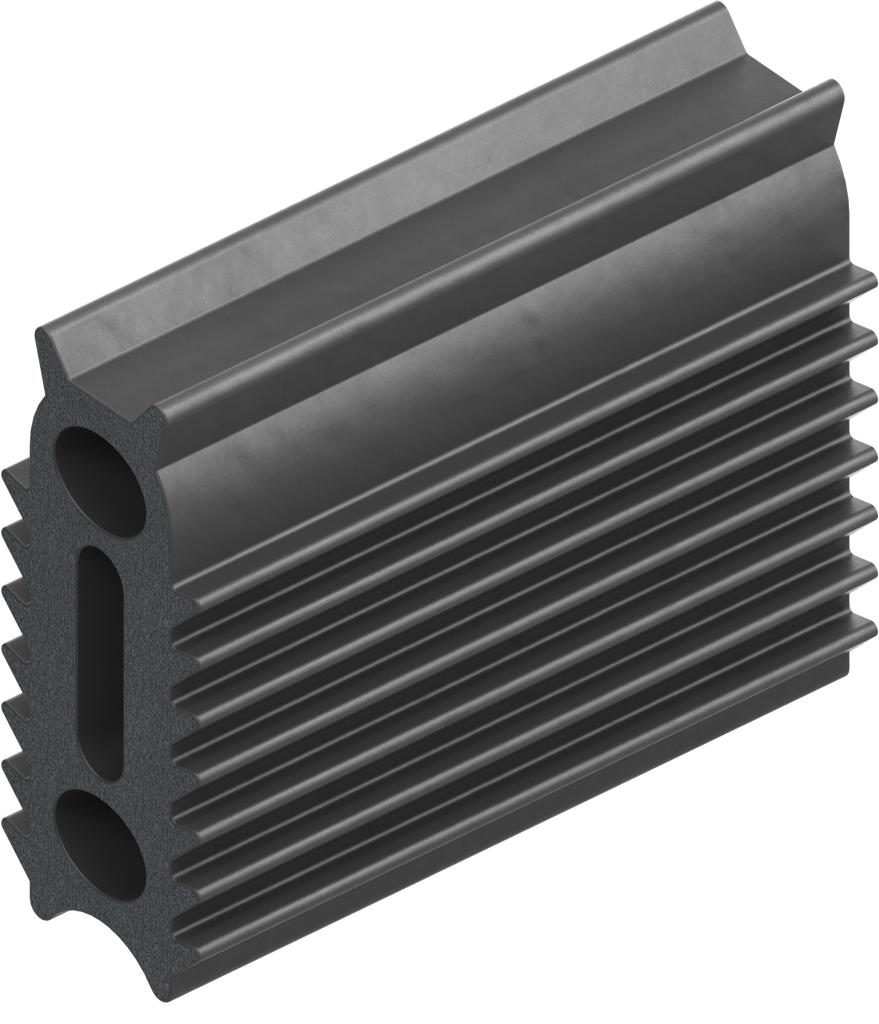

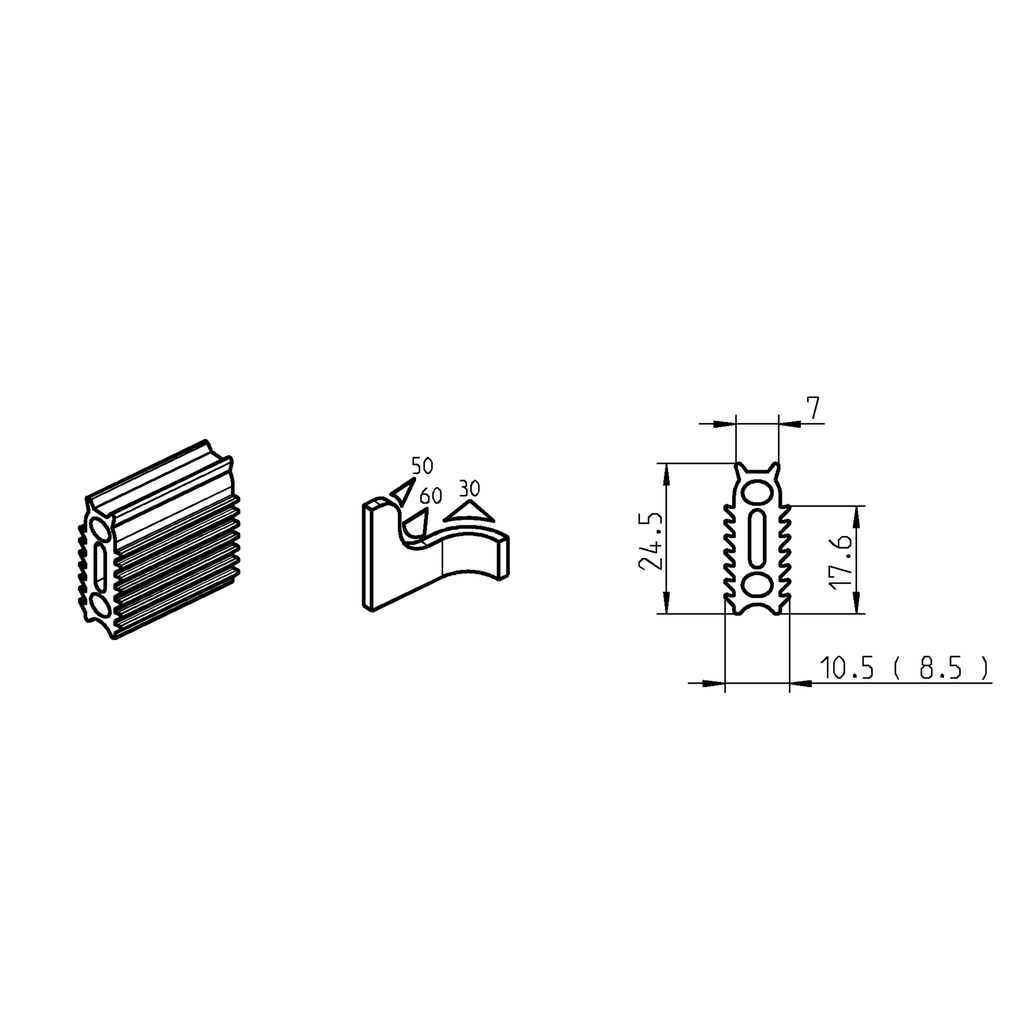

4-Lip profile H = 24.5 mm made of fire protection material, EPDM black; 1003-15-FR01

https://www.emka.com/products/1003-15-fr01 https://www.emka.com/web/image/product.template/206598/image_1920?unique=0477d53

    This combination does not exist.

    Contact Us
    Internal Reference: 1003-15-FR01
    Product Type: Seal
    Material: EPDM
    Program: 1003
    Surface: black
    Special industrial requirements: Fire protection standard
    Seal element: Sealing balloon, top
    Seal Type: Insertable profile
    Clamping Channel: 8.5
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Product data sheet
    CAD file | 1003-15-FR01_igs
    CAD file | 1003-15-FR01_stp
