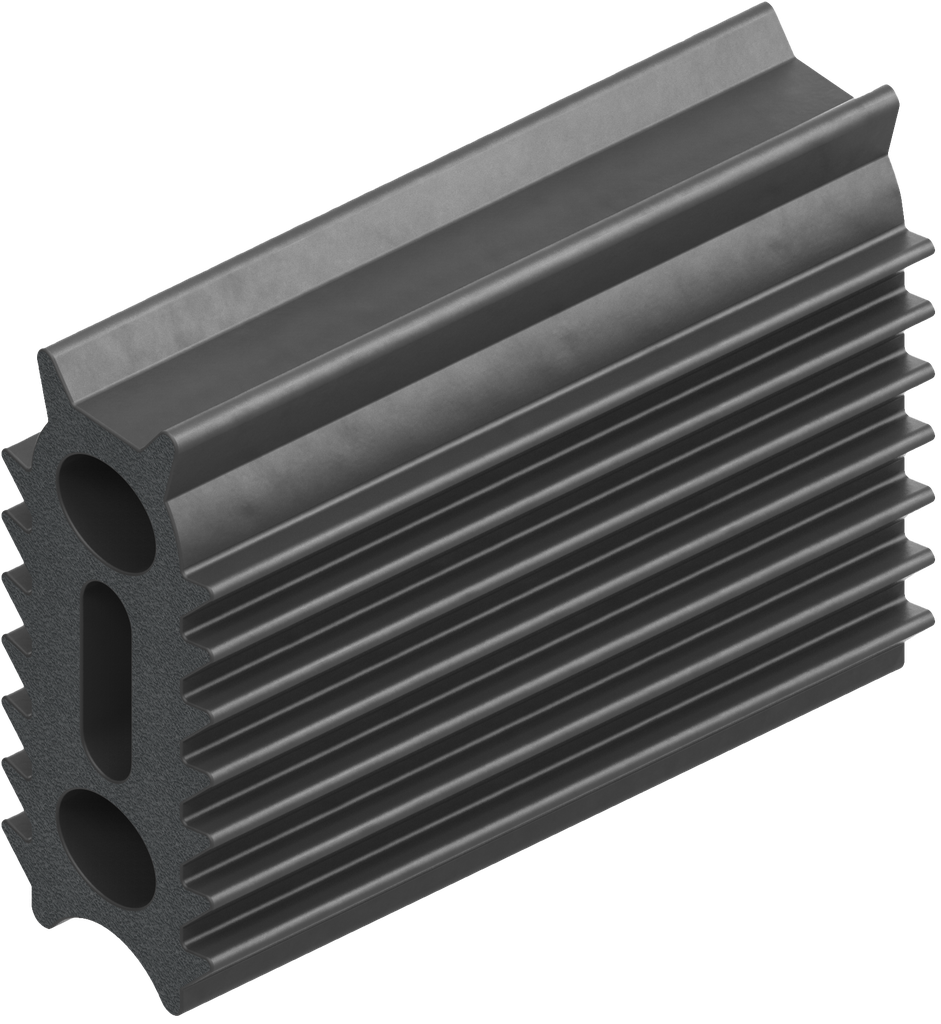

4-Lip profile H = 22.5 mm made of fire protection material, EPDM black; 1003-13-FR01

https://www.emka.com/products/1003-13-fr01 https://www.emka.com/web/image/product.template/206596/image_1920?unique=2fb2ee5

    This combination does not exist.

    Internal Reference: 1003-13-FR01
    Standards: DIN EN 45545-2 (fire protection), ASTM C1166 (fire protection), ASTM E662 (fire protection), BSS 7239 (fire protection), ASTM E1354 (fire protection)
    Barcode: 1003-000013-000FR01
    Product Type: Seal
    Material: EPDM
    Program: 1003
    Surface: black
    Dimension AH: 20 mm
    Special industrial requirements: Fire protection standard
    Seal element: Sealing balloon, top
    Seal Type: Insertable profile
    Dimension H: 22.50 mm
    Clamping Channel: 8.5
    No Specifications
    No Matching Products

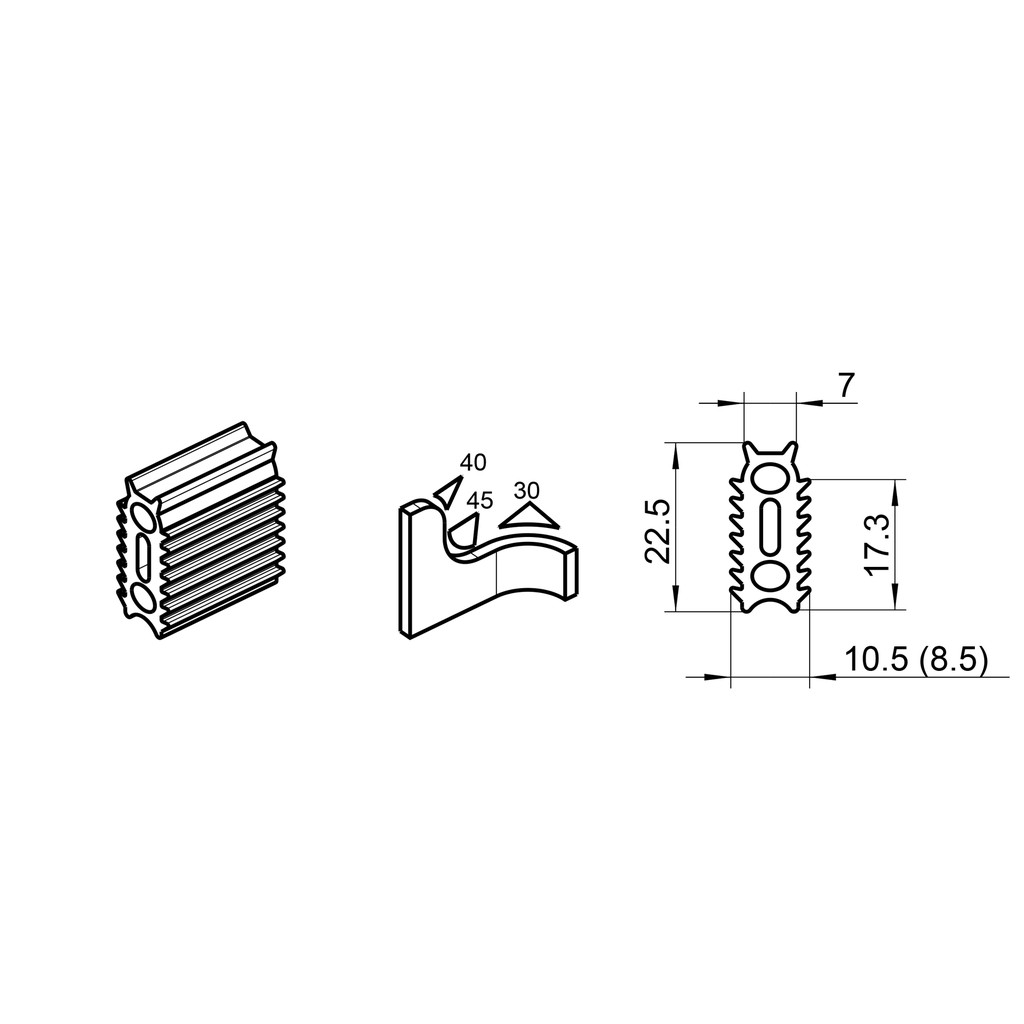

    Here you can find the product data sheets and CAD files of this product
