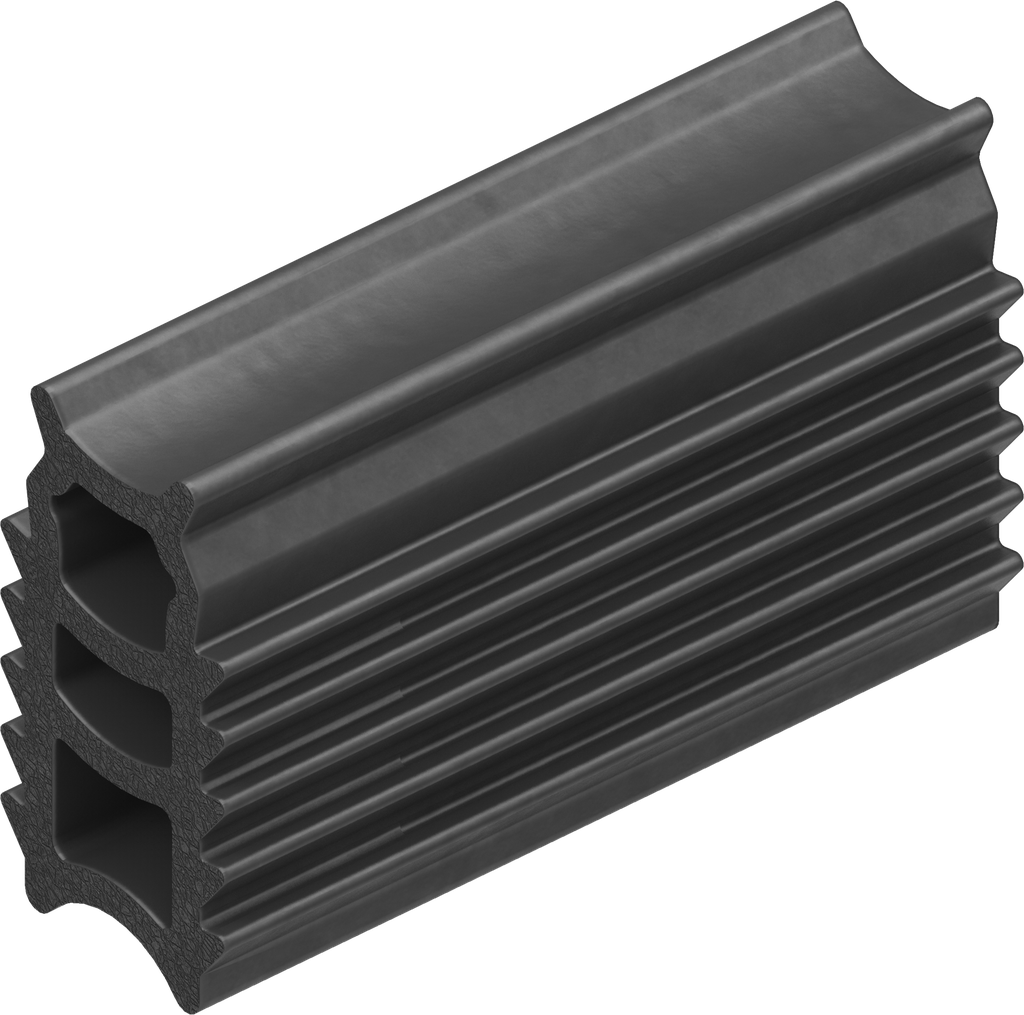

4-Lip profile H = 18.5 mm, EPDM 45 ± 5 Shore A black; 1003-11-N9

https://www.emka.com/products/1003-11-n9 https://www.emka.com/web/image/product.template/76461/image_1920?unique=7d41b76

According to VDI 6022


    This combination does not exist.



    Product information:

    Information on VDI guideline 6022: Hygienic standards for ventilation and air-conditioning systems

    In guideline 6022 issued by "Verein Deutscher Ingenieure" (VDI) – Association of German Engineers – you can find a description of the minimum hygienic standards for ventilation and air-conditioning systems. The guideline formulates requirements that have to be observed for planning, installation, operation and maintenance of ventilation and air-conditioning systems in order to guarantee absolute faultless hygienic condition of the systems as well as the outside air inlets for the air-conditioned premises.

    VDI guideline 6022 is valid for the domain of builders, architects, engineers, ventilation planners, manufacturers of air-conditioning systems, machine builders, authorising bodies, operators, service companies, stakeholders of room users (e.g. staff or works councils as well as company physicians and public health officers).

    In line with the latest technical development and scientific knowledge, this guideline is intended to guarantee a precise operation and condition of ventilation and air-conditioning systems by means of preventive technical provisions.

    Internal Reference: 1003-11-N9
    Product Type: Seal
    Material: EPDM 45 ± 5 Shore A
    Program: 1003
    Surface: black

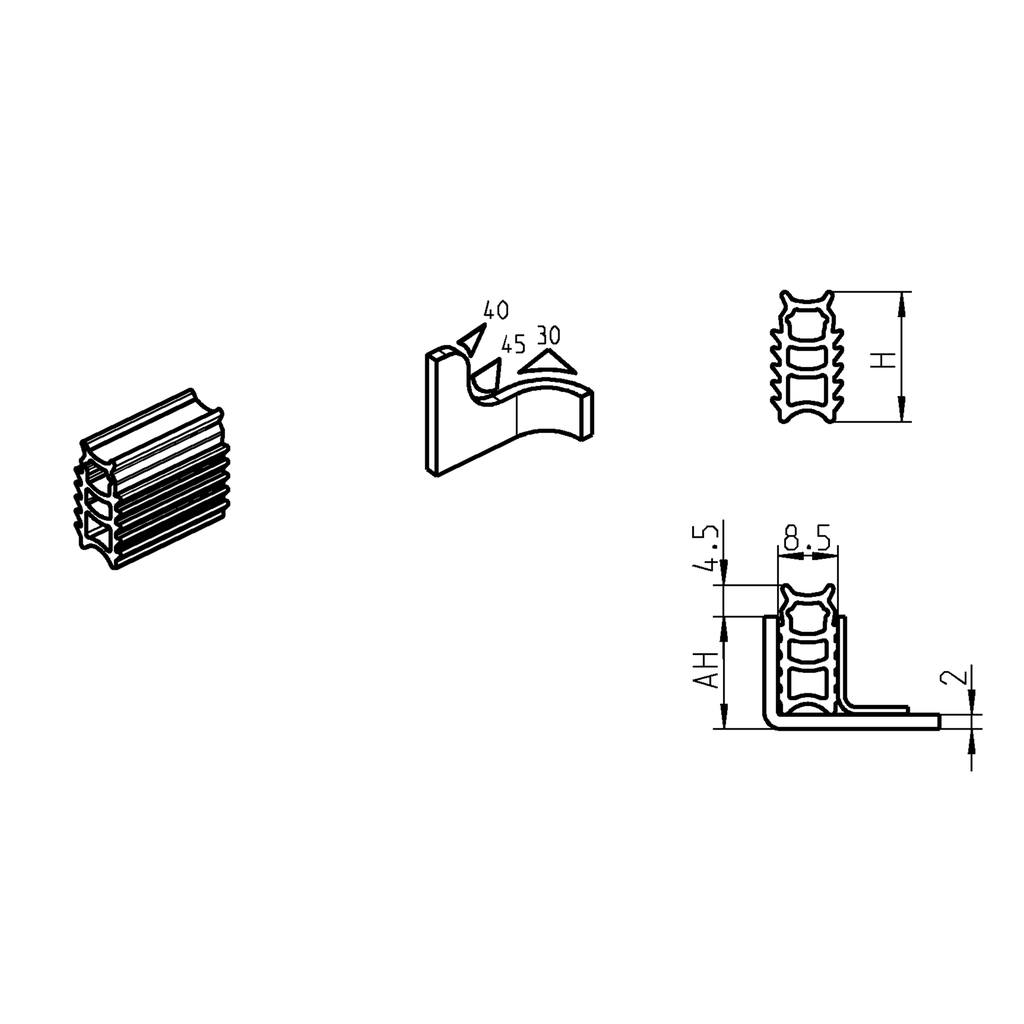

    Dimension AH: 16 mm
    Special industrial requirements: Hygiene standard
    Seal element: Sealing balloon, top
    Seal Type: Insertable profile
    Dimension H: 18.50 mm
    Clamping Channel: 8.5
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
    Product data sheet
    CAD file | 1003-11-N9_igs
    CAD file | 1003-11-N9_stp
