Lip profile H = 21 mm, EPDM 55 ± 5 Shore A black
Lip profile H = 17 mm, EPDM 55 ± 5 Shore A black
Internal Reference:
1003-03
Product Type:
Seal
Material:
EPDM 55 ± 5 Shore A
Program:
1003
Surface:
black
Catalog sheet:
5A-190

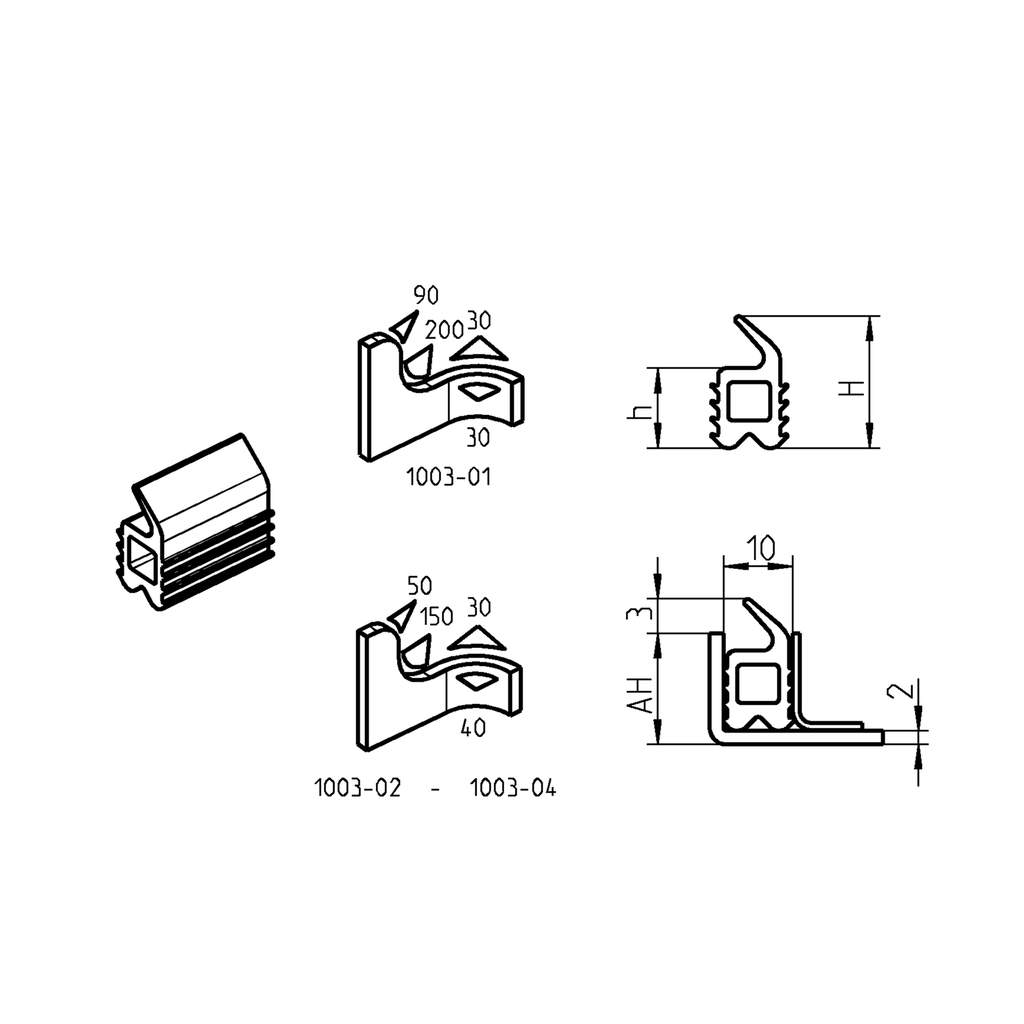

Dimension AH:
18 mm
Seal element:
Sealing lip, top
Seal Type:
Insertable profile
Dimension h:
11.50 mm
Dimension H:
19 mm
Clamping Channel:
10
No Specifications
No Matching Products
Here you can find the product data sheets and CAD files of this product
