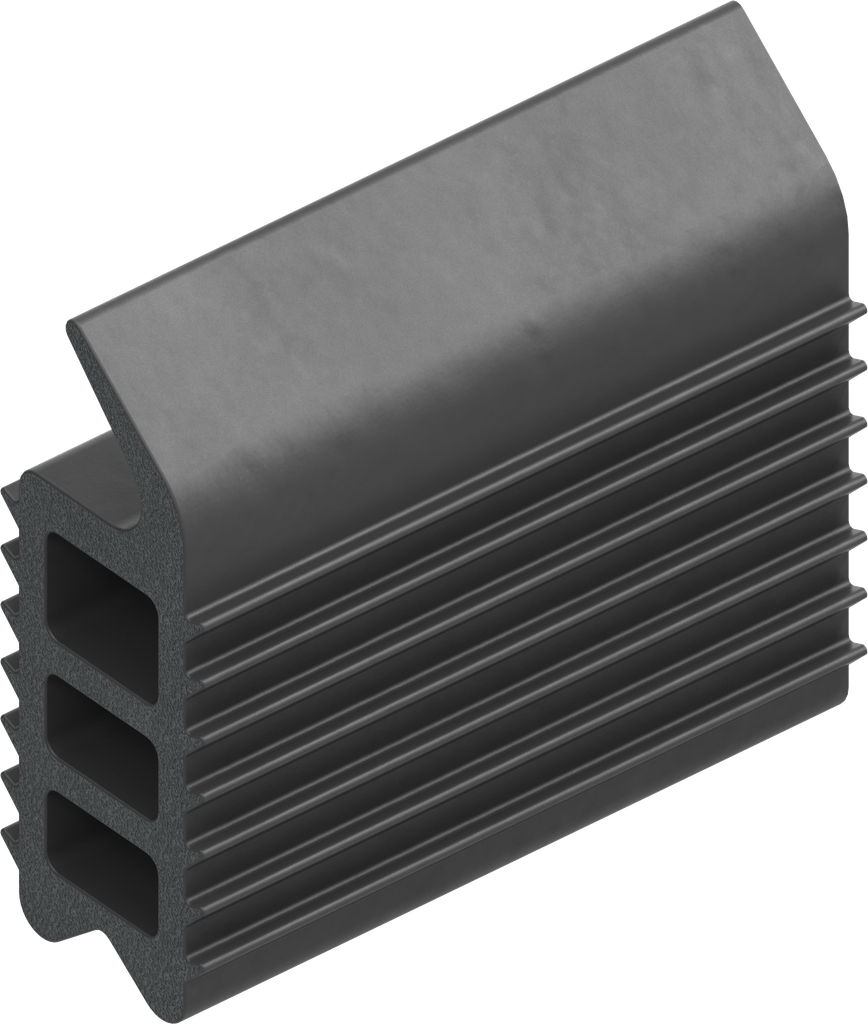

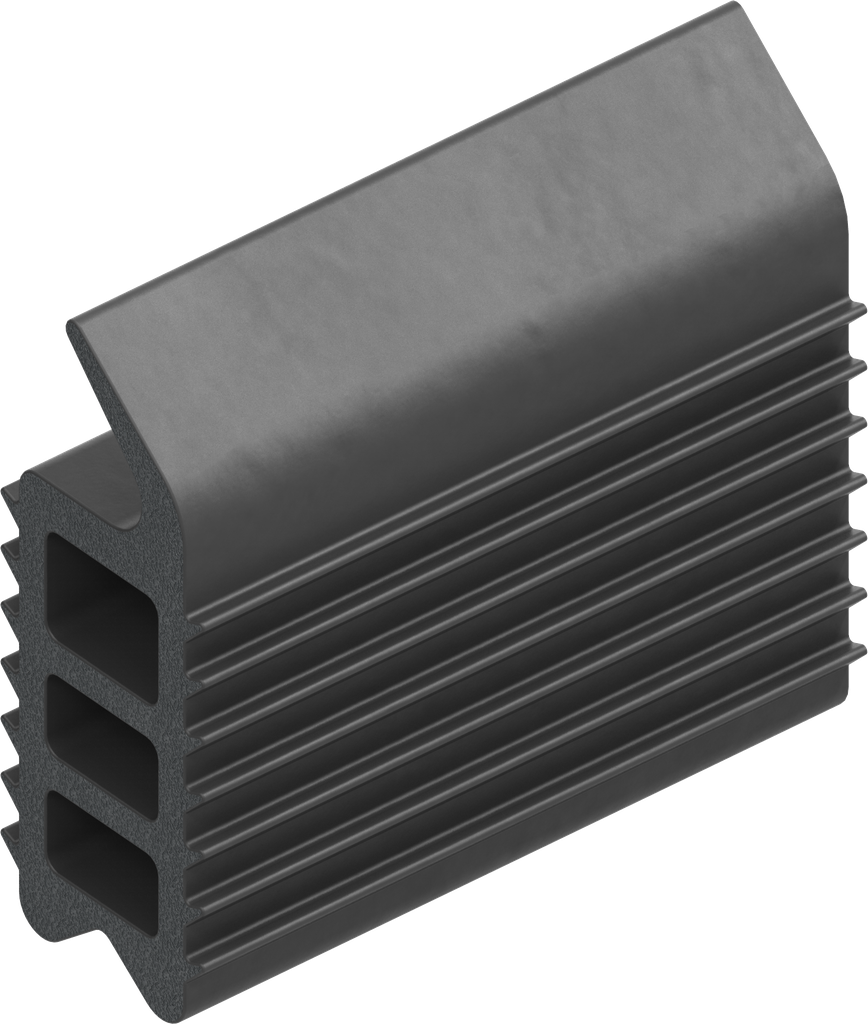

Lip profile H = 27 mm, EPDM 55 ± 5 Shore A black; 1003-01

https://www.emka.com/products/1003-01 https://www.emka.com/web/image/product.template/60532/image_1920?unique=03bb97a

    This combination does not exist.

    Contact Us
    Internal Reference: 1003-01
    Product Type: Seal
    Material: EPDM 55 ± 5 Shore A
    Program: 1003
    Surface: black
    Catalog sheet: 5A-190

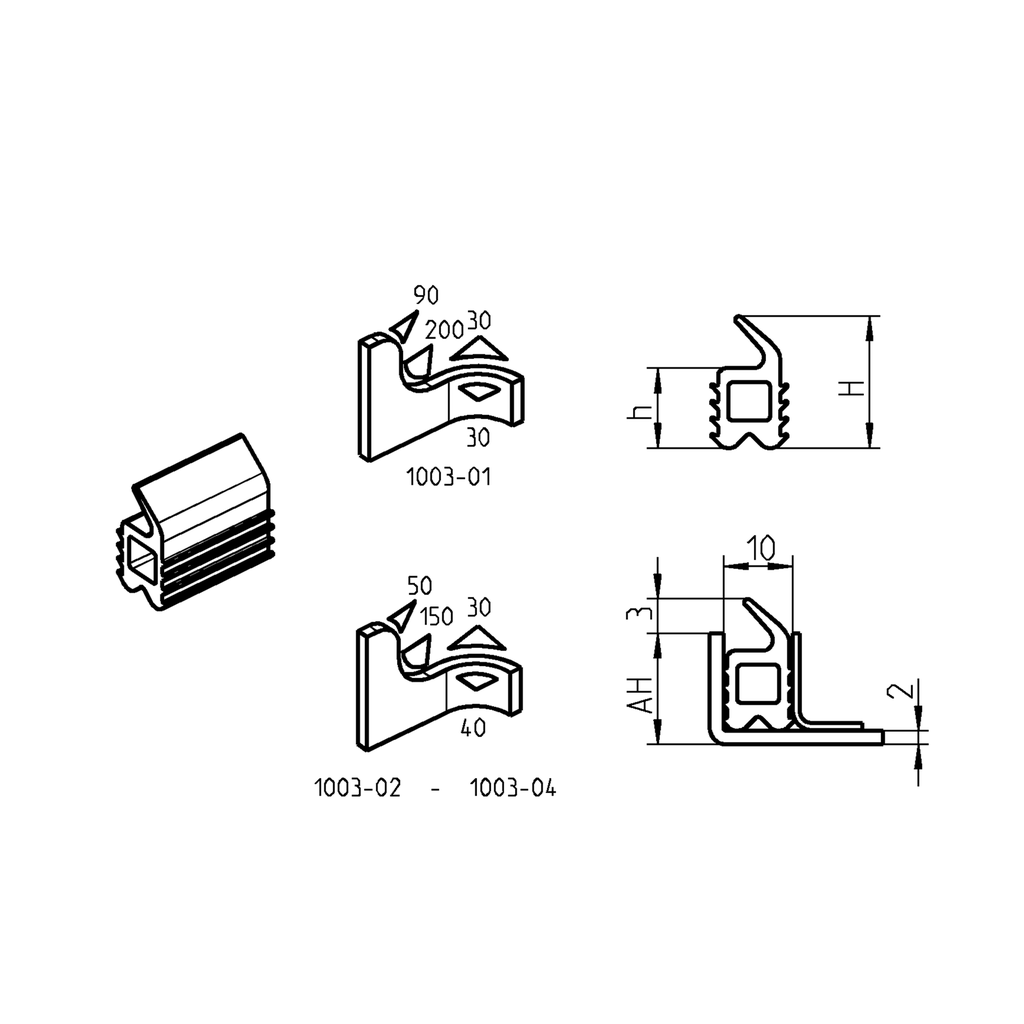

    Dimension AH: 26 mm
    Seal element: Sealing lip, top
    Seal Type: Insertable profile
    Dimension h: 19.50 mm
    Dimension H: 27 mm
    Clamping Channel: 10
    No Specifications
    No Matching Products
    Here you can find the product data sheets and CAD files of this product
