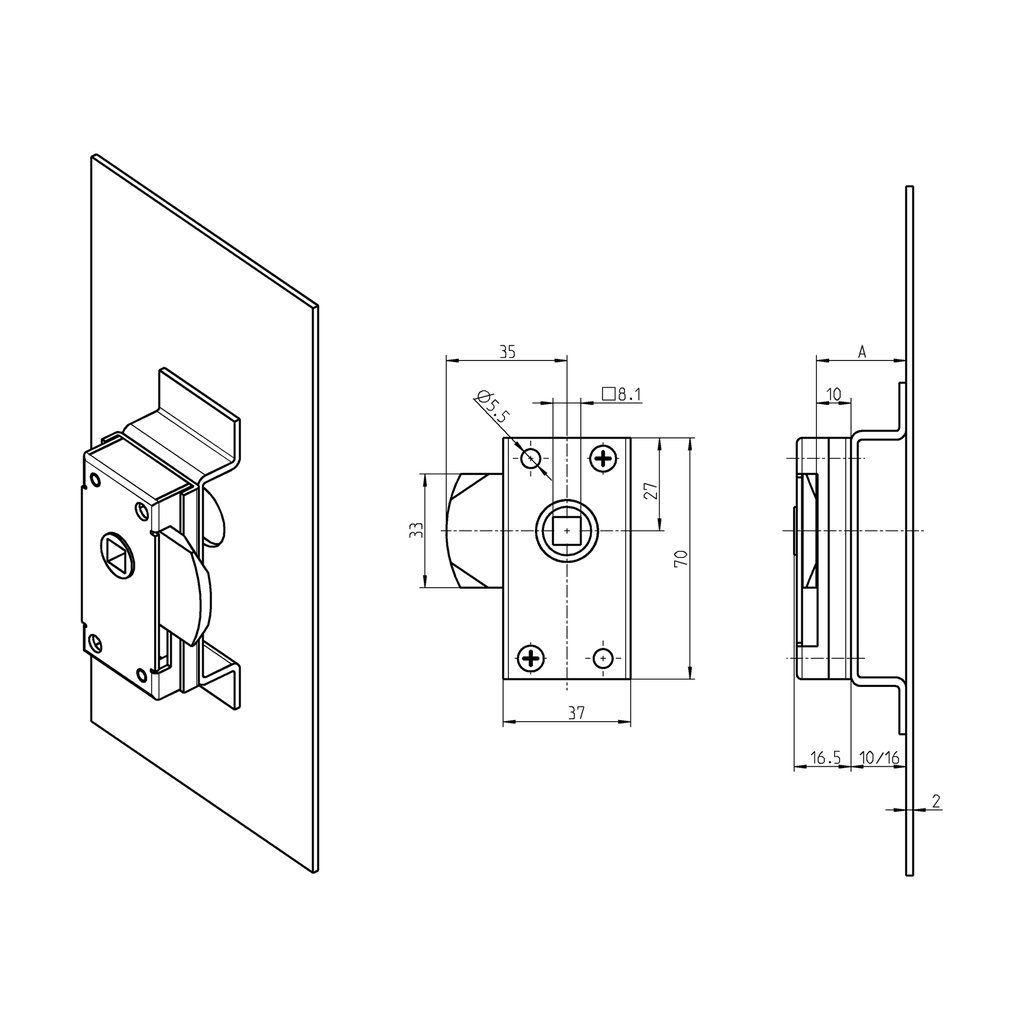

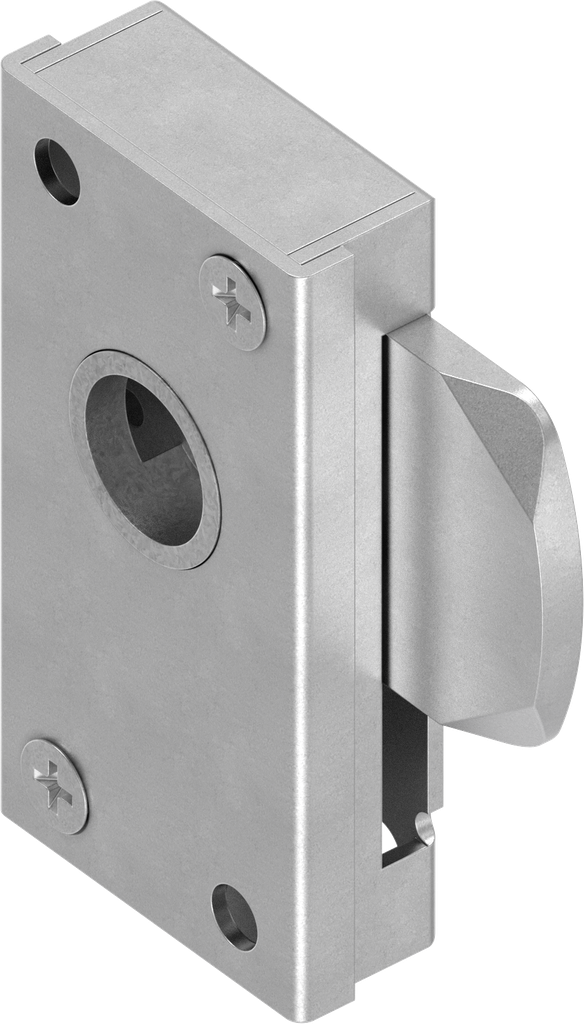

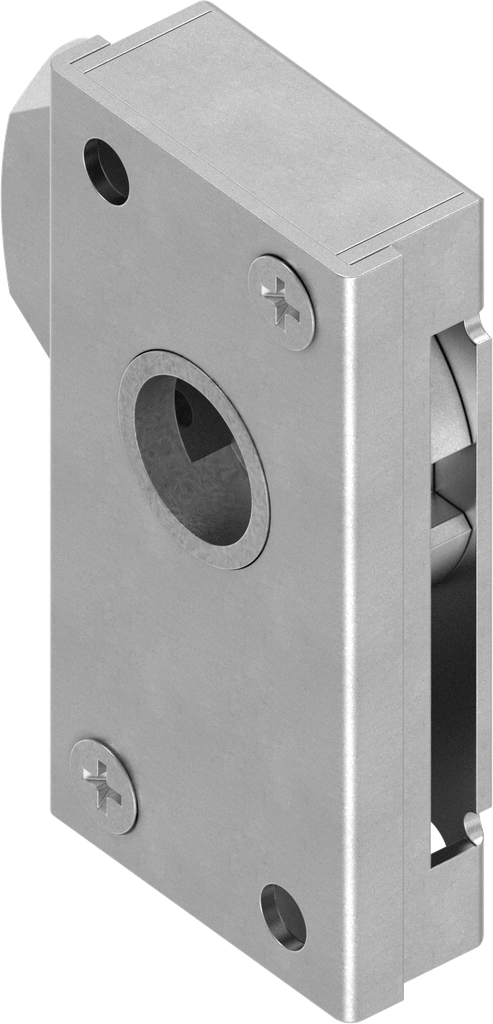

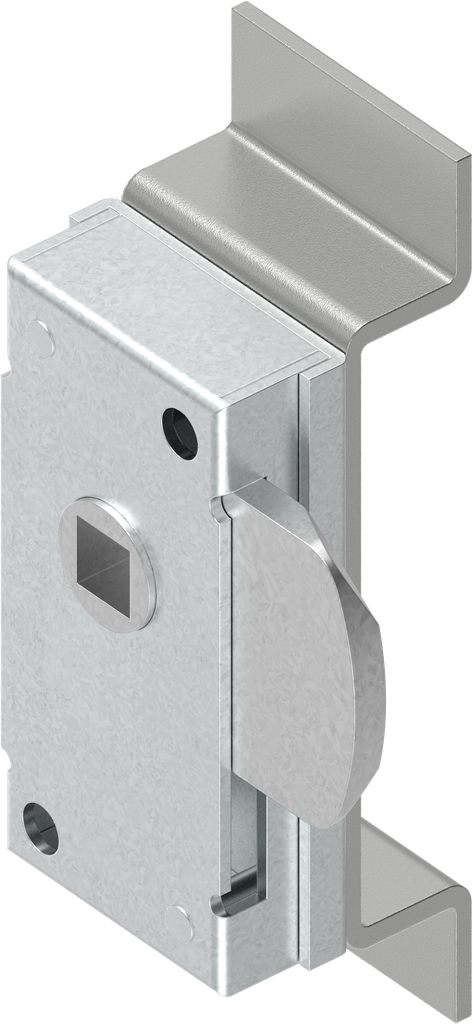

Quarter turn lock, right- and left version, Steel zinc-plated; 1002-U1

https://www.emka.com/products/1002-u1 https://www.emka.com/web/image/product.template/60531/image_1920?unique=e7f4a47

Locking systems for high loads

    This combination does not exist.

    Left Right
    Contact Us

    Product information:

    When mounted without insert part, the quarter turn lock can be operated with a socket spanner 1004-19.
    Internal Reference: 1002-U1
    Product Type: Rod control
    Program: 1002
    Catalog sheet: 2B-120
    Material of the module : Steel
    Surface of the module: zinc-plated
    Dimention A: A 20,A 26
    Lock for higher loads: Yes
    Door Version : Left,Right
    No Specifications
    View All Products
    Insert
    Housing
    Adapter
    Quarter turn
    Rod control accessories
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 2B-120
    Product data sheet
    CAD file | 1002-U1_igs
    CAD file | 1002-U1_stp
