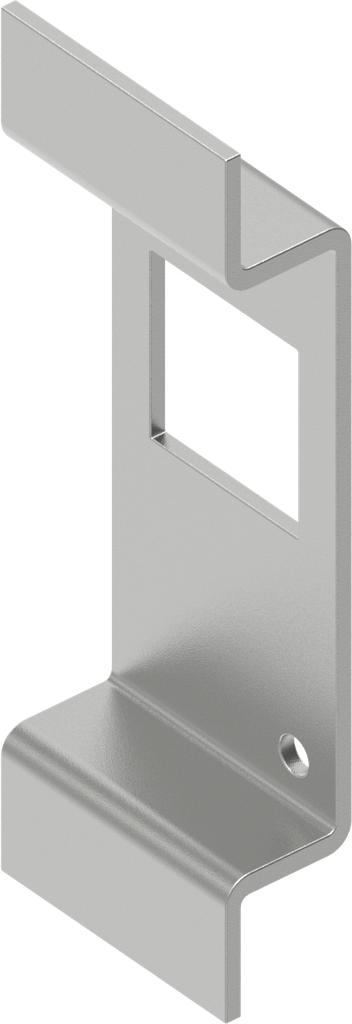

Lock support m.s. raw, Steel raw; 1002-05

https://www.emka.com/products/1002-05 https://www.emka.com/web/image/product.template/60530/image_1920?unique=f86255a

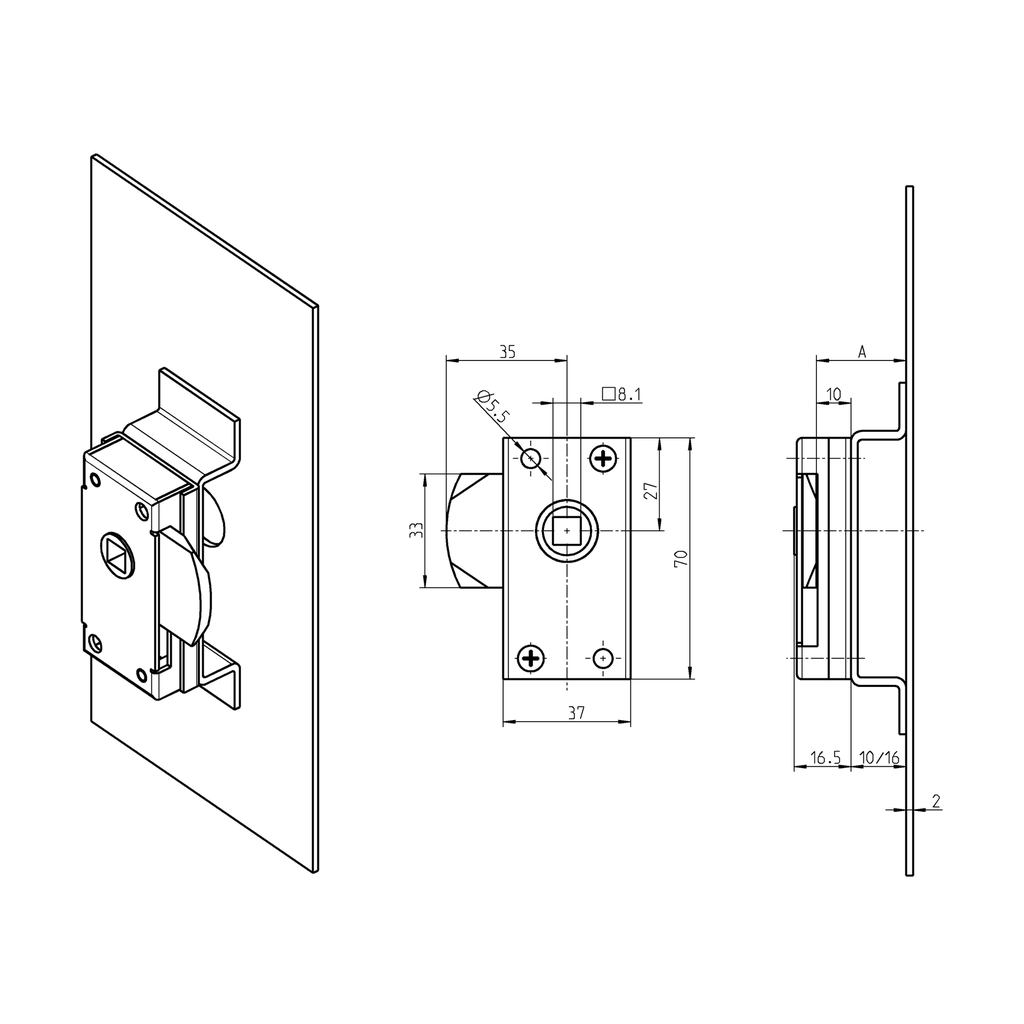

for weld-on version, A = 26 mm

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us
    Internal Reference: 1002-05
    Product Type: Rod control accessories
    Material: Steel
    Program: 1002
    Surface: raw
    Catalog sheet: 2B-120
    Dimention A: A 26
    Mounting Positions : Inside the sealing
    Door Version : Left,Right
    No Specifications
    View All Products
    Housing
    Rod control
    Quarter turn
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 2B-120
    Product data sheet
    CAD file | 1002-05_igs
    CAD file | 1002-05_stp
