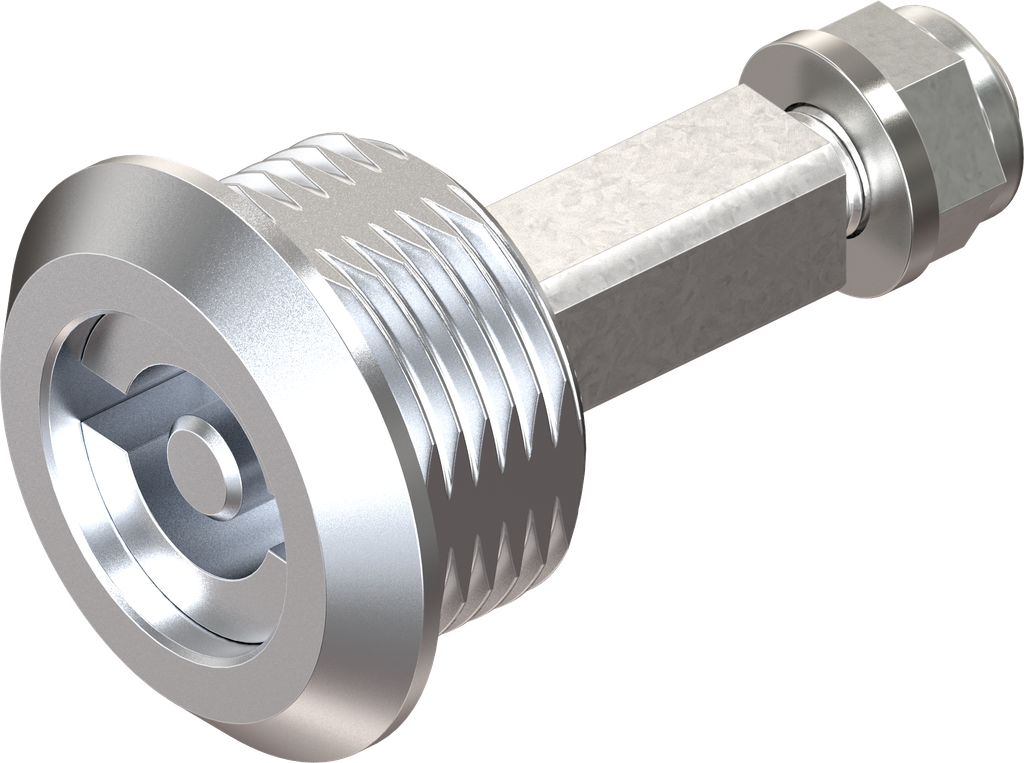

Key guide with insert double bit 5, Zinc die and steel chrome-plated and zinc-plated; 1001-U23

https://www.emka.com/products/1001-u23 https://www.emka.com/web/image/product.template/206549/image_1920?unique=f86255a

for adapter system with insulated door

    This combination does not exist.

    Left Right
    Contact Us

    Product information:

    The preassembled adapter system, with handle or insert, is inserted through the installation opening and retained by means of locknut M6.

    1 = e.g. tube Ø 30x1.5
    2 = Square adapter
    3 = Coupling piece
    4 = Inside handle
    Adapter 1001-65 is required in addition for the inside handle
    The inside handle is not suitable for lockable T- and L-handles
    Internal Reference: 1001-U23
    Product Type: Quarter turn
    Program: 1001
    Catalog sheet: 2A-180
    Material of the module : Zinc die and steel
    Surface of the module: chrome-plated and zinc-plated
    Type of actuation: Double bit 5
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Rod control for heavy duty
    No Specifications
    View All Products
    Quarter turn accessories
    Adapter
    Accessories general

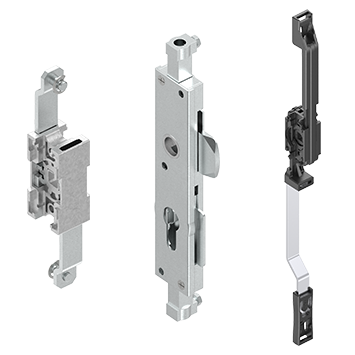

    Rod control
