Rod control, right version, for square rods and round rods stroke 13, Steel zinc-plated
Rod control, right version, for square rods and round rods stroke 13, Steel zinc-plated
Rod control, right version, for pressure-tight system, round rods and square rods stroke 18, Steel zinc-plated
Rod control, right version, for pressure-tight system, round rods and square rods stroke 18, Steel zinc-plated

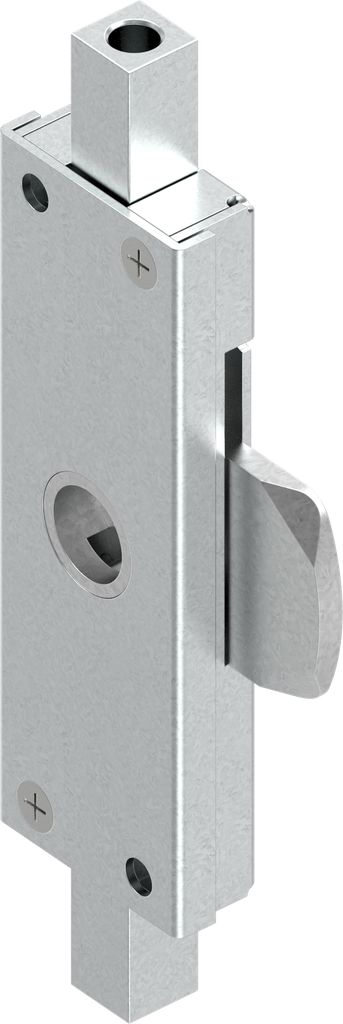

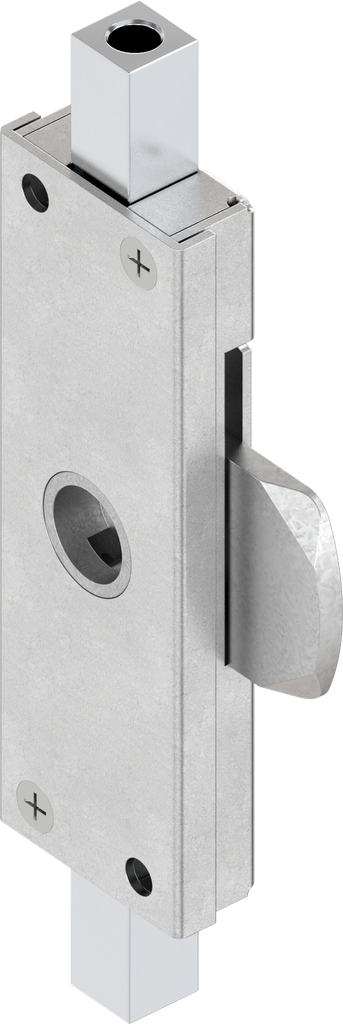

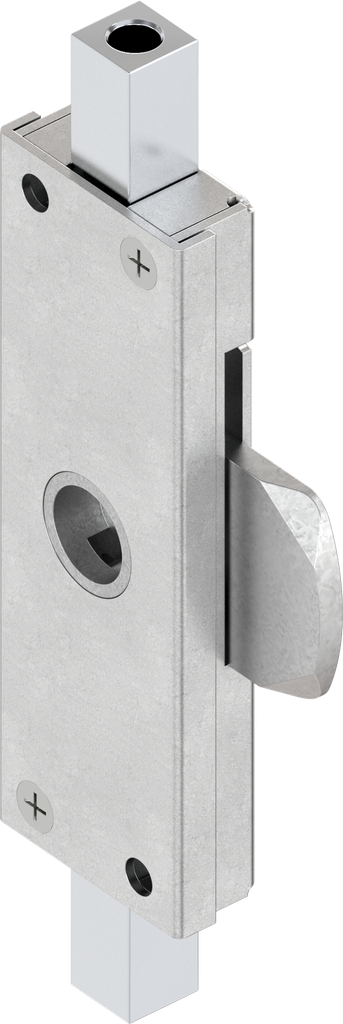

Rod control, left version, for square rods and round rods stroke 13, Steel zinc-plated; 1001-U2

https://www.emka.com/products/1001-u2 https://www.emka.com/web/image/product.template/60504/image_1920?unique=7910dbd

Locking systems for high loads

    This combination does not exist.

    Inside the sealing Left
    Contact Us

    Product information:

    Rod control for screwable rods with M8

    When mounted without insert part, the rod control can be operated with a socket spanner 1004-19.
    Internal Reference: 1001-U2
    Product Type: Rod control
    Program: 1001
    Catalog sheet: 2B-135
    Material of the module : Steel
    Surface of the module: zinc-plated
    Dimention A: A 20,A 26
    Rod: Round rod,Square rod
    Connection rod mount: Female thread M8 x 20
    Mounting Positions : Inside the sealing
    Lock for higher loads: Yes
    Door Version : Left
    No Specifications
    View All Products
    Insert
    Rod
    Rod control accessories
    Housing
    Adapter

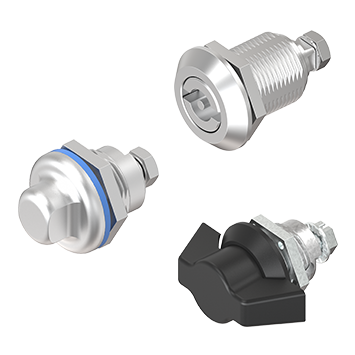

    Quarter turn
