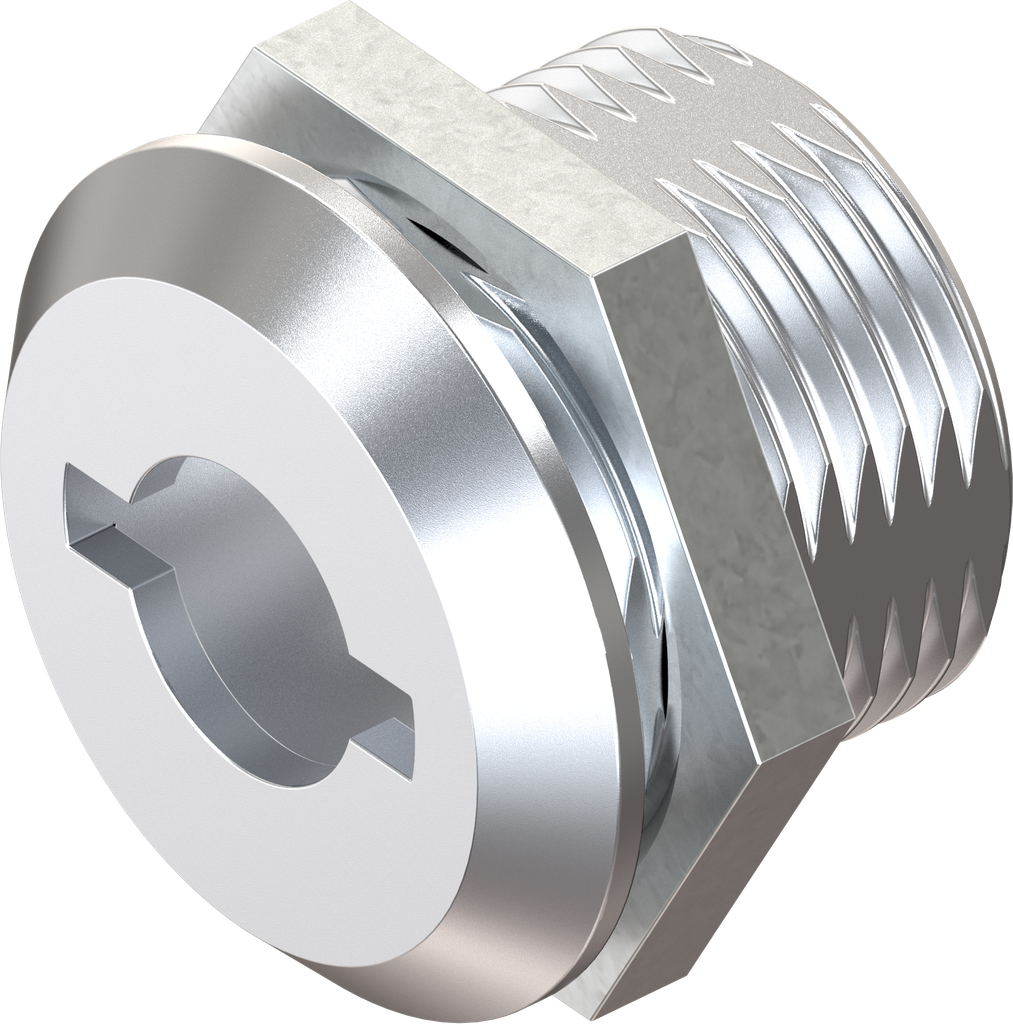

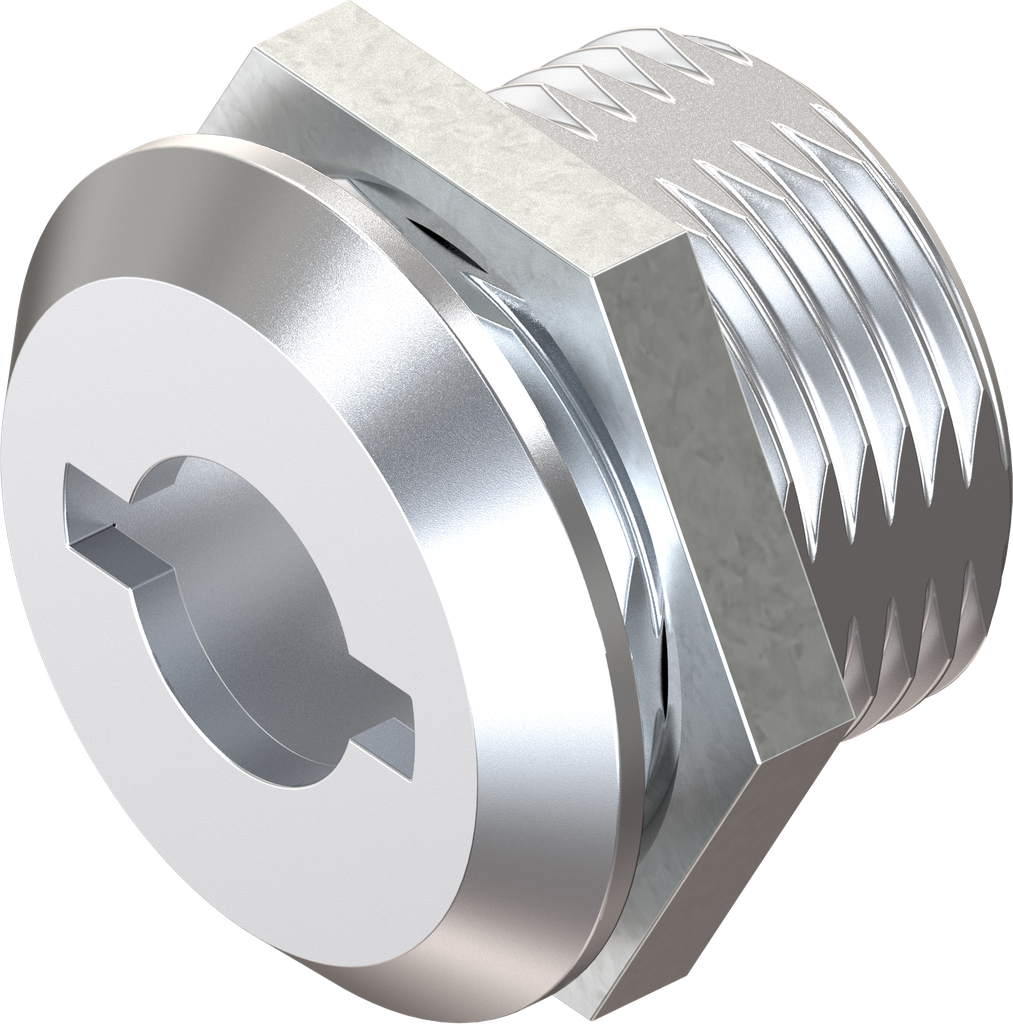

Key guide for double bit, Zinc die chrome-plated; 1001-U16

https://www.emka.com/products/1001-u16 https://www.emka.com/web/image/product.template/206545/image_1920?unique=f86255a

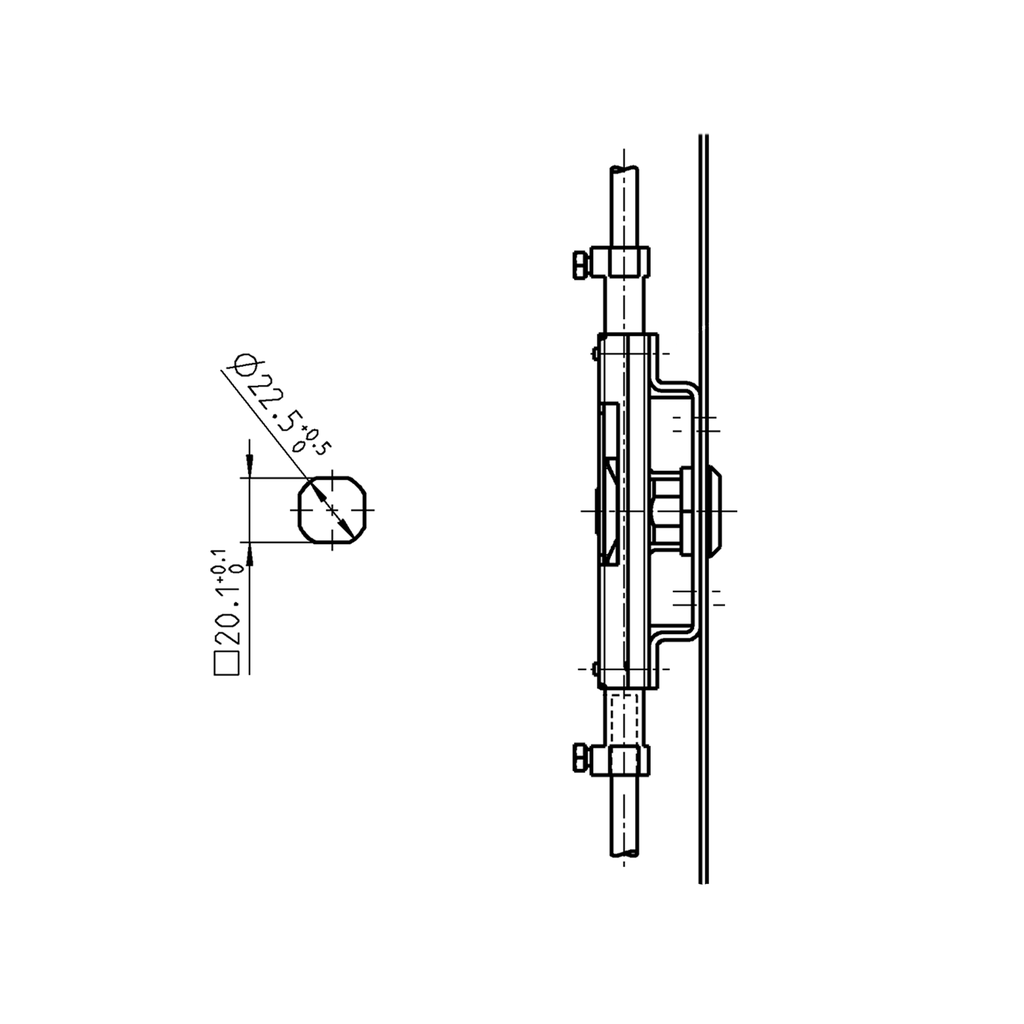

for screw-on version, A = 26 mm

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us
    Internal Reference: 1001-U16
    Product Type: Housing
    Program: 1001
    Catalog sheet: 2A-120
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Dimention A: A 26
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 28 x 4 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Rod control for heavy duty
