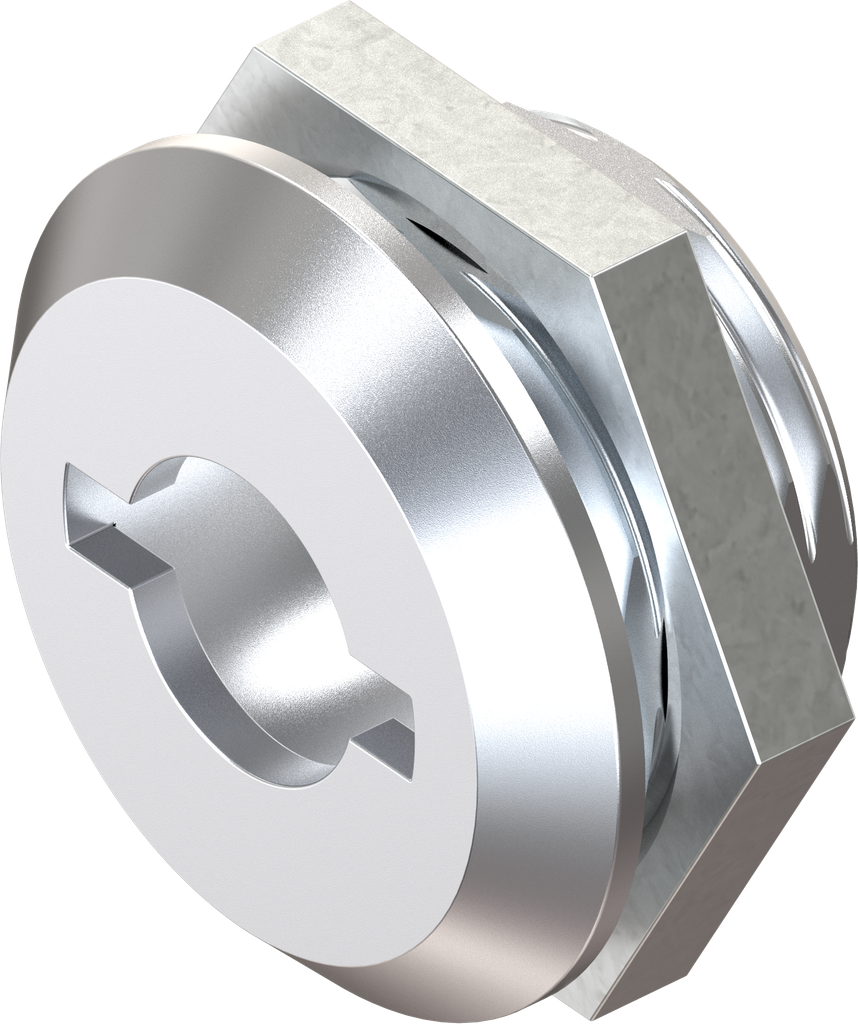

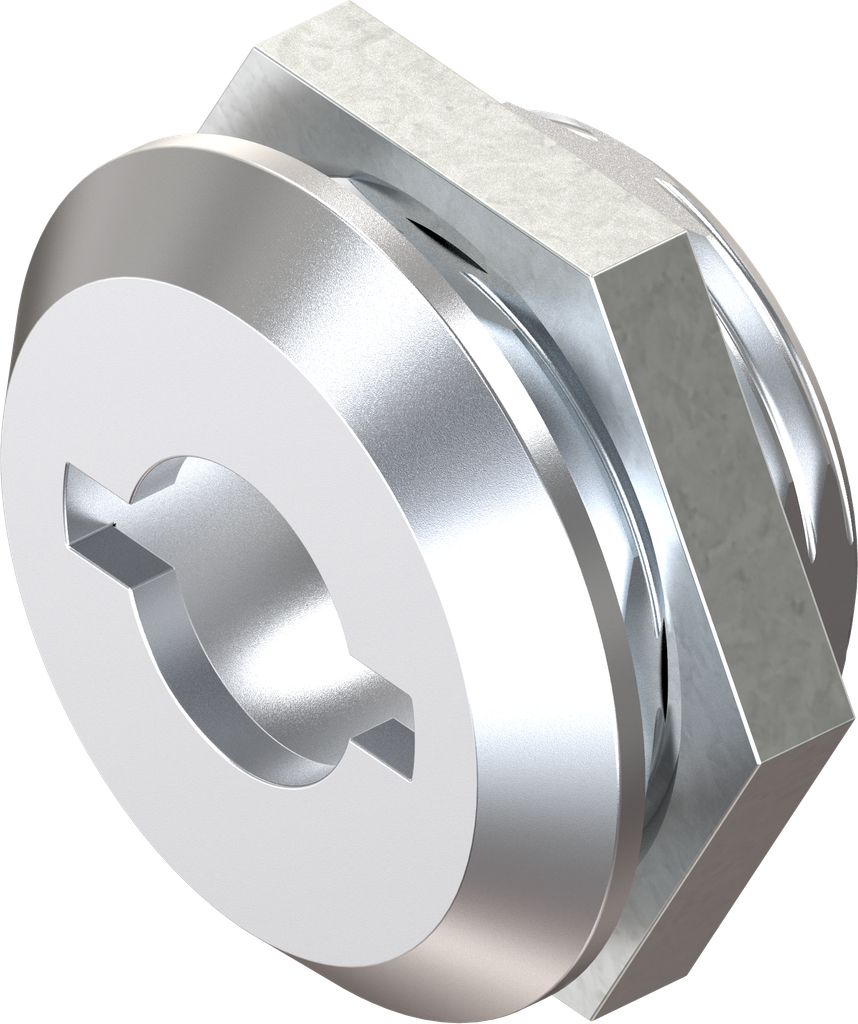

Key guide for double bit, Zinc die chrome-plated; 1001-U15

https://www.emka.com/products/1001-u15 https://www.emka.com/web/image/product.template/60511/image_1920?unique=473d44f

for screw-on version, A = 20 mm

    This combination does not exist.

    Inside the sealing Left Right
    Contact Us
    Internal Reference: 1001-U15
    Product Type: Housing
    Program: 1001
    Catalog sheet: 2A-120
    Material of the module : Zinc die
    Surface of the module: chrome-plated
    Dimention A: A 20
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round
    Housing Head Size: 28 x 4 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Rod control for heavy duty
    No Specifications
    View All Products
    Insert
    O-ring and flat seal
    Rod control accessories
    Rod control
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 2A-120
    Product data sheet
    CAD file | 1001-U15_igs
    CAD file | 1001-U15_stp
