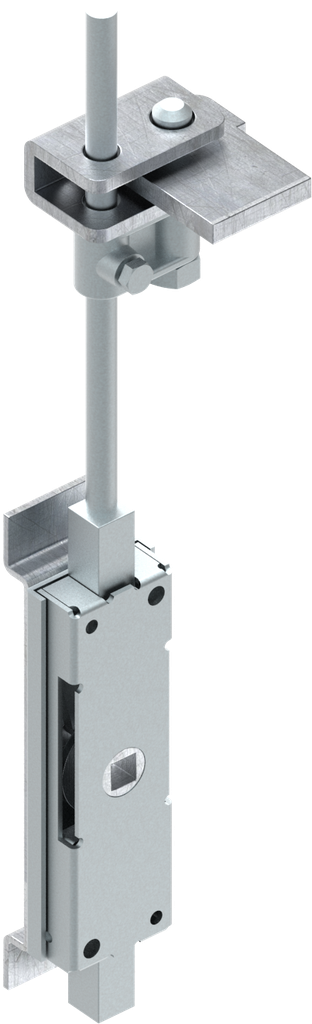

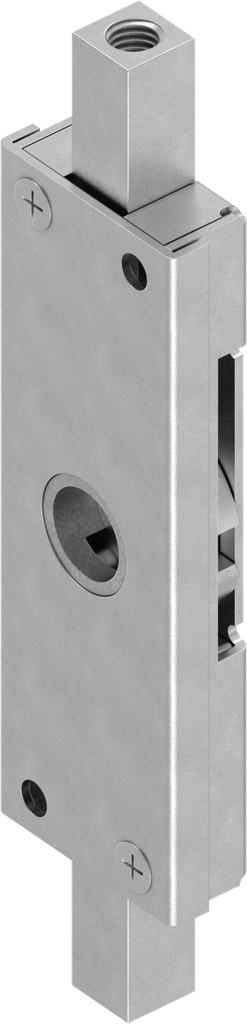

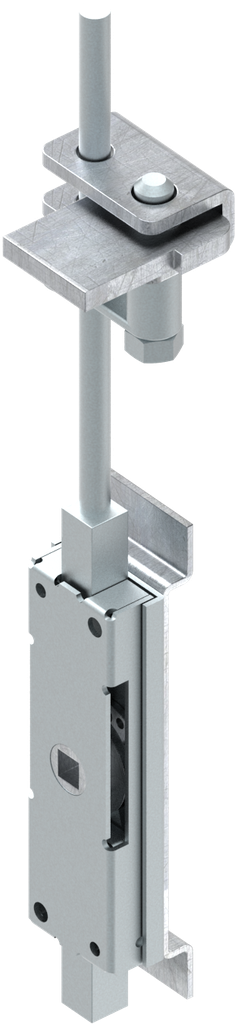

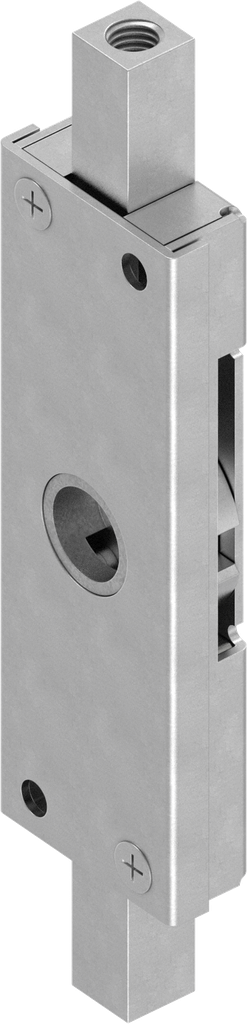

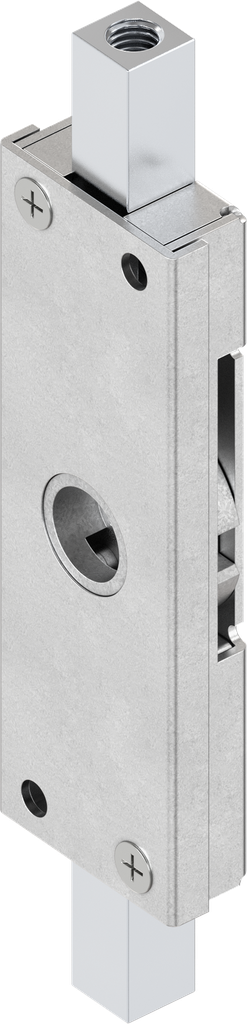

Rod control, left version, for pressure-tight system, round rods and square rods stroke 18, Steel zinc-plated; 1001-U10

https://www.emka.com/products/1001-u10 https://www.emka.com/web/image/product.template/206540/image_1920?unique=7fe8353

Locking systems for high loads

    This combination does not exist.

    Inside the sealing Left
    Contact Us

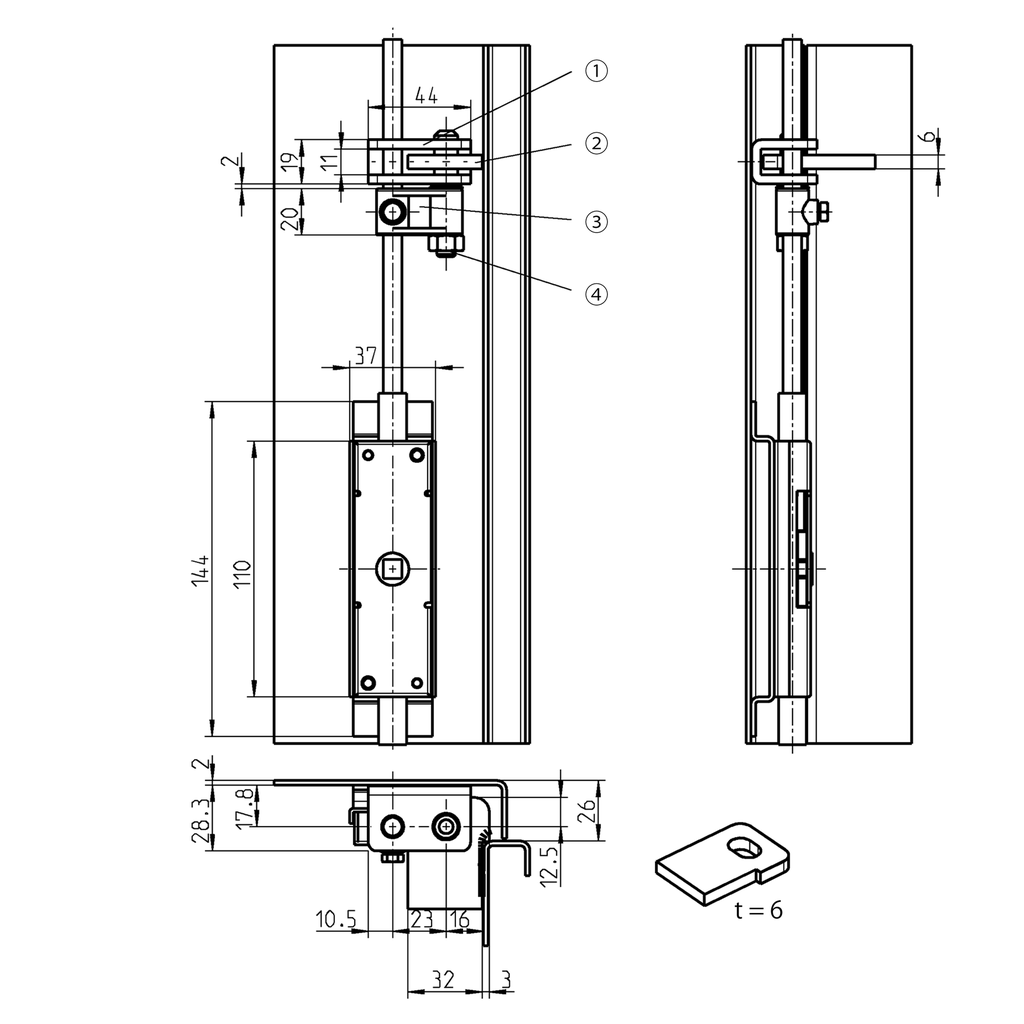

    Product information:

    1 = Fork

    2 = Locking piece

    3 = Connector

    4 = Locking pin
    Internal Reference: 1001-U10
    Product Type: Rod control
    Program: 1001
    Catalog sheet: 2B-180
    Material of the module : Steel
    Surface of the module: zinc-plated

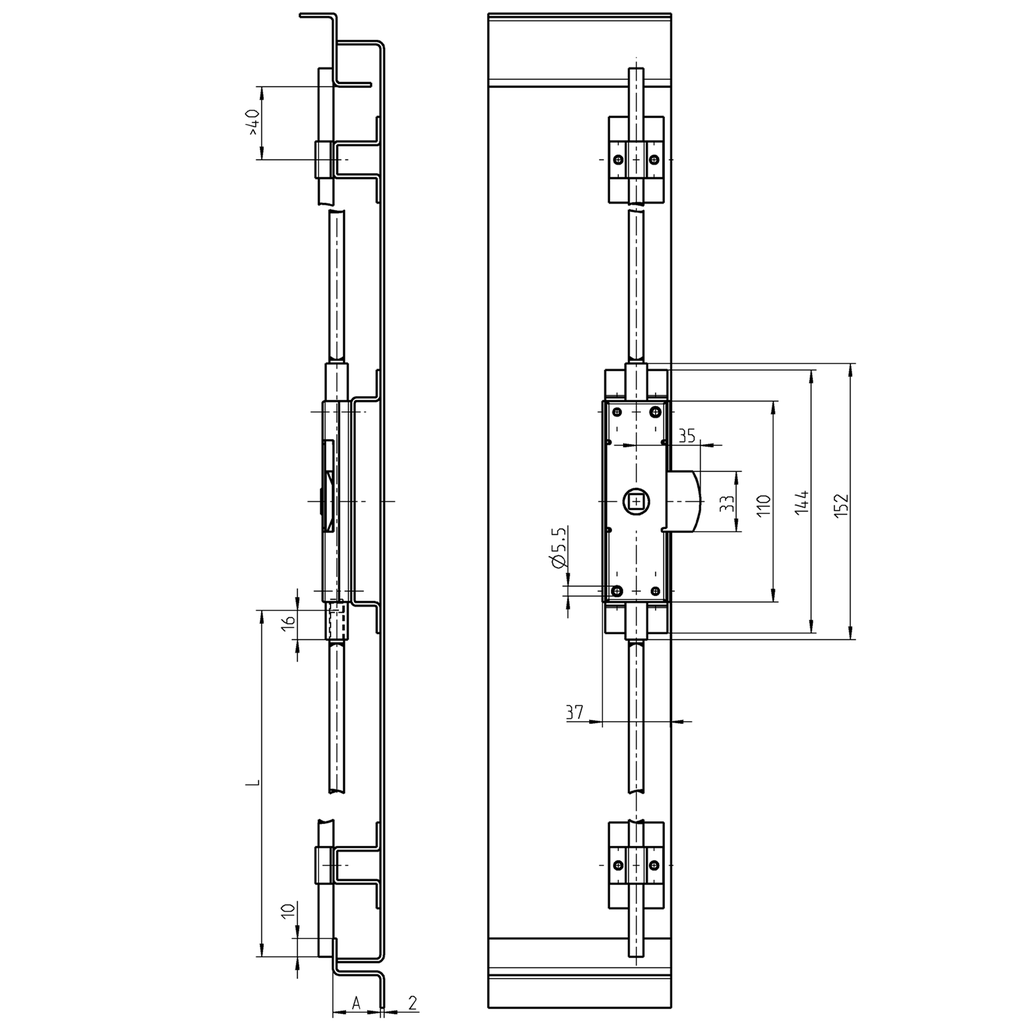

    Dimention A: A 20
    Rod: Round rod,Square rod,Round rod with pressure tight system
    Connection rod mount: Female thread M8 x 20
    Mounting Positions : Inside the sealing
    Lock for higher loads: Yes
    Door Version : Left
    No Specifications
    View All Products
    Rod
    Rod control accessories
    Insert
    Housing
    Here you can find the product data sheets and CAD files of this product
