Square rod L = 1200 mm, Steel zinc-plated
Safety cam lock square 8 with red - green marking, Stainless steel AISI 304

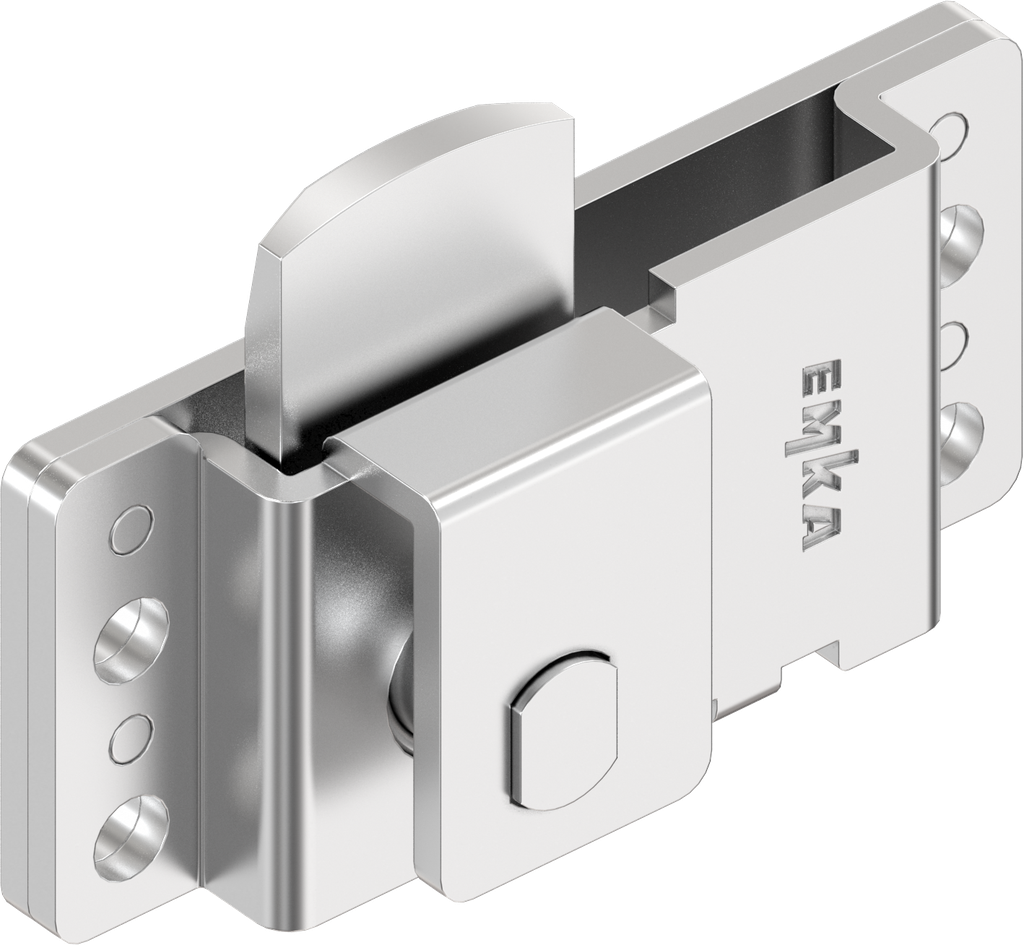

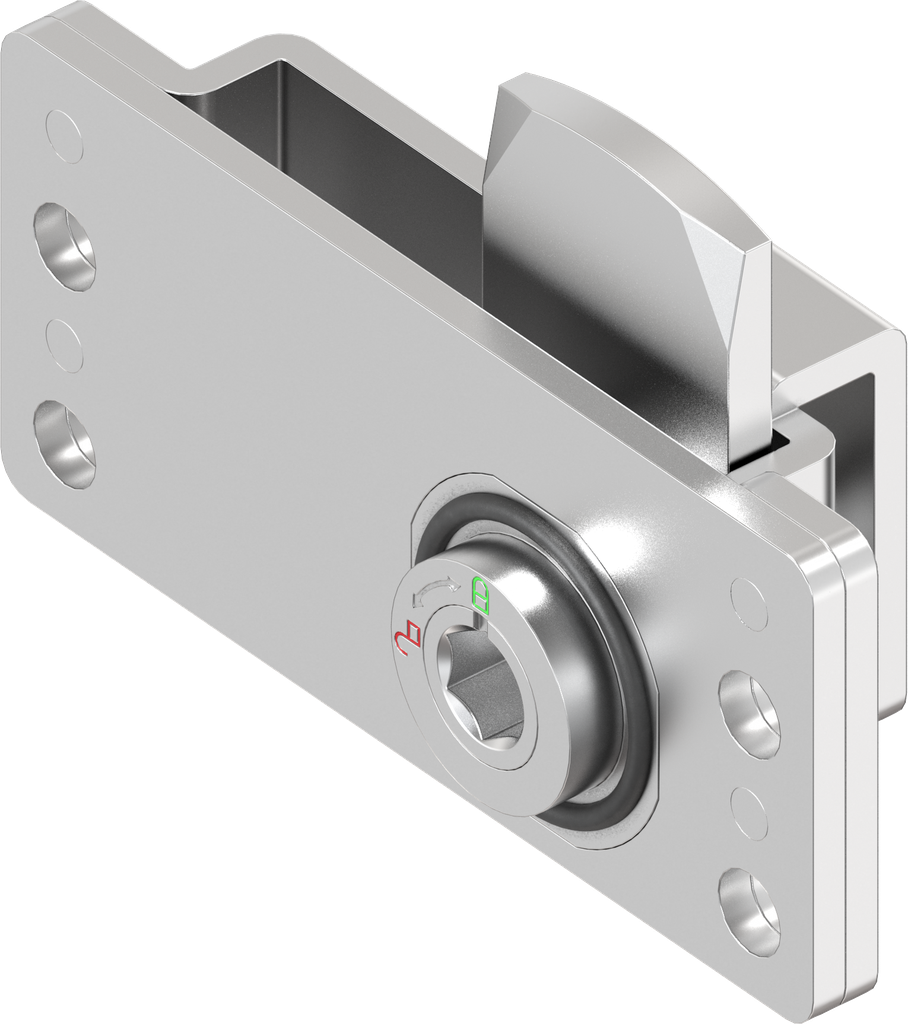

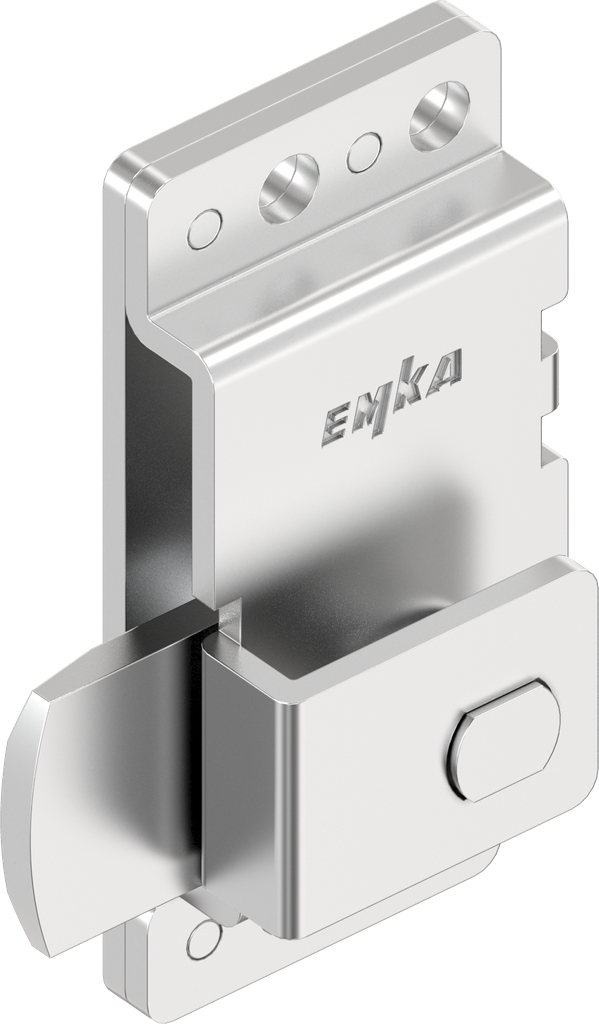

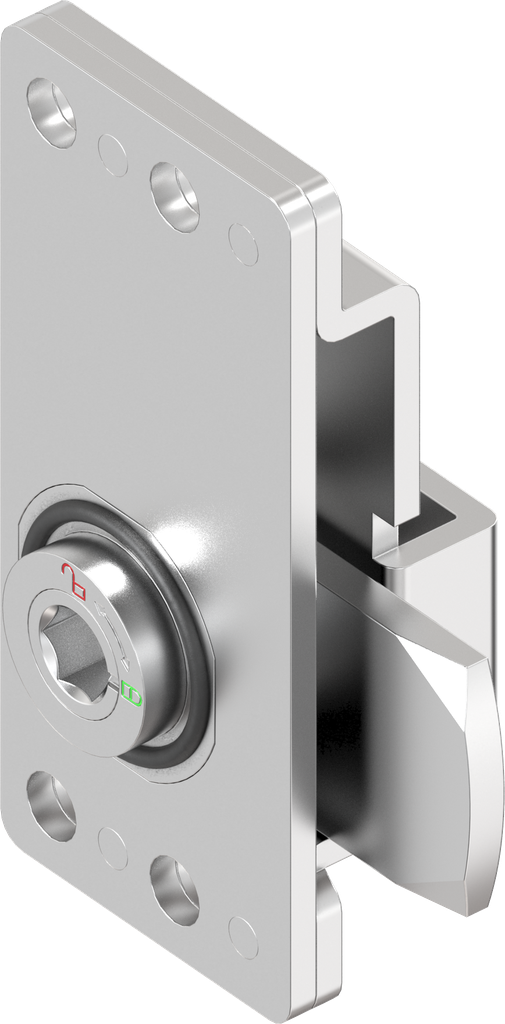

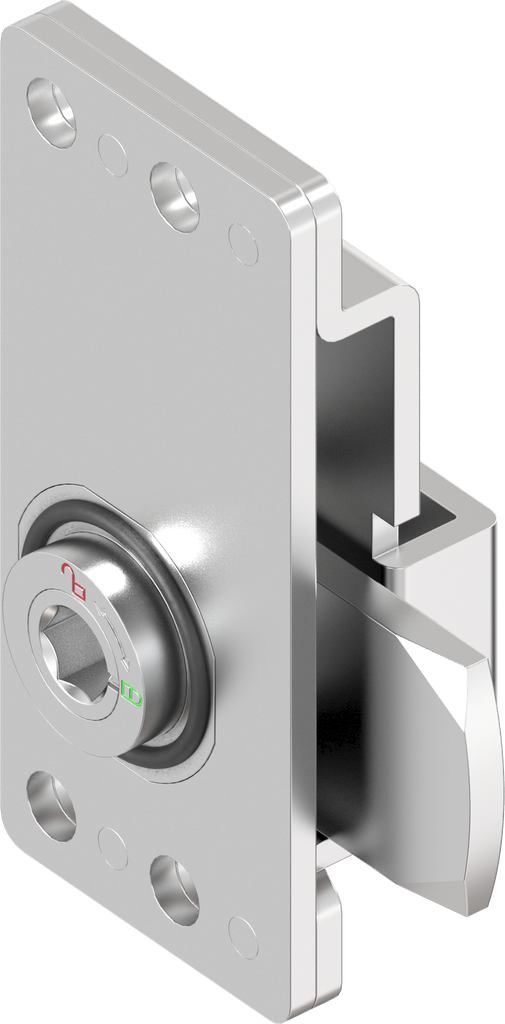

Safety cam lock hexagon female SW 8 with red - green marking, Stainless steel AISI 304; 1001-SU29-PC
Product information:
Tamper and vibration-proof.
The safety quarter turn is of a vibration-proof design. Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.
Internal Reference:
1001-SU29-PC
Product Type:
Other latch
Material:
Stainless steel AISI 304
Program:
1001
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing,rivetable
Type of actuation:
Hexagon female SW 8
Mounting Positions :
Inside the sealing
Locking set:
Insert
Door Version :
Left,Right
Lock Type:
Cam lock
No Specifications
No Matching Products

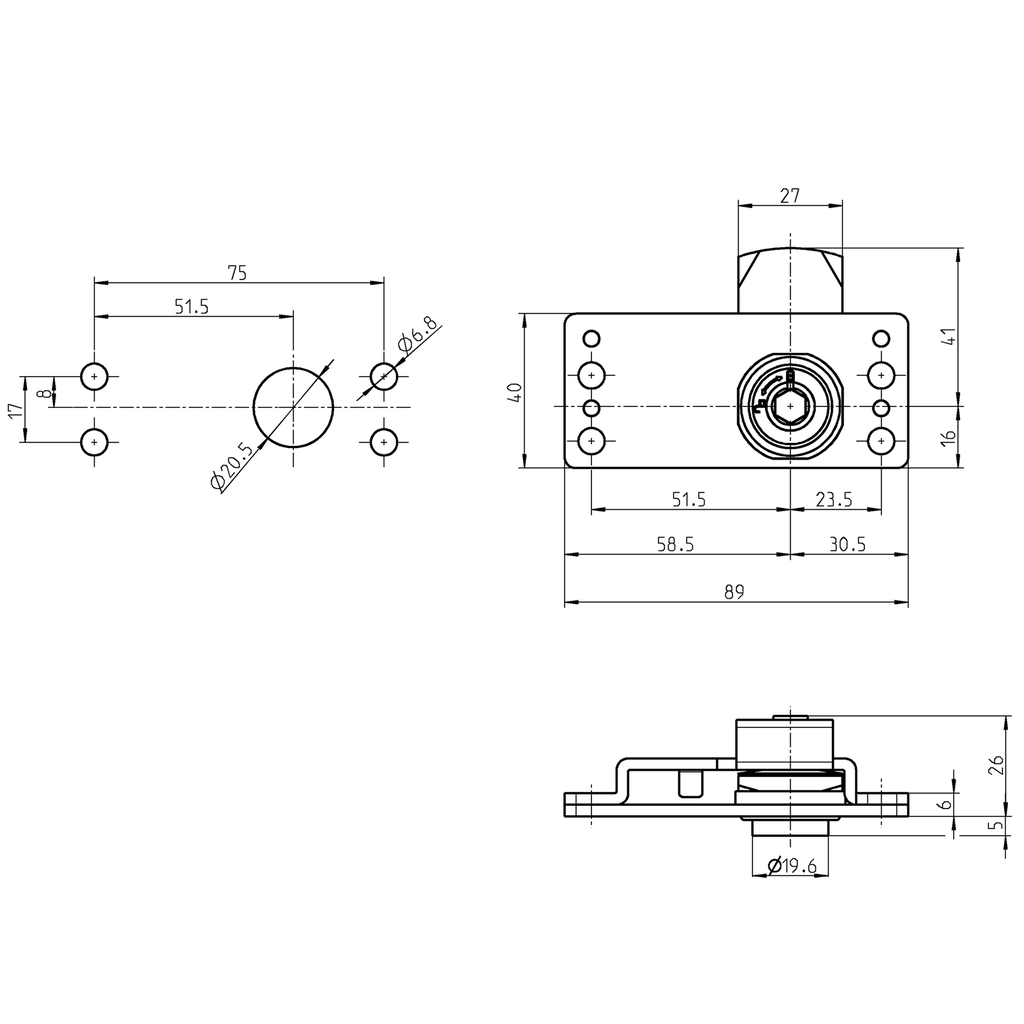

Here you can find the product data sheets and CAD files of this product
