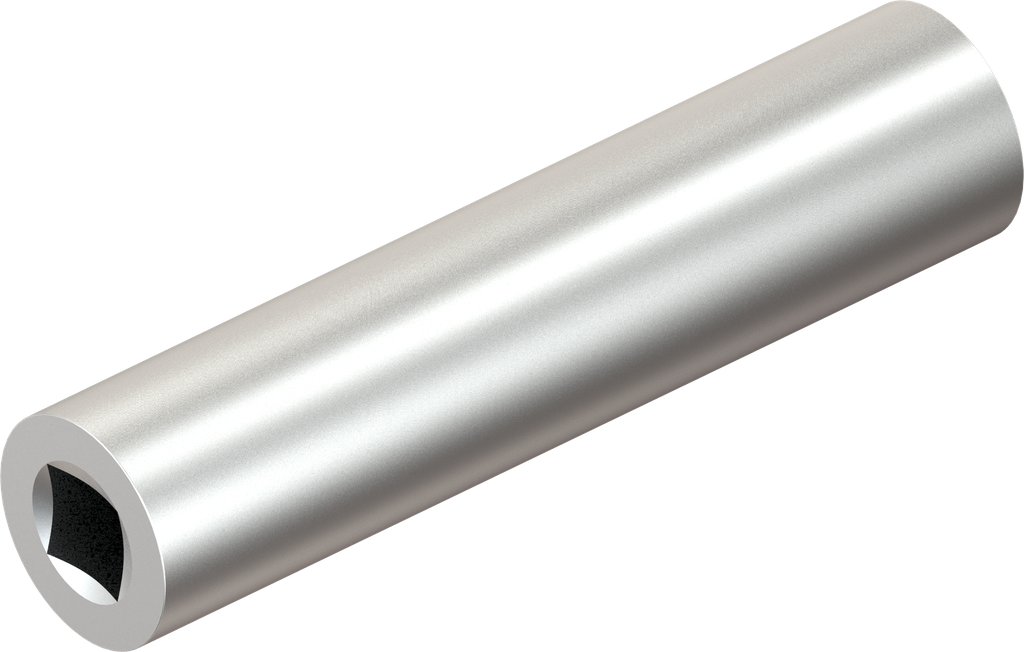

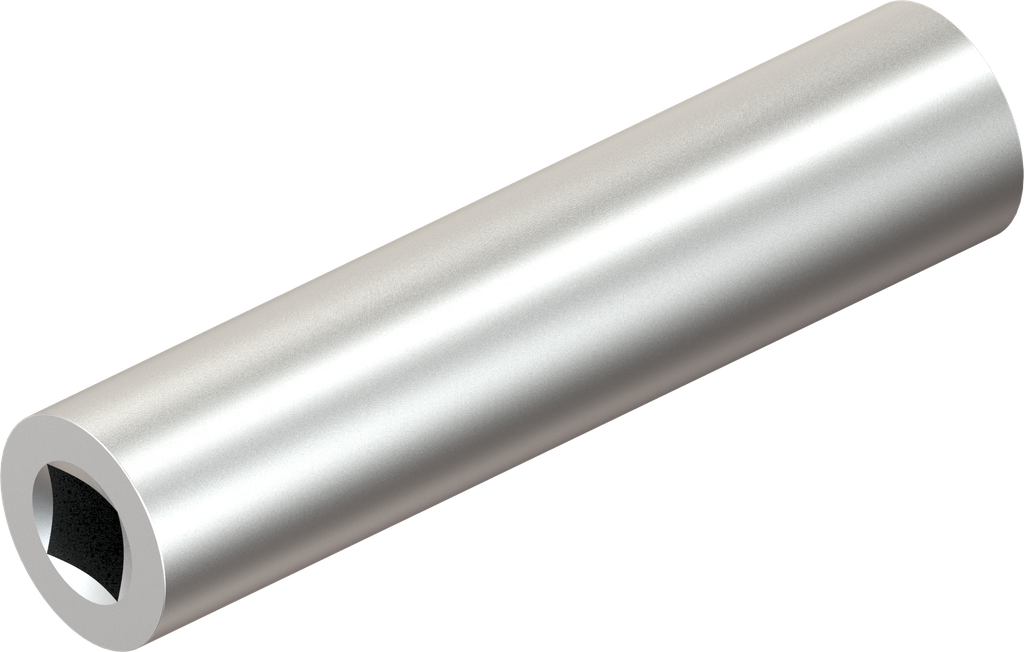

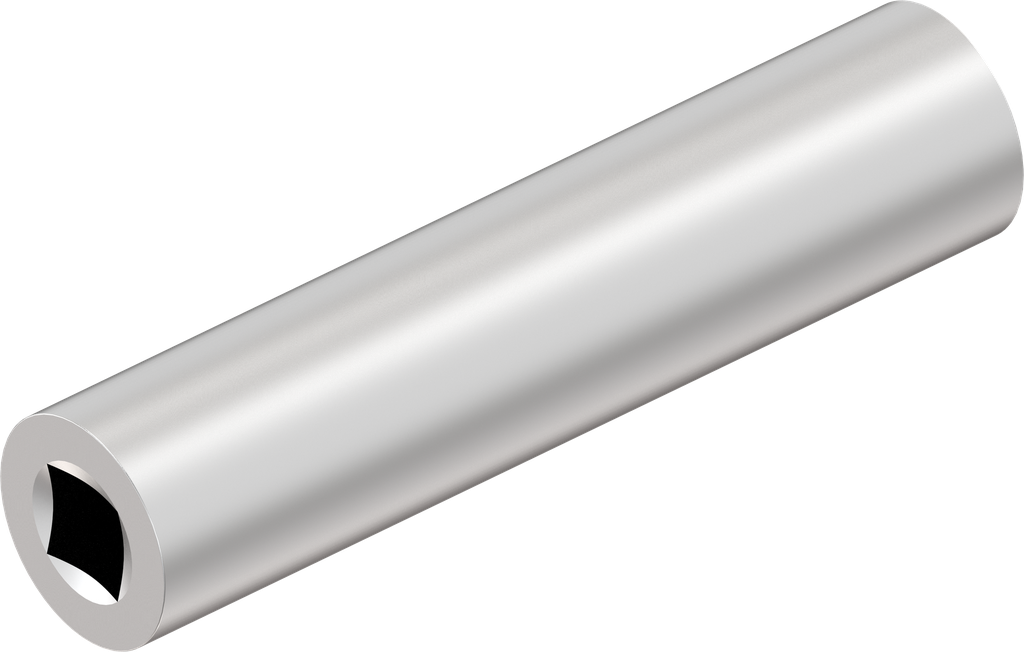

Coupling piece, Aluminium; 1001-73

https://www.emka.com/products/1001-73 https://www.emka.com/web/image/product.template/60476/image_1920?unique=a507697

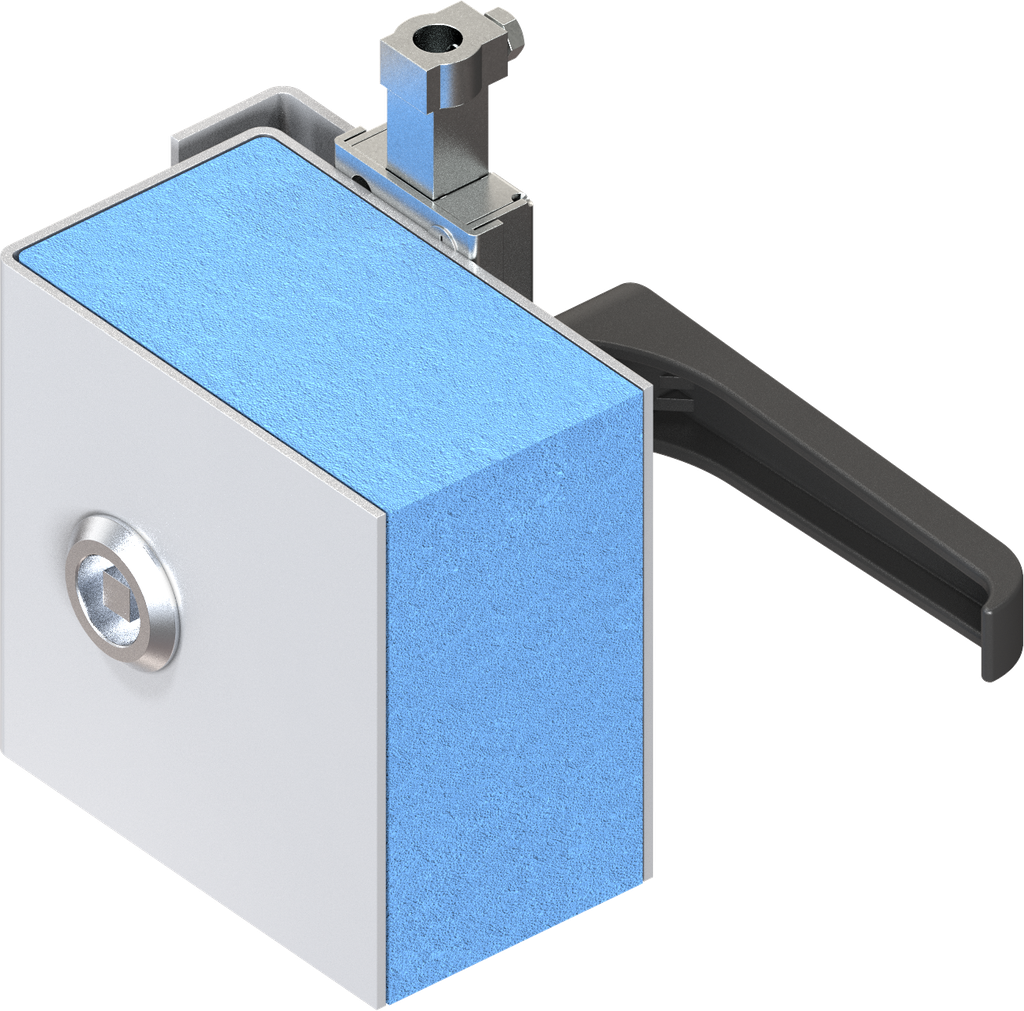

for adapter system with insulated door, L = 83 mm


    This combination does not exist.



    Product information:

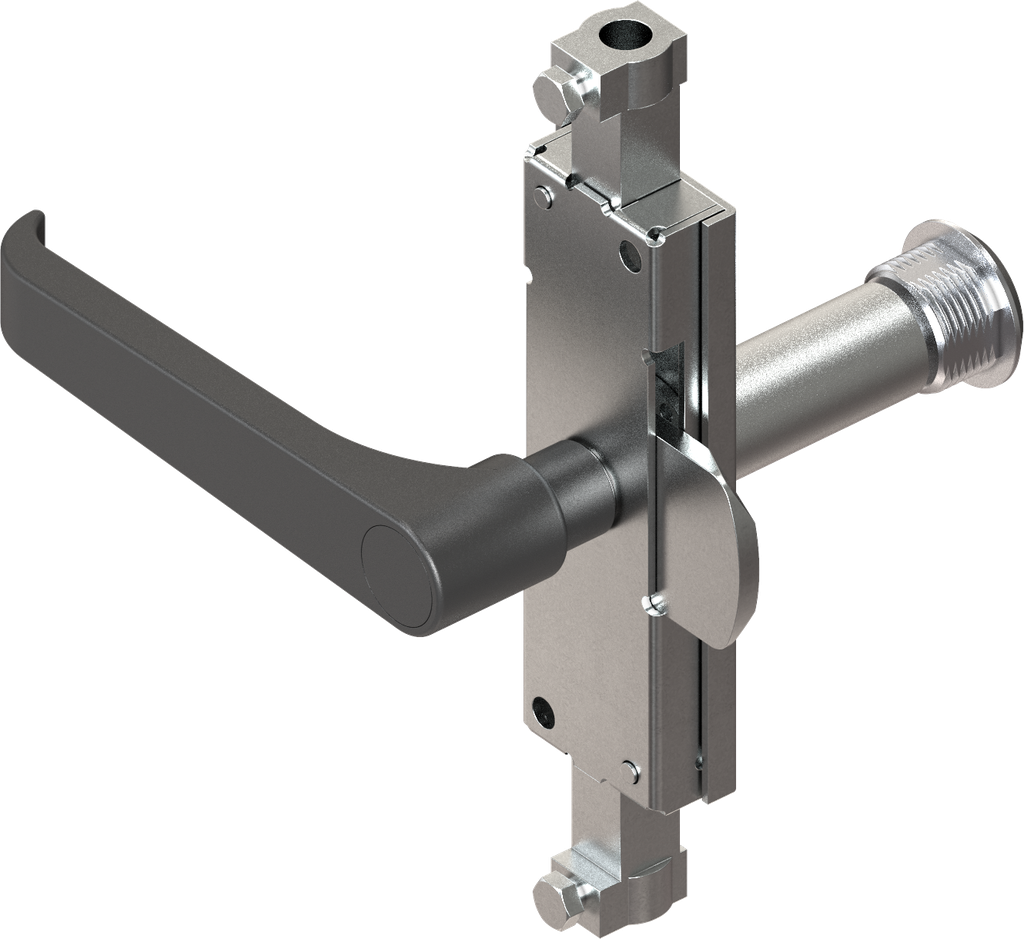

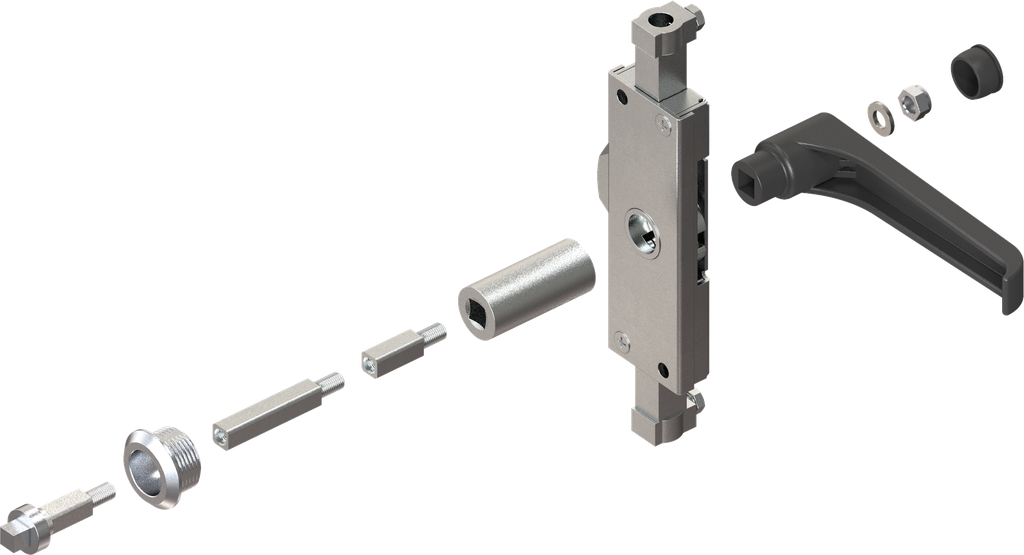

    The preassembled adapter system, with handle or insert, is inserted through the installation opening and retained by means of locknut M6.

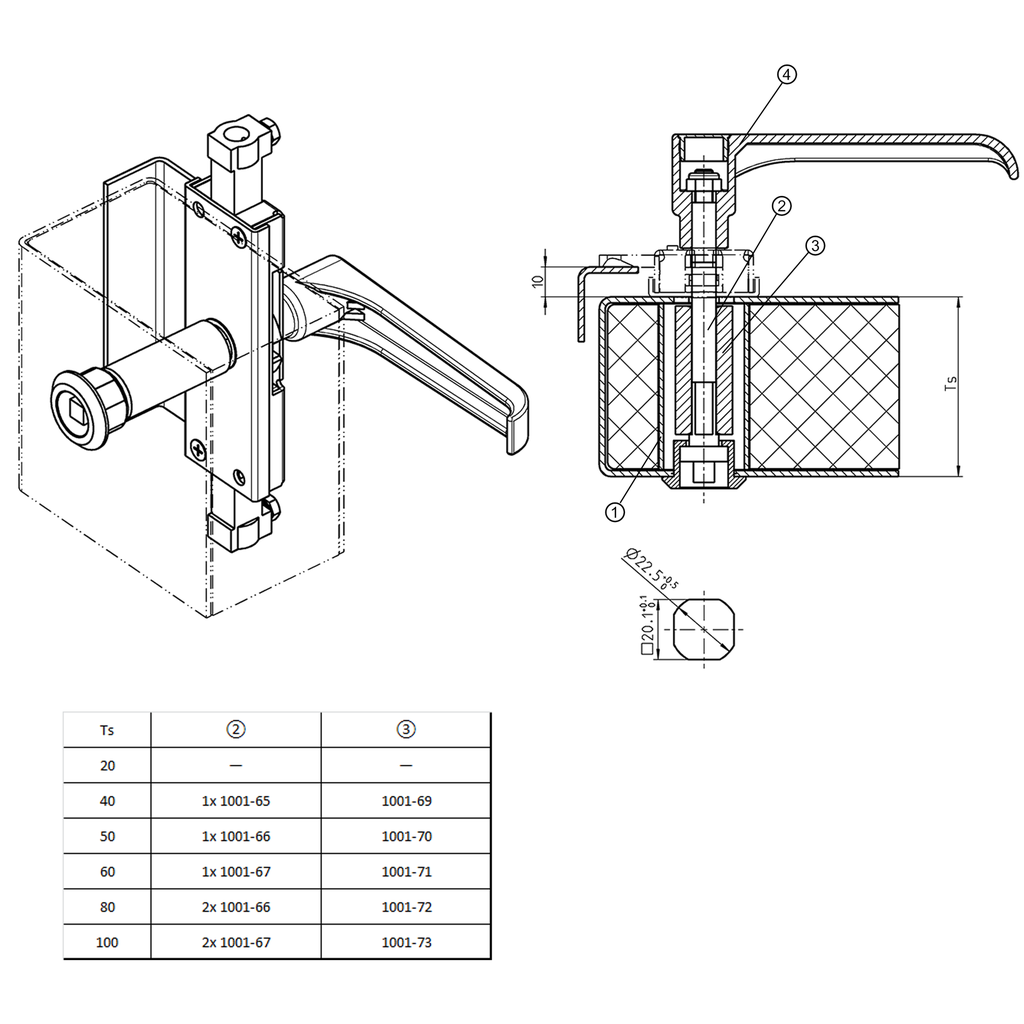

    1 = e.g. tube Ø 30x1.5
    2 = Square adapter
    3 = Coupling piece
    4 = Inside handle
    Adapter 1001-65 is required in addition for the inside handle
    The inside handle is not suitable for lockable T- and L-handles

    Assembly instruction:

    For door gauge 100 mm in case of adapter system, with insulated door

    Internal Reference: 1001-73
    Product Type: Accessories general
    Material: Aluminium
    Program: 1001
    Catalog sheet: 2A-180

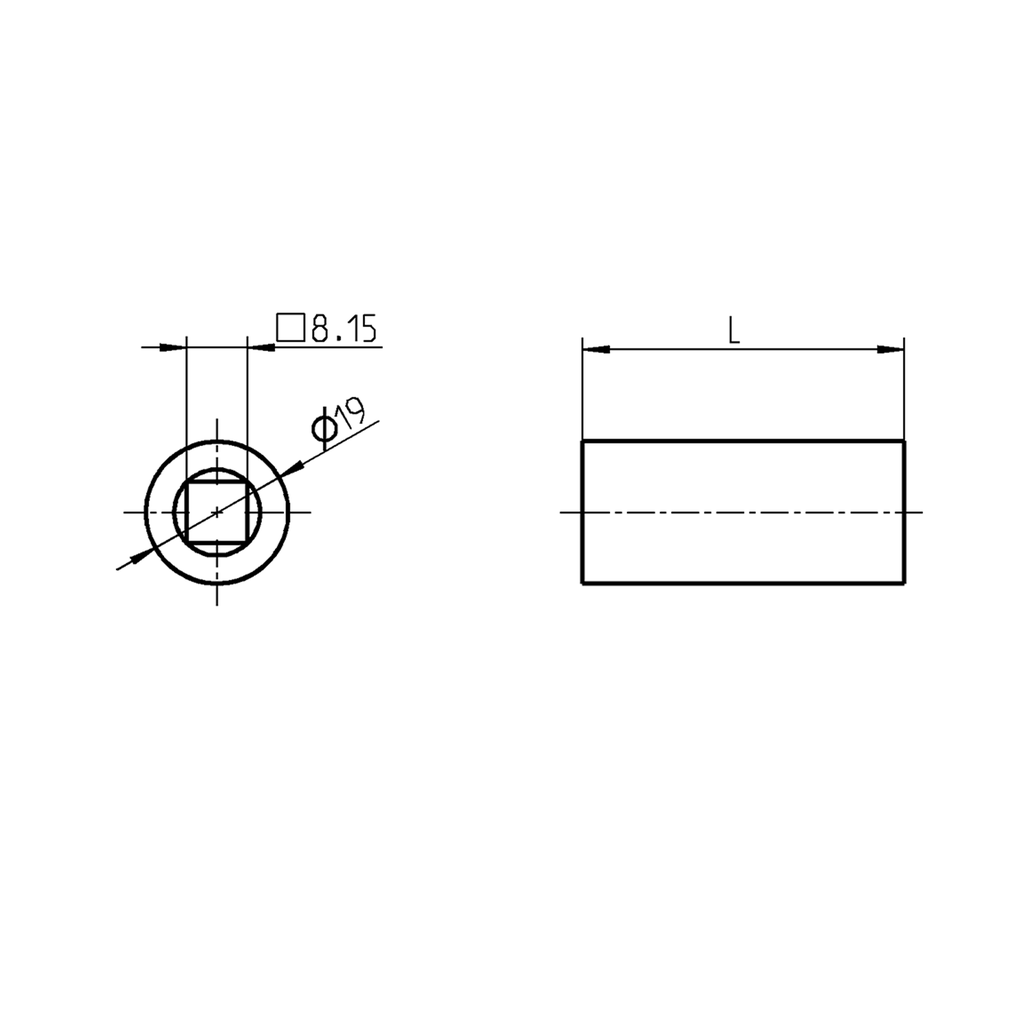

    Dimension D: 19 mm
    Dimension L: 83 mm
    No Specifications
    View All Products
    Adapter
    Rod control
    Quarter turn
    Here you can find the product data sheets and CAD files of this product
