Coupling piece, Aluminium
Coupling piece, Aluminium
Coupling piece, Aluminium
Coupling piece, Aluminium

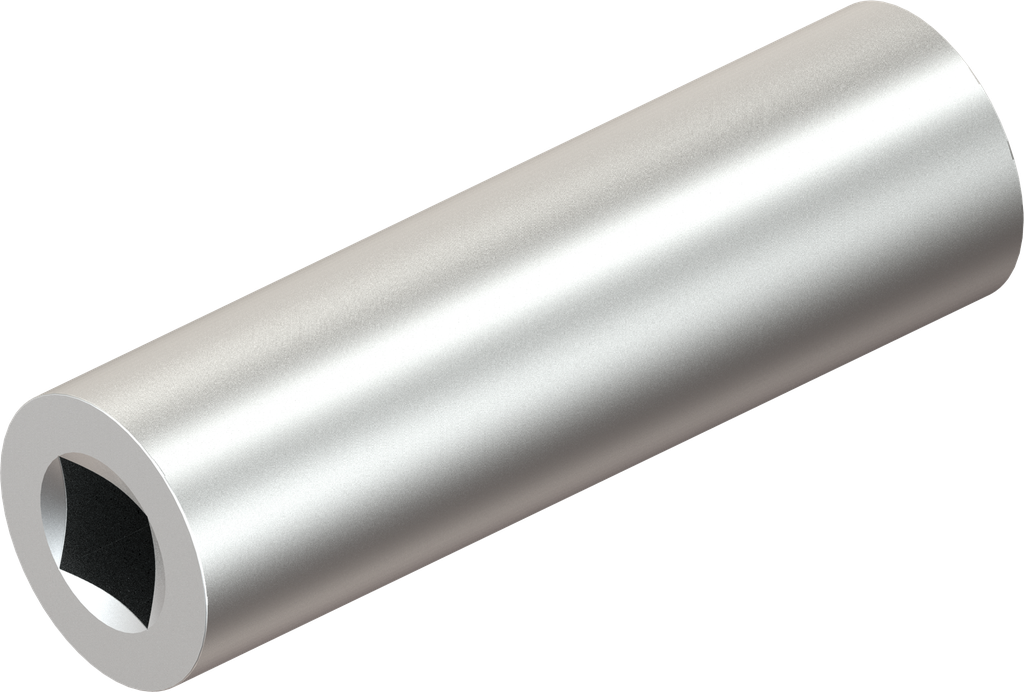

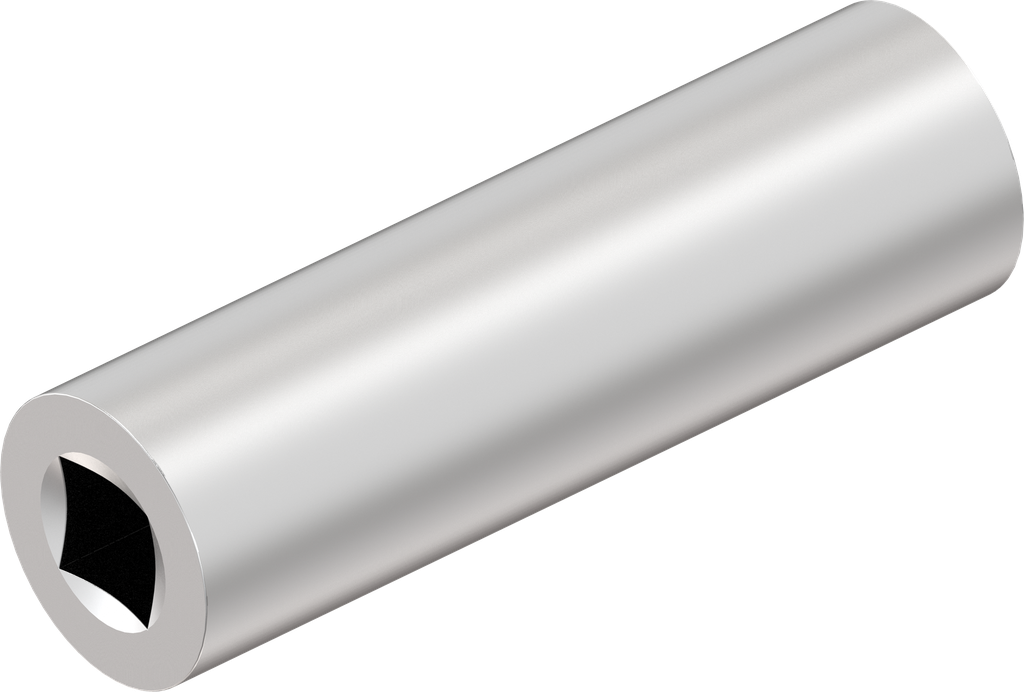

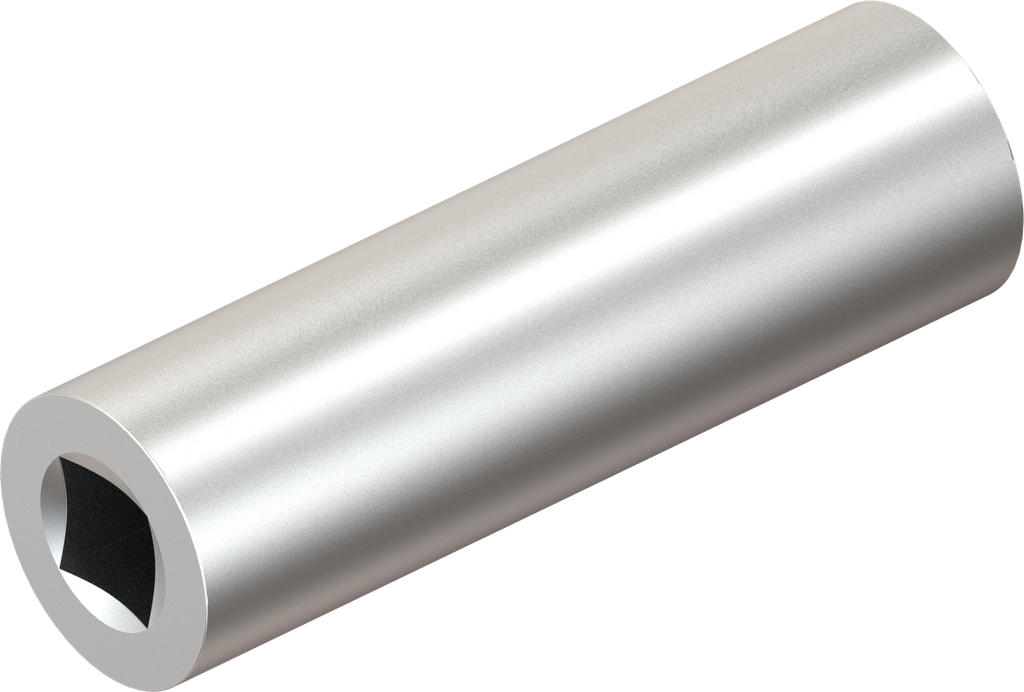

Coupling piece, Aluminium; 1001-72

https://www.emka.com/products/1001-72 https://www.emka.com/web/image/product.template/60475/image_1920?unique=77df4d4

for adapter system with insulated door, L = 63 mm

    This combination does not exist.

    Contact Us

    Product information:

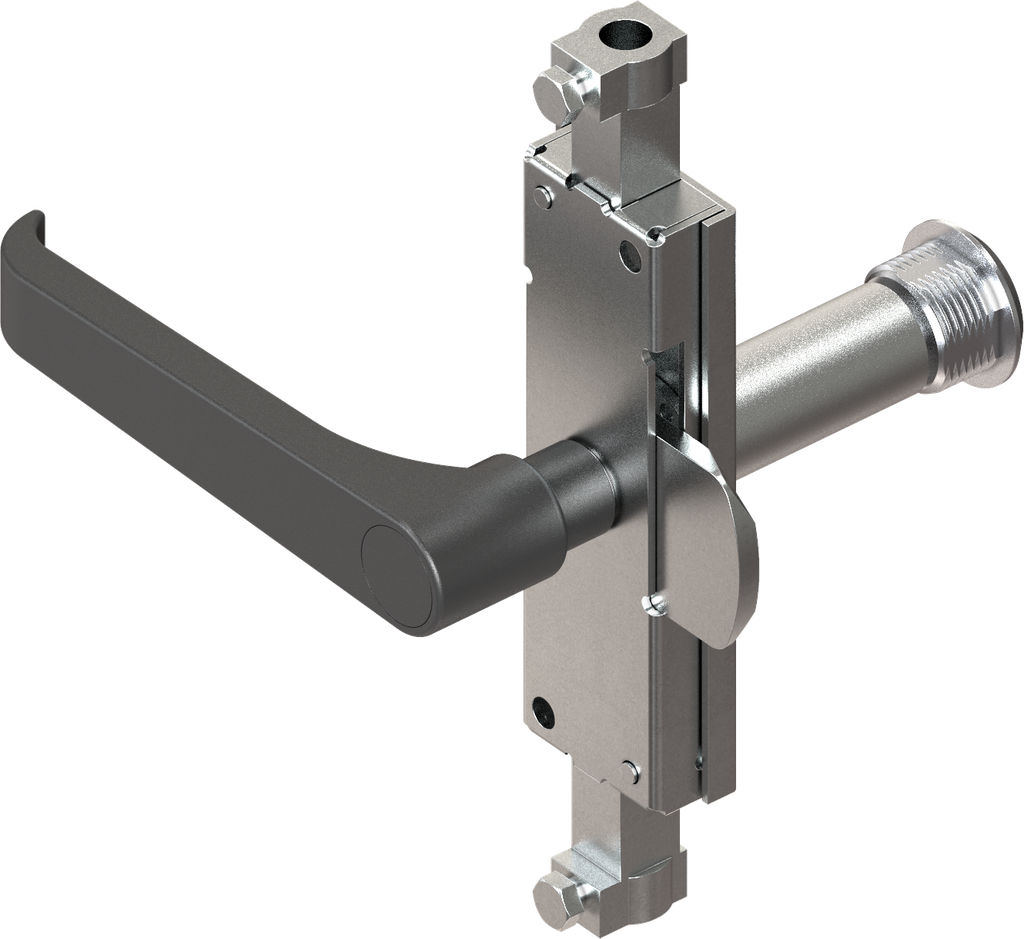

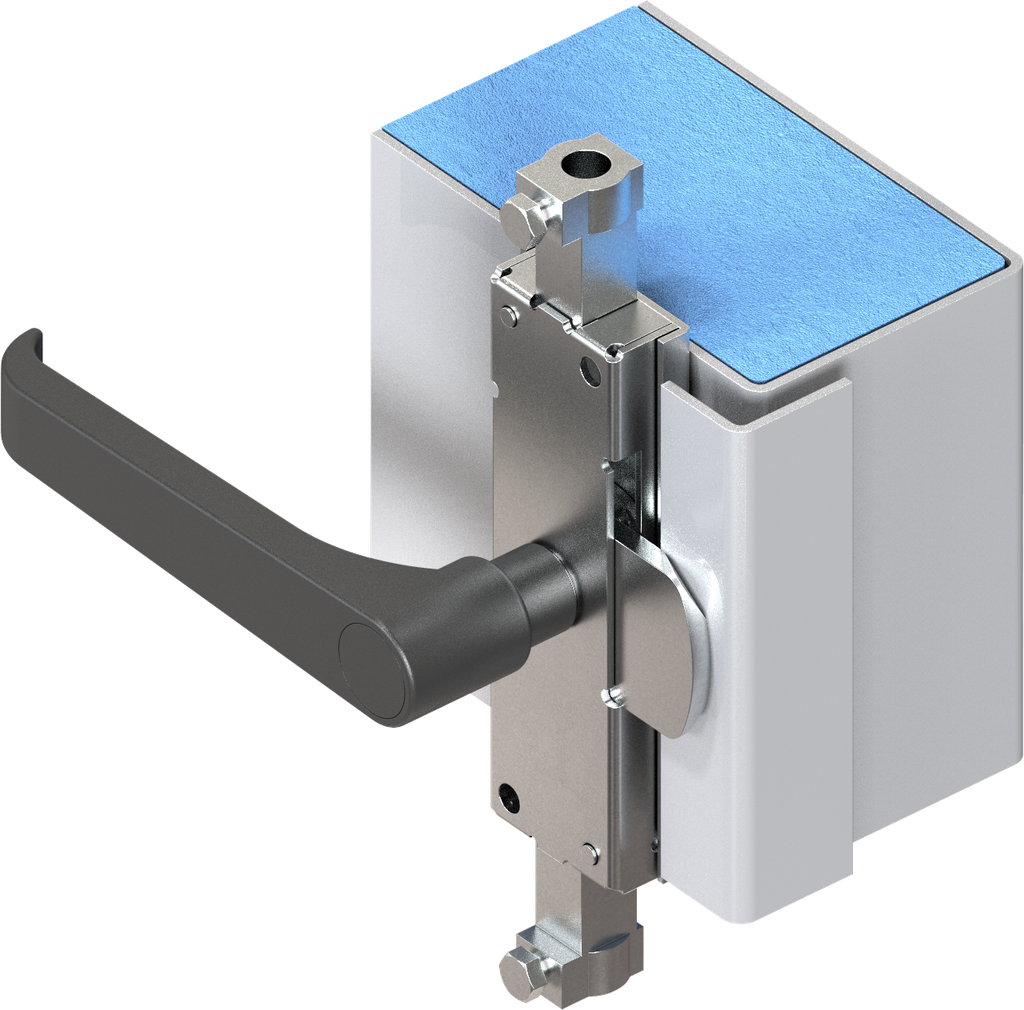

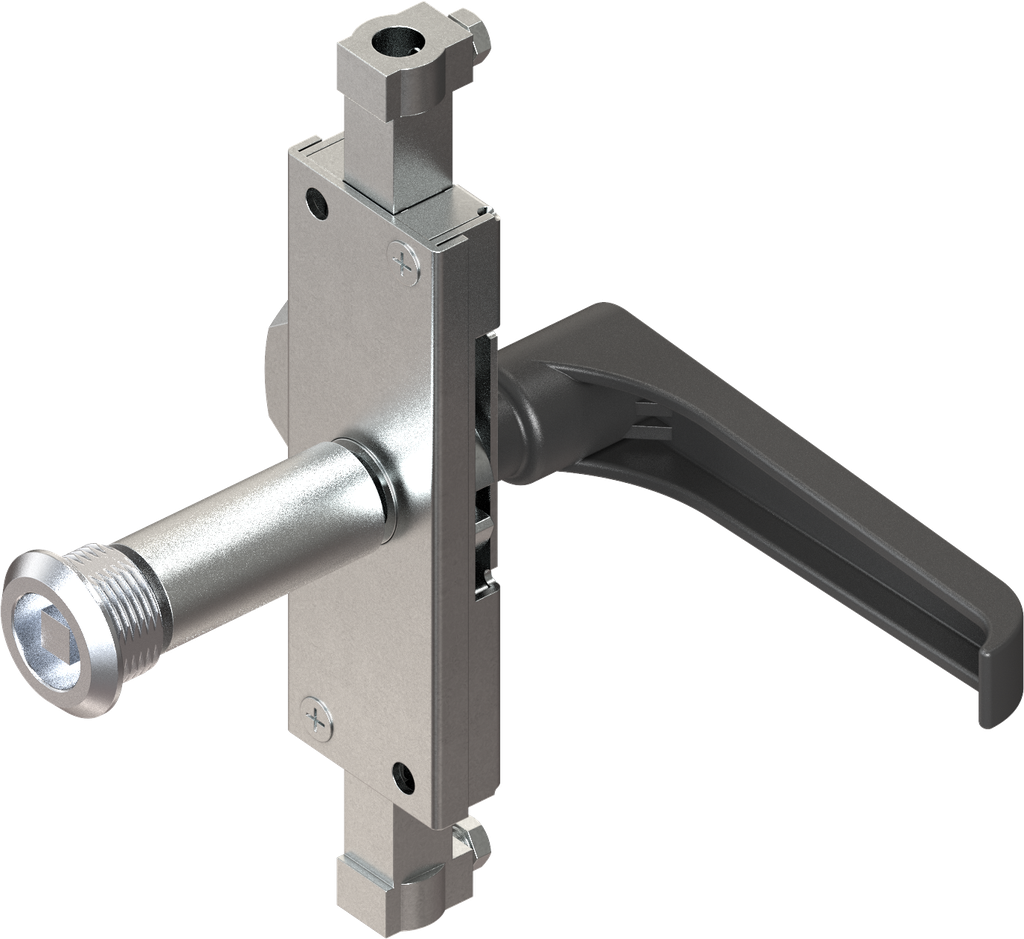

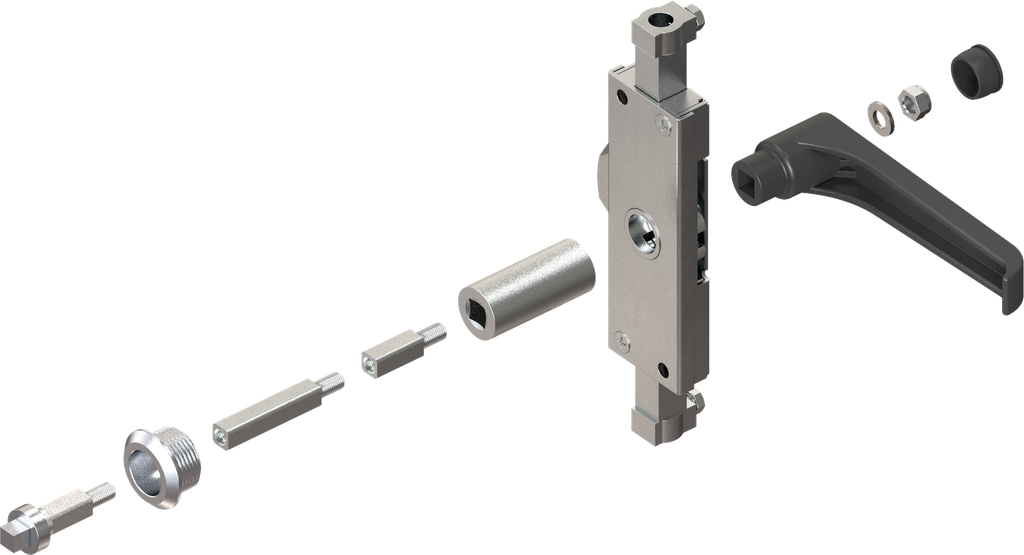

    The preassembled adapter system, with handle or insert, is inserted through the installation opening and retained by means of locknut M6.

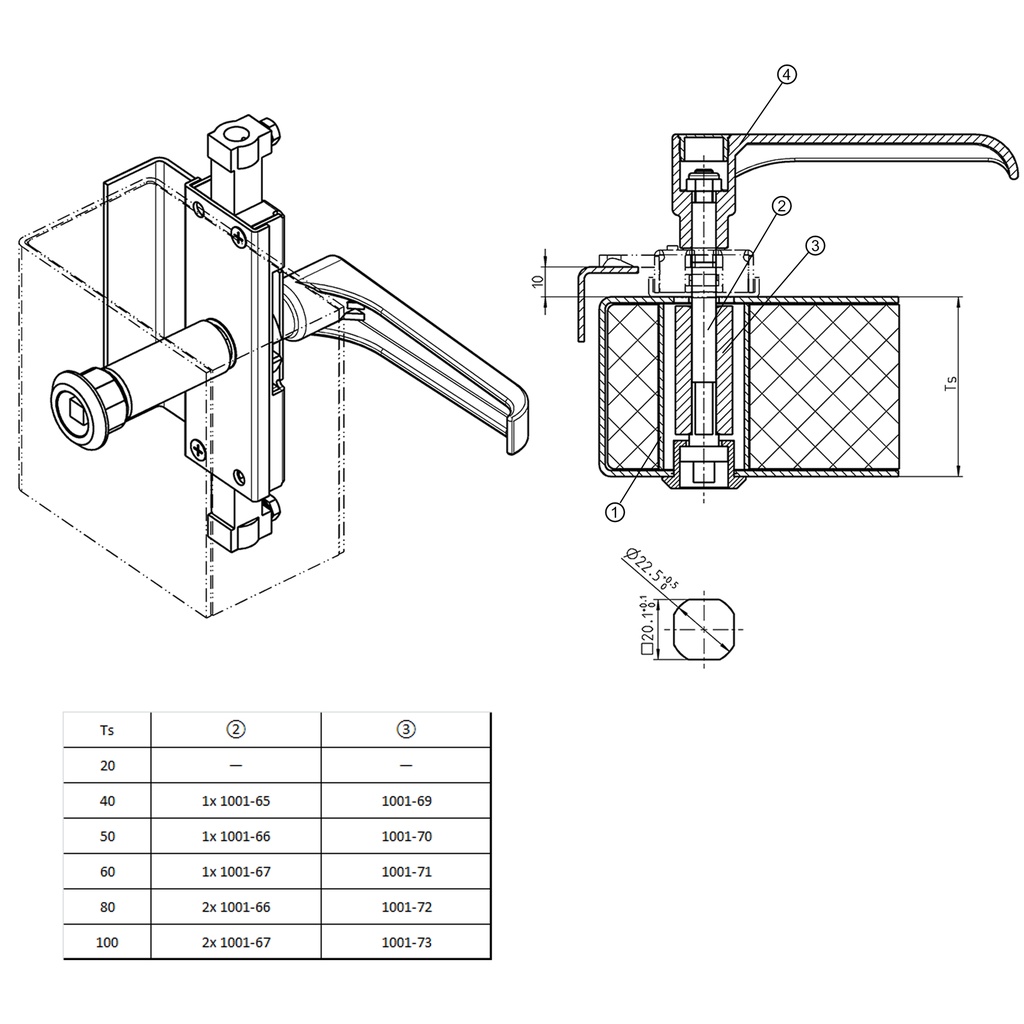

    1 = e.g. tube Ø 30x1.5
    2 = Square adapter
    3 = Coupling piece
    4 = Inside handle
    Adapter 1001-65 is required in addition for the inside handle
    The inside handle is not suitable for lockable T- and L-handles

    Assembly instruction:

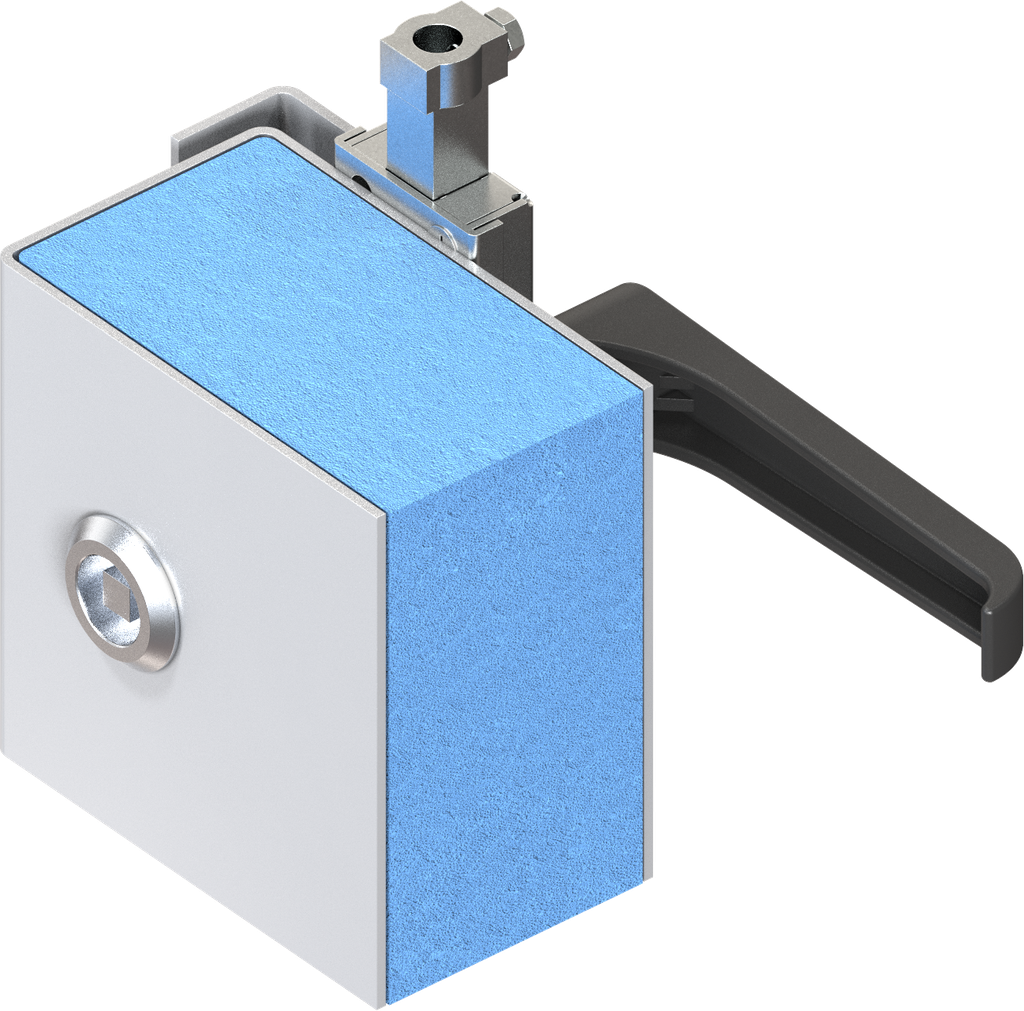

    For door gauge 80 mm in case of adapter system, with insulated door
    Internal Reference: 1001-72
    Product Type: Accessories general
    Material: Aluminium
    Program: 1001
    Catalog sheet: 2A-180
    Dimension D: 19 mm
    Dimension L: 63 mm
    No Specifications
