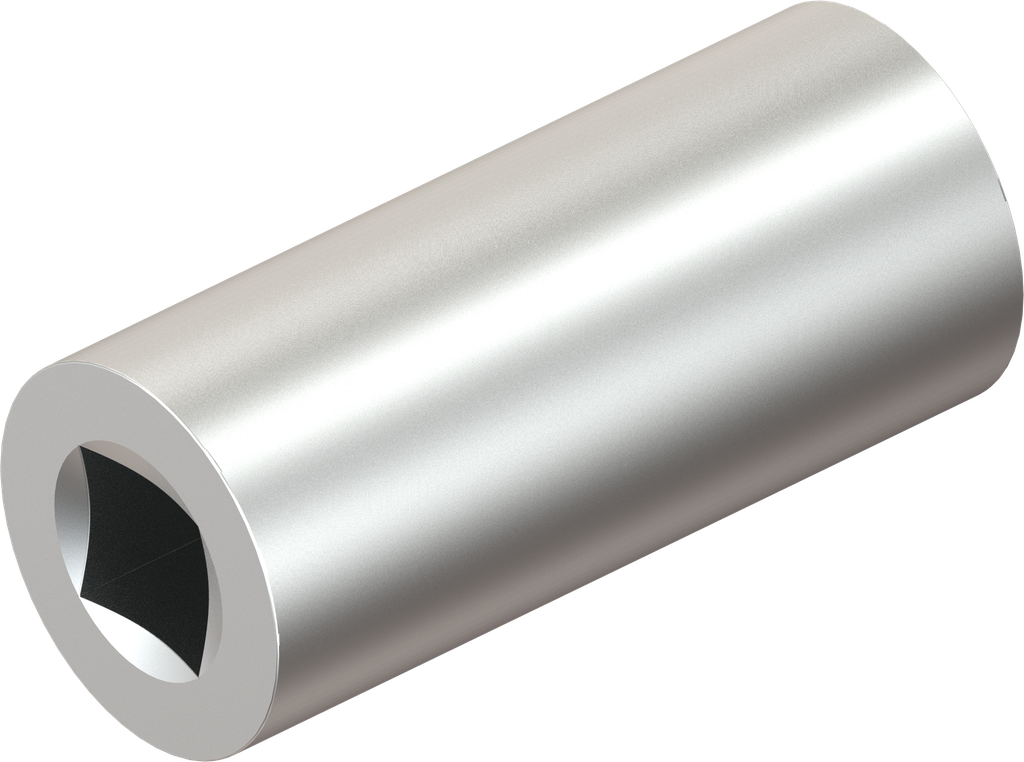

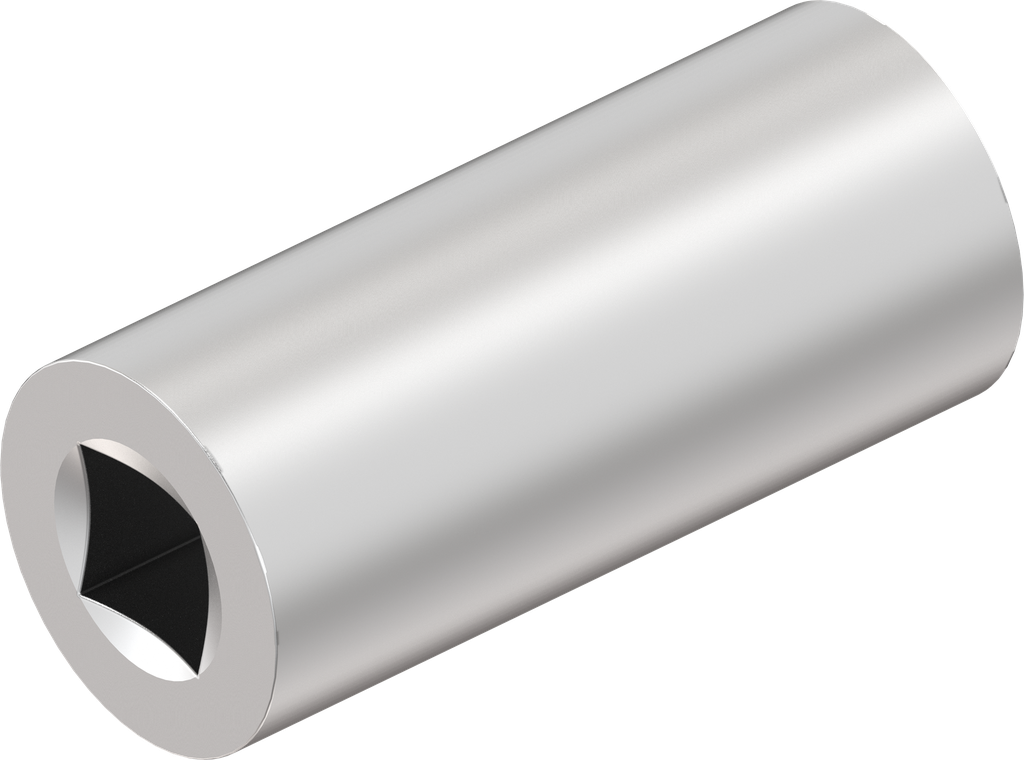

Coupling piece, Aluminium

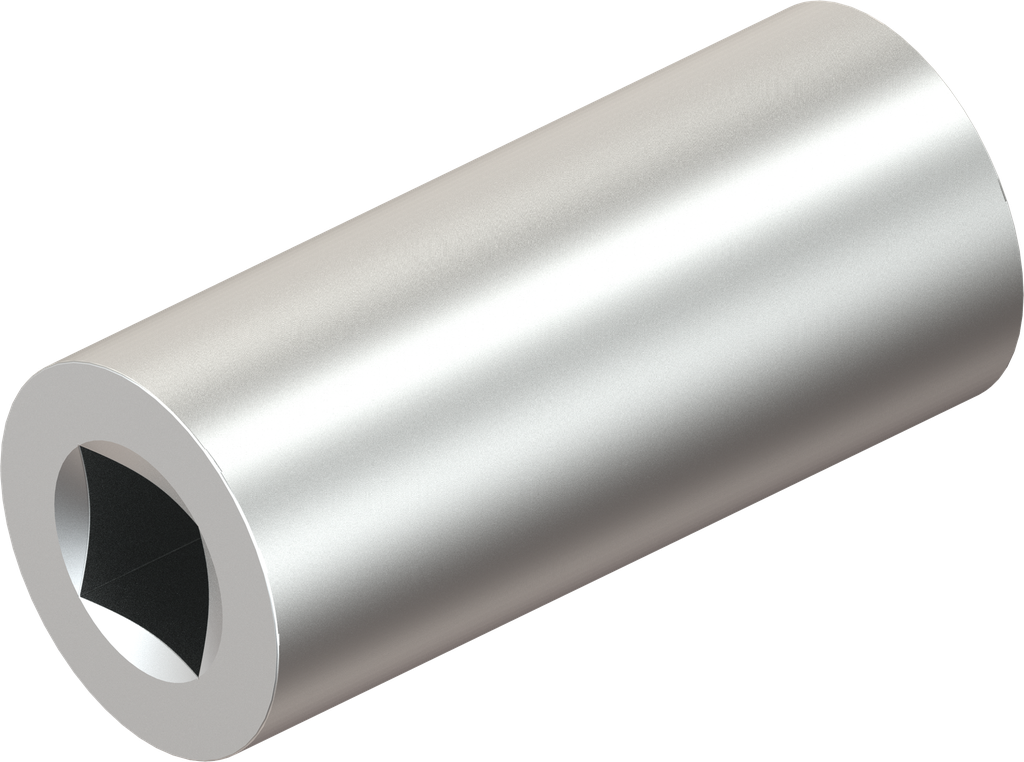

Coupling piece, Aluminium
Product information:

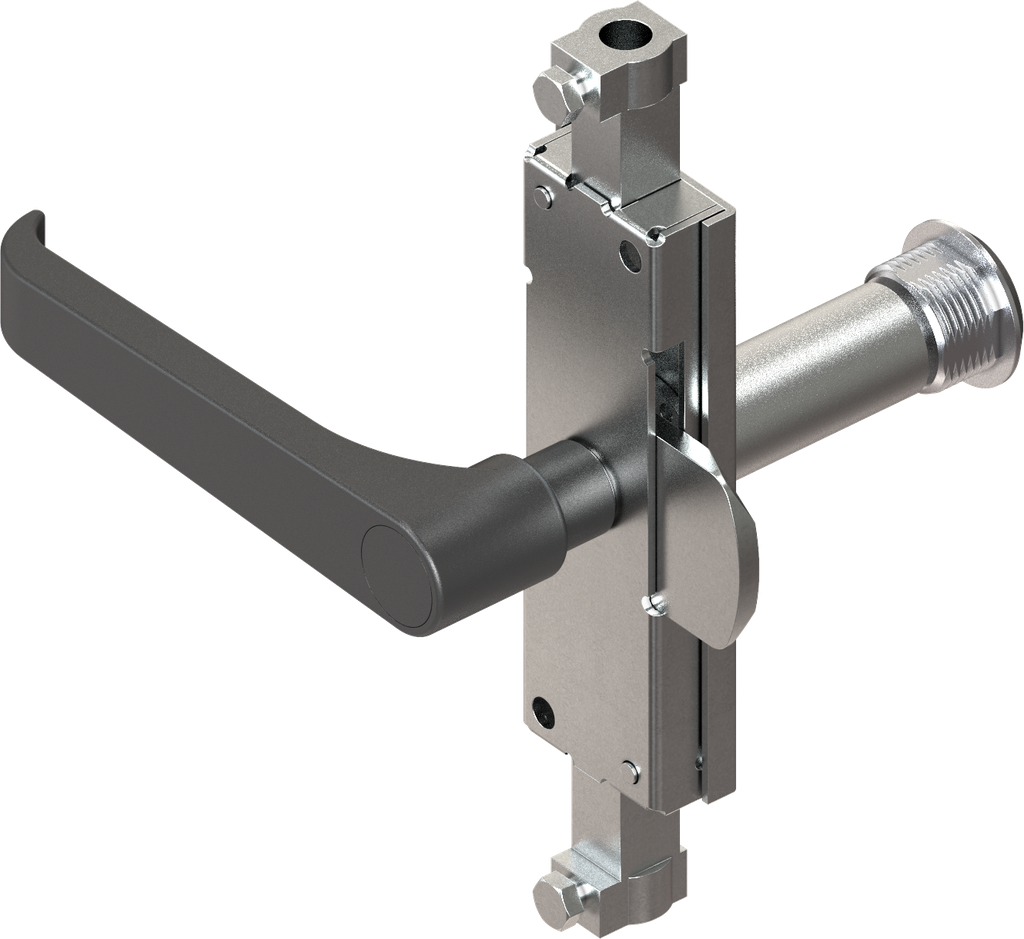

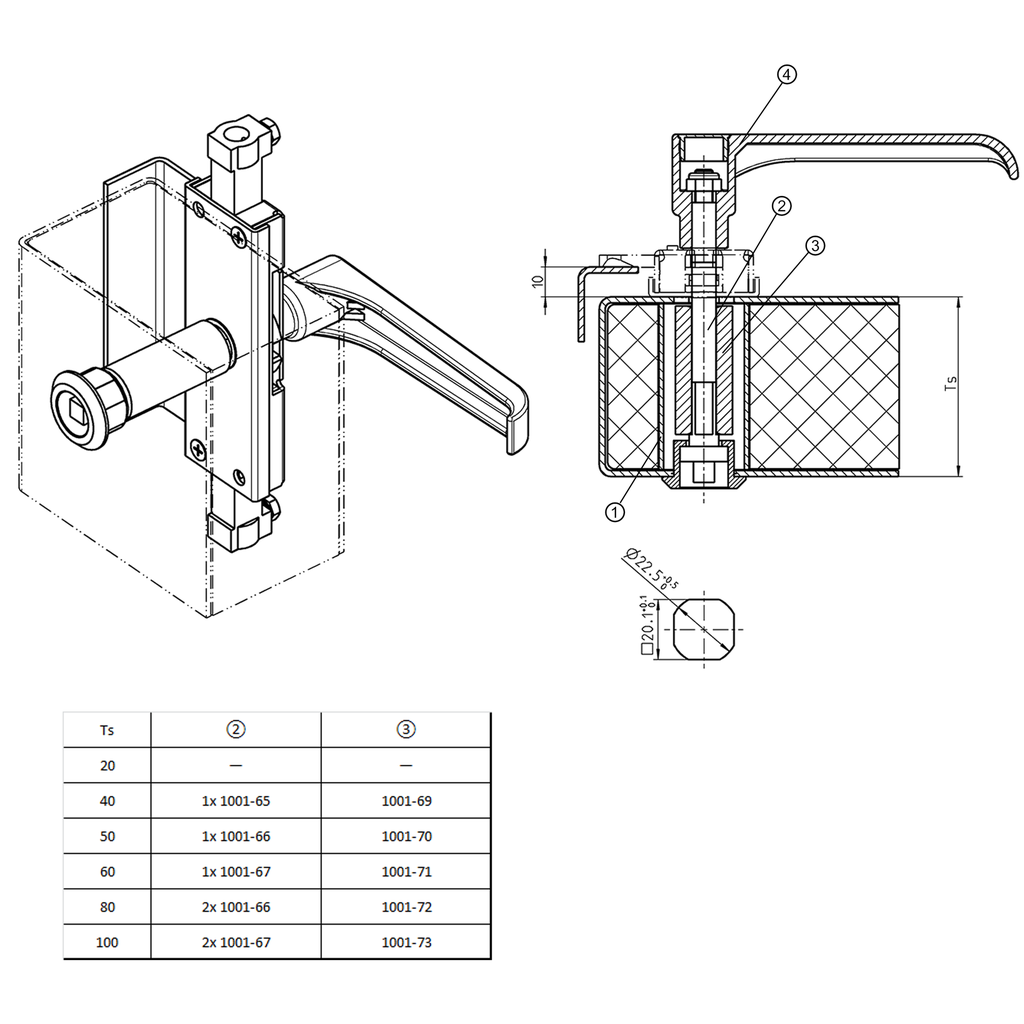

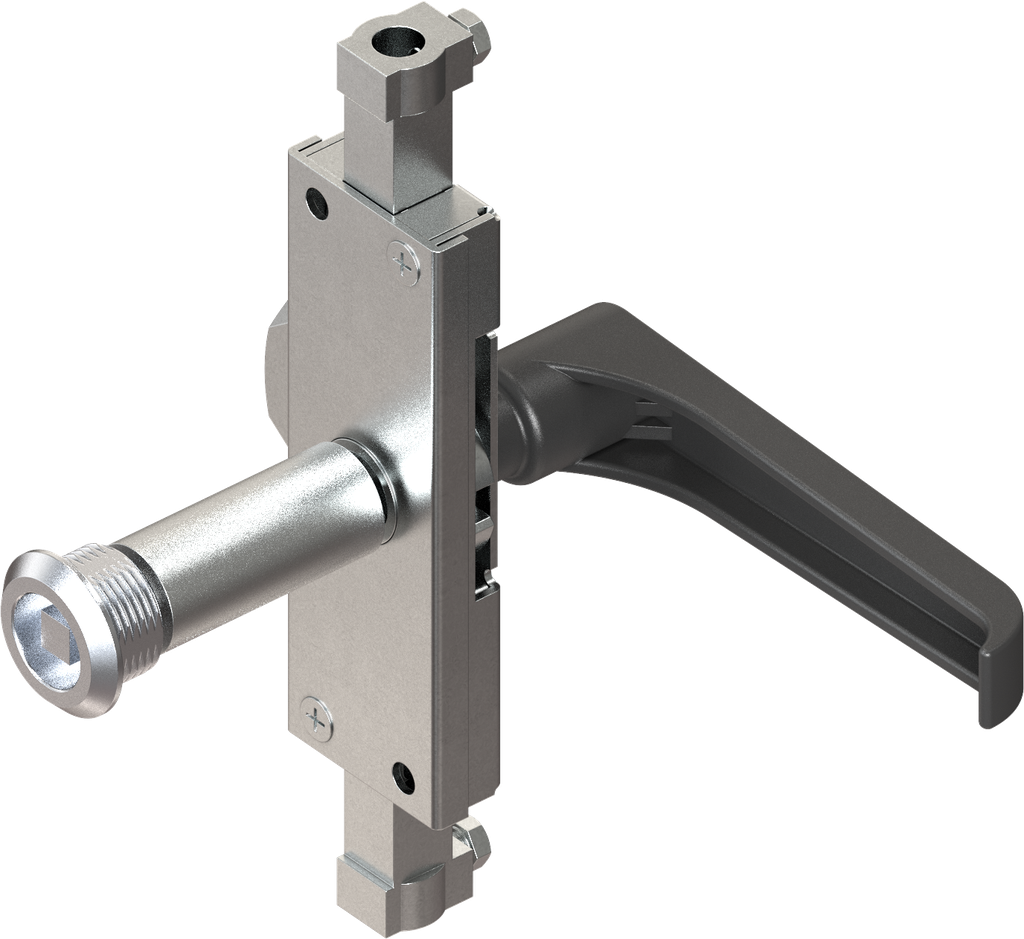

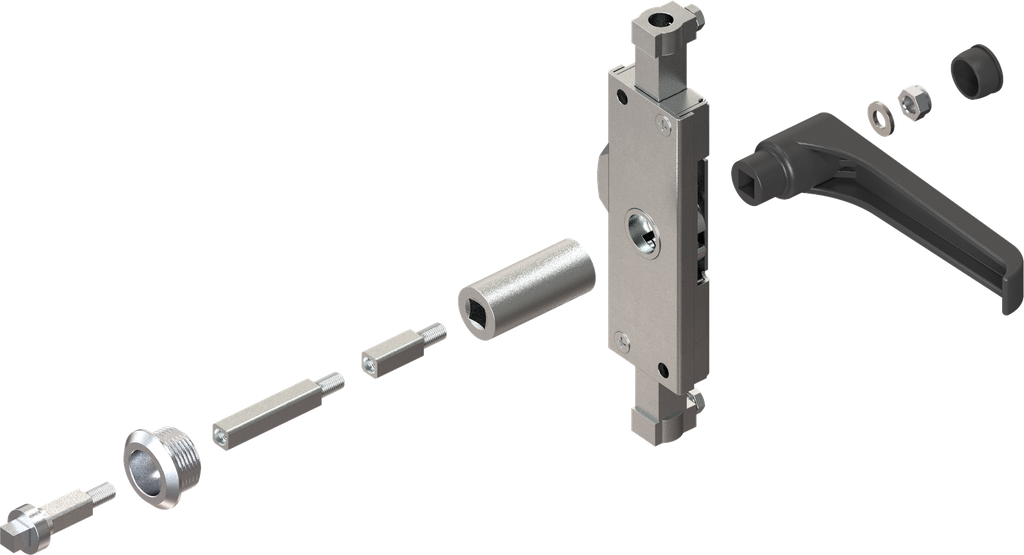

The preassembled adapter system, with handle or insert, is inserted through the installation opening and retained by means of locknut M6.
1 = e.g. tube Ø 30x1.5
2 = Square adapter

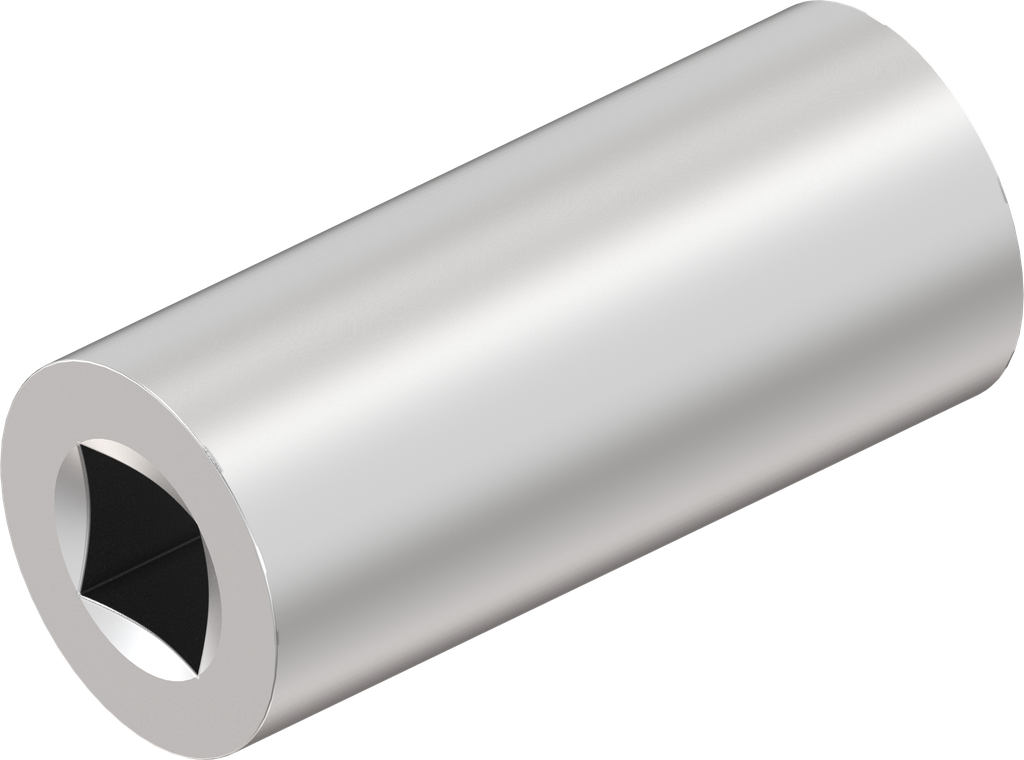

3 = Coupling piece
4 = Inside handle
Adapter 1001-65 is required in addition for the inside handle
The inside handle is not suitable for lockable T- and L-handles
Assembly instruction:

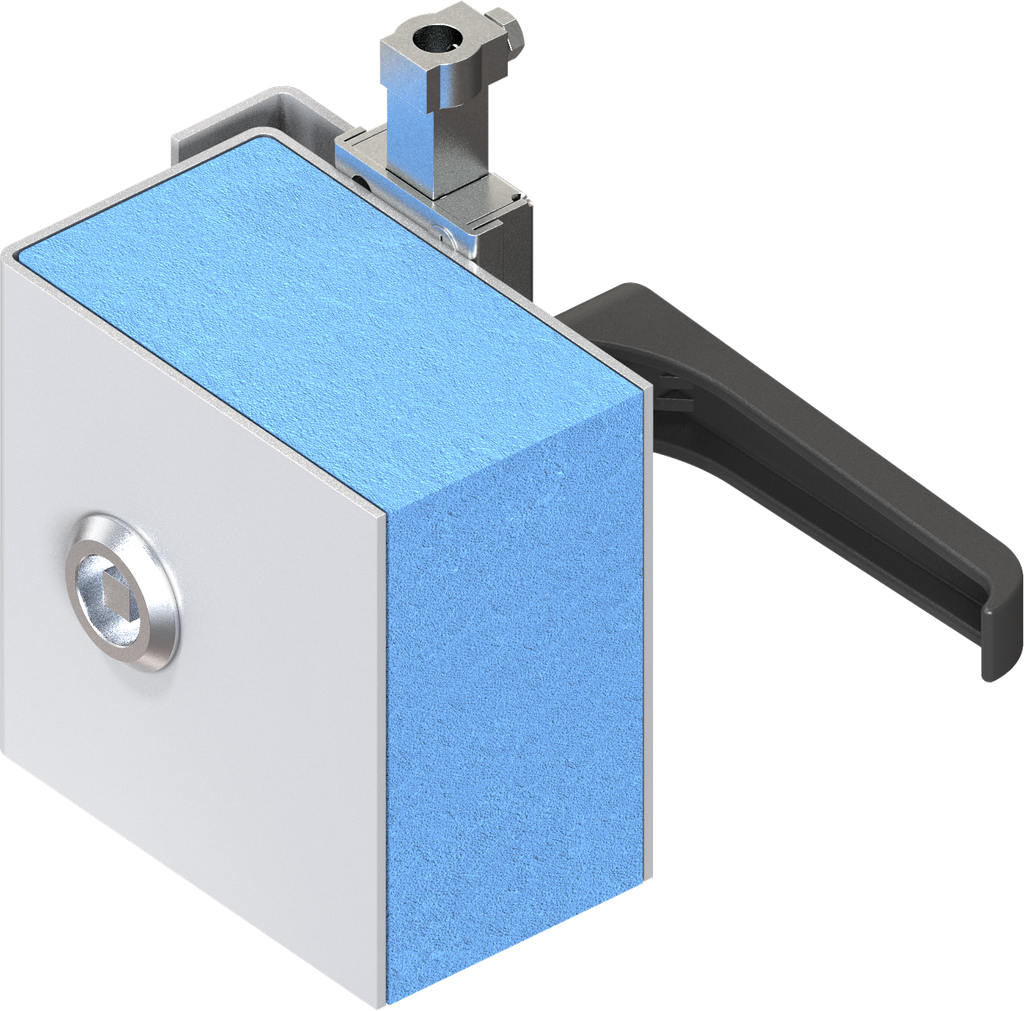

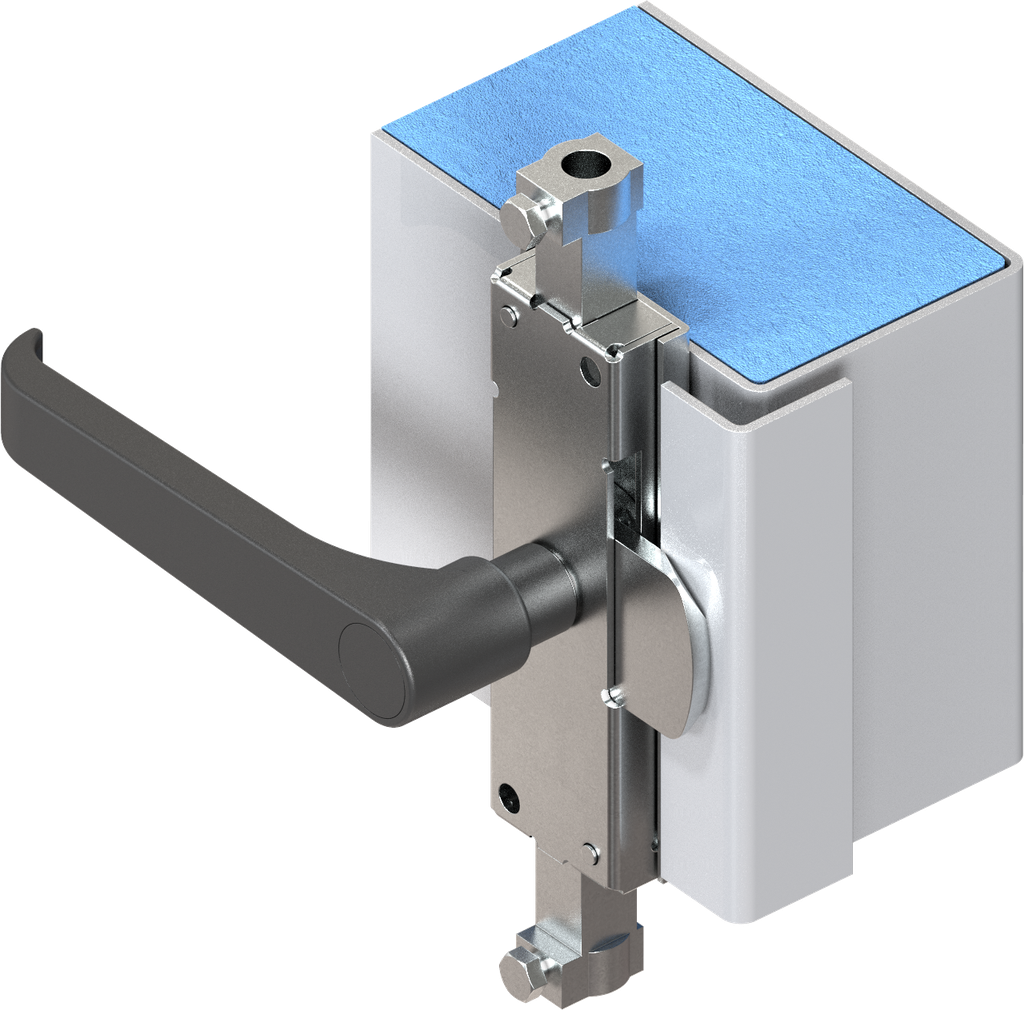

For door gauge 60 mm in case of adapter system, with insulated door
Internal Reference:
1001-71
Product Type:
Accessories general
Material:
Aluminium
Program:
1001
Catalog sheet:
2A-180

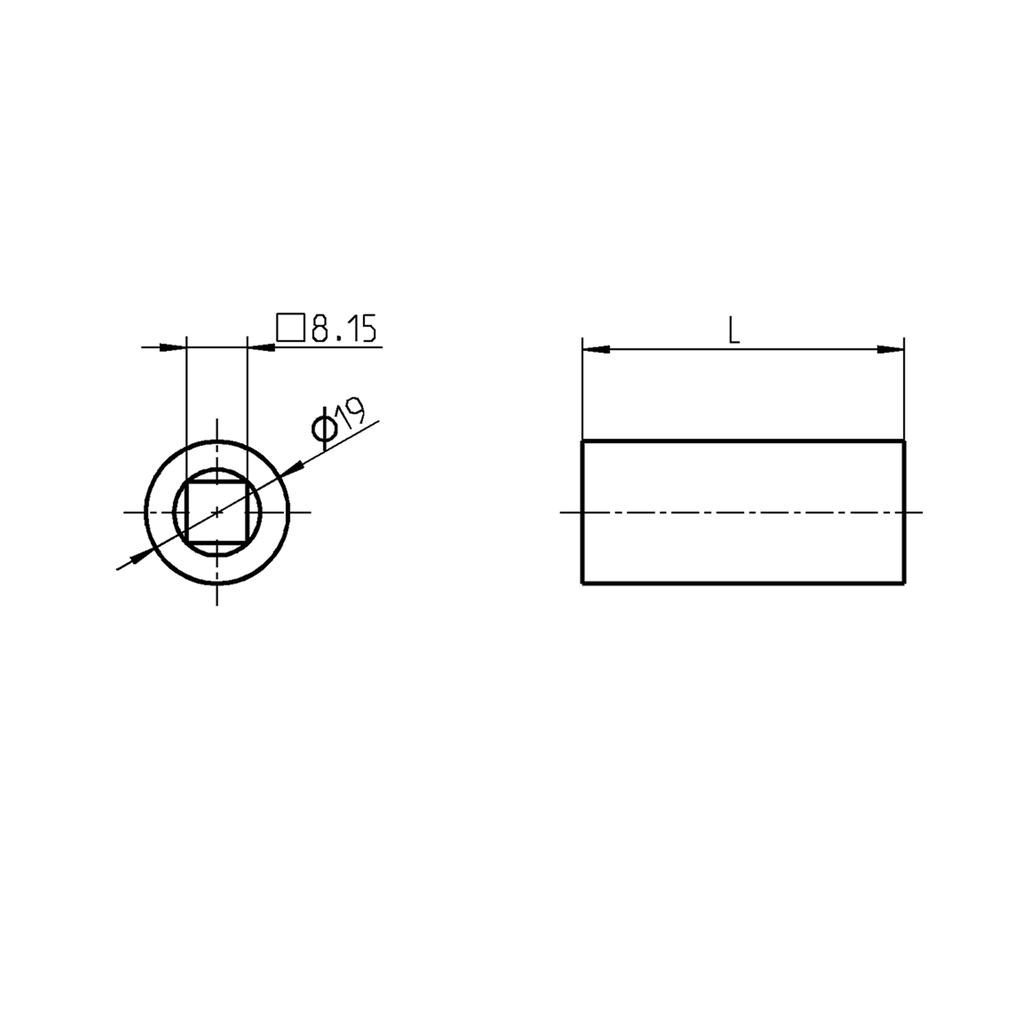

Dimension D:
19 mm
Dimension L:
43 mm
