Lock support, Steel zinc-plated
Lock support, Steel zinc-plated
Lock support, Steel zinc-plated
Lock support, Steel zinc-plated

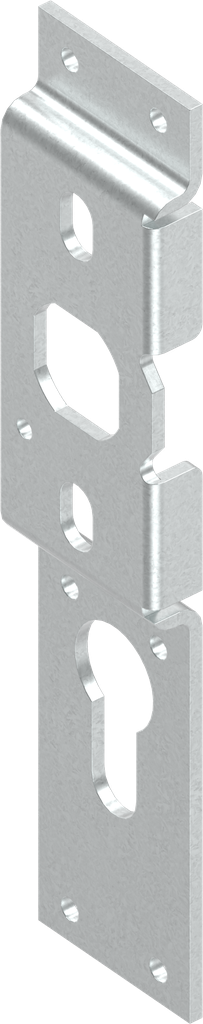

Lock support, Steel zinc-plated; 1001-46

https://www.emka.com/products/1001-46 https://www.emka.com/web/image/product.template/60452/image_1920?unique=2380851

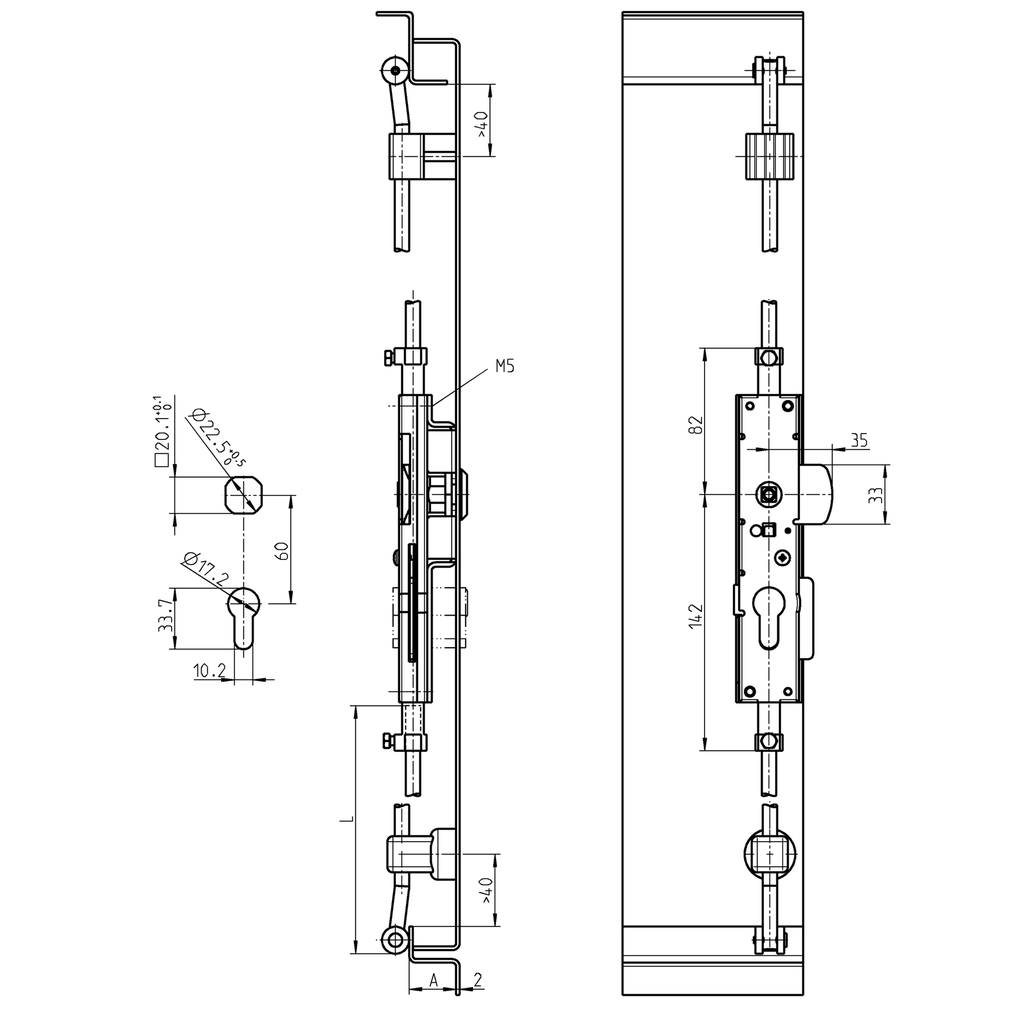

for screw-on version, A = 20 mm

    This combination does not exist.

    Inside the sealing Left
    Contact Us
    Internal Reference: 1001-46
    Product Type: Rod control accessories
    Material: Steel
    Program: 1001
    Surface: zinc-plated
    Catalog sheet: 2A-120
    Dimention A: A 20
    Mounting Positions : Inside the sealing
    Door Version : Left
    No Specifications
    View All Products
    Housing
    Rod control
    Quarter turn
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 2A-120
    Product data sheet
    CAD file | 1001-46_igs
    CAD file | 1001-46_stp
