Compression latch square 8 for hygienic areas food and medical sector, Stainless steel AISI 316L
Square rod L = 900 mm, Steel zinc-plated
Product information:
Rod control for compression latch system Version A = Swinghandle with GH = 18 Version B = Quarter turn with GH = 18 Version C = HVACR systems with modular locking system
Function:

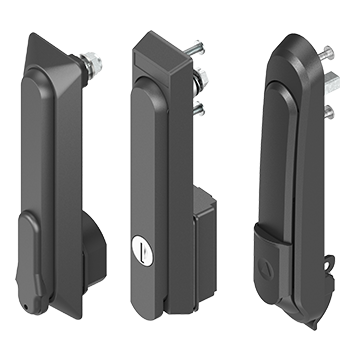

Compression latch suitable for swinghandle programs 1125, 1150, 1180, 1225, 1325, 2100, 2225, 3000 for quarter turn program 1000 for HVACR systems with modular locking system program 1091
Internal Reference:

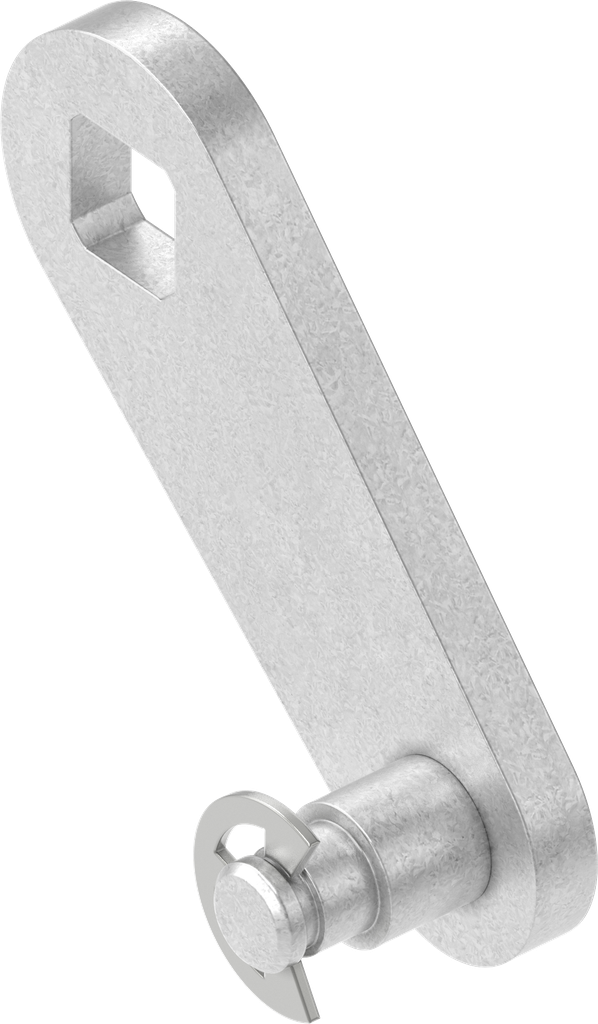

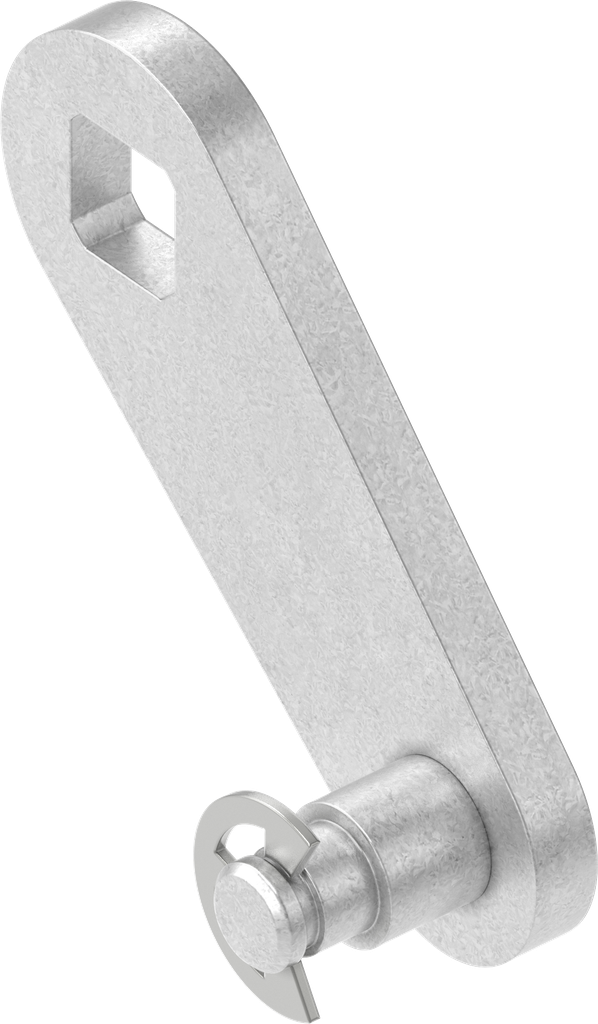

1000-U980
Product Type:
Rod control
Program:
1000
Catalog sheet:
3ZD-180
Material of the module :
Steel
Surface of the module:
zinc-plated
Number of Possible Locking Points:
2 points, 3 point, 4 point, More than 4 points available on request
Mounting Positions :
Inside the sealing
Stroke of the drive:
Stroke 49.4 mm
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
