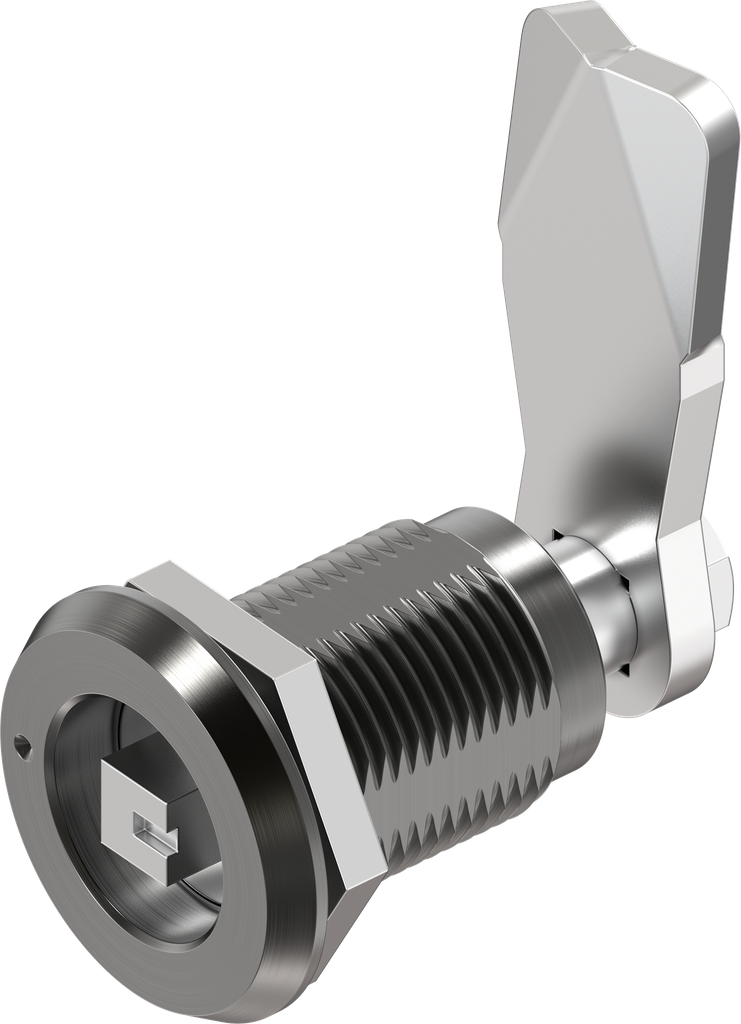

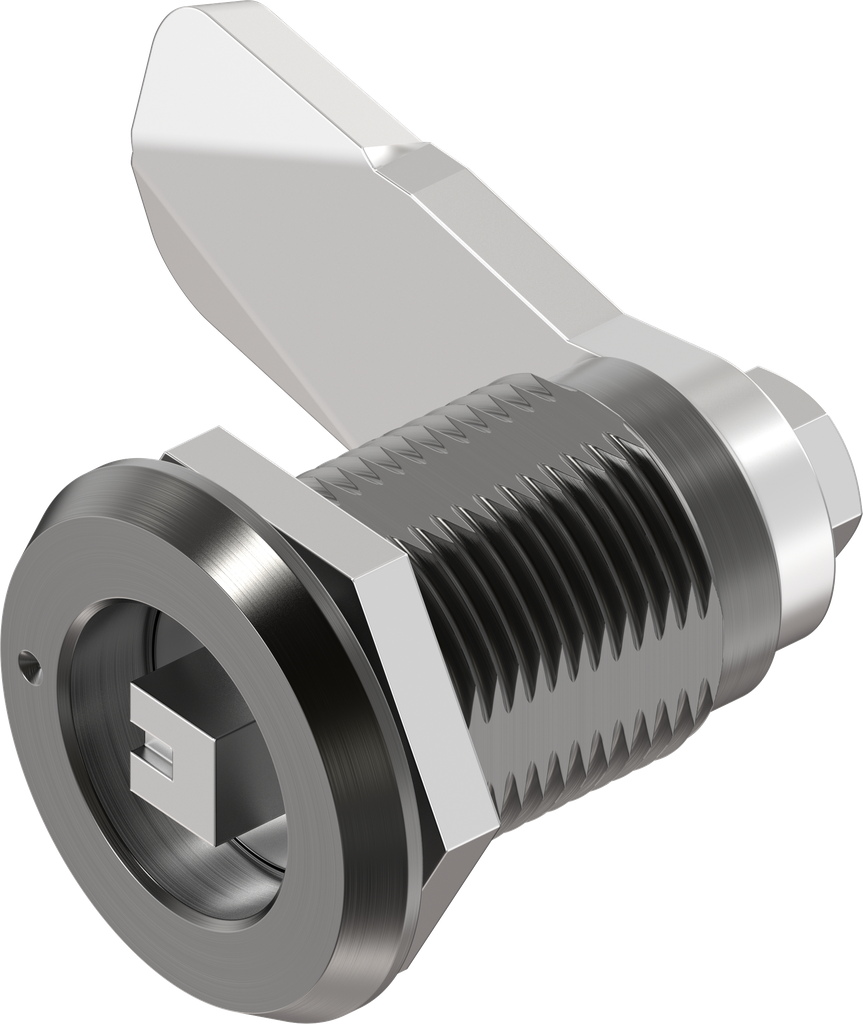

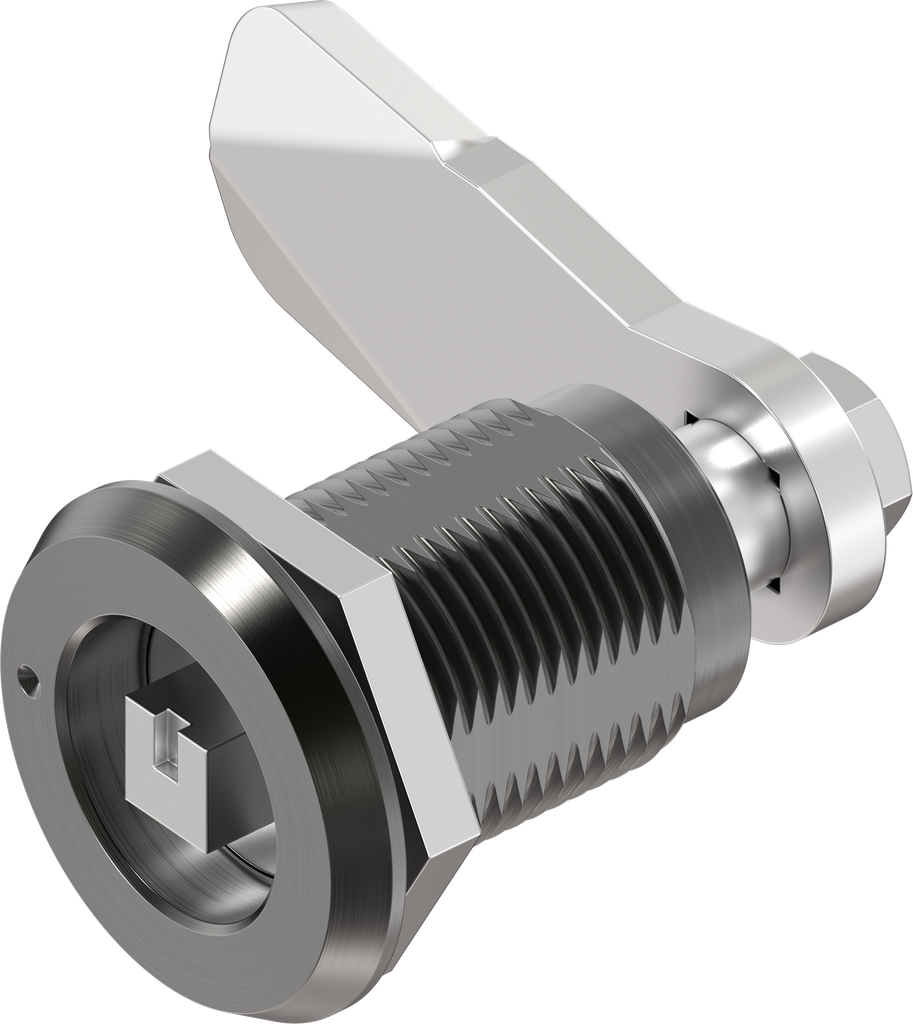

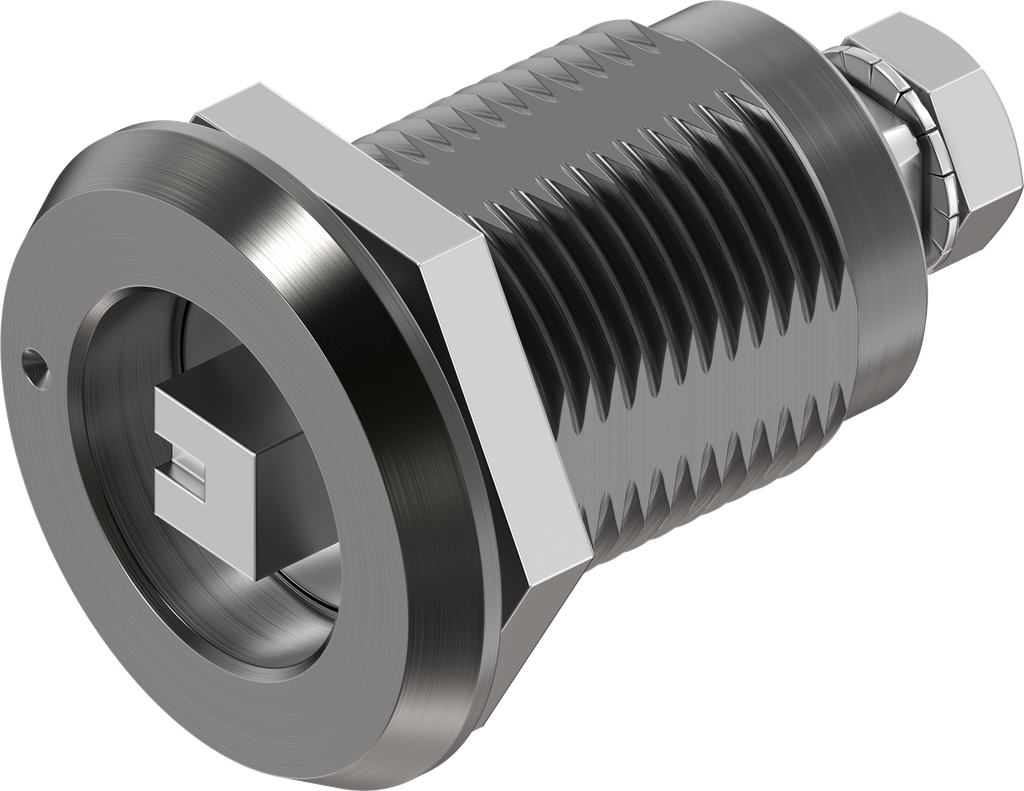

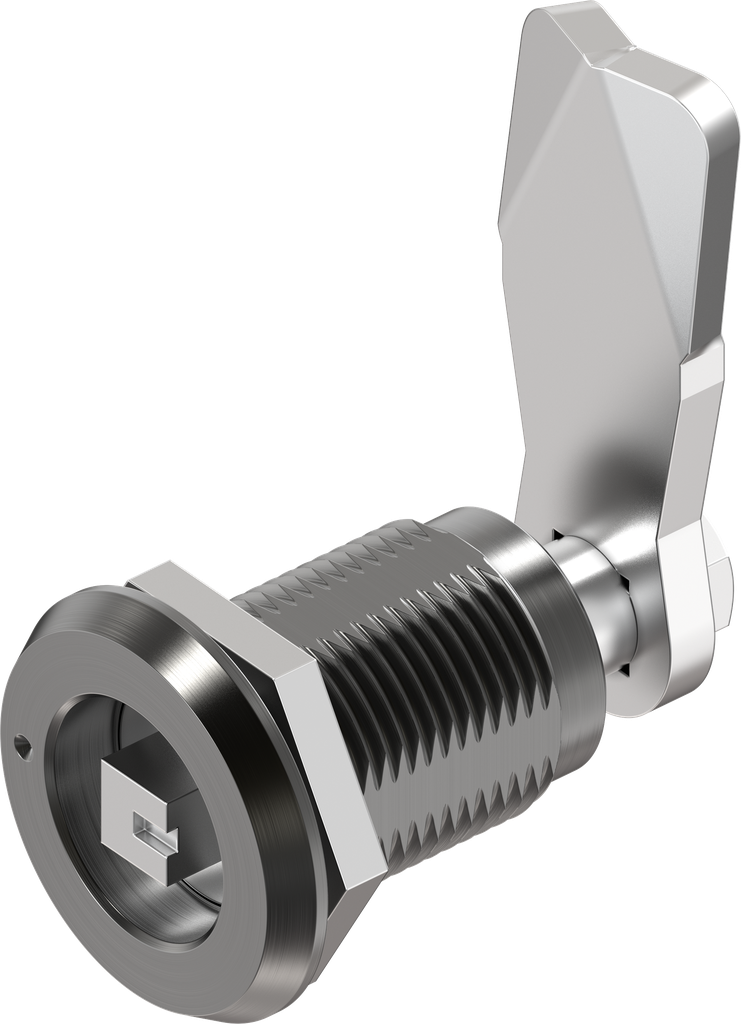

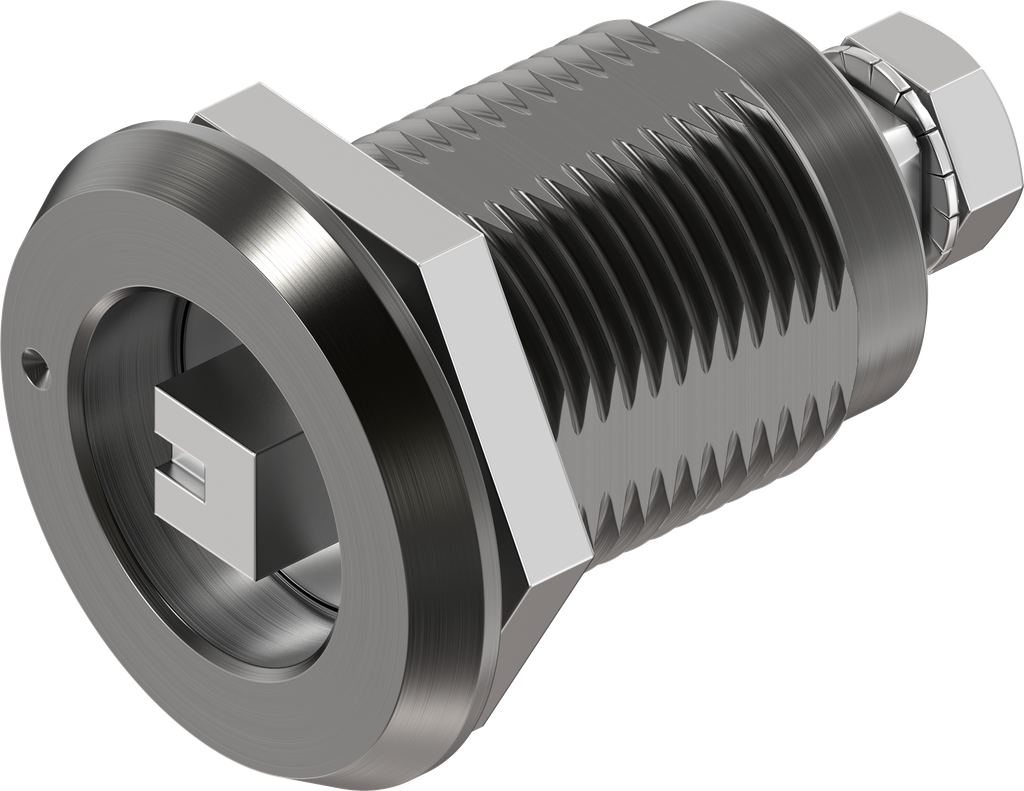

Compression latch square 7 with marking, right version, Aluminium hard anodized and stainless steel AISI 316; 1000-U968-RE
with stainless steel nut
Product information:
The compression latch is designed to be vibration-proof as such. Depending on the installation location and operational conditions specific checks are necessary and/or supplementary measures of fastening required.
Internal Reference:
1000-U968-RE
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-225
Material of the module :
Aluminium hard anodized and stainless steel AISI 316
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Type of actuation:
Square 7 with marking
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round

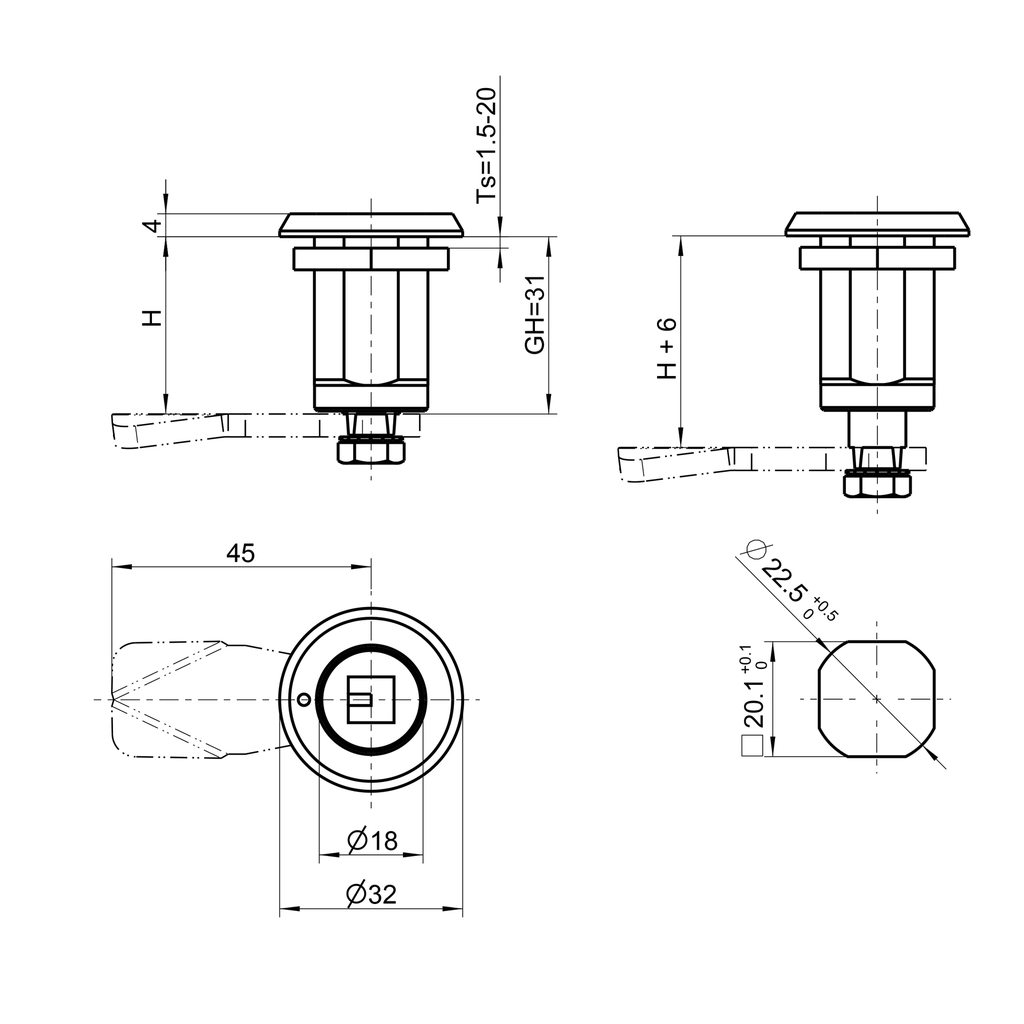

Housing Head Size:
32 x 4 mm
Foamed gasket:
Yes
GH Mass:
31 mm
Compression Value :
6 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
20 mm
Locking set:
Insert
Locking components:
Cam
Quarter turn types:
Compression latch with insert
No Specifications
