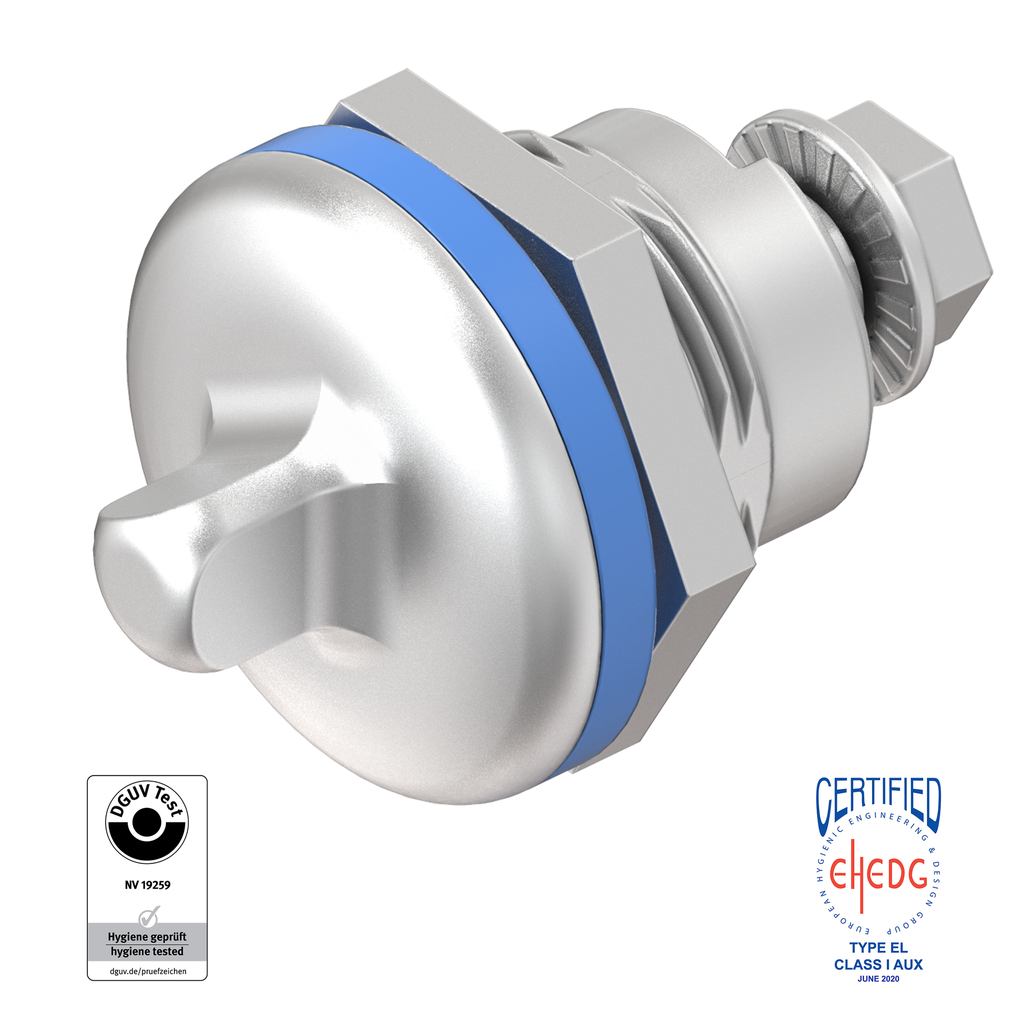

Quarter turn triangular 8 for hygienic areas food and medical sector, Stainless steel AISI 316L
Quarter turn square 8 for hygienic areas food and medical sector, Stainless steel AISI 316L
Quarter turn triangular 8 for hygienic area food, Stainless steel AISI 303; 1000-U941-01PF
with stainless steel nut
Product Benefits:
Stainless steel quarter turn for hygienic areas with flat seal flush on the outside
Product information:
The quarter turns for hygienic areas meet the hygiene requirement acc. to DIN EN 1672-2, DIN EN 14159 and EHEDG Doc. 8. The gaskets meet the requirements of the FDA 21 CFR 177.2600 and VO 1935/2004.
Internal Reference:
1000-U941-01PF
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-835
Material of the module :
Stainless steel AISI 303
Number of Possible Locking Points:
1 point, 2 points, 3 point
Fixing type of housing :
nut fixing
Type of actuation:
Hygiene triangular 8
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
GH Mass:
18 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn with simple insert
No Specifications
