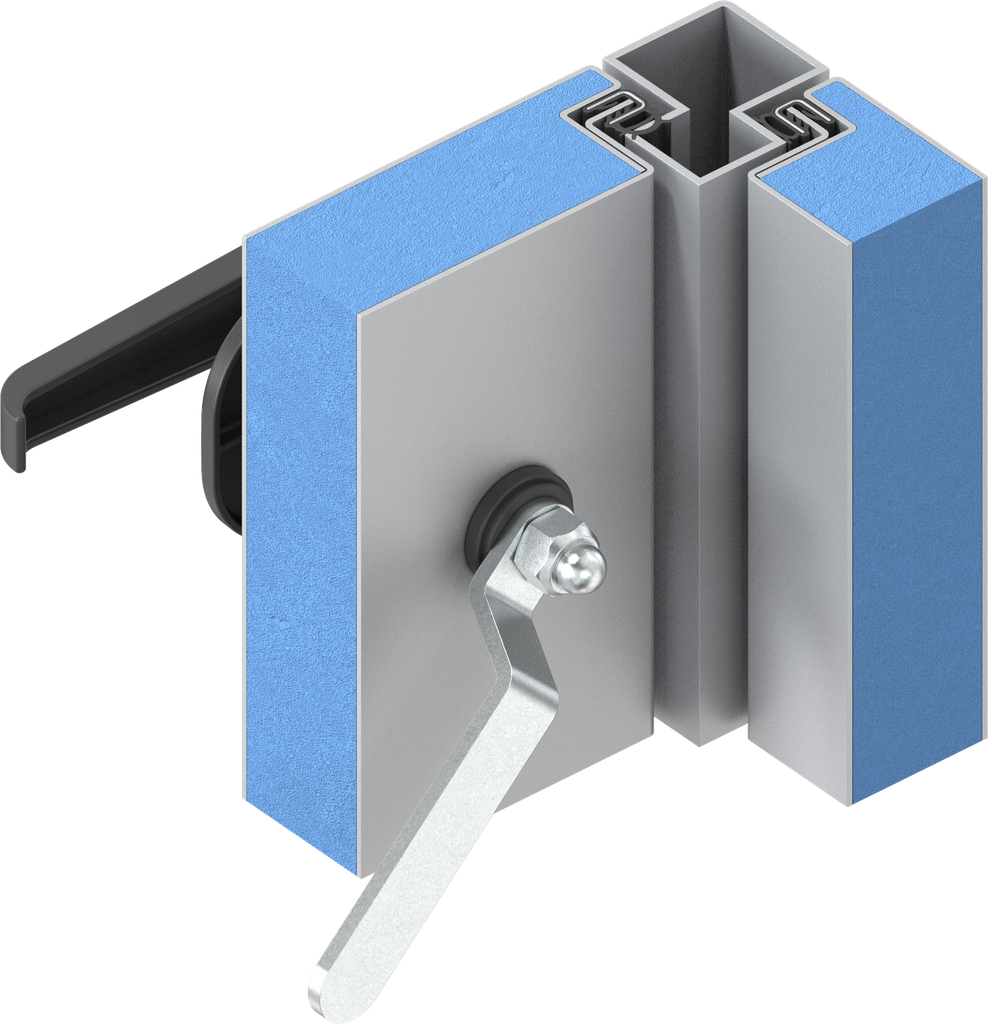

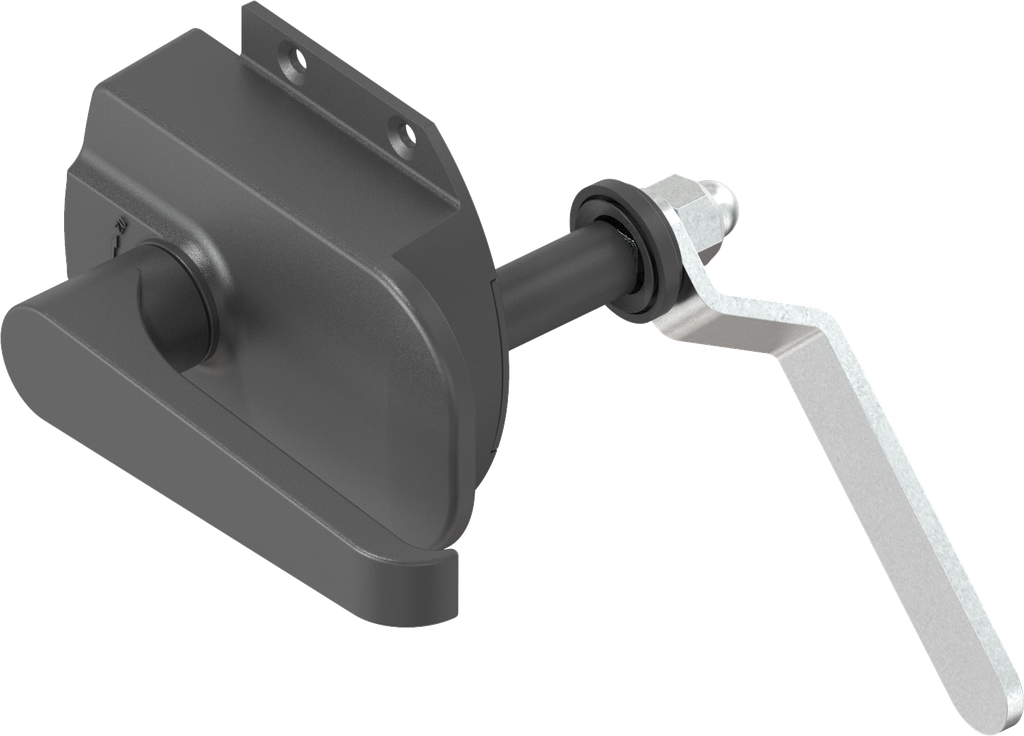

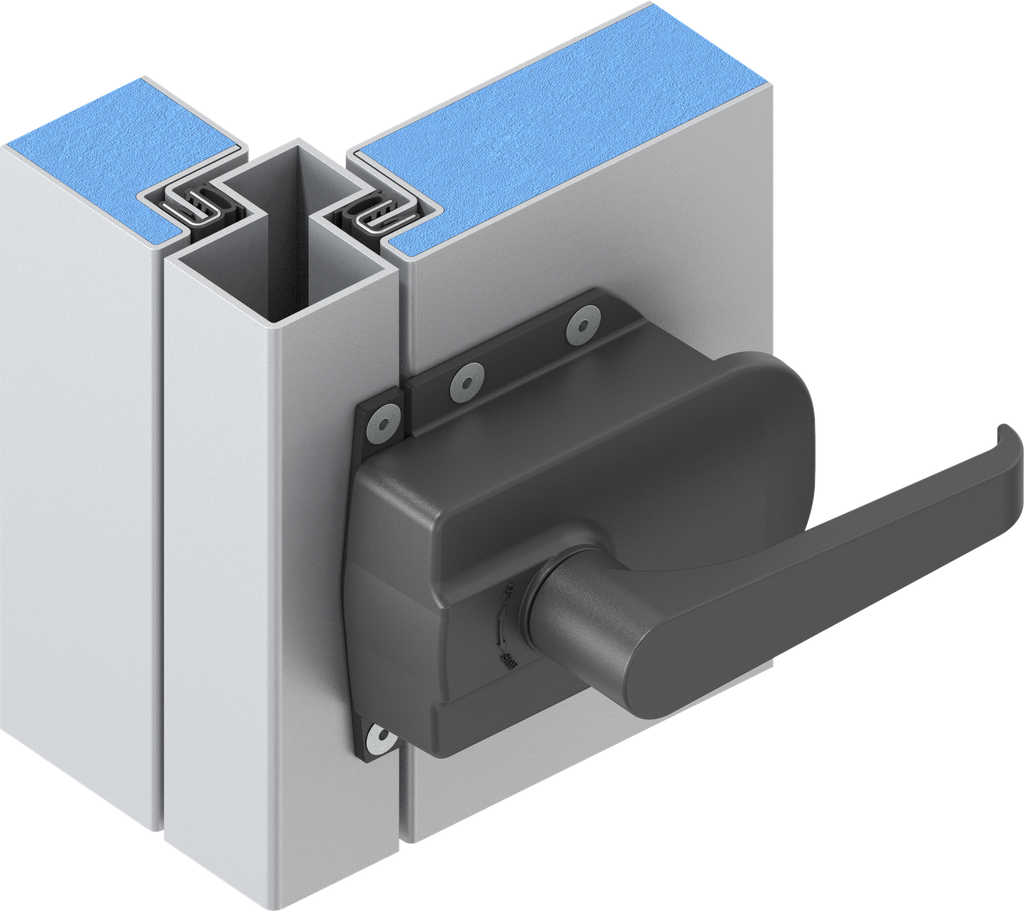

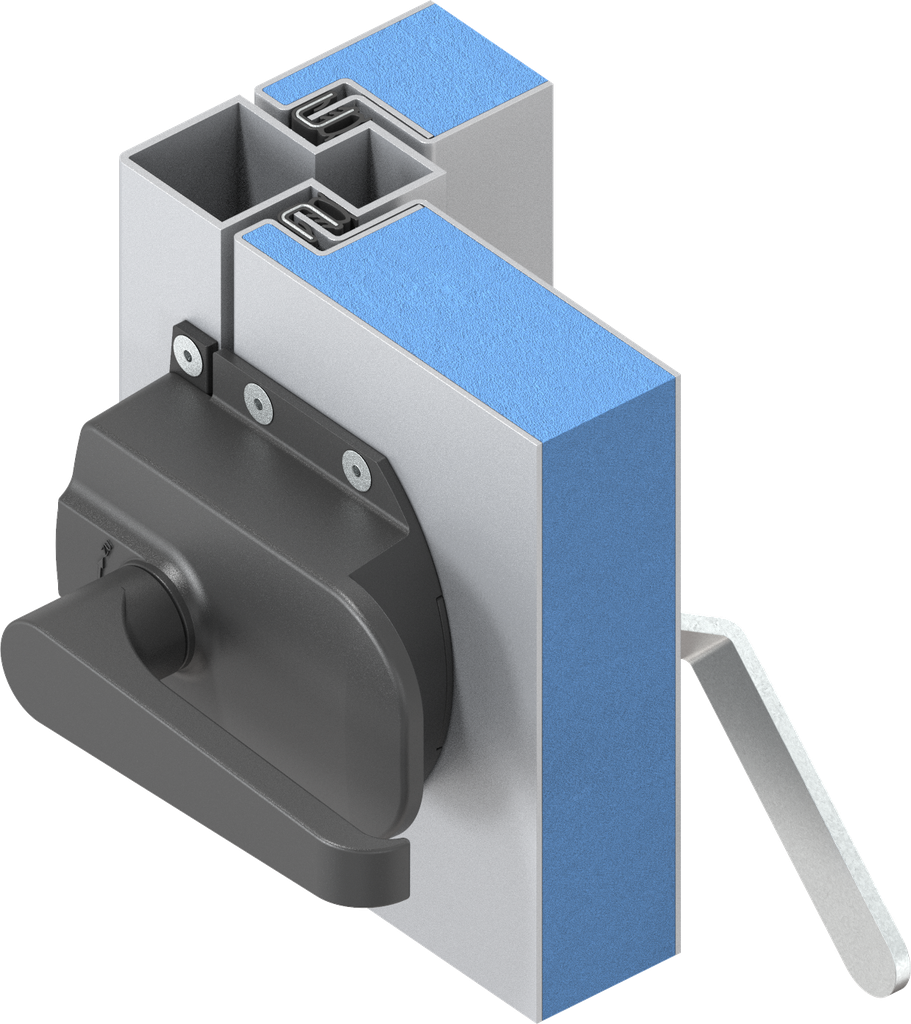

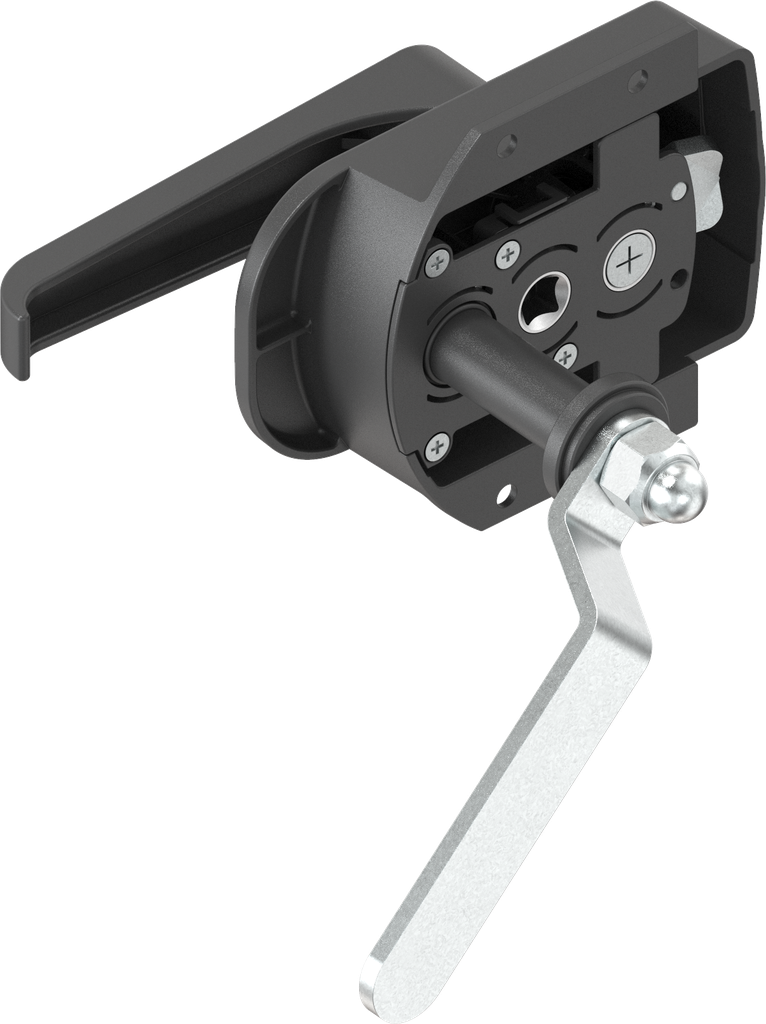

Prominent door lock with inside handle, Polyamide GF black; 1000-U930

https://www.emka.com/products/1000-u930 https://www.emka.com/web/image/product.template/205968/image_1920?unique=f86255a

for Ts = 40 mm


    This combination does not exist.

    Inside the sealing Outside the sealing Left Right


    Product Benefits:

    • Prominent door lock for different door thicknesses
    • Inside handle can be operated without restrictions
    • Can be used without inside handle

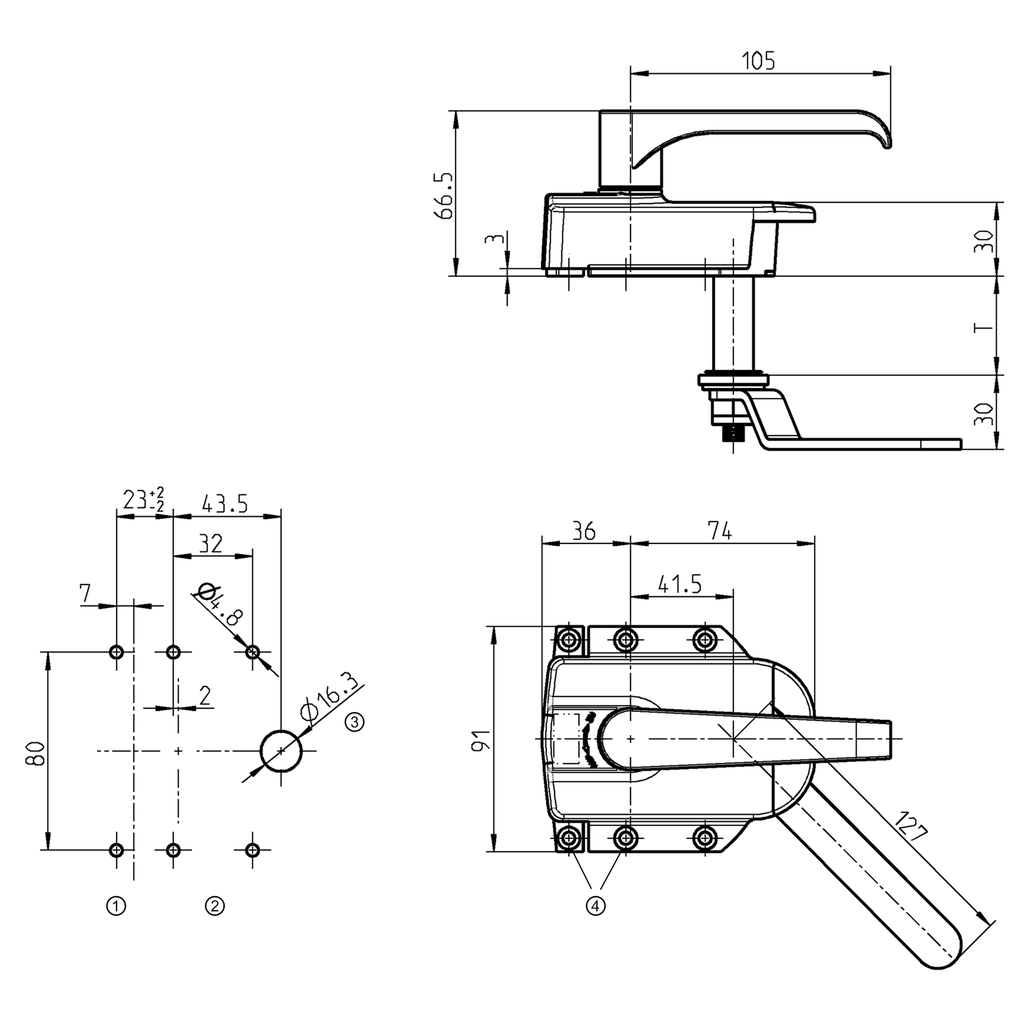

    Product information:

    1 = Cut out front for catch
    2 = Cut out front for housing
    3 = Bore hole Ø 16 continuously
    4 = Countersinking for rivet in housing and catch

    Internal Reference: 1000-U930
    Product Type: Other latch
    Program: 1000
    Material of the module : Polyamide GF
    Surface of the module: black
    Number of Possible Locking Points: 1 point
    Fixing type of housing : rivetable
    Mounting Positions : Inside the sealing,Outside the sealing
    Suitable for door thickness from: 40 mm
    Suitable for door thicknesses up to: 40 mm
    Locking set: No locking set, blind
    Door Version : Left,Right
    Lock Type: Prominent door lock
    No Specifications
    View All Products
    Catch
    Here you can find the product data sheets and CAD files of this product
