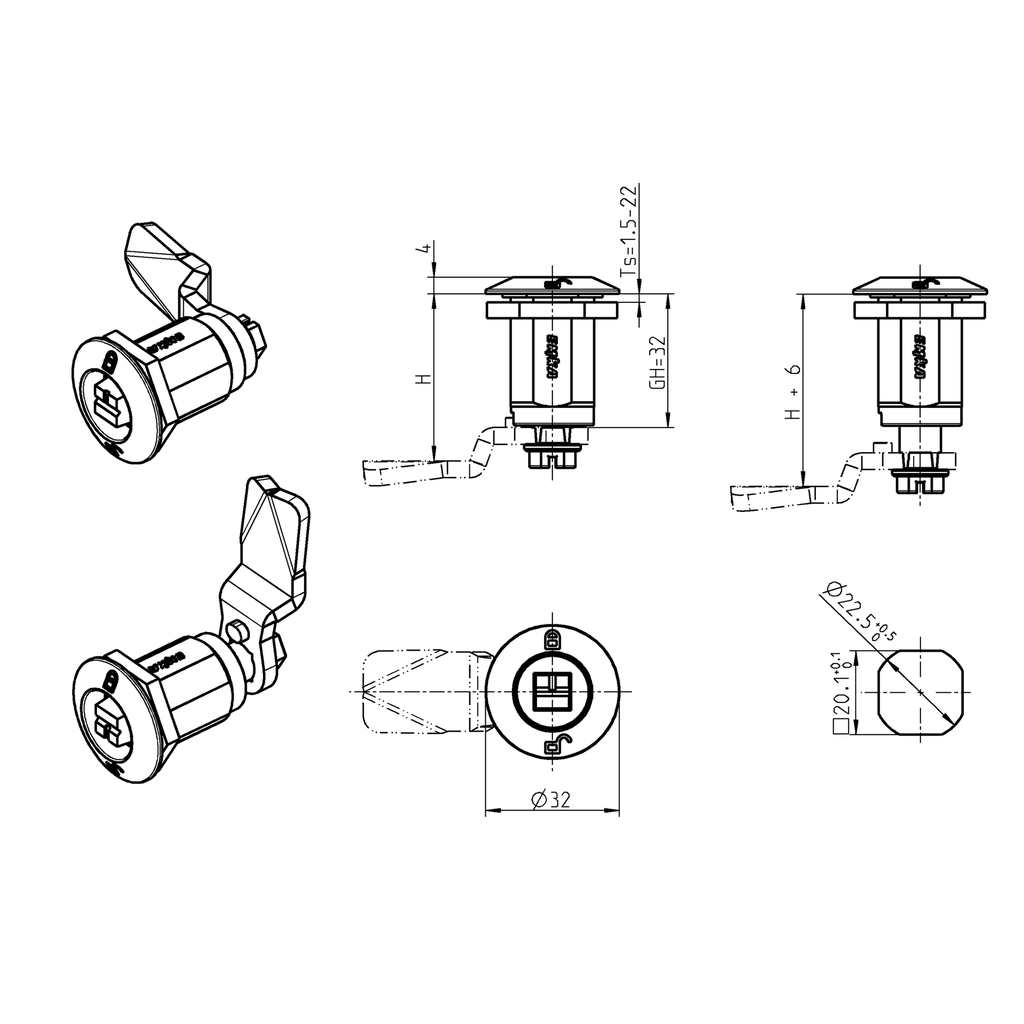

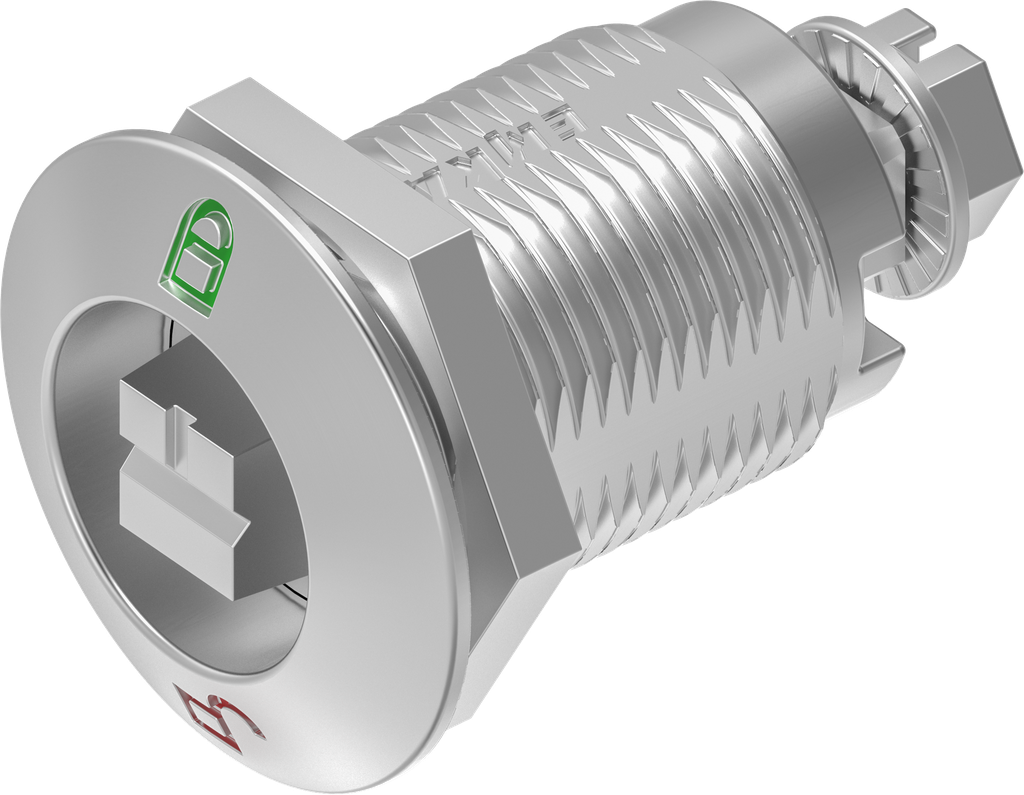

Compression latch railway version with red - green marking, Stainless steel AISI 316 polished; 1000-U890-LIPH
with stainless steel nut
Product information:
The compression latch is designed to be vibration-proof as such.
Depending on the installation location and operational conditions specific checks are necessary and/or supplementary measures of fastening required.
Internal Reference:
1000-U890-LIPH
Product Type:
Quarter turn
Program:
1000
Material of the module :
Stainless steel AISI 316
Surface of the module:
polished
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Type of actuation:
Square 9 with marking, railway version
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
32 x 4 mm
GH Mass:
32 mm
Compression Value :
6 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
22 mm
Locking set:
Insert
Door Version :
Left
Locking components:
Cam
Quarter turn types:
Compression latch with insert
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
