Shaft unit E2, Zinc die and steel zinc-plated

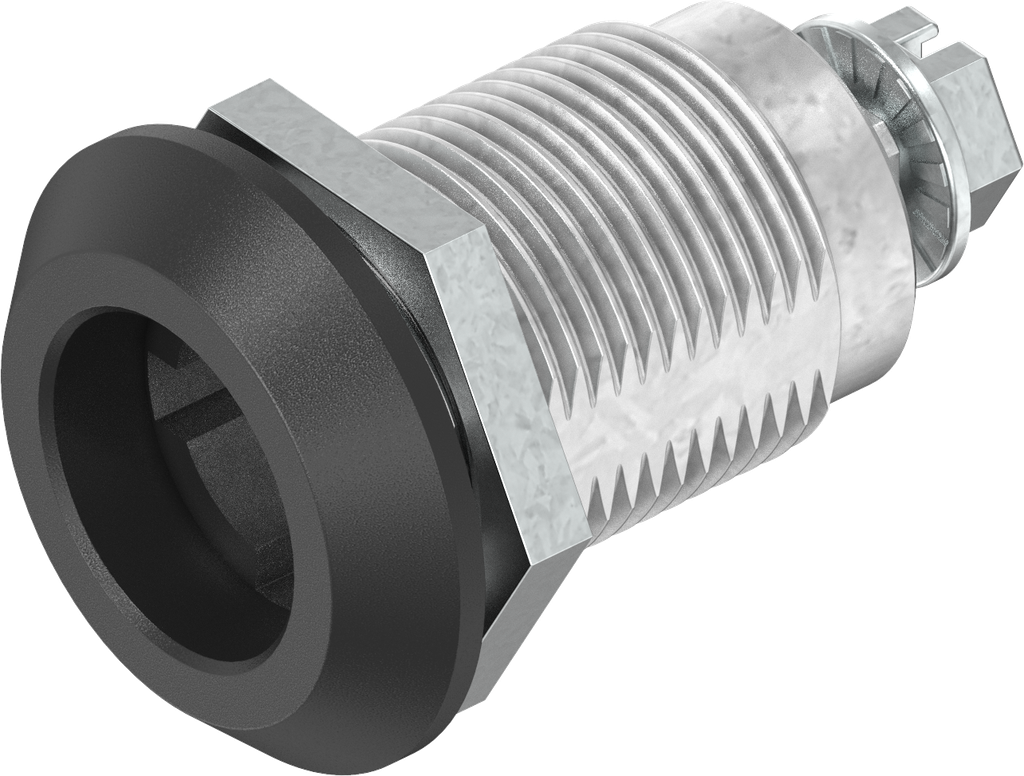

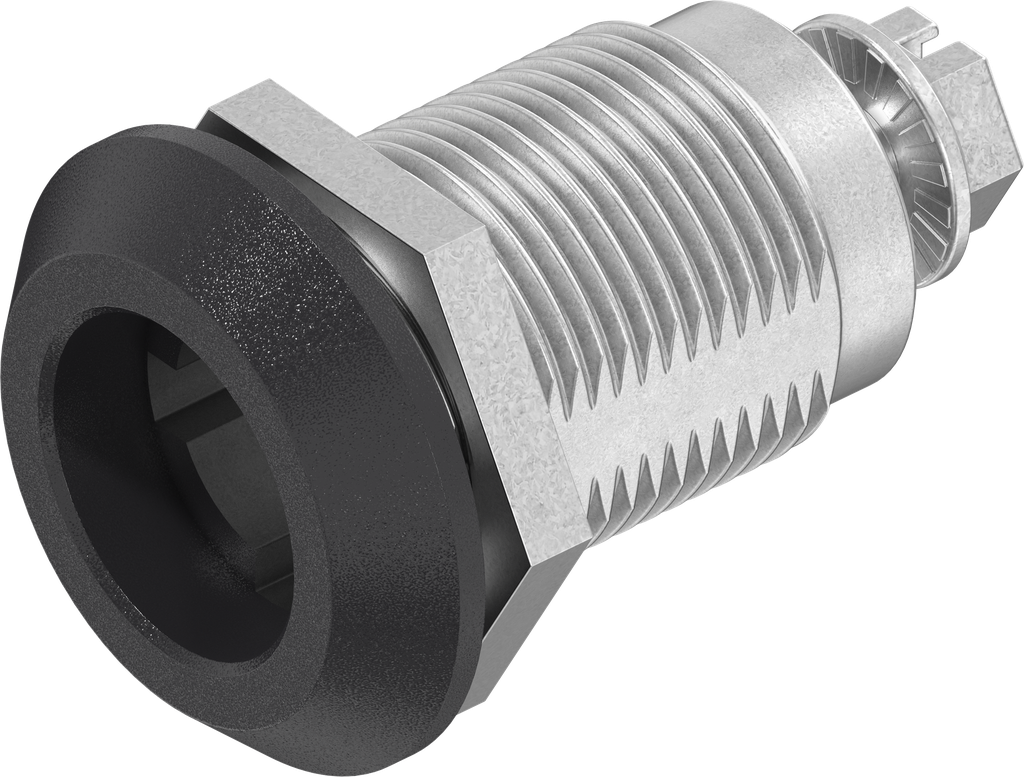

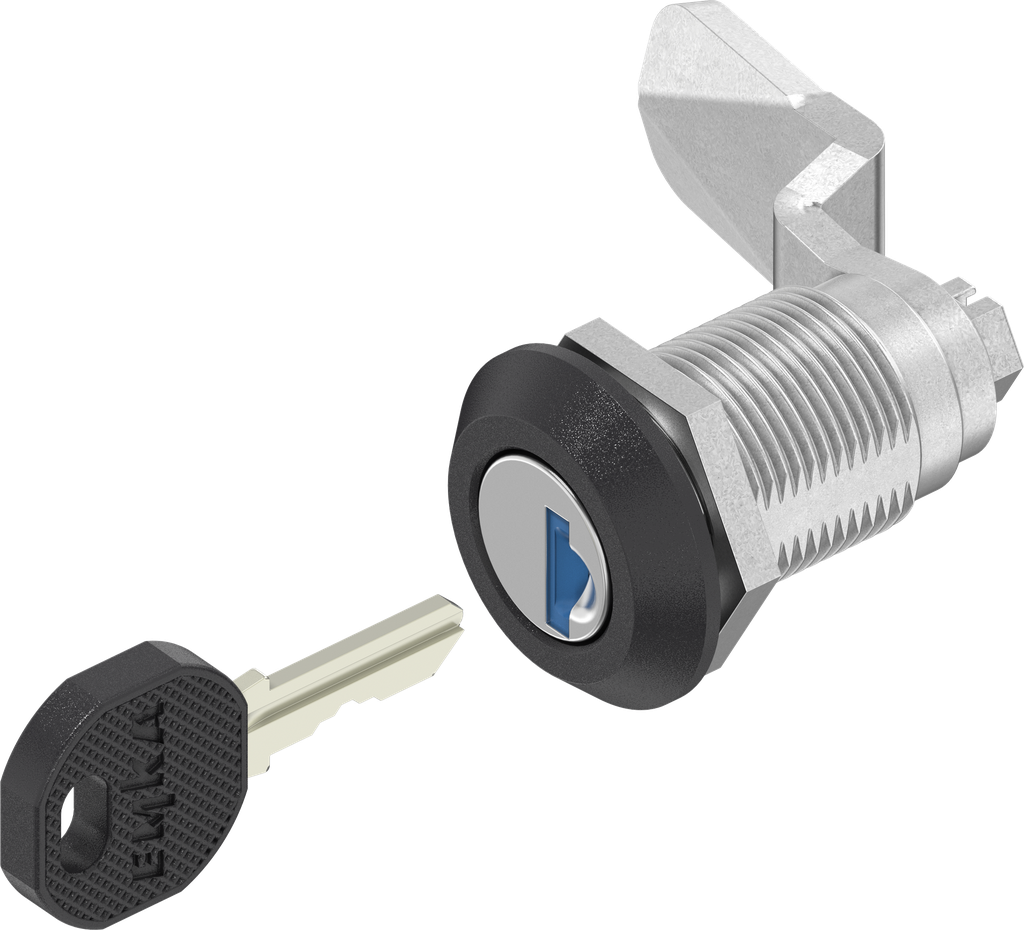

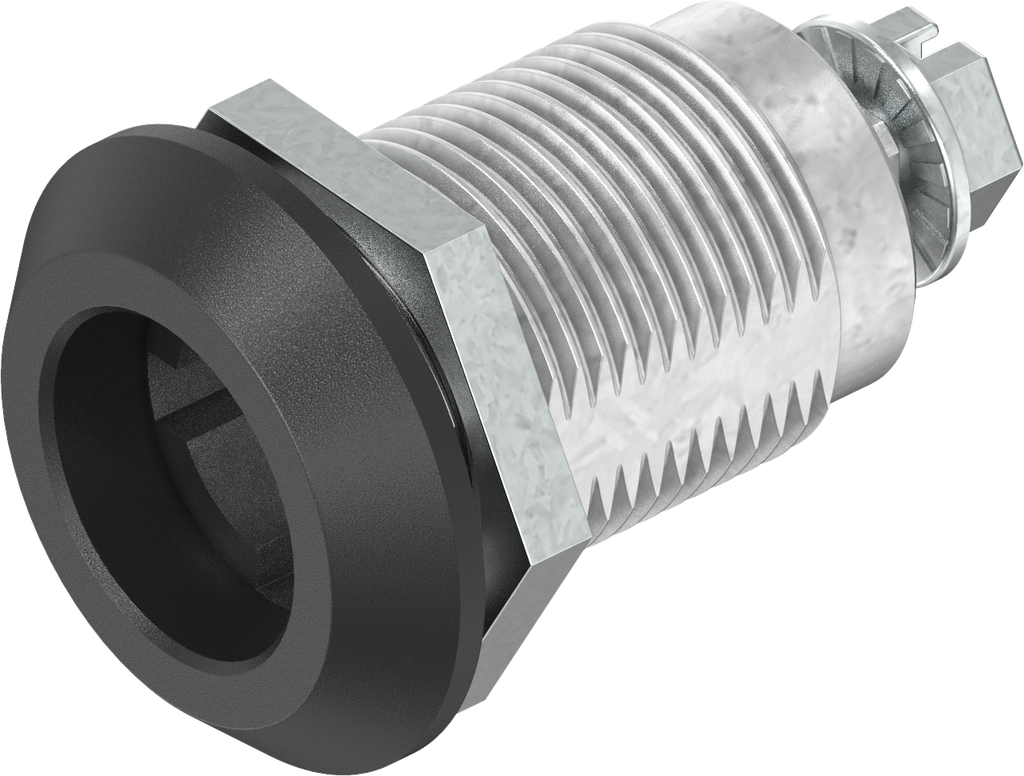

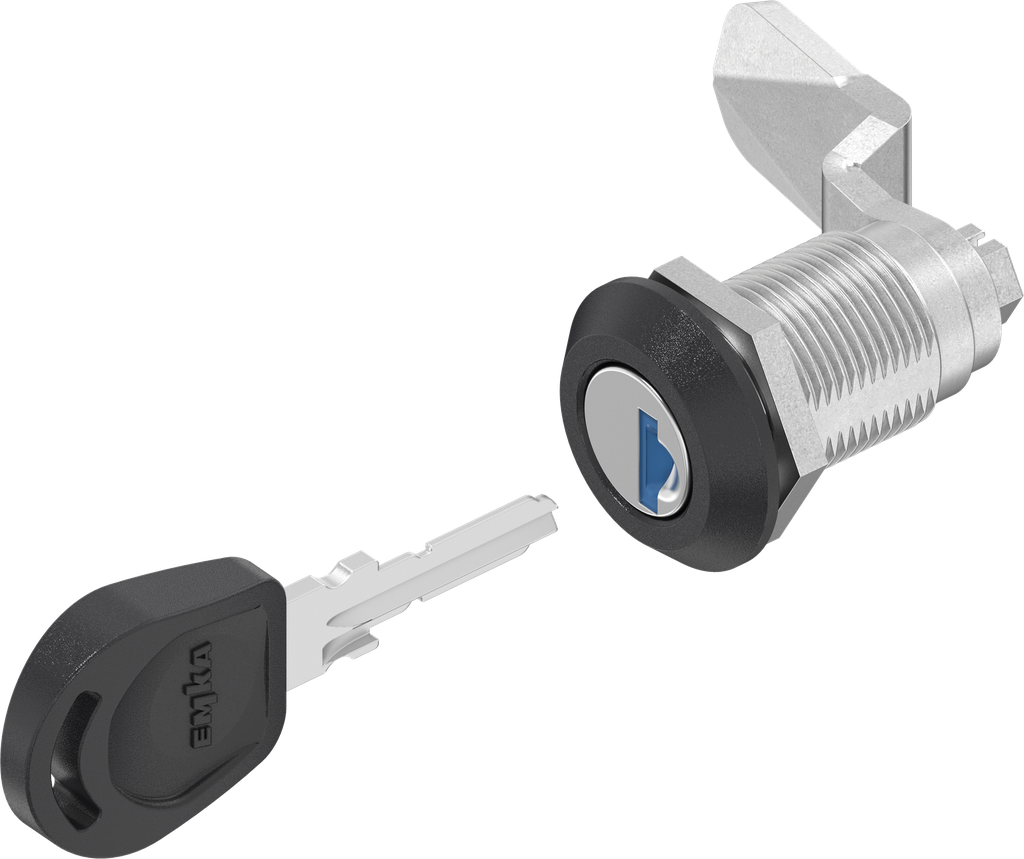

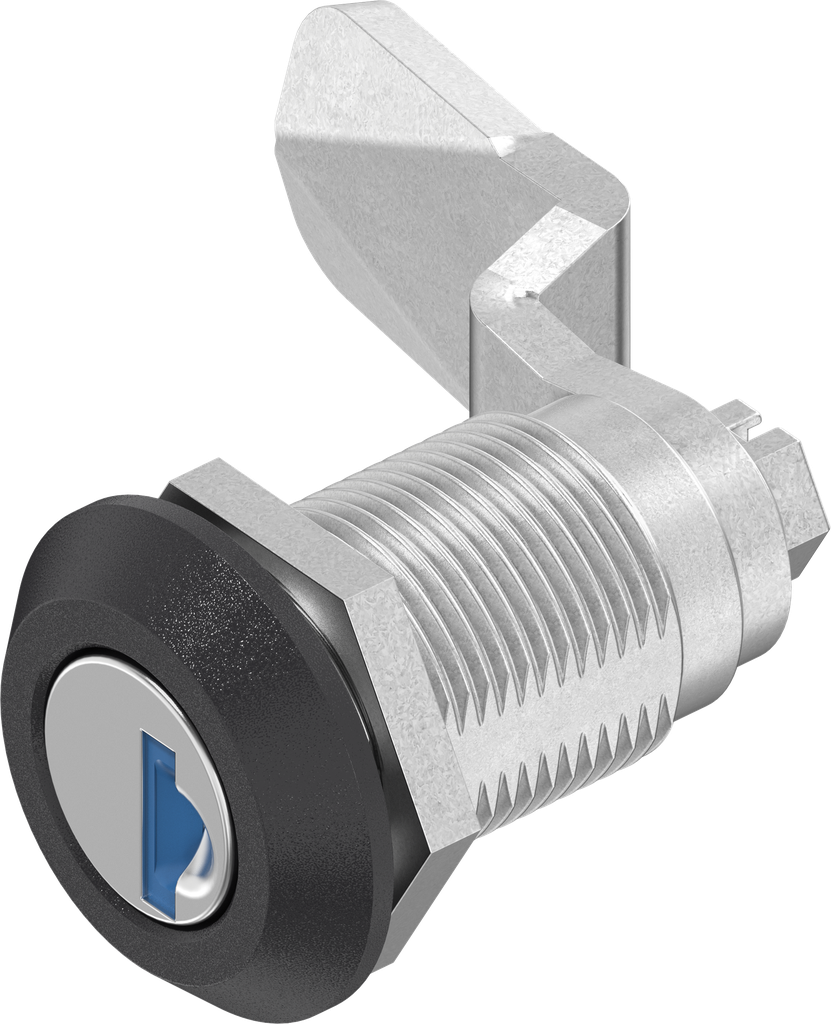

Compression latch with adjustable cam height, tube with marking, Zinc die black powder-coated
Product information:
As a supplementary measure for vibration-proof fastening the serrated washer 1000-103 can be used.
Internal Reference:
1000-U875-03
Product Type:
Quarter turn
Program:
1000
Material of the module :
Zinc die
Surface of the module:
black powder-coated
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round

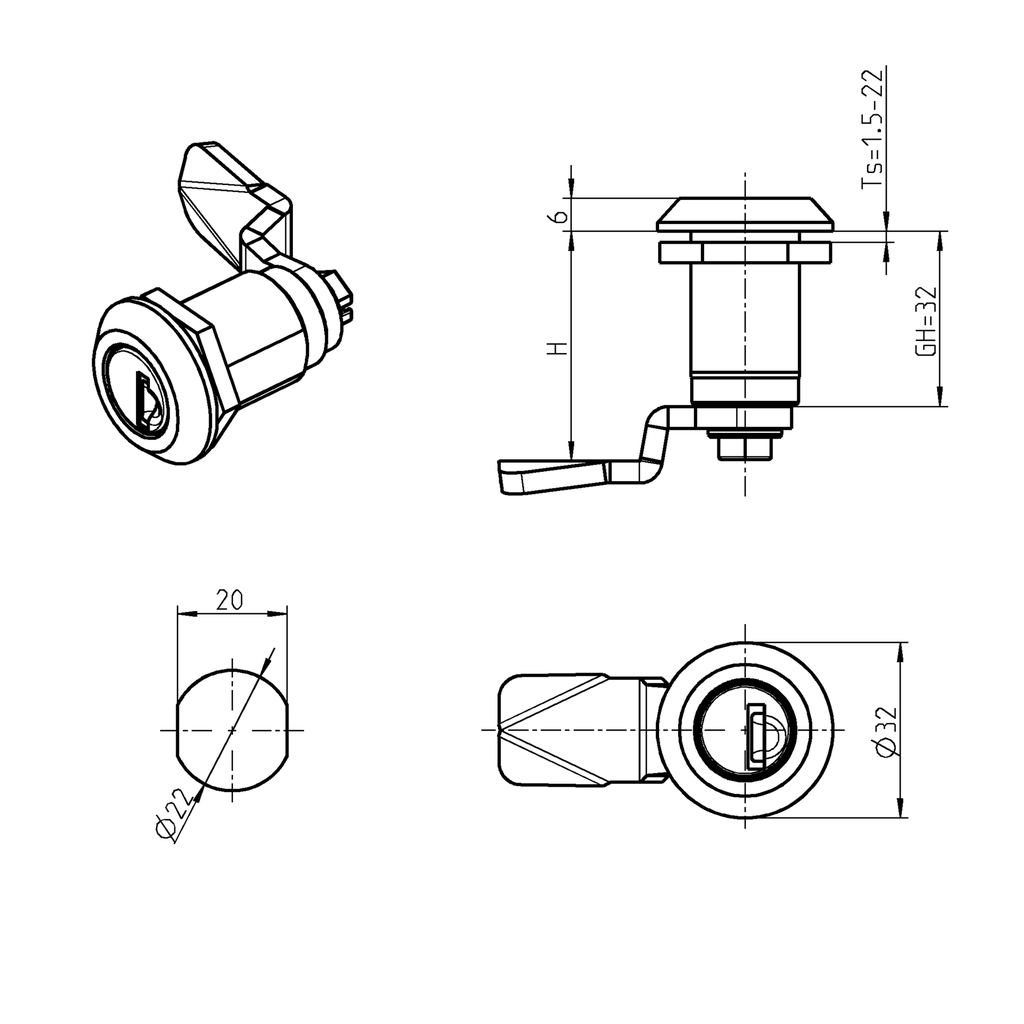

Housing Head Size:
32 x 6 mm
GH Mass:
32 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
22 mm

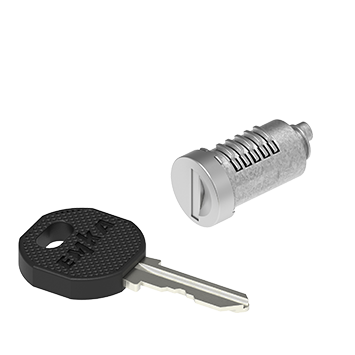

Round Cylinder Type:
Clip-in cylinder system 3
Locking set:

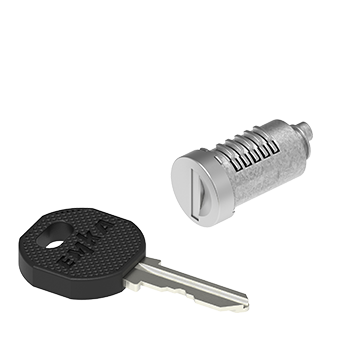

Round cylinder
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn with cylinder
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
