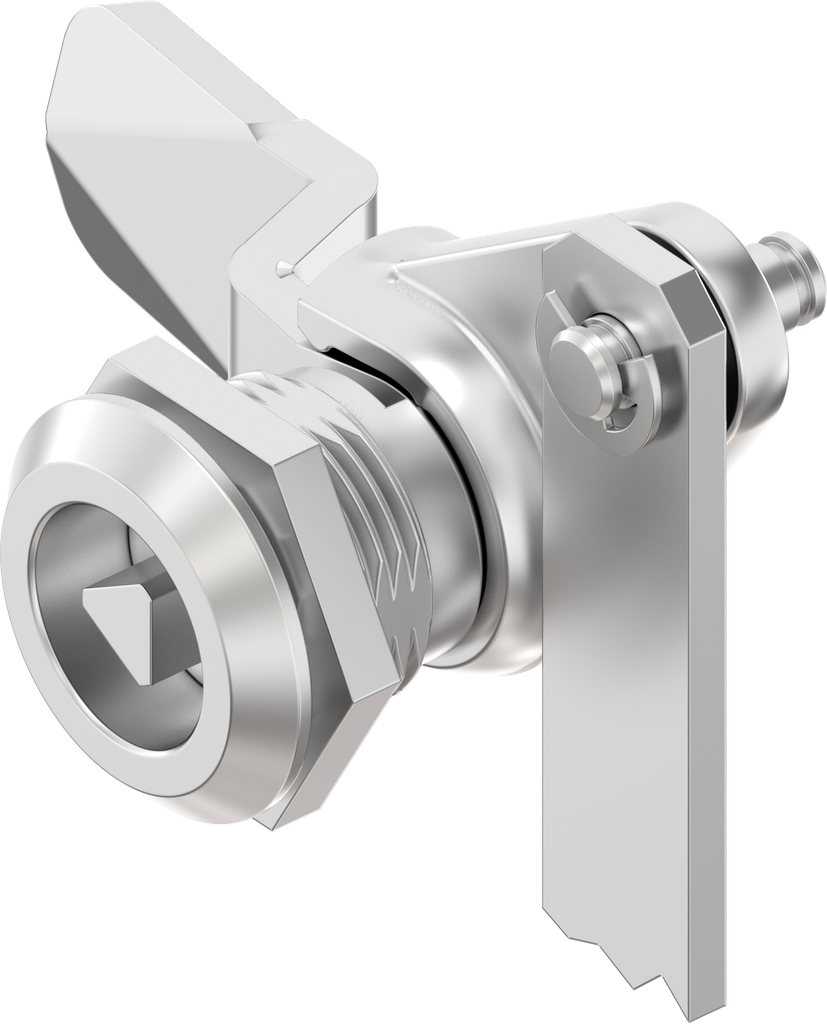

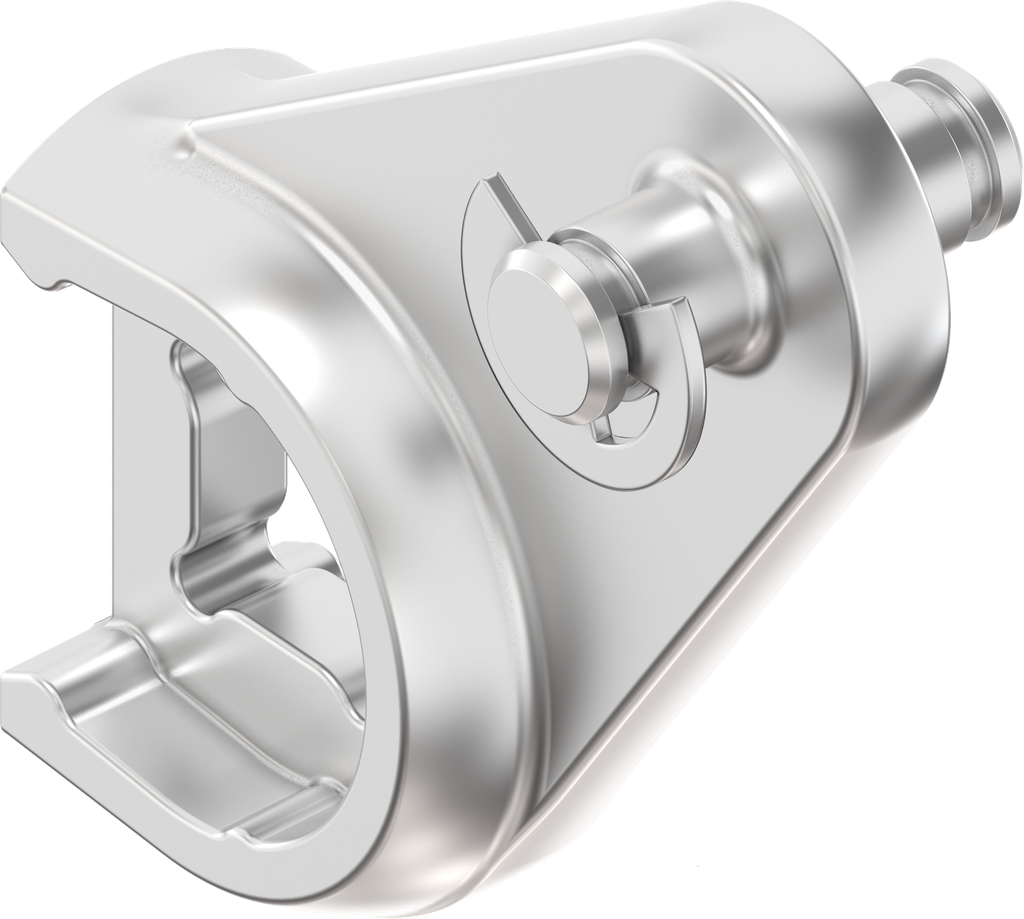

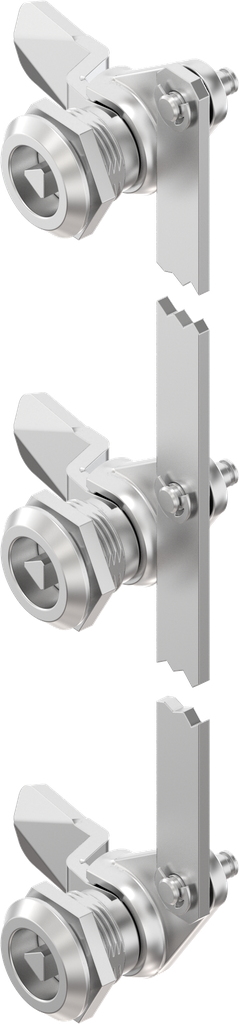

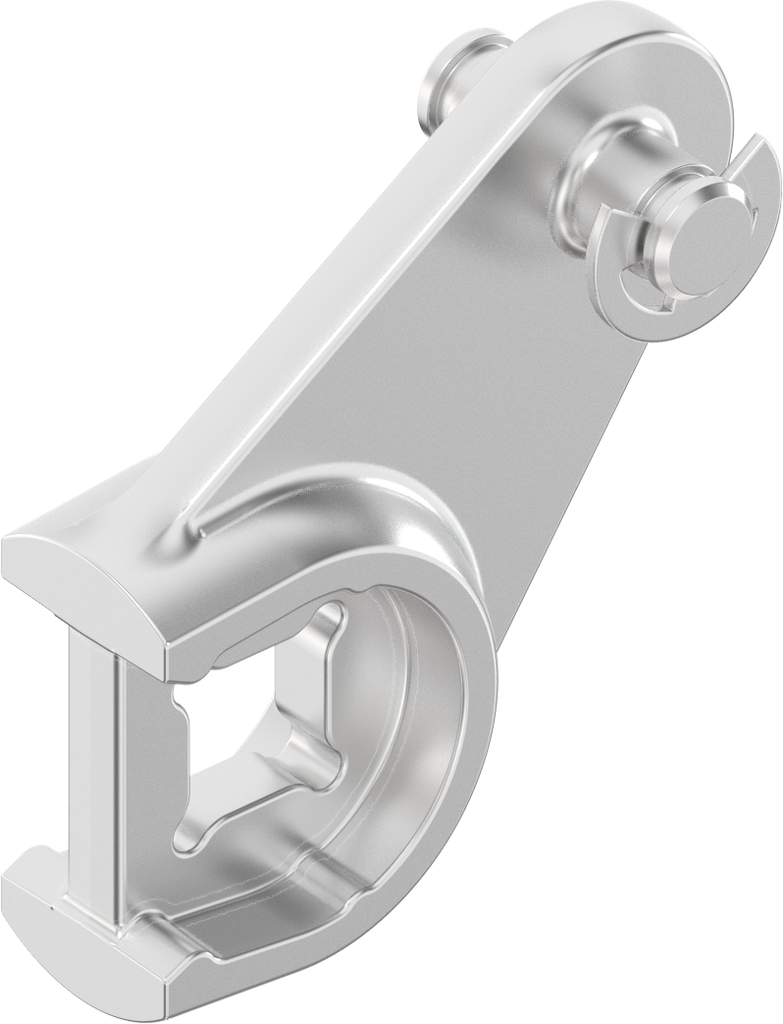

Rod control for multi-point locking, Stainless steel AISI 316; 1000-U874-VA

https://www.emka.com/products/1000-u874-va https://www.emka.com/web/image/product.template/77204/image_1920?unique=3626810

    This combination does not exist.

    Inside the sealing DIN EN 45545-3 class E60 (fire protection)

    Akeneo Note:

    Suitable connecting rod:
    Length, number of bore holes and distances according to customer specifications
    Internal Reference: 1000-U874-VA
    Standards: DIN EN 45545-3 class E60 (fire protection)
    Barcode: 1000-U00874-00000VA
    Product Type: Rod control
    Program: 1000
    Catalog sheet: 1C-125
    Material of the module : Stainless steel AISI 316
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, 5 point
    Mounting Positions : Inside the sealing
    No Specifications
    View All Products
    Housing
    Cam
    Adapter
    Quarter turn
    Swinghandle, Lifthandle
    Bearing bush
    Here you can find the product data sheets and CAD files of this product
