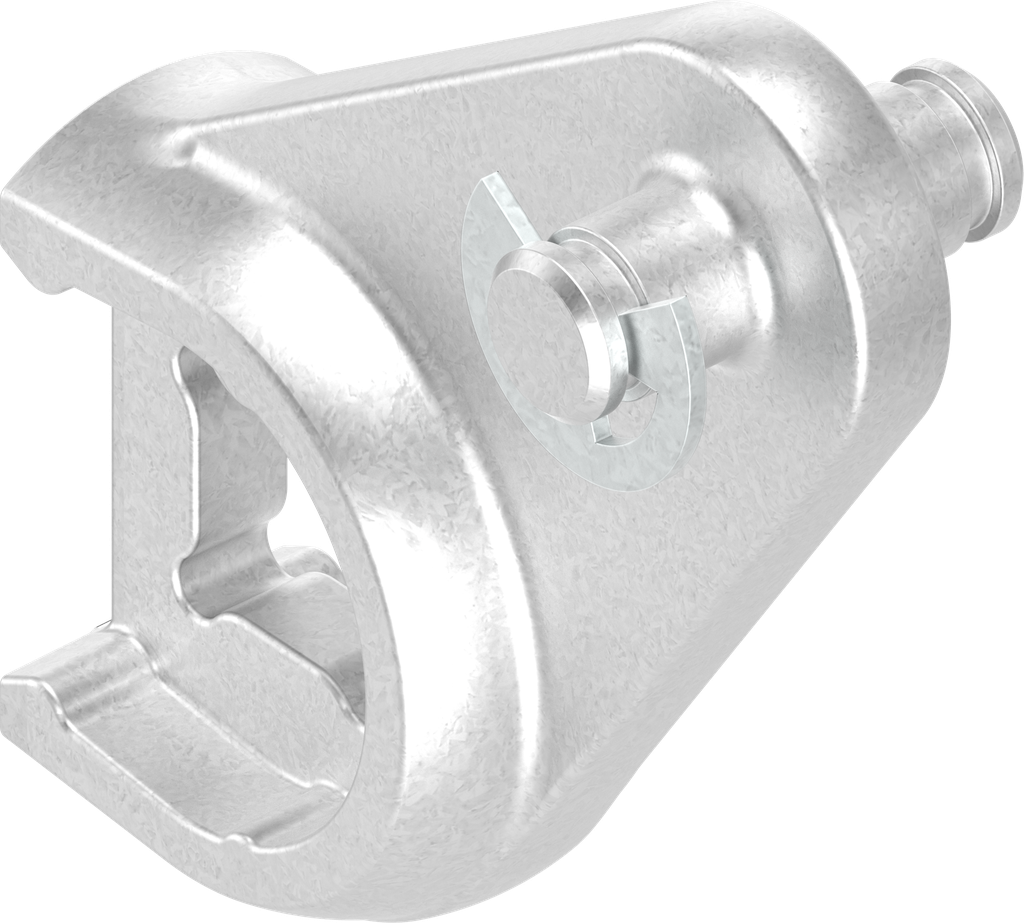

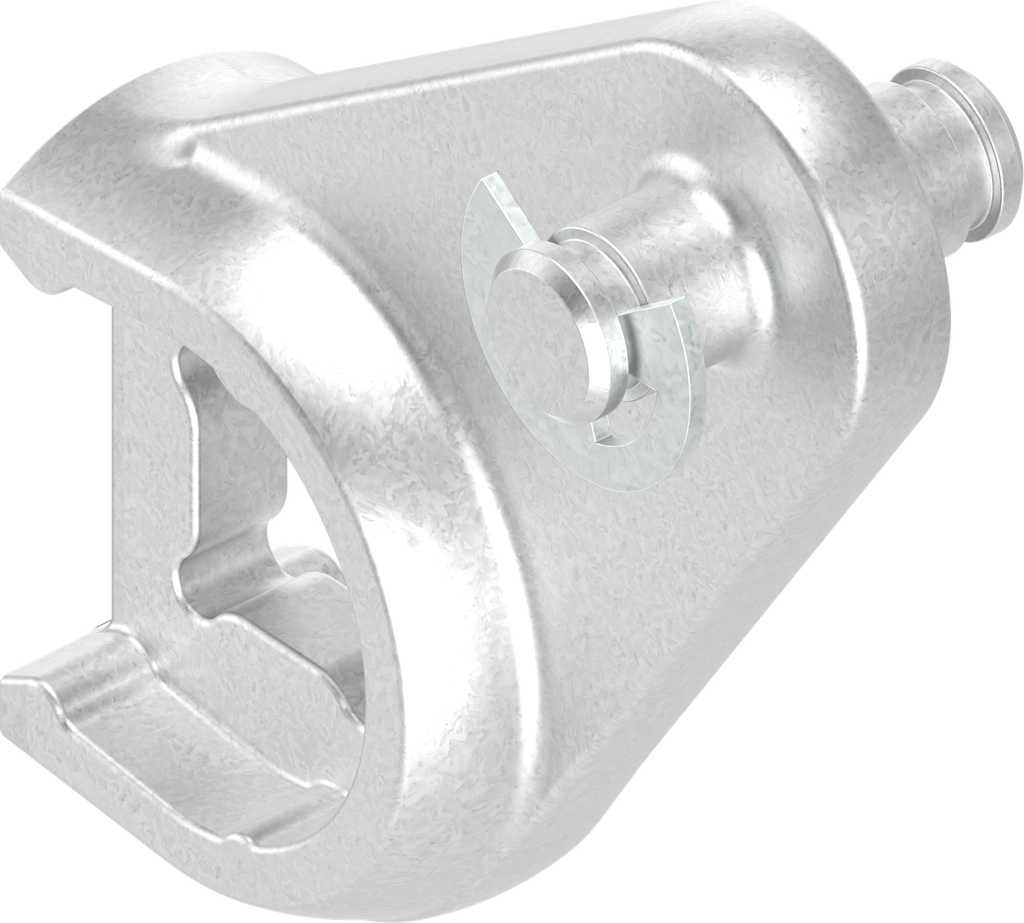

Rod control for multi-point locking, Zinc die zinc-plated; 1000-U874

https://www.emka.com/products/1000-u874 https://www.emka.com/web/image/product.template/60394/image_1920?unique=4e92e07

    This combination does not exist.

    Inside the sealing
    Contact Us

    Assembly instruction:

    When using the rod control for multi-point locking, the screw-in depth of the screw is reduced by 4 mm

    Akeneo Note:

    Suitable connecting rod:
    Length, number of bore holes and distances according to customer specifications
    Internal Reference: 1000-U874
    Product Type: Rod control
    Program: 1000
    Catalog sheet: 1C-125
    Material of the module : Zinc die
    Surface of the module: zinc-plated
    Number of Possible Locking Points: 1 point, 2 points, 3 point, 4 point, 5 point
    Mounting Positions : Inside the sealing
    No Specifications
    View All Products
    Housing
    Cam
    Adapter

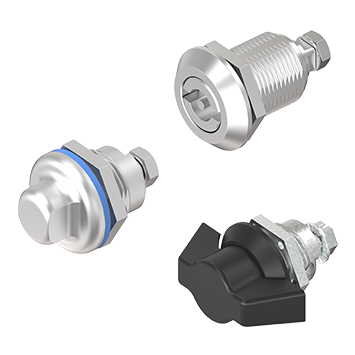

    Quarter turn
