Compression latch hexagon male SW 10, left version, Stainless steel AISI 316
Edge protection made of fire protection material, self-clamping, EPDM 60 ± 5 Shore A black

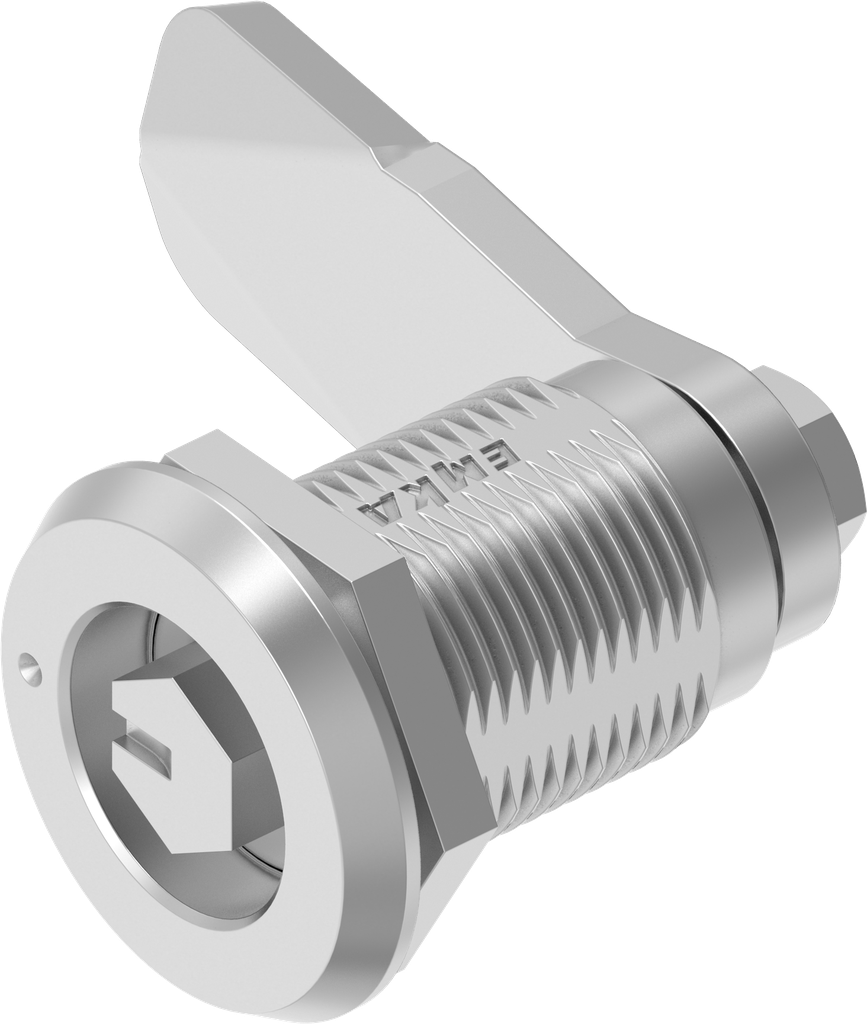

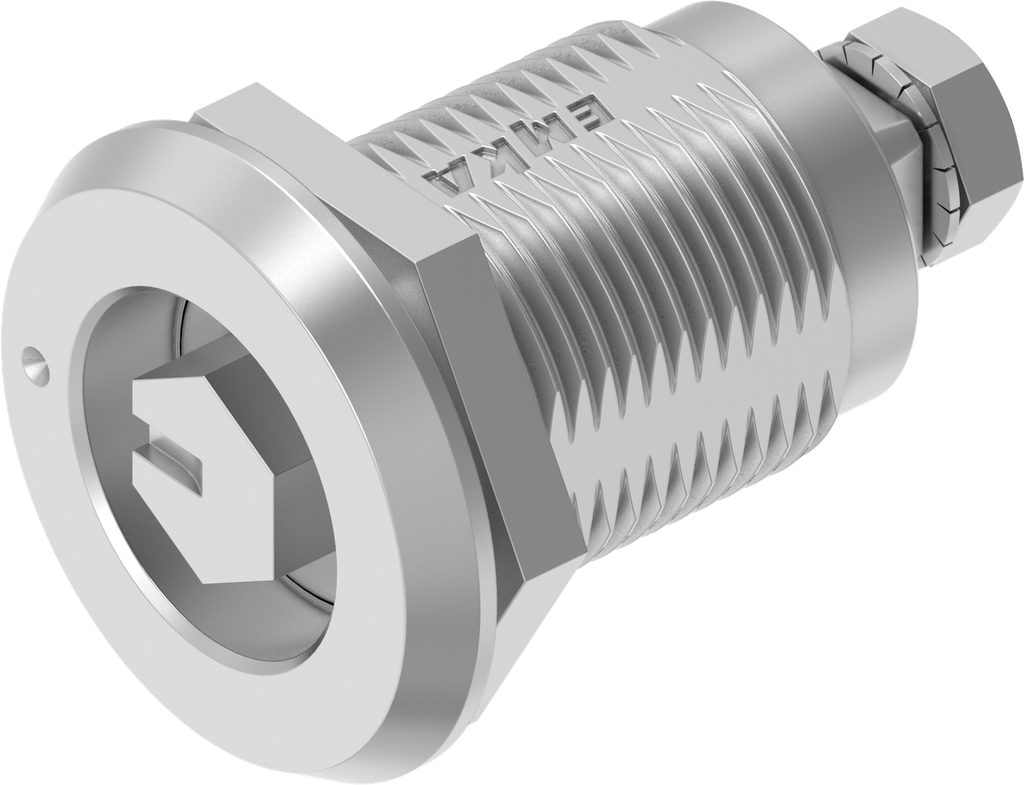

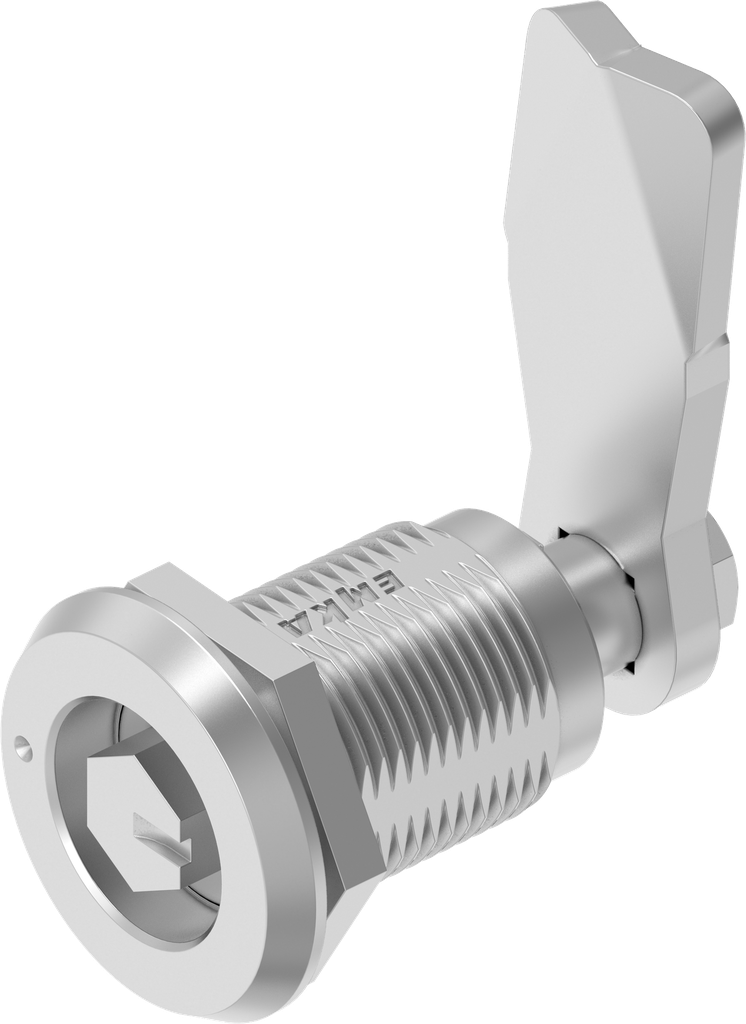

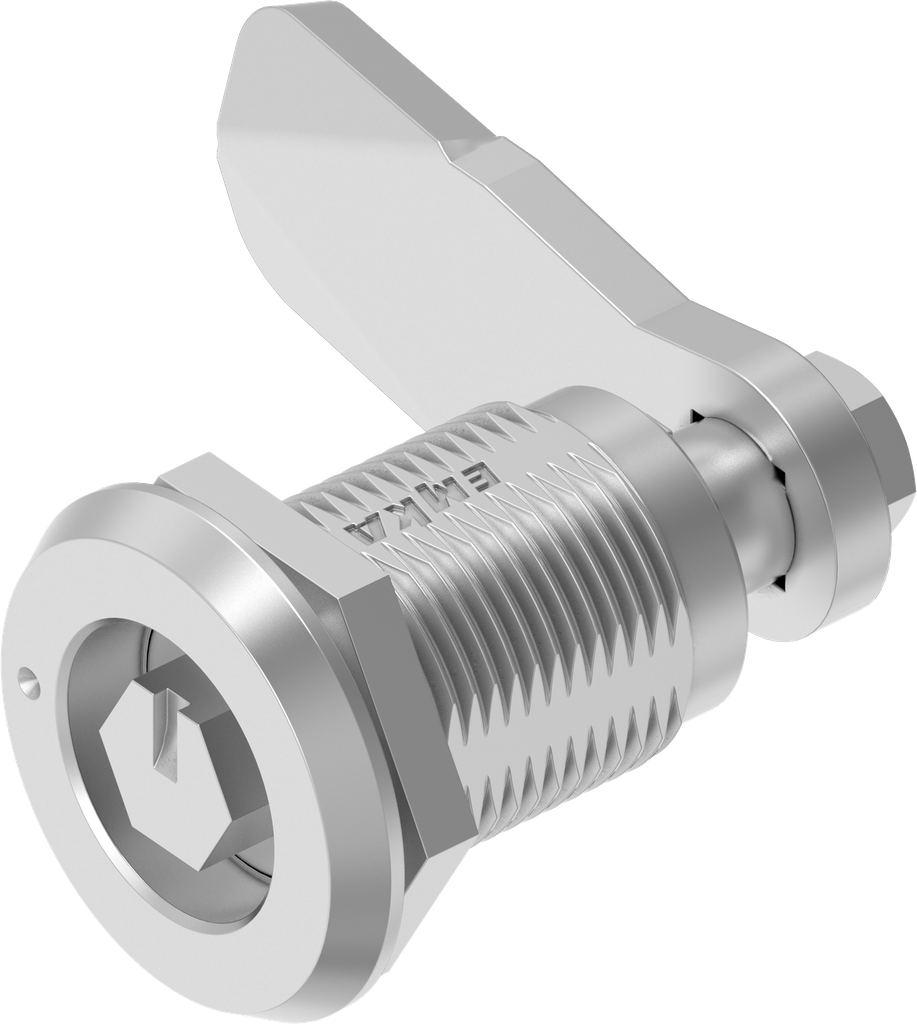

Compression latch hexagon male SW 10, right version, Stainless steel AISI 316; 1000-U869-REPH
with stainless steel nut
Product information:
The compression latch is designed to be vibration-proof as such.
Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.
Internal Reference:
1000-U869-REPH
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-225
Material of the module :
Stainless steel AISI 316
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Type of actuation:
Hexagon male SW 10
Mounting Positions :
Inside the sealing

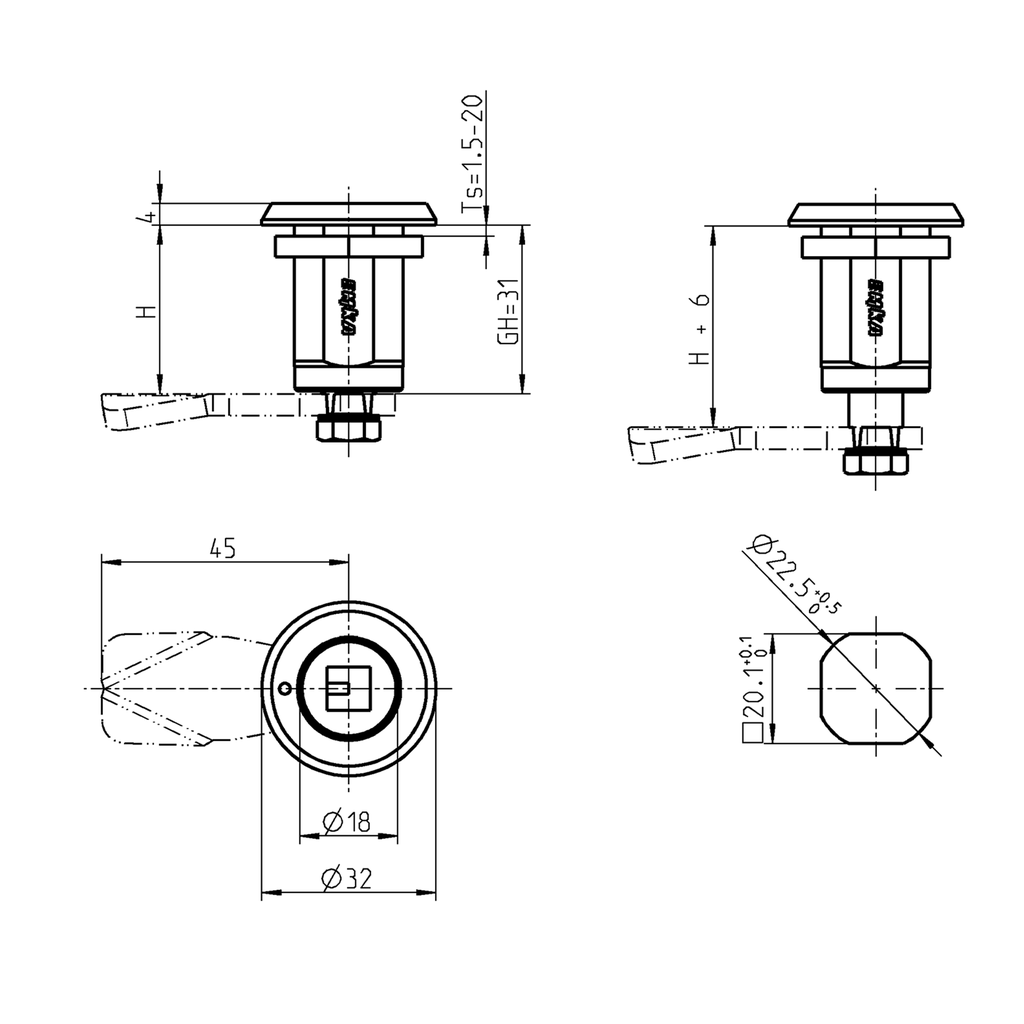

Housing Head Shape:
Round
Housing Head Size:
32 x 4 mm
Foamed gasket:
Yes
GH Mass:
31 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
20 mm
Locking set:
Insert
Door Version :
Right
Locking components:
Cam
Quarter turn types:
Compression latch with insert
