Swinghandle "short" with locking set for profile half cylinder 45 mm (A = 35 mm), Polyamide GF black

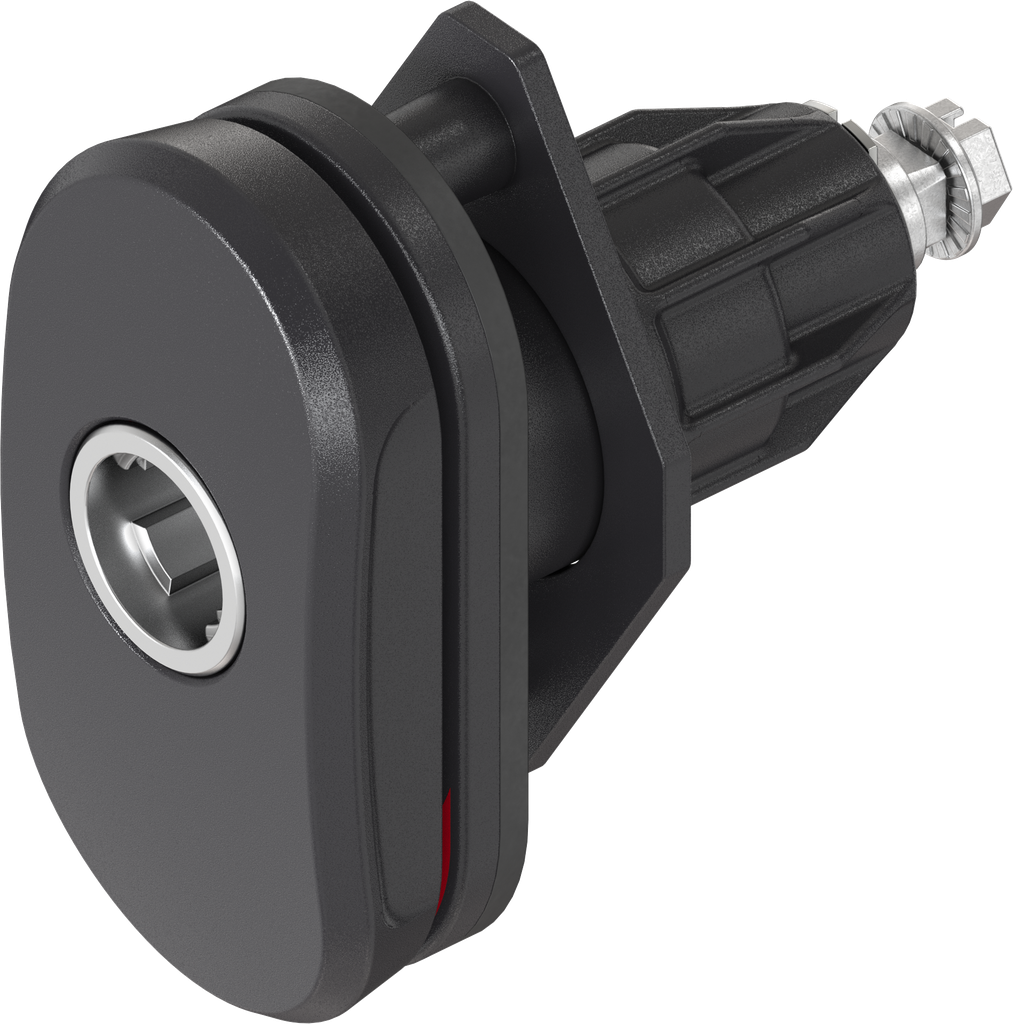

Compression latch "Basic" for clip-in cylinder (system 3), Polyamide GF black
Product information:
1 = Fixing plate

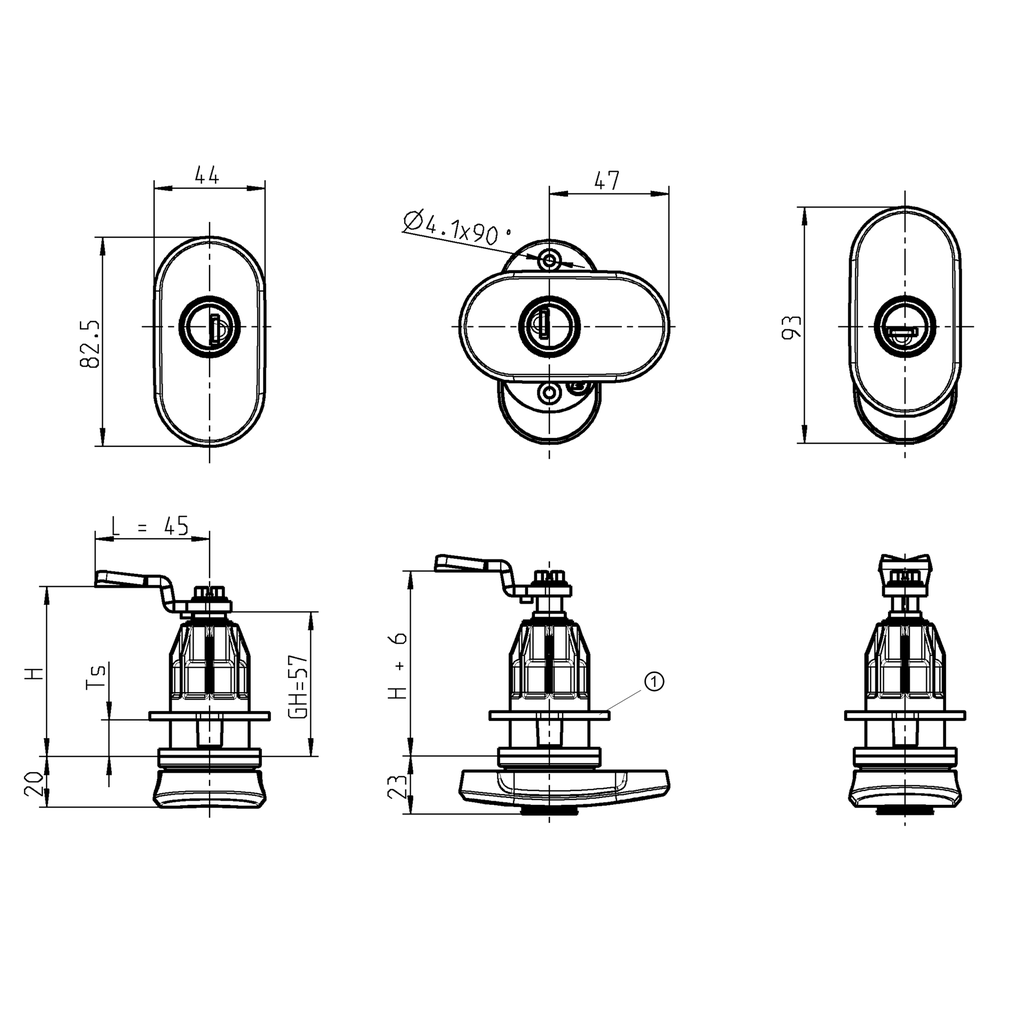

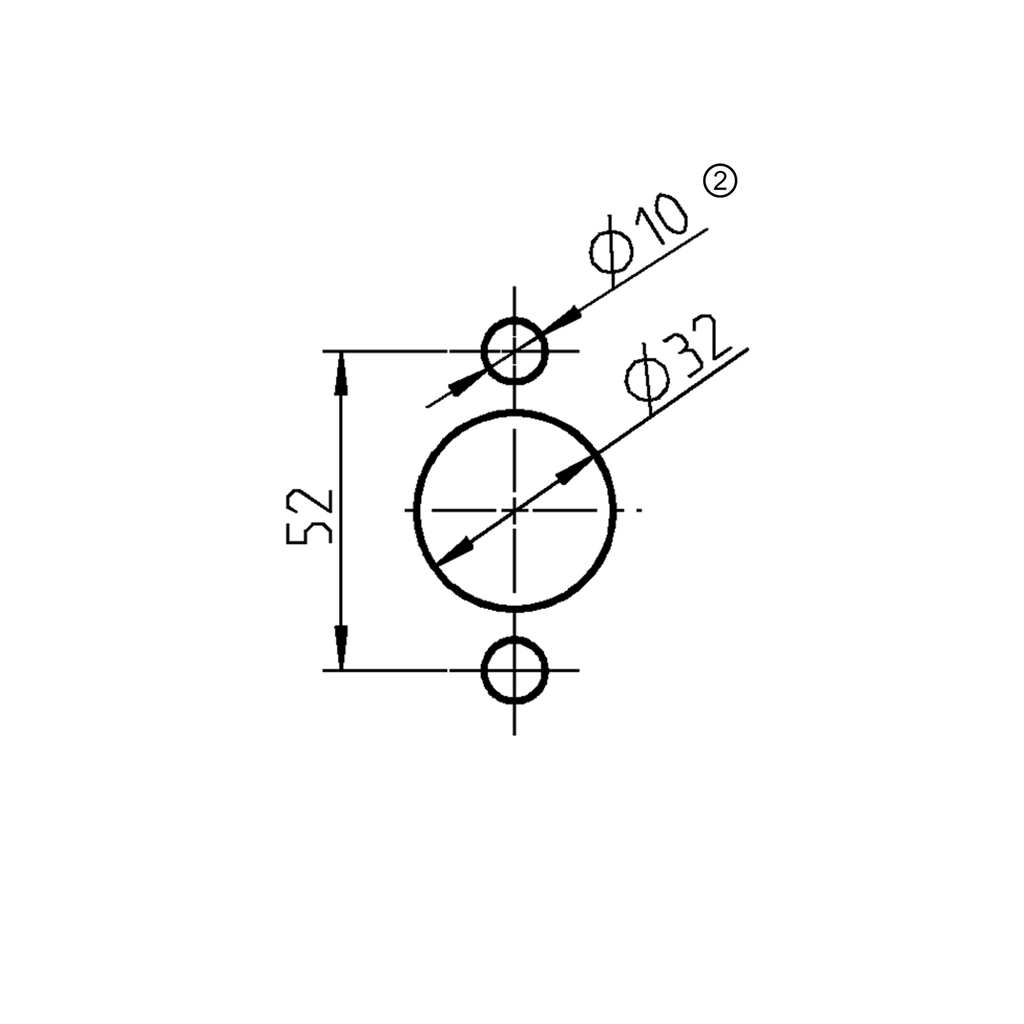

2 = When the fixing plate is turned over, the cut out bore holes are decreased from Ø 10 to Ø 4.1. The maximum value of the Ts dimension is decreased by -10 mm.
Internal Reference:
1000-U866-02
Product Type:
Quarter turn
Program:
1000
Material of the module :
Polyamide GF
Surface of the module:
black
Number of Possible Locking Points:
1 point
Article with property rights:
Yes
Fixing type of housing :
nut fixing
Mounting Positions :
Inside the sealing
GH Mass:
57 mm
Handle Art:
Wing knob
Compression Value :
6 mm
Suitable for door thickness from:
0.80 mm
Suitable for door thicknesses up to:
40 mm
Round Cylinder Type:
Clip-in cylinder system 2
Locking set:
Round cylinder
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Compression latch with handle
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
