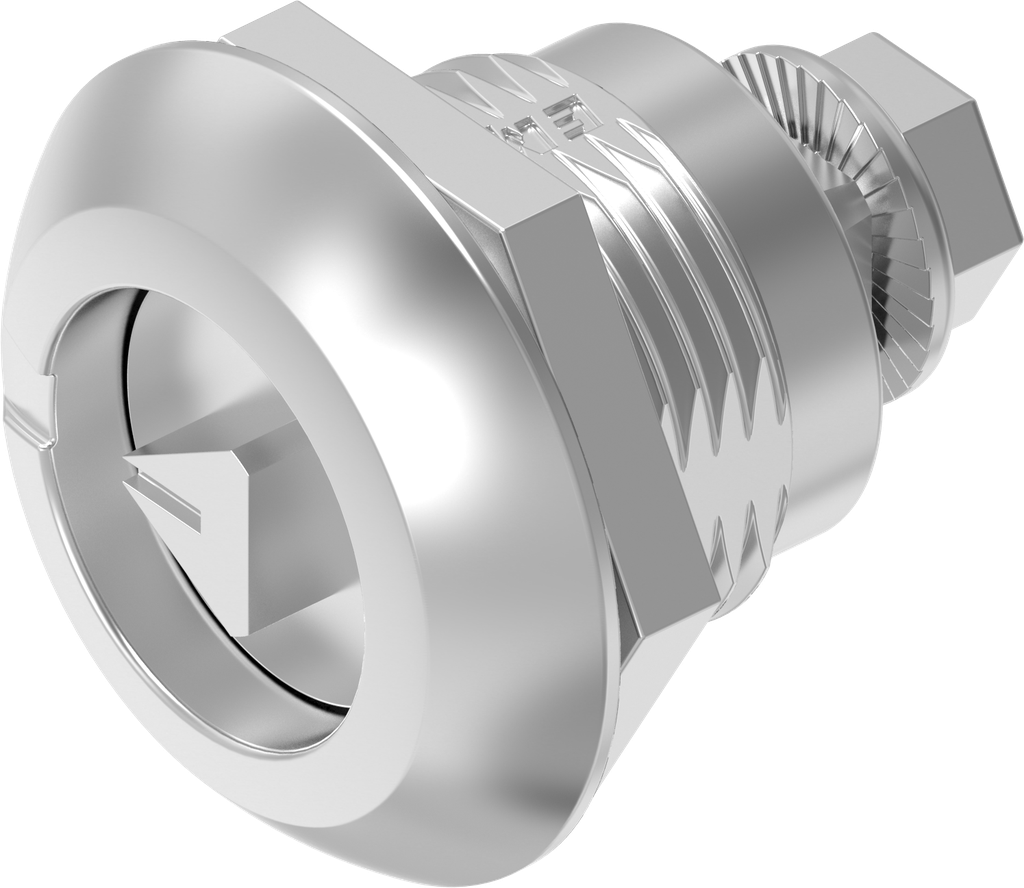

Compression latch triangular 7, Stainless steel AISI 316; 1000-U864-PH

https://www.emka.com/products/1000-u864-ph https://www.emka.com/web/image/product.template/343031/image_1920?unique=4dd102c

with stainless steel nut


    This combination does not exist.

    Inside the sealing Foamed seal Protection class IP 65 DIN EN 45545-3 class E60 (fire protection) DIN EN 61373 (shock and vibration testing) Left Right


    Product Benefits:

    • Compact design
    • Compatible with other quarter turns with GH = 18 mm
    • Fire protection according to DIN EN 455-2 with E20
    • Short housing GH = 18 mm
    • Foamed sealing
    • Standard cut out

    Product information:

    The compression latch is designed to be vibration-proof as such.
    Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.

    Internal Reference: 1000-U864-PH
    Product Type: Quarter turn
    Program: 1000
    Catalog sheet: 1B-210
    Material of the module : Stainless steel AISI 316
    Number of Possible Locking Points: 1 point
    Fixing type of housing : nut fixing
    Type of actuation: Triangular 7
    Mounting Positions : Inside the sealing
    Housing Head Shape: Round

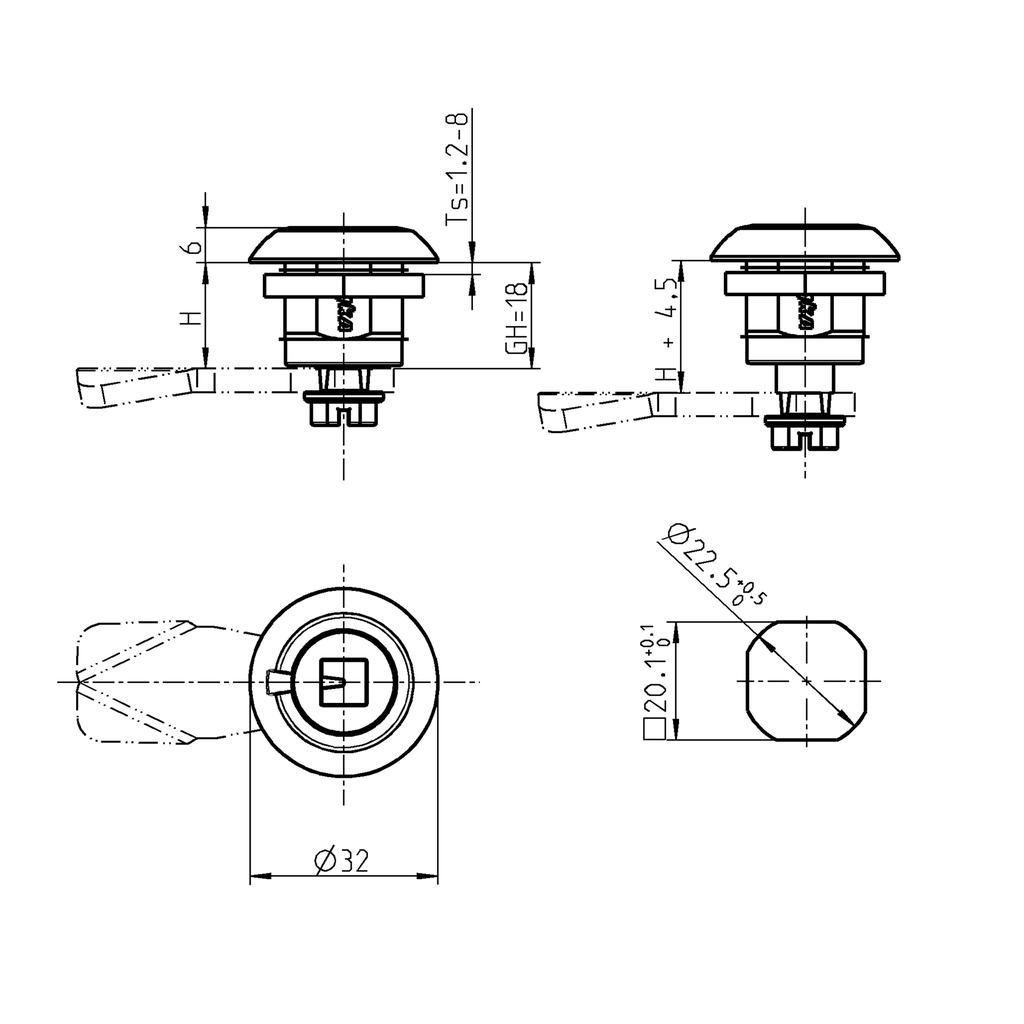

    Housing Head Size: 32 x 6 mm
    Foamed gasket: Yes
    GH Mass: 18 mm
    Compression Value : 4.5 mm
    Suitable for door thickness from: 1.20 mm
    Suitable for door thicknesses up to: 8 mm
    Locking set: Insert
    Door Version : Left,Right
    Locking components: Cam
    Quarter turn types: Compression latch with insert
