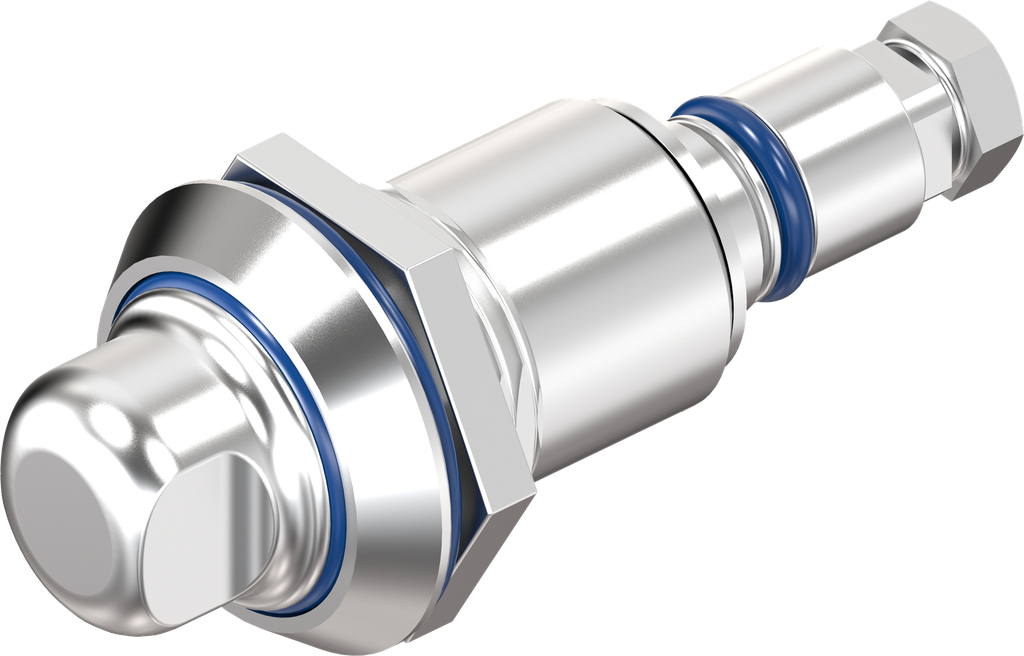

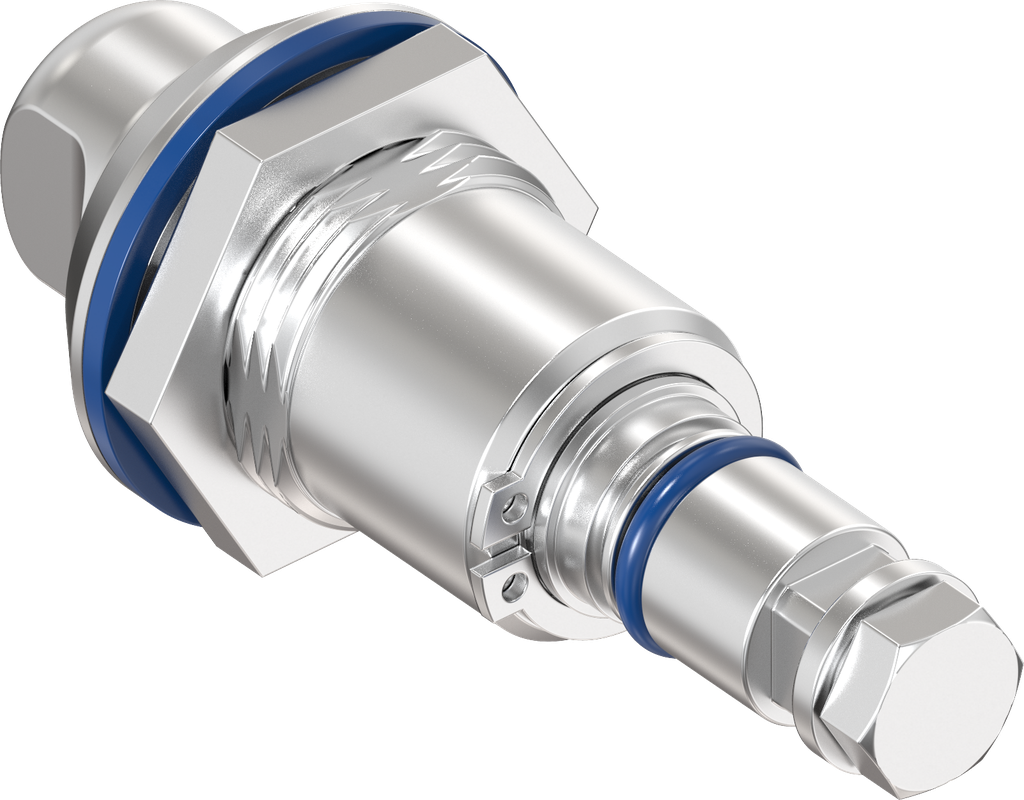

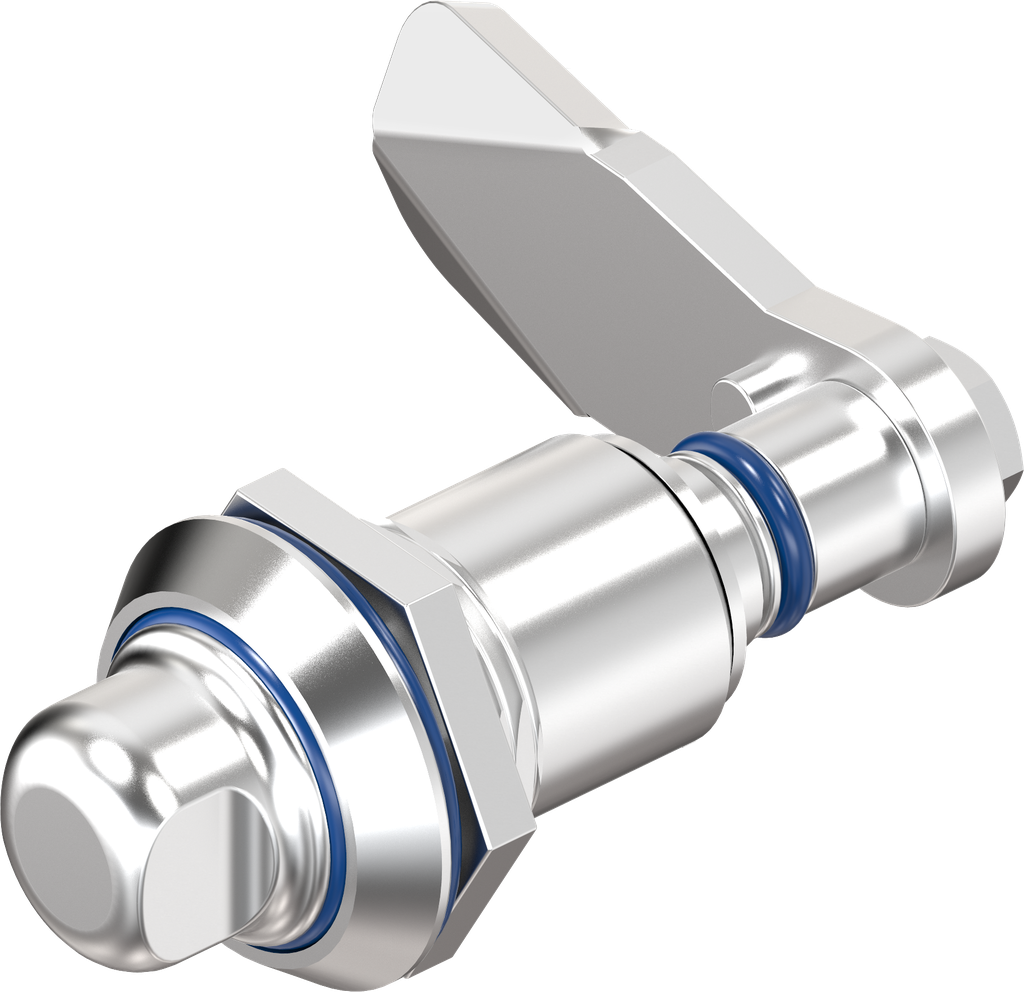

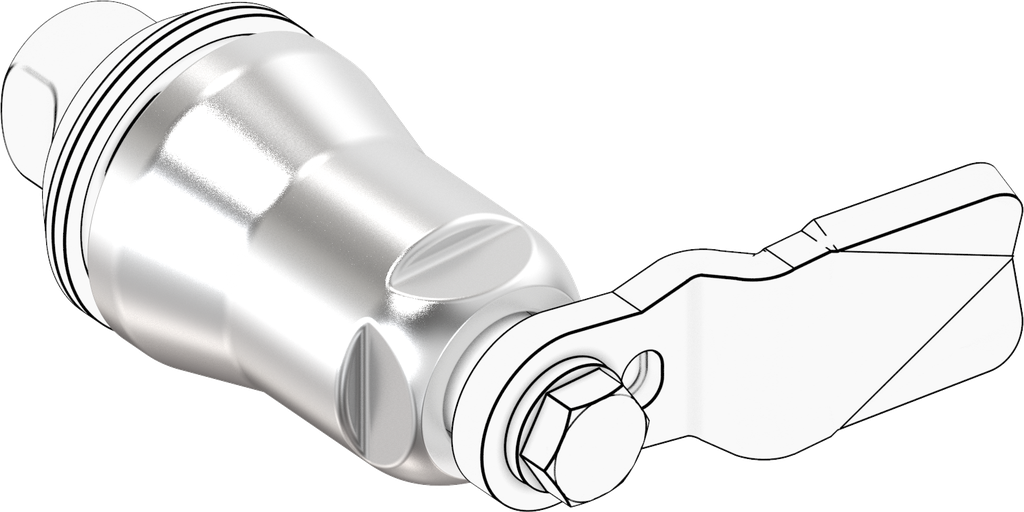

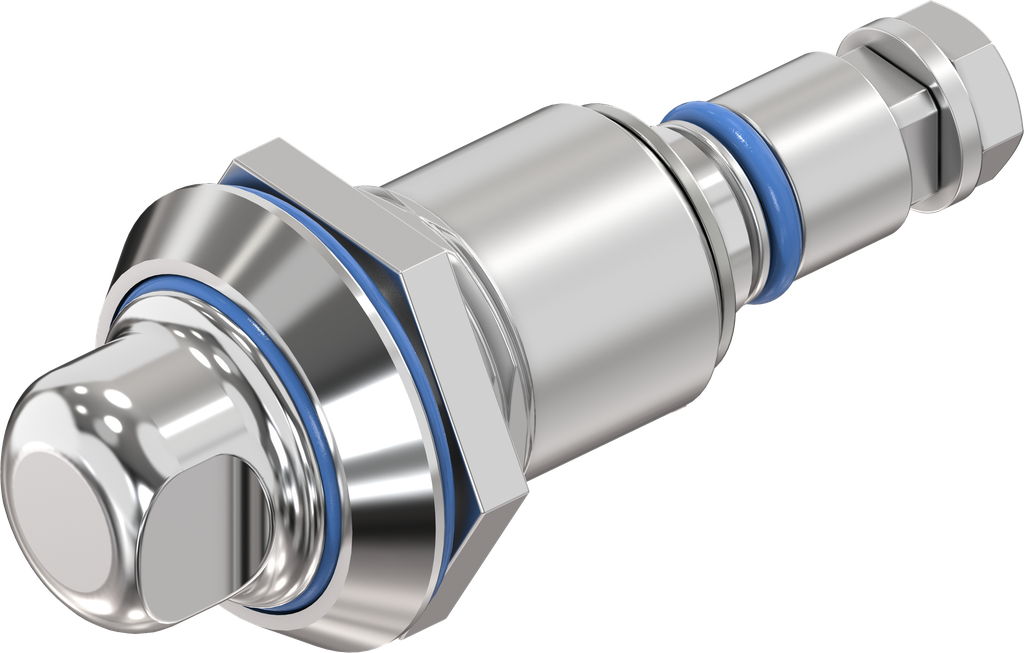

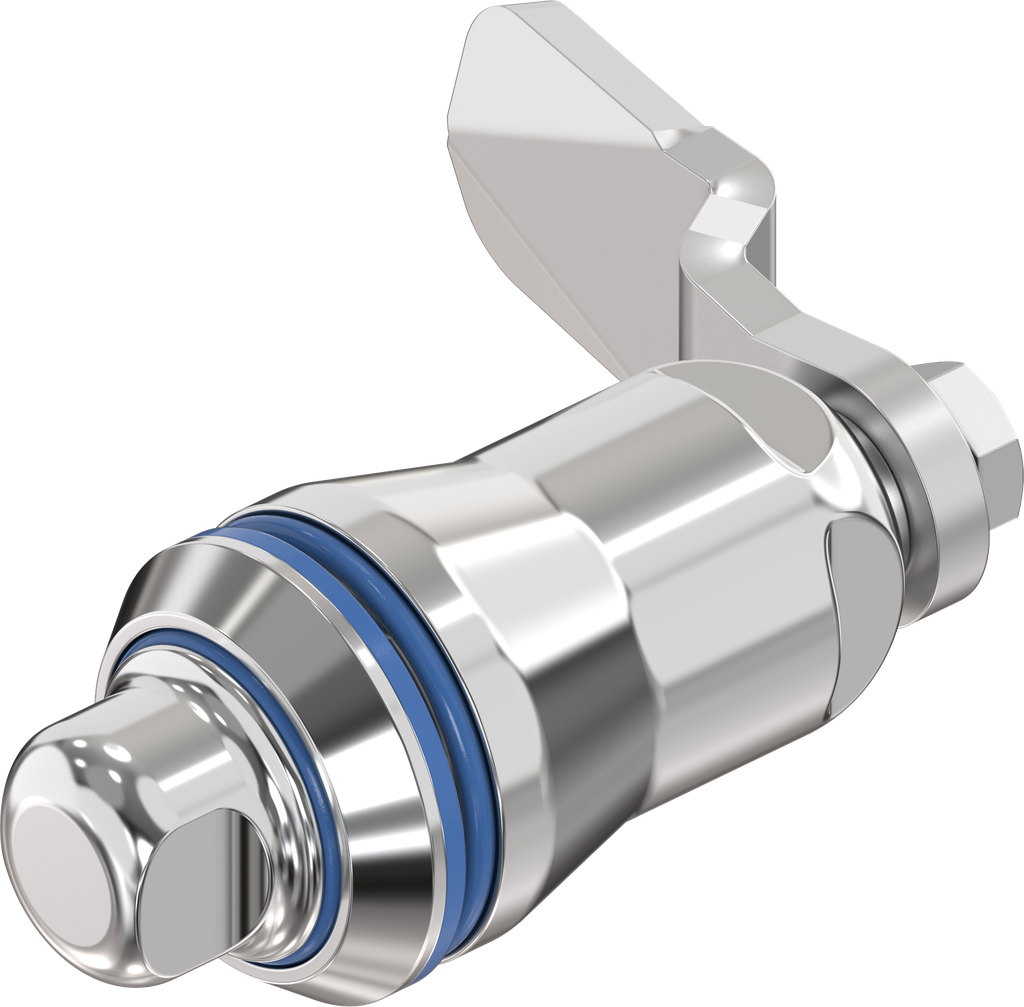

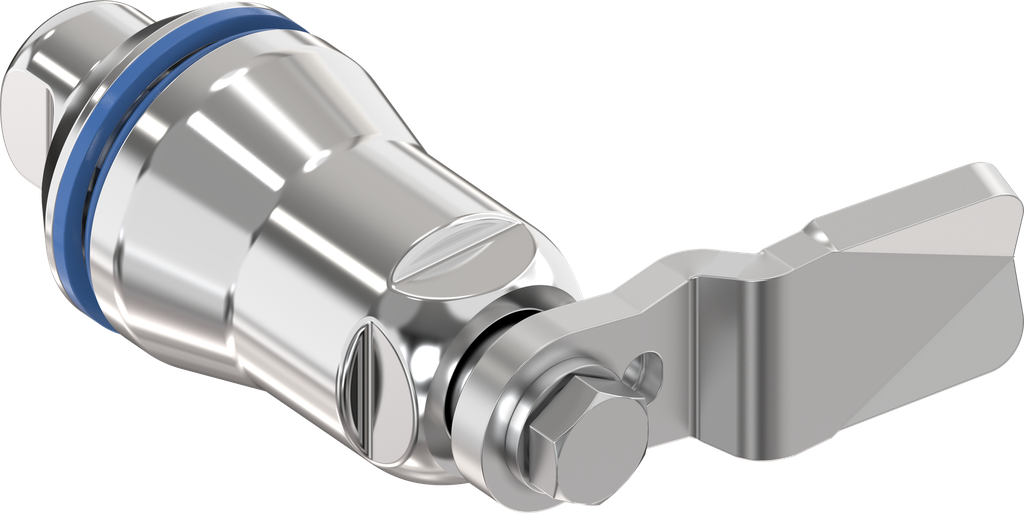

Compression latch square 8 with marking, left version, Stainless steel AISI 316
Product information:
Tamper and vibration-proof The compression latch is designed to be vibration-proof as such. Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required. This article can achieve complete IP 69K on request with a sleeve nut with seal, not only from outside to inside (mostly standard), but also within the application.
This article can achieve complete IP 69K on request with a sleeve nut with seal, not only from outside to inside (mostly standard), but also within the application.
Internal Reference:
1000-U862
Product Type:
Quarter turn
Program:
1000
Catalog sheet:
1B-837
Material of the module :
Stainless steel AISI 316L
Number of Possible Locking Points:
1 point
Article with property rights:
Yes
Fixing type of housing :
nut fixing
Type of actuation:
Hygiene SW 13
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round

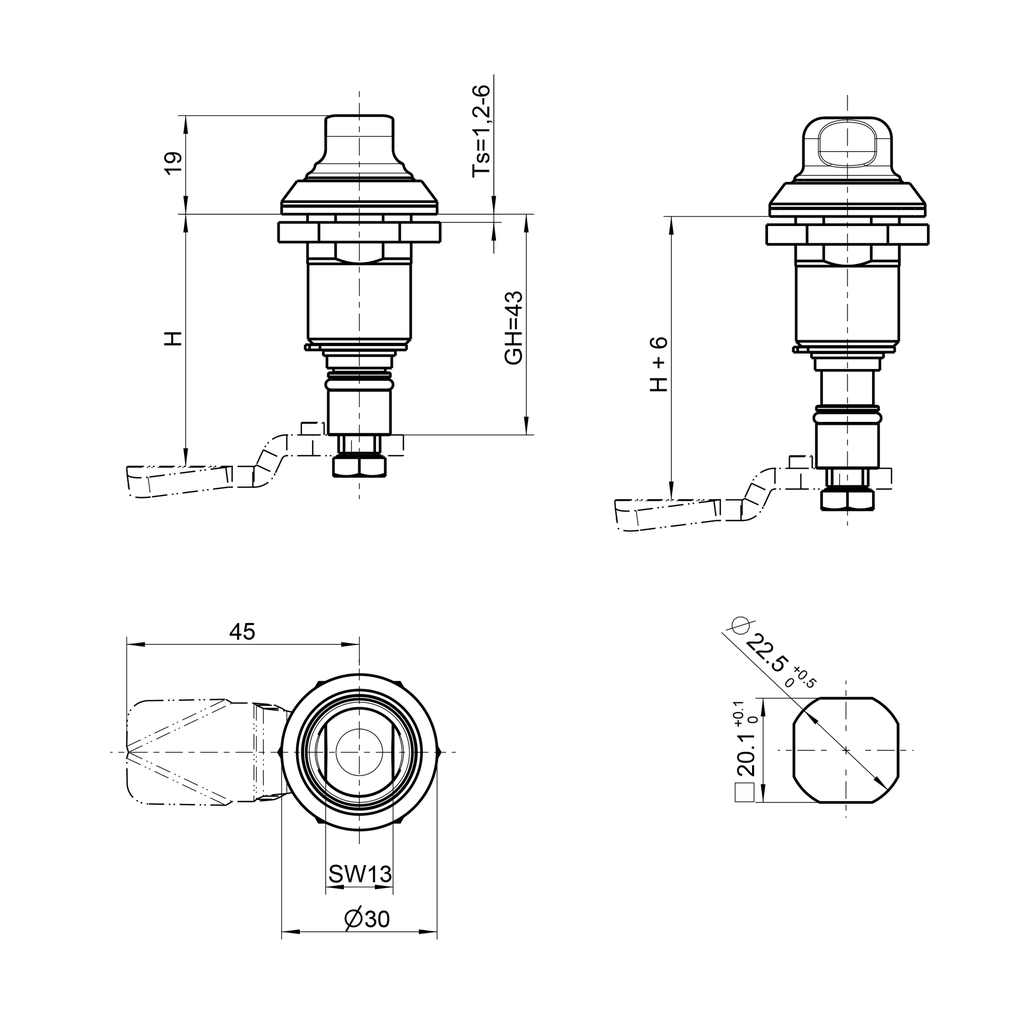

Housing Head Size:
30 x 6 mm
GH Mass:
43 mm
Compression Value :
6 mm
Suitable for door thickness from:
1.20 mm
Suitable for door thicknesses up to:
6 mm
Locking set:
Insert
Door Version :
Left,Right

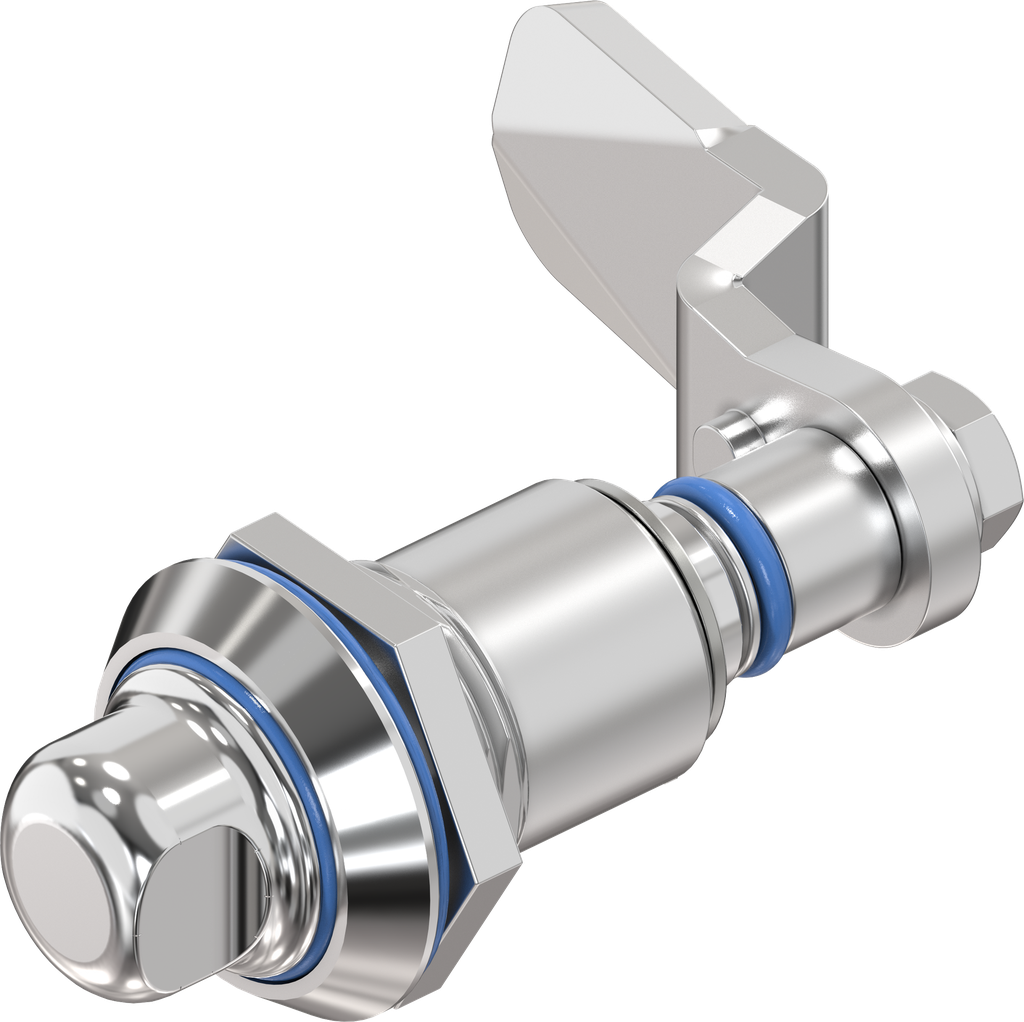

Locking components:
Cam
Quarter turn types:
Compression latch with insert
No Specifications
View All Products
Here you can find the product data sheets and CAD files of this product
