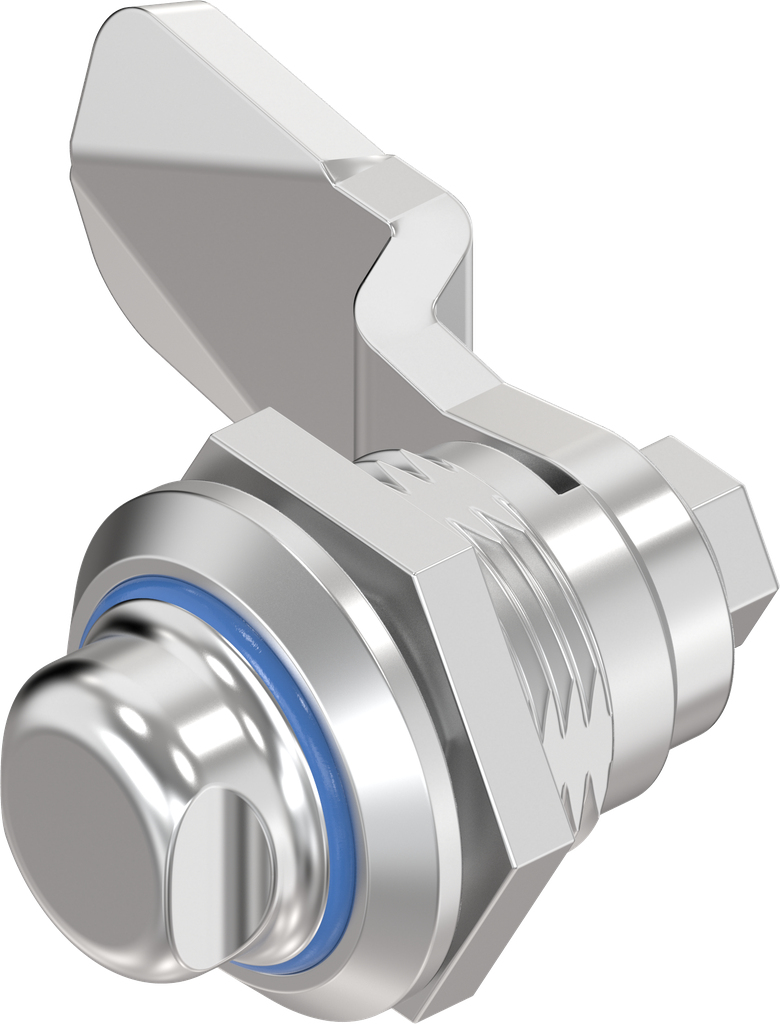

Quarter turn SW 13 for hygienic area food, Stainless steel AISI 316L
Quarter turn SW 13 for hygienic area food, Stainless steel AISI 303

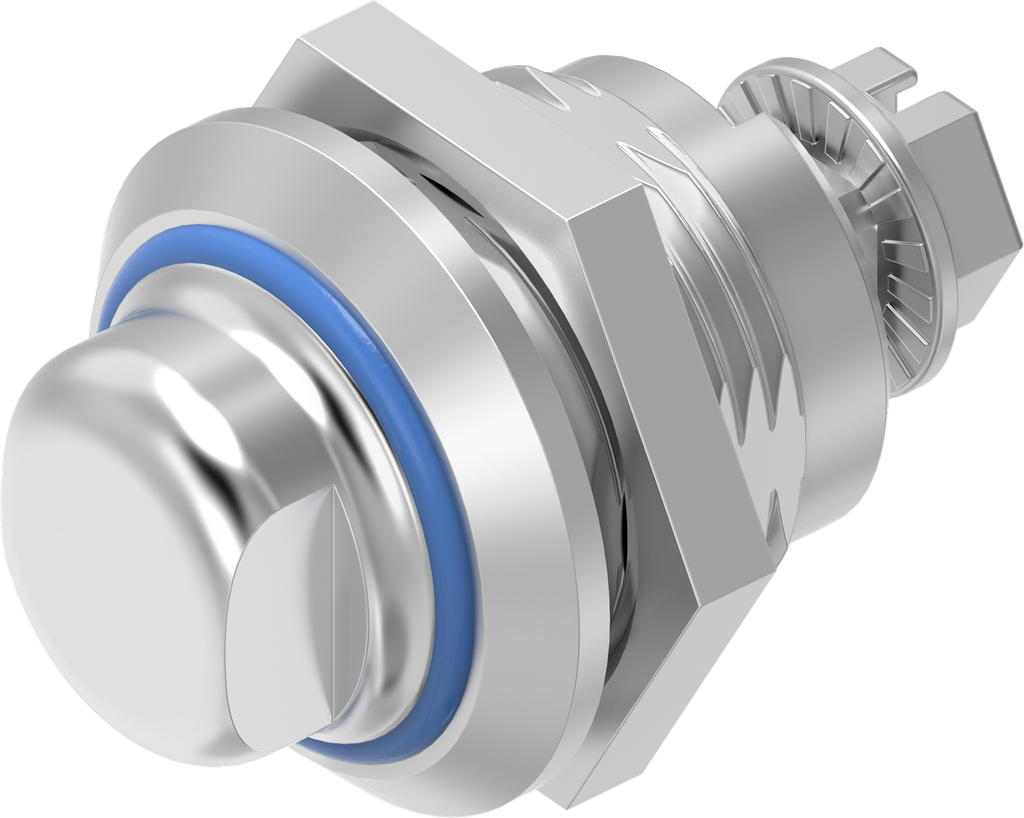

Quarter turn SW 13 for hygienic area food, Stainless steel AISI 303; 1000-U838-PF
with stainless steel nut
Product Benefits:
The quarter turn for hygienic areas made of AISI 303 can be used where the quarter turn of AISI 316L is not required.Product information:
The quarter turn for hygienic areas meets hygiene standard acc. to DIN EN 1672-2 and DIN EN 14159. Application: food area
Internal Reference:
1000-U838-PF
Standards:
Protection class IP 65, DIN EN 1672-2 (hygiene), DIN EN 14159 (hygiene)
Barcode:
1000-U00838-00000PF
Product Type:
Quarter turn
Program:
1000
Material of the module :
Stainless steel AISI 303
Number of Possible Locking Points:
1 point, 2 points, 3 point
Fixing type of housing :
nut fixing
Type of actuation:
Hygiene SW 13
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Foamed gasket:
Yes
GH Mass:
18 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
8 mm
Locking set:
Insert
Door Version :
Left,Right
Locking components:
Cam
Quarter turn types:
Quarter turn with simple insert
No Specifications
