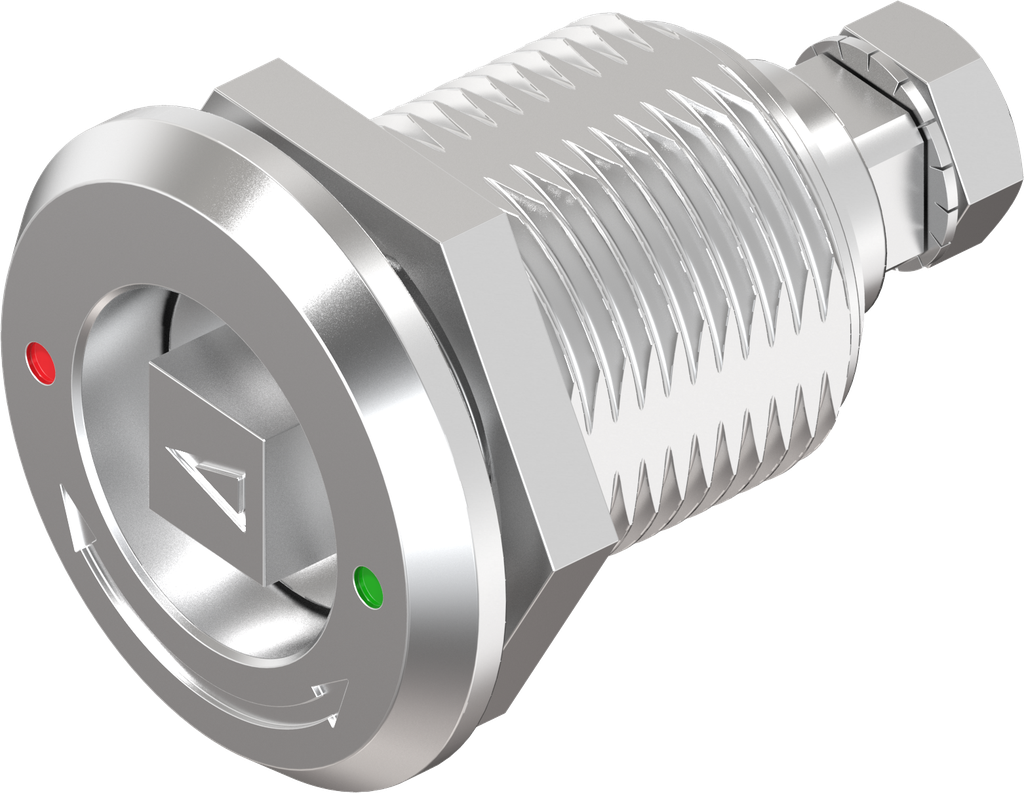

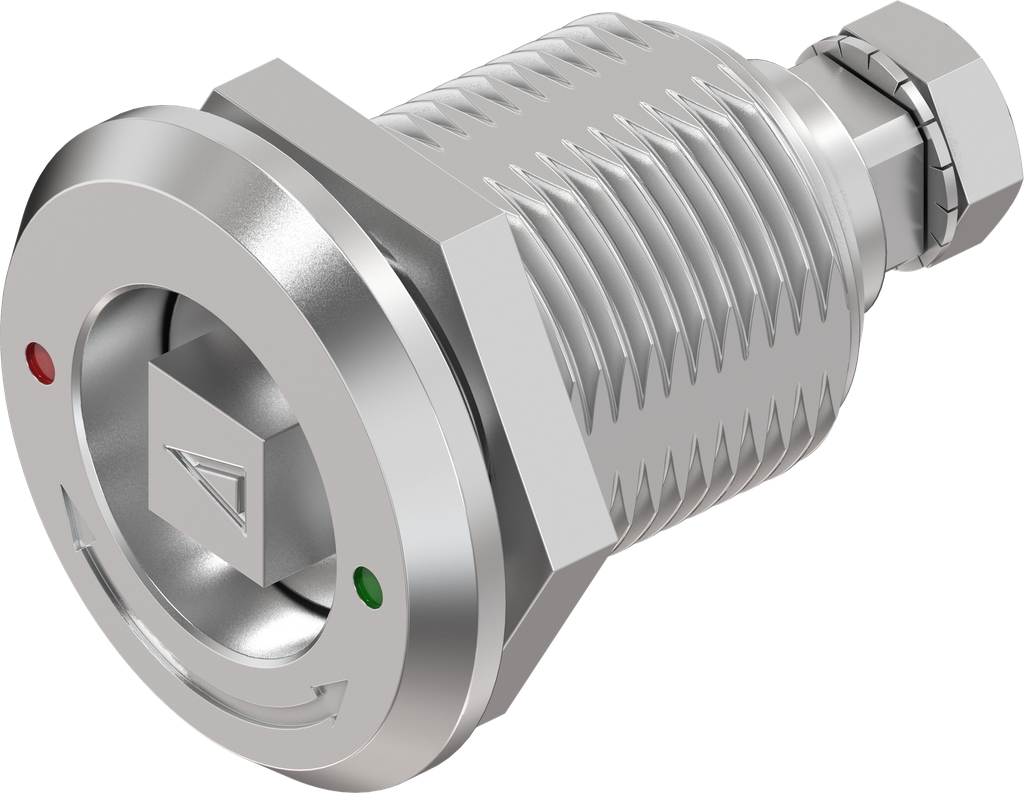

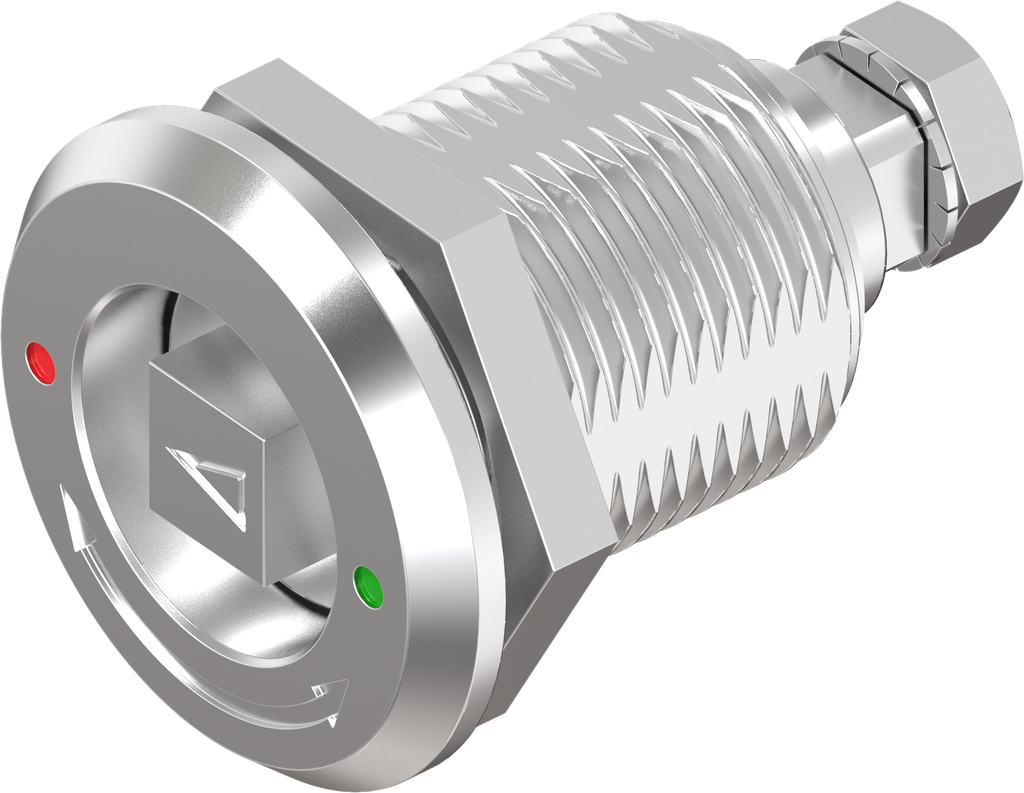

Compression latch with tube, Zinc die black powder-coated
Safety quarter turn triangular 8 with mask, Zinc die black powder-coated
Product information:
The compression latch is designed to be vibration-proof as such.
Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.
Internal Reference:
1000-U834-REPH
Product Type:
Quarter turn
Program:
1000
Material of the module :
Stainless steel AISI 316
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Type of actuation:
Square 8 with arrow
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
32 x 4 mm
Foamed gasket:
Yes
GH Mass:
31 mm
Compression Value :
6 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
20 mm
Locking set:
Insert
Door Version :
Right
Locking components:
Cam
Quarter turn types:
Compression latch with insert
No Specifications
View All Products

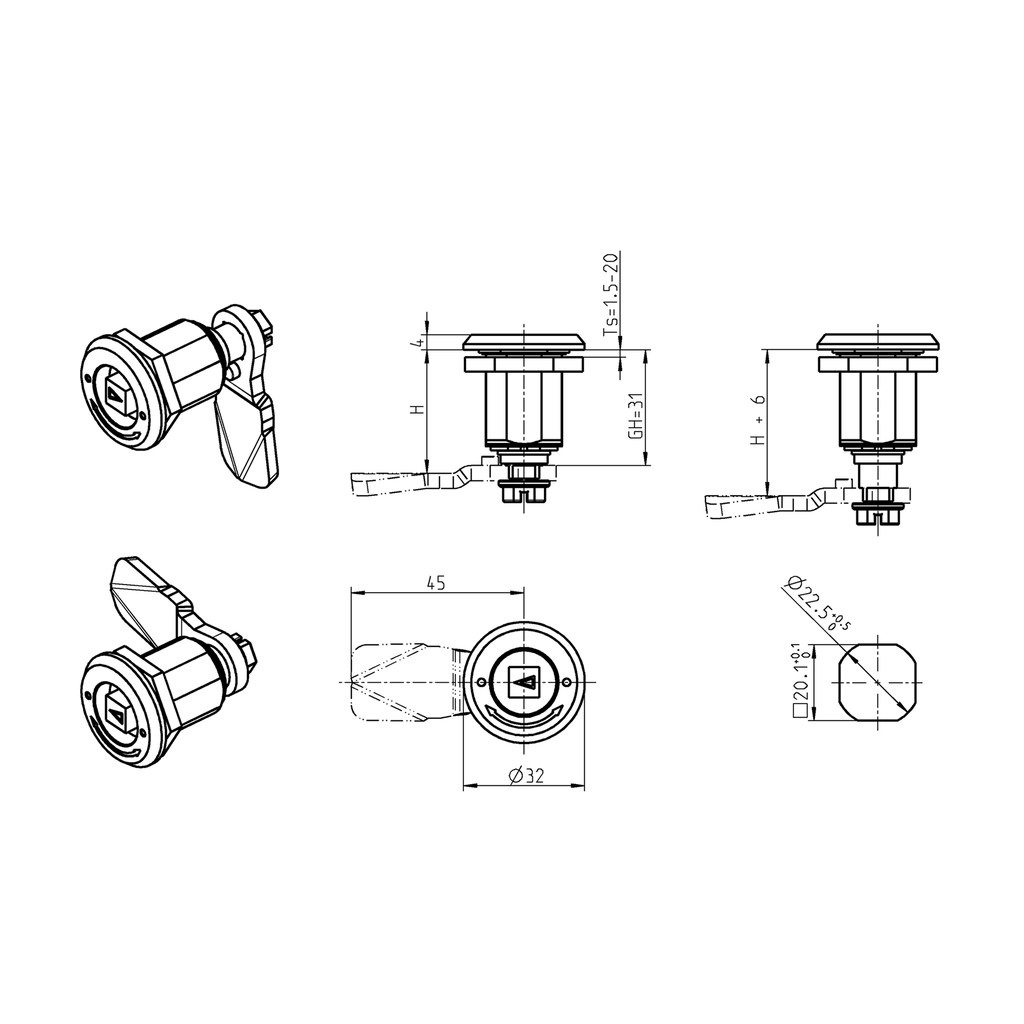

Here you can find the product data sheets and CAD files of this product
