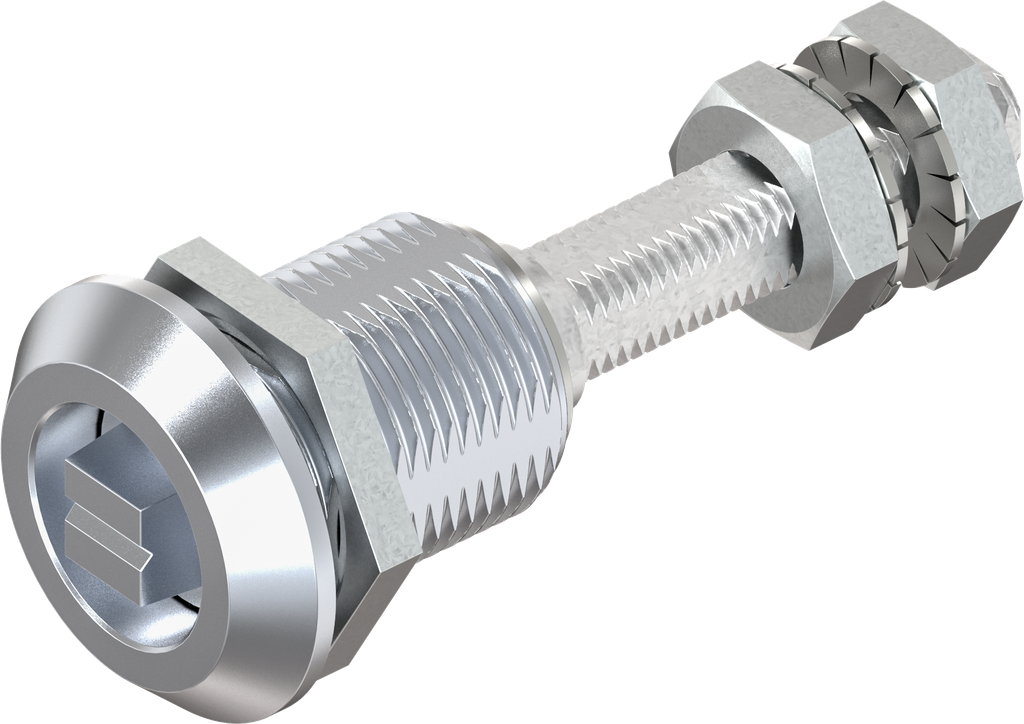

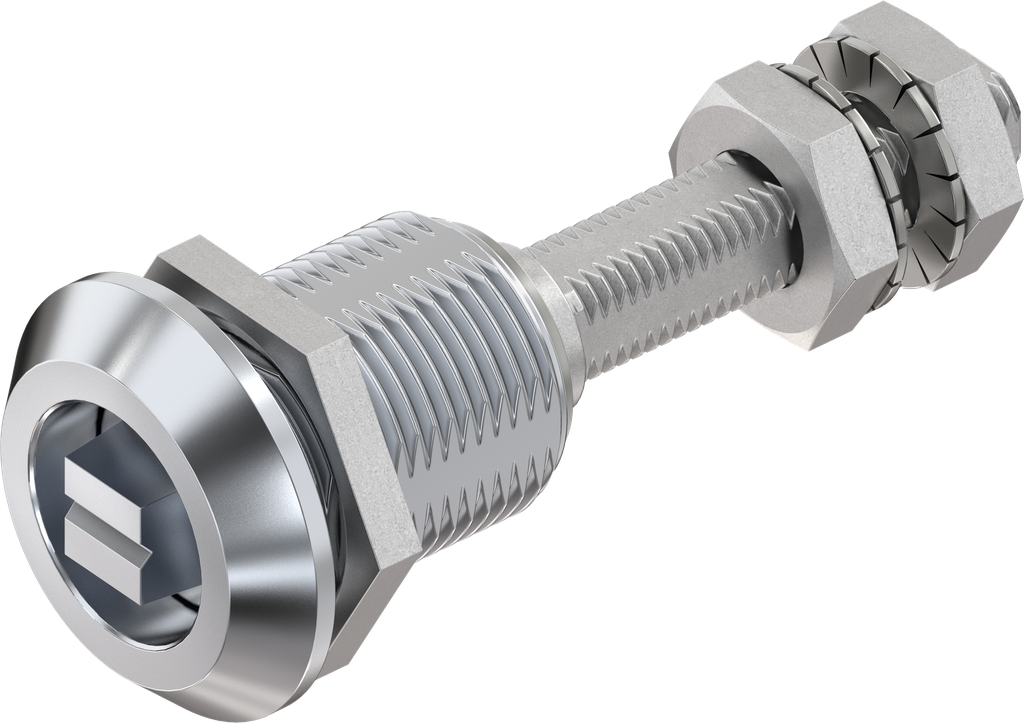

Compression latch with adjustable cam height, railway version, Zinc die chrome-plated; 1000-U832-IA
with nut
Product information:
The compression latch is designed to be vibration-proof as such. Depending on the installation location and operational conditions, specific checks are necessary and/or supplementary measures of fastening required.
Internal Reference:
1000-U832-IA
Product Type:
Quarter turn
Program:
1000
Material of the module :
Zinc die
Surface of the module:
chrome-plated
Number of Possible Locking Points:
1 point
Fixing type of housing :
nut fixing
Type of actuation:
Square 9 with V-slot, railway version
Mounting Positions :
Inside the sealing
Housing Head Shape:
Round
Housing Head Size:
32 x 6 mm
Foamed gasket:
Yes
GH Mass:
31 mm
Compression Value :
6 mm
Suitable for door thickness from:
1.50 mm
Suitable for door thicknesses up to:
20 mm
Locking set:
Insert
Door Version :
Left,Right

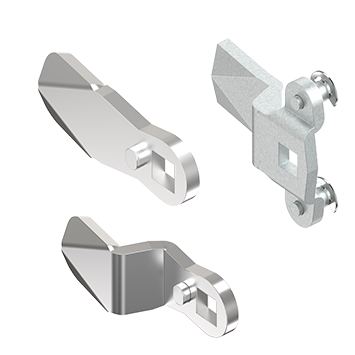

Locking components:
Cam
Quarter turn types:
Compression latch with insert
No Specifications
View All Products

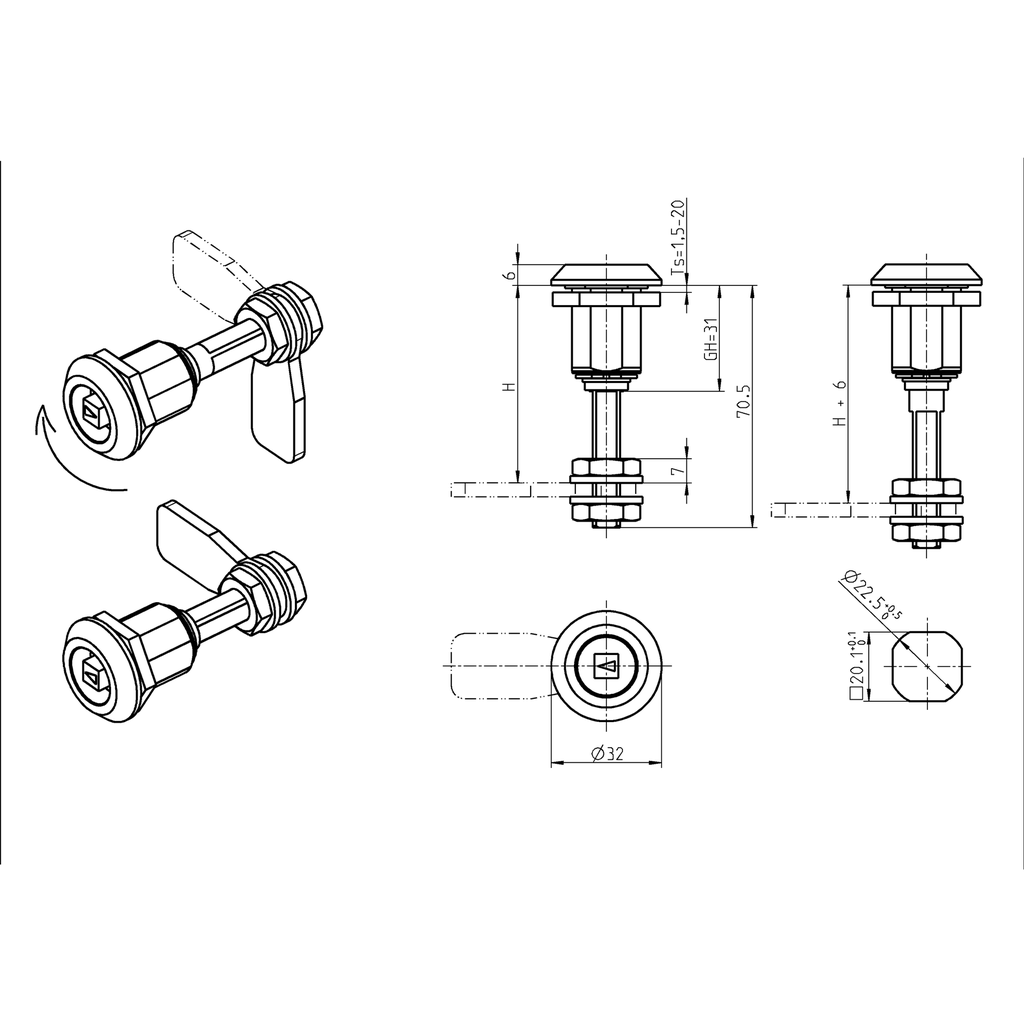

Here you can find the product data sheets and CAD files of this product
