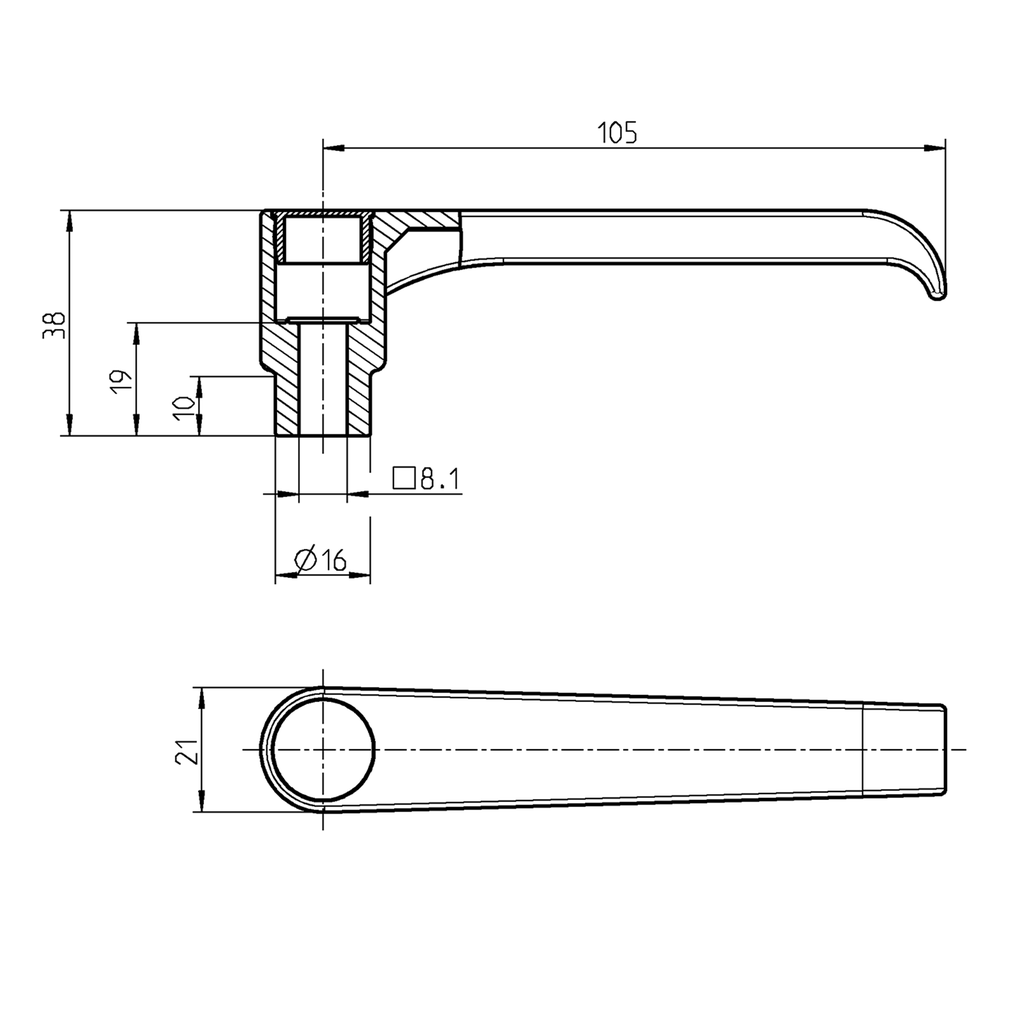

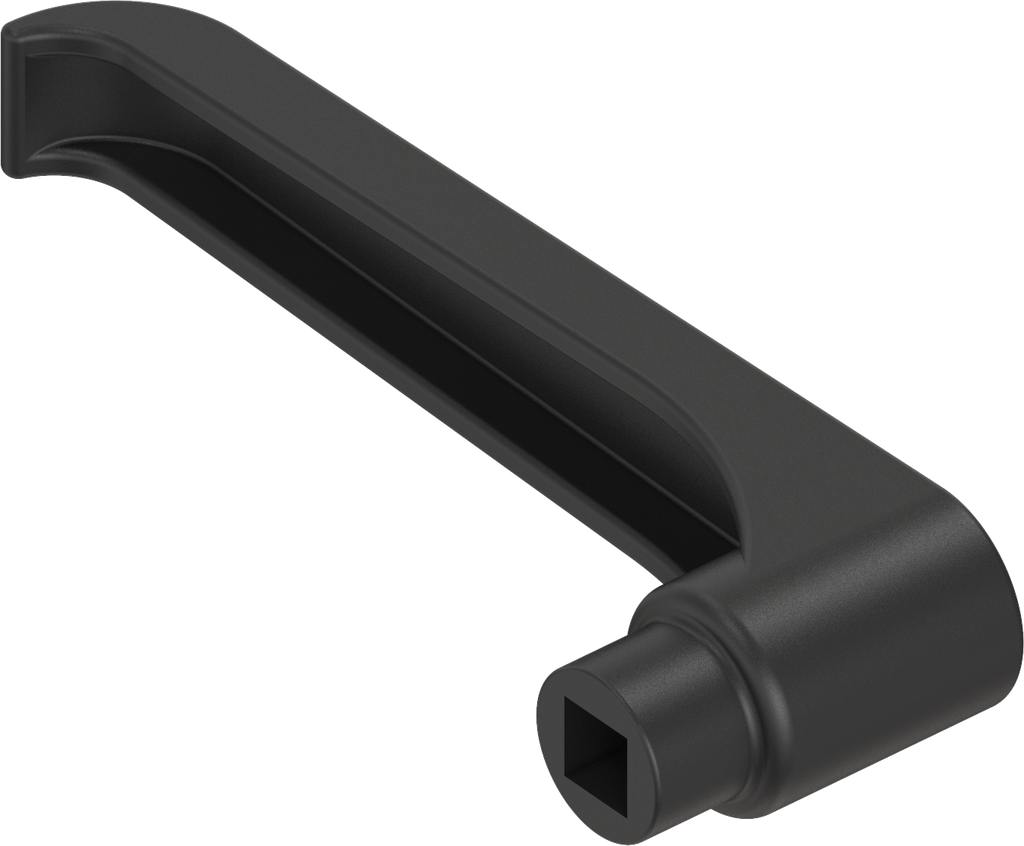

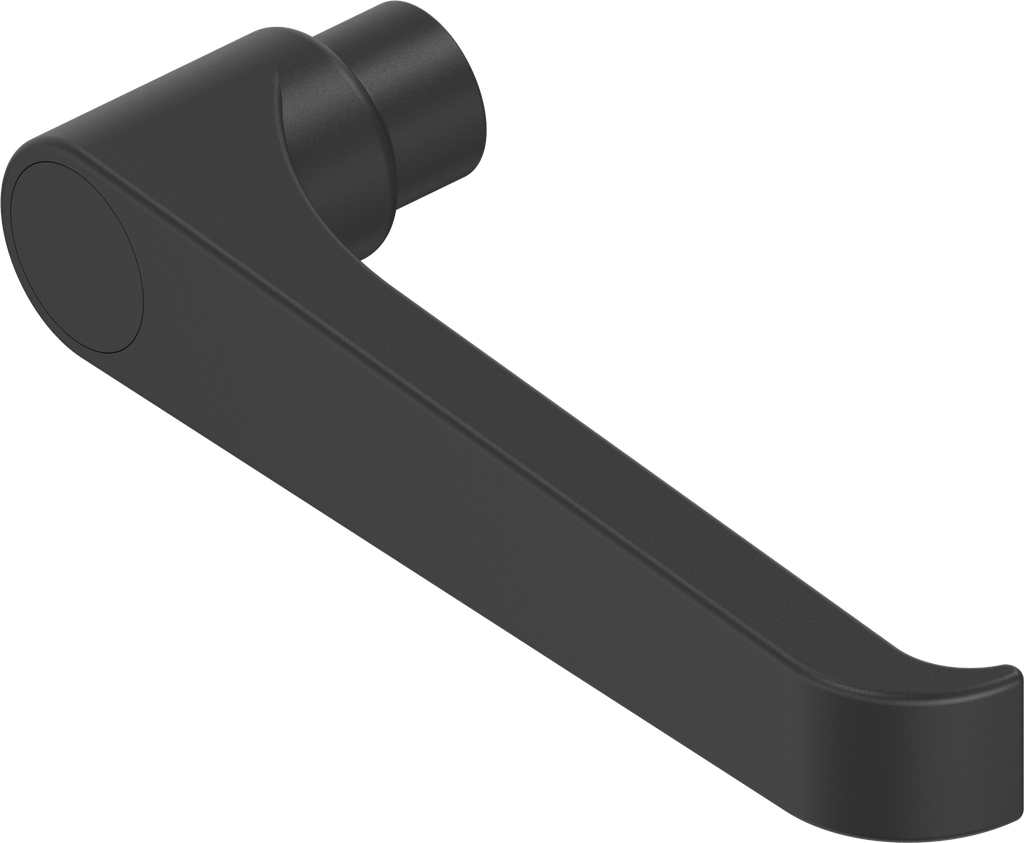

L-handle - inside handle, Polyamide GF black; 1000-U829

https://www.emka.com/products/1000-u829 https://www.emka.com/web/image/product.template/205895/image_1920?unique=9881947

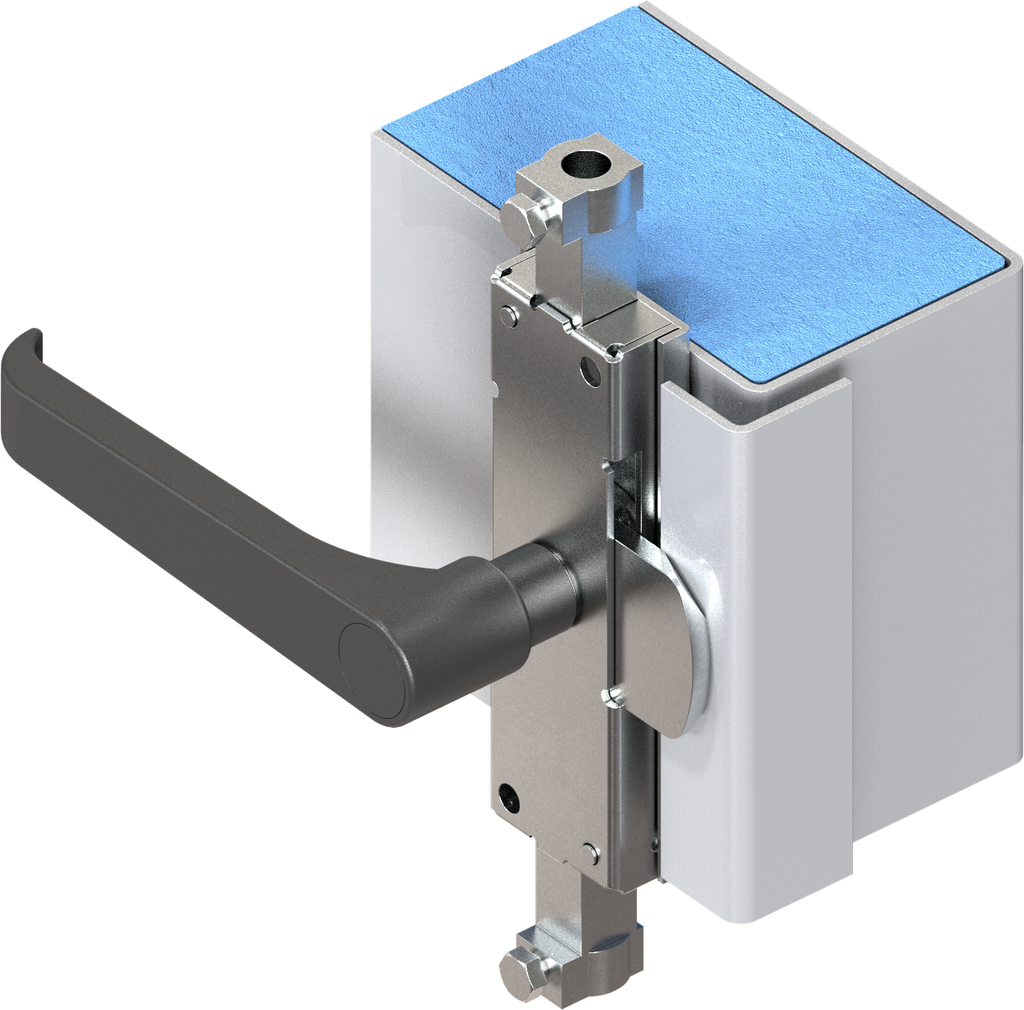

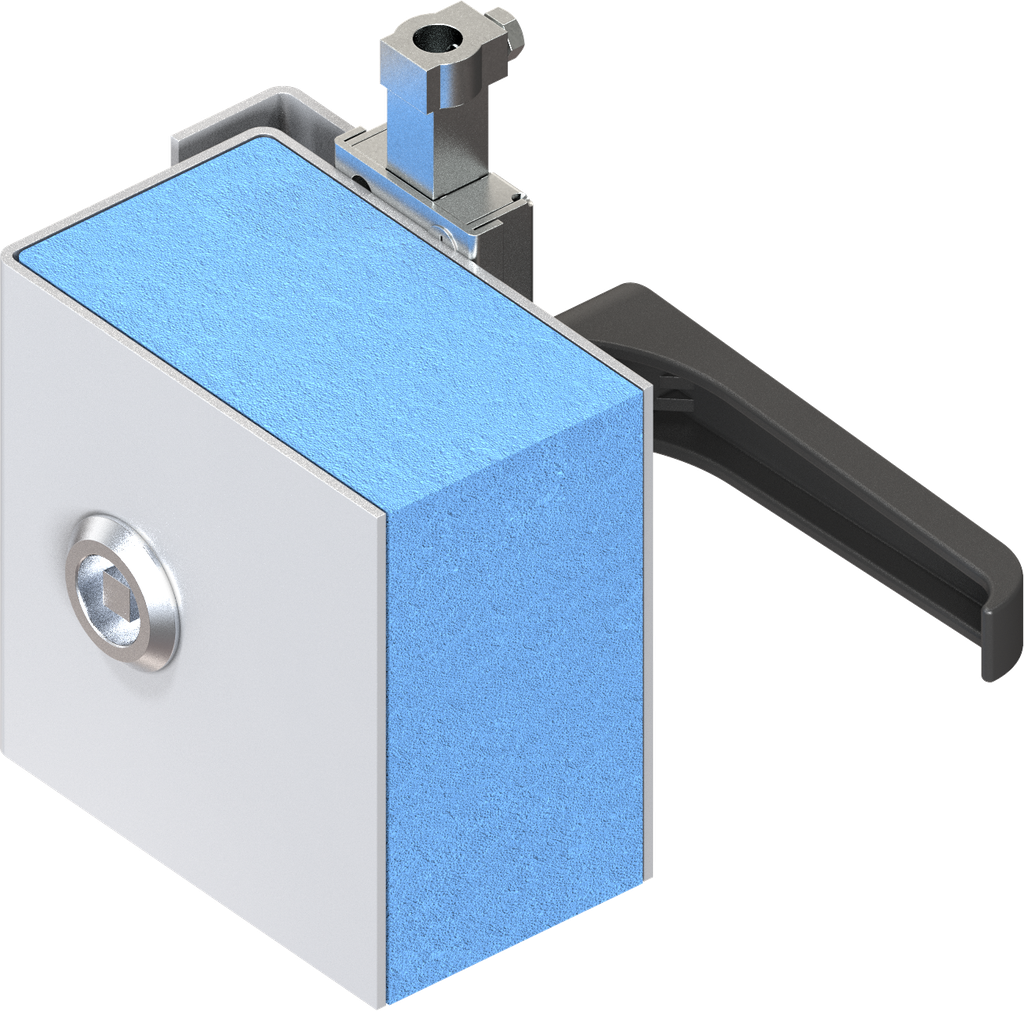

for adapter system with insulated door

    This combination does not exist.

    Left Right
    Contact Us

    Product information:

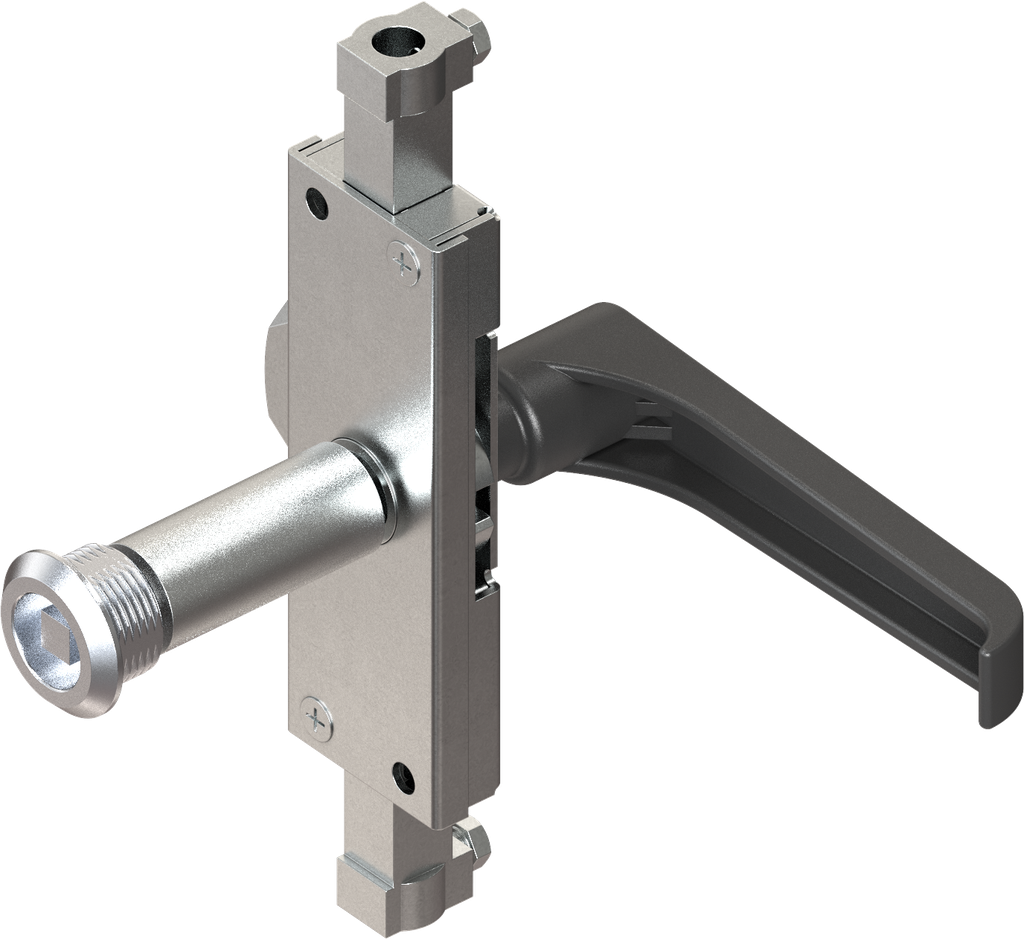

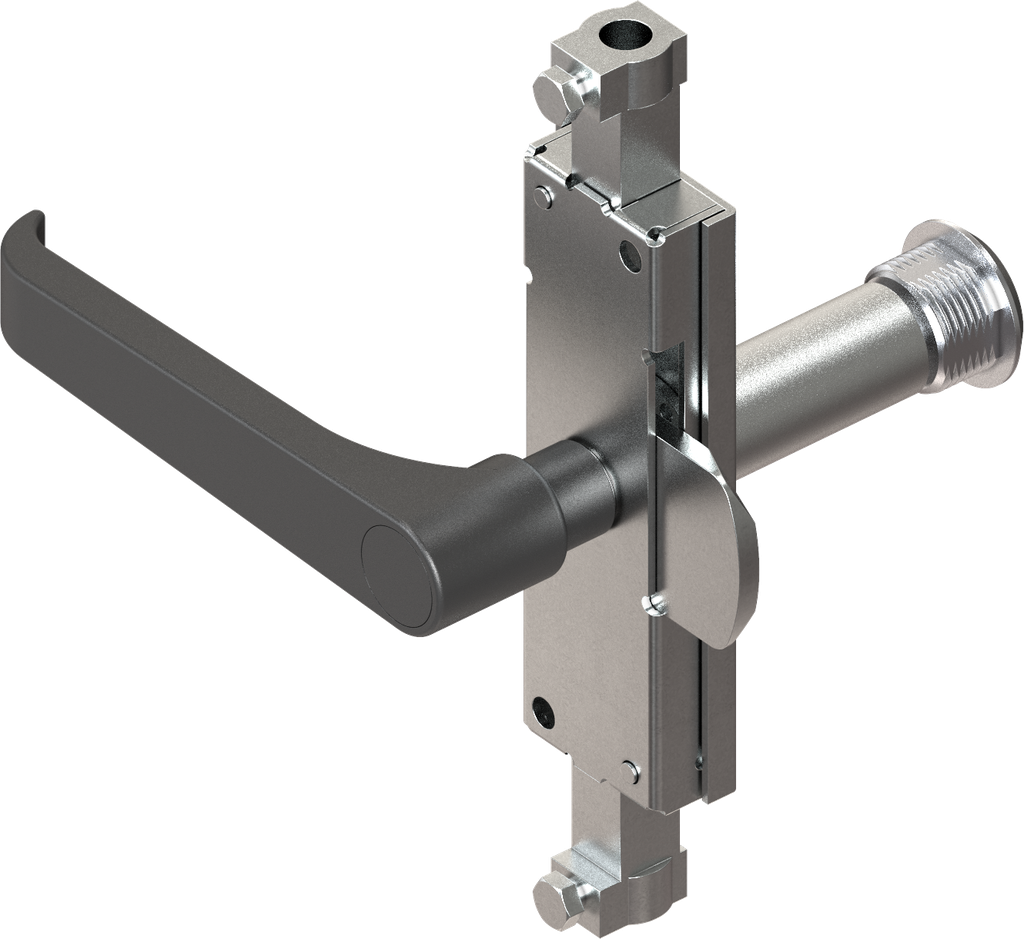

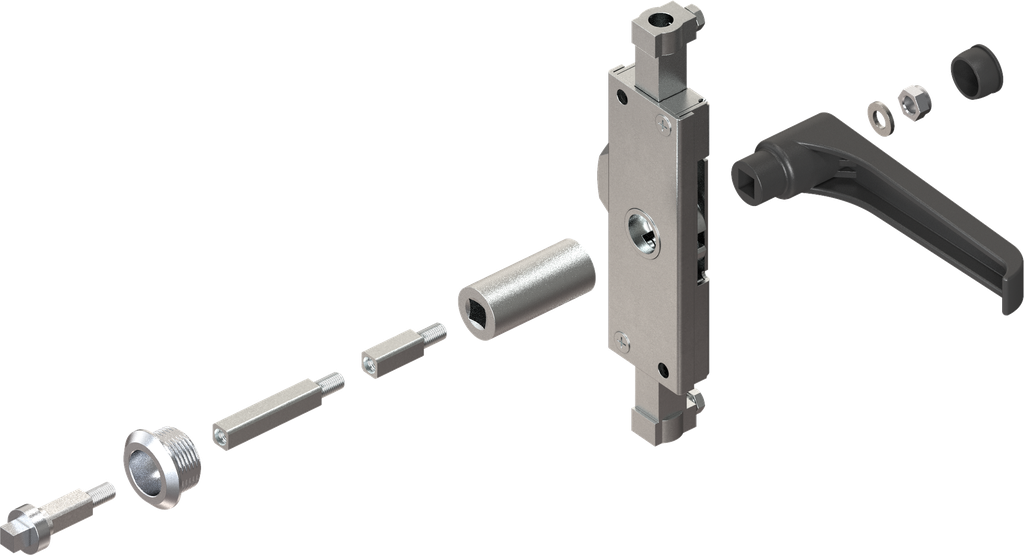

    The preassembled adapter system, with handle or insert, is inserted through the installation opening and retained by means of locknut M6.

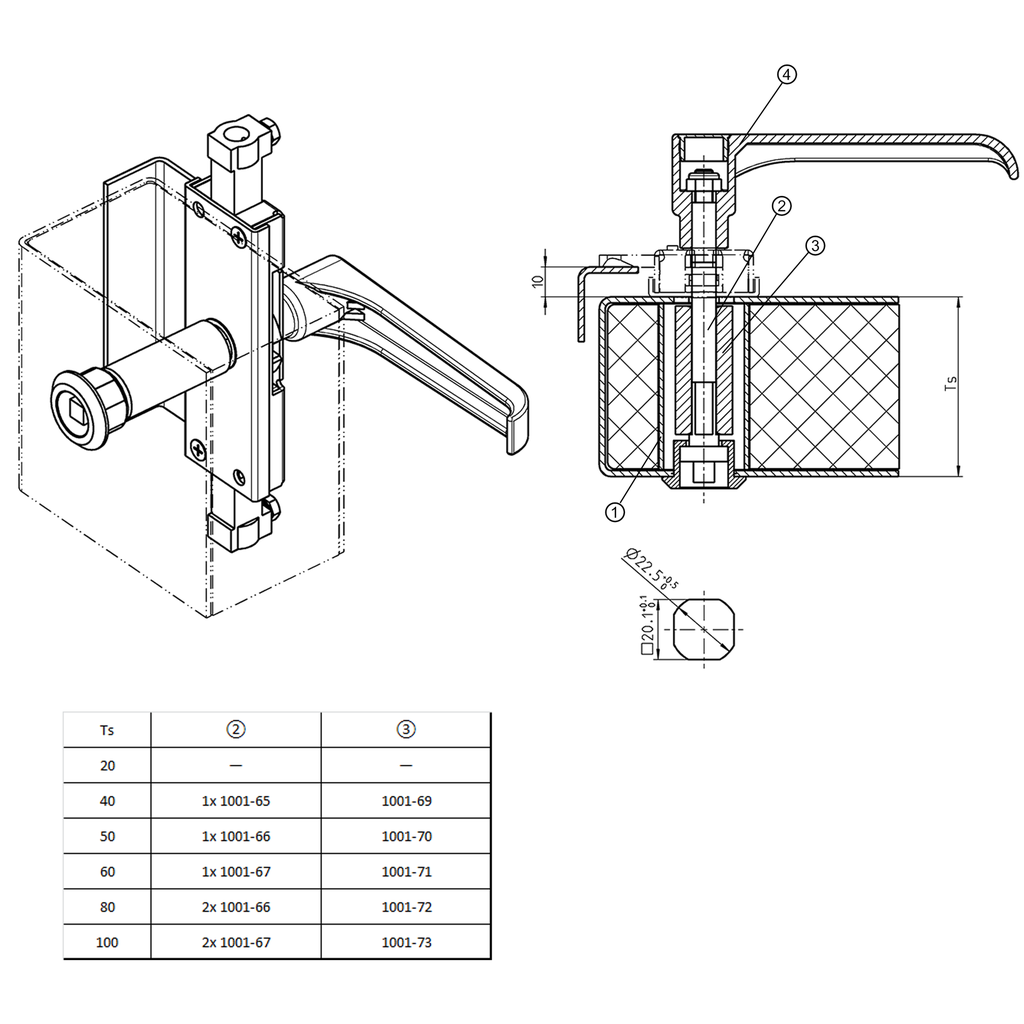

    1 = e.g. tube Ø 30x1.5
    2 = Square adapter
    3 = Coupling piece
    4 = Inside handle
    Adapter 1001-65 is required in addition for the inside handle
    The inside handle is not suitable for lockable T- and L-handles
    Internal Reference: 1000-U829
    Product Type: Quarter turn accessories
    Program: 1000
    Catalog sheet: 2A-180
    Material of the module : Polyamide GF
    Surface of the module: black
    Door Version : Left,Right
    No Specifications
    View All Products
    Insert

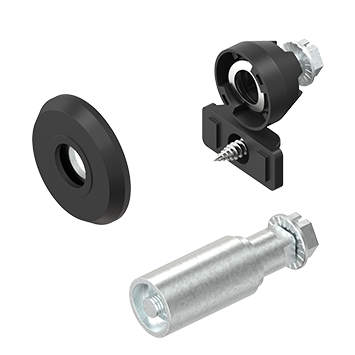

    Adapter
    Rod control
    Quarter turn
    Here you can find the product data sheets and CAD files of this product
