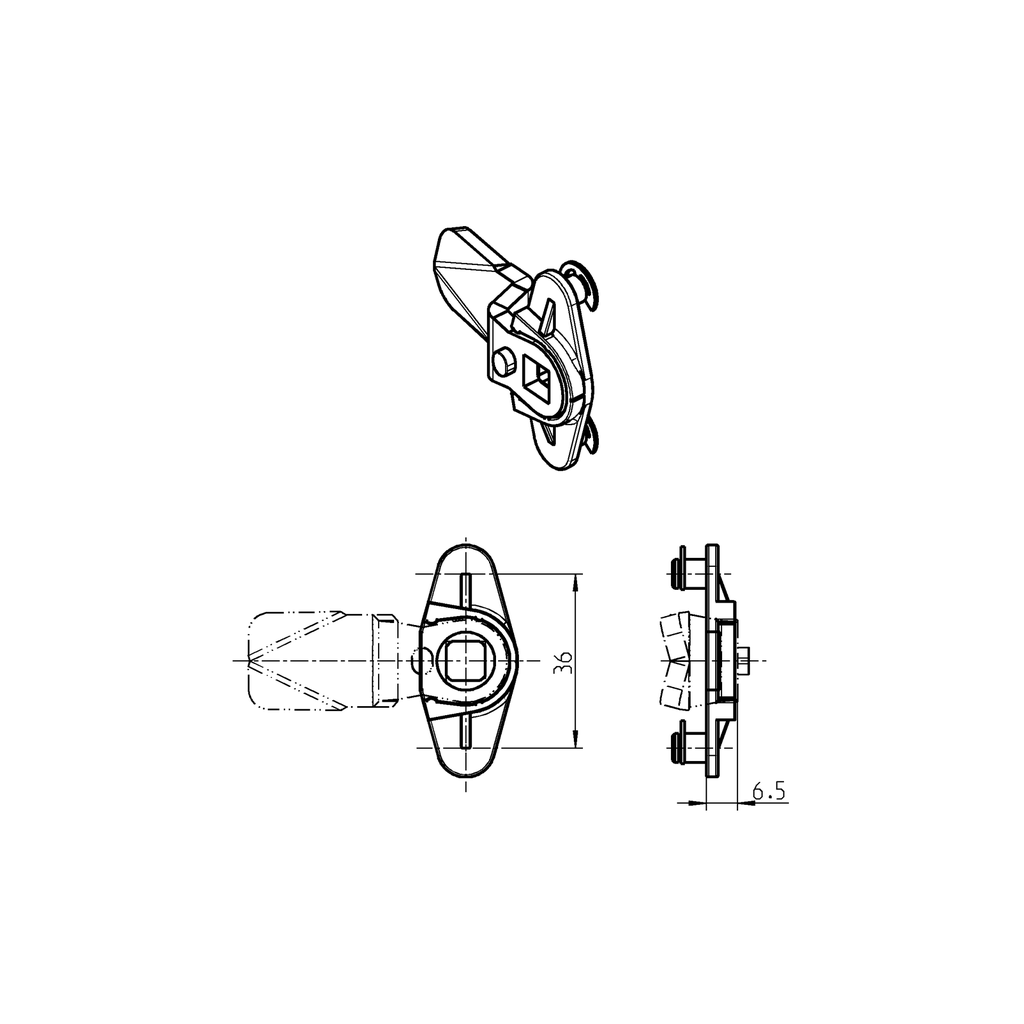

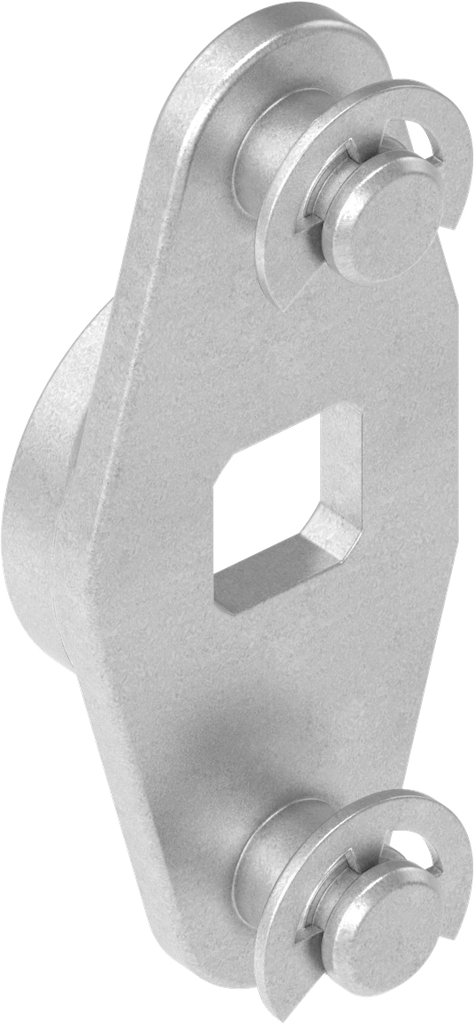

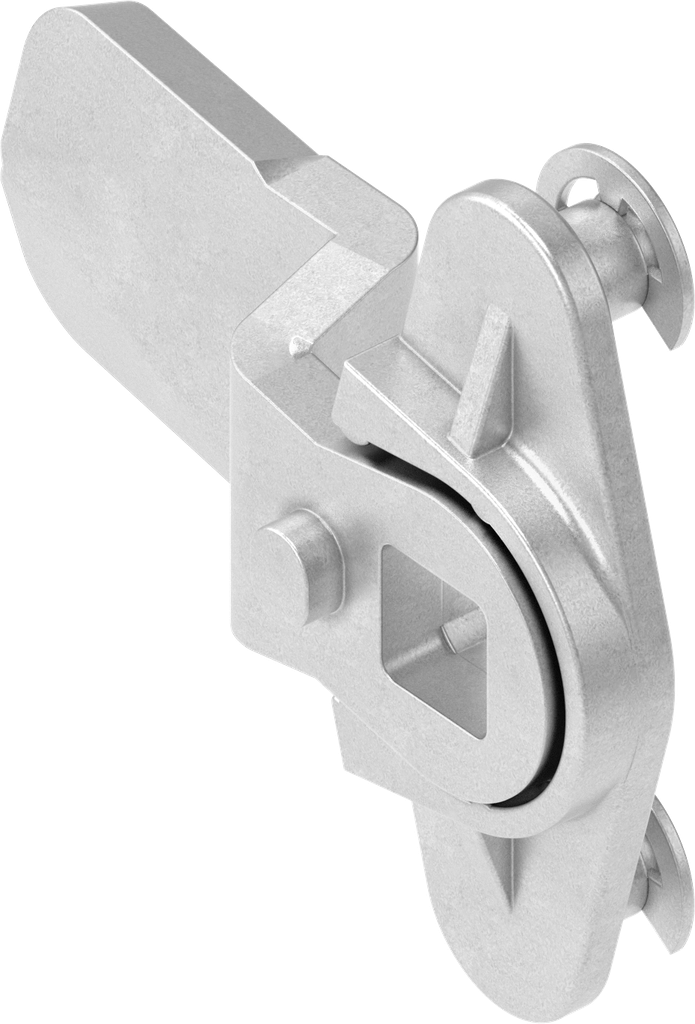

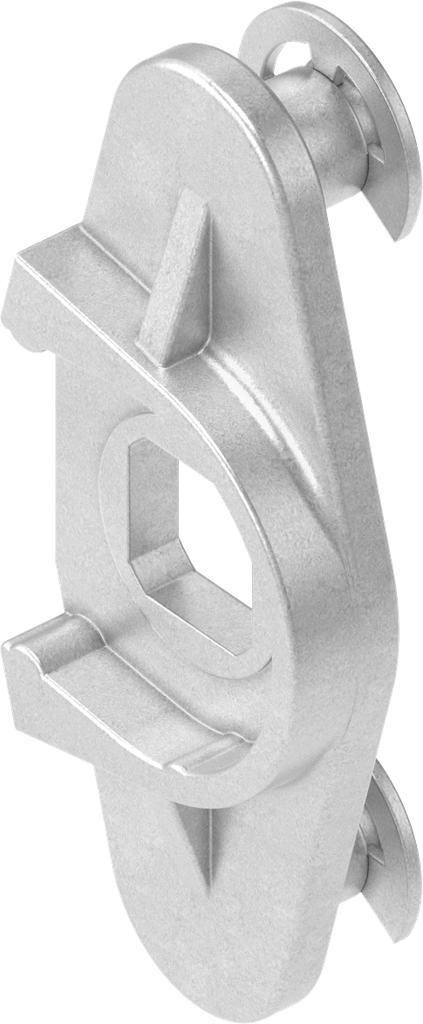

Rod control, Zinc die zinc-plated; 1000-U776

https://www.emka.com/products/1000-u776 https://www.emka.com/web/image/product.template/60310/image_1920?unique=d04c343

    This combination does not exist.

    Inside the sealing
    Contact Us
    Internal Reference: 1000-U776
    Product Type: Rod control
    Program: 1000
    Catalog sheet: 1C-120
    Material of the module : Zinc die
    Surface of the module: zinc-plated
    Number of Possible Locking Points: 3 point
    Mounting Positions : Inside the sealing
    Stroke of the drive: Stroke 18 mm
    No Specifications
    View All Products
    Housing
    Cam
    Rod
    Quarter turn
    Bearing bush
    Swinghandle, Lifthandle
    Here you can find the product data sheets and CAD files of this product
    Main catalogue | 1C-120
    Product data sheet
    CAD file | 1000-U776_igs
    CAD file | 1000-U776_stp
