Inside handle, Polyamide red
Inside handle, Polyamide red

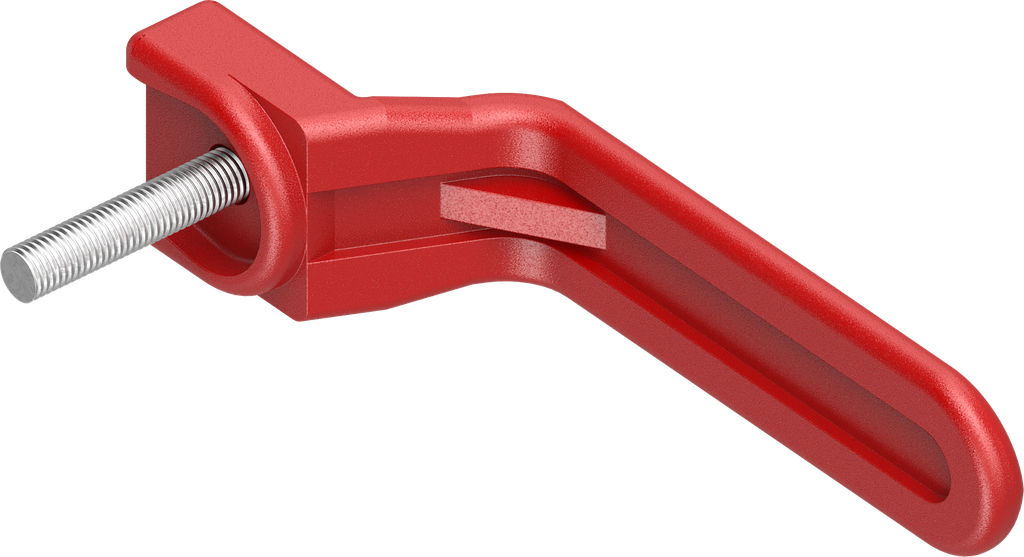

Inside handle, Polyamide red; 1000-U683

https://www.emka.com/products/1000-u683 https://www.emka.com/web/image/product.template/205801/image_1920?unique=0463bdd

for length of housing (GH) = 36 mm


    This combination does not exist.



    Assembly instruction:

    Cannot be used for lockable quarter turns, safety quarter turns and compression latches

    Internal Reference: 1000-U683
    Product Type: Quarter turn accessories
    Program: 1000
    Catalog sheet: 1C-170
    Material of the module : Polyamide
    Surface of the module: red
    Number of Possible Locking Points: 1 point
    Inside grip for tongue for GH: 36
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 26 mm
    No Specifications
