Inside handle, Polyamide red
Inside handle, Polyamide red

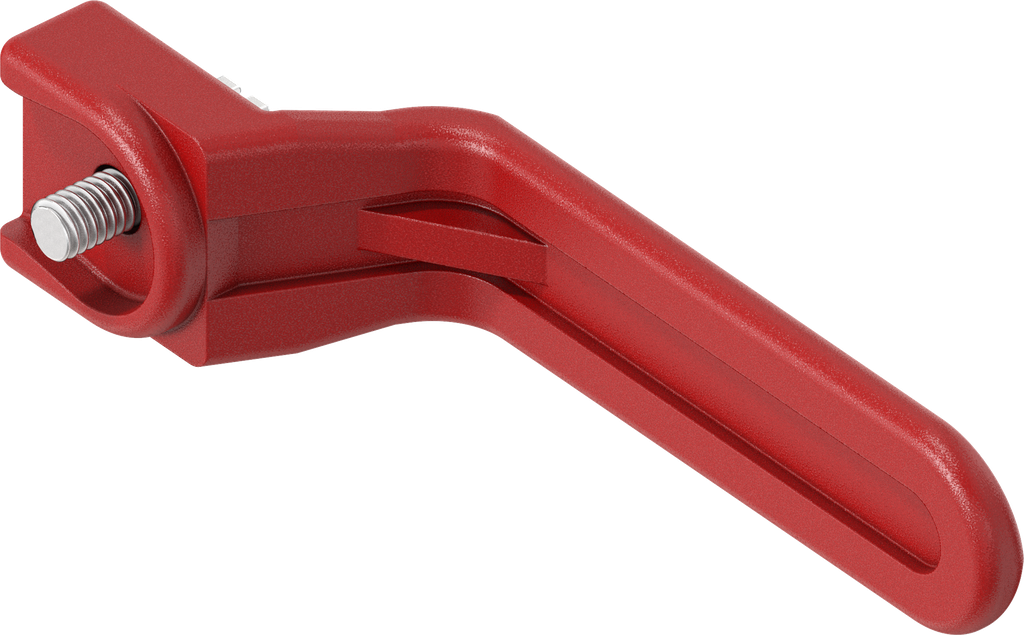

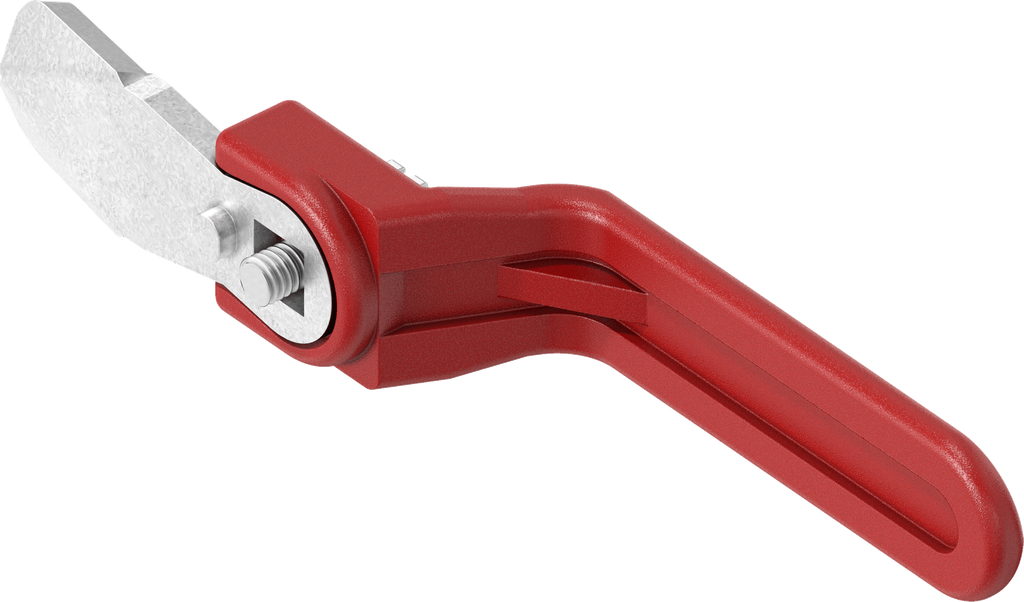

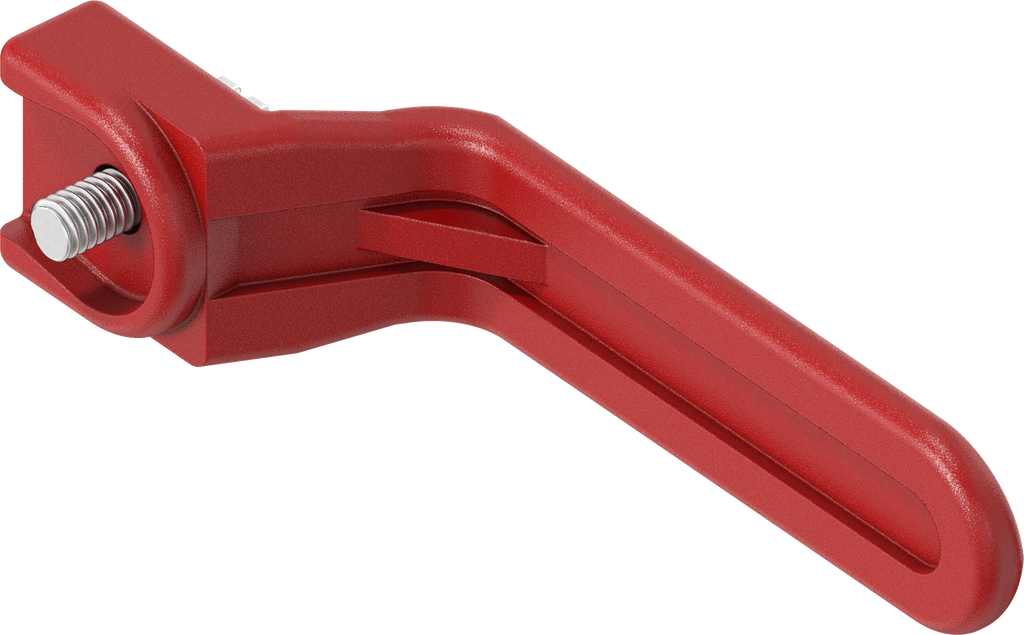

Inside handle, Polyamide red; 1000-U681

https://www.emka.com/products/1000-u681 https://www.emka.com/web/image/product.template/60254/image_1920?unique=0938ee4

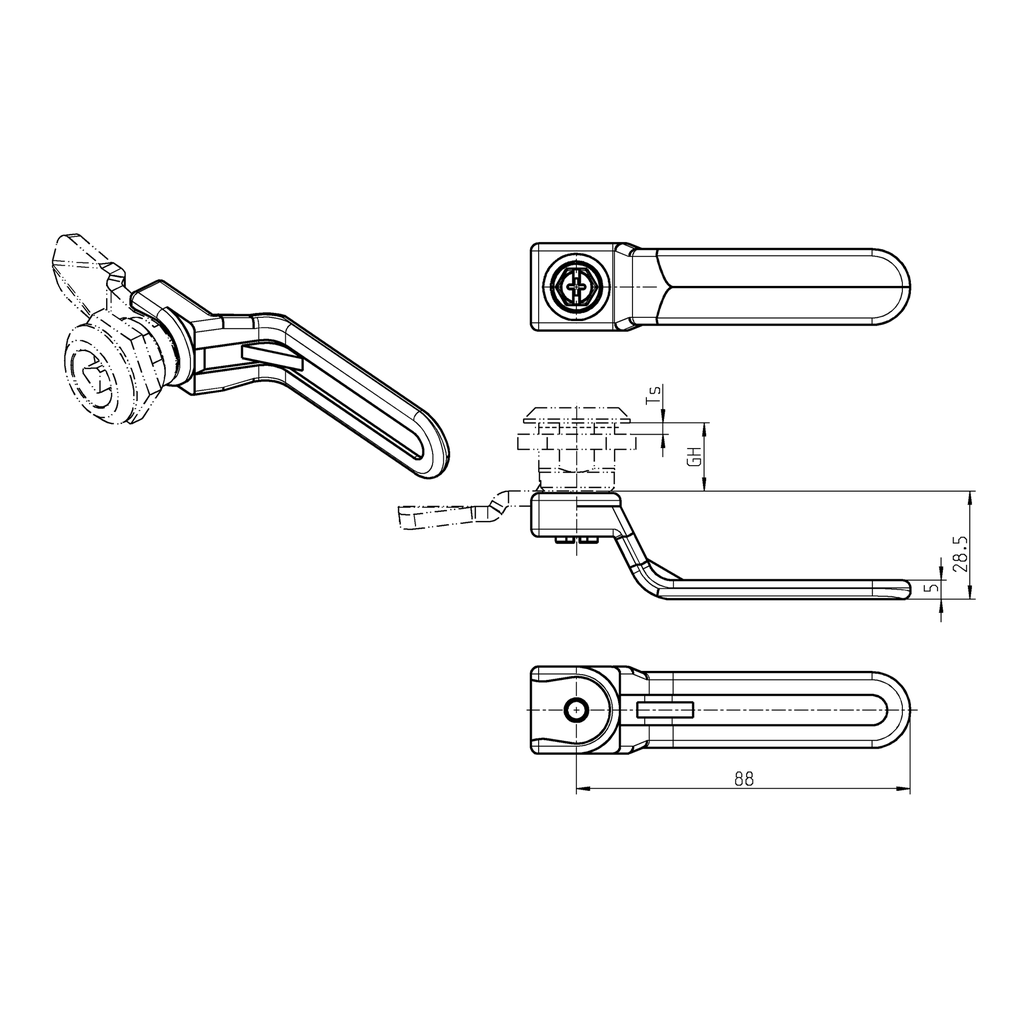

for length of housing (GH) = 18 mm


    This combination does not exist.



    Assembly instruction:

    Cannot be used for lockable quarter turns, safety quarter turns and compression latches

    Internal Reference: 1000-U681
    Product Type: Quarter turn accessories
    Program: 1000
    Catalog sheet: 1C-170
    Material of the module : Polyamide
    Surface of the module: red
    Number of Possible Locking Points: 1 point
    Inside grip for tongue for GH: 18
    Suitable for door thickness from: 1.50 mm
    Suitable for door thicknesses up to: 8 mm
    No Specifications
    View All Products
    Housing
    Cam
    Quarter turn
    Here you can find the product data sheets and CAD files of this product
