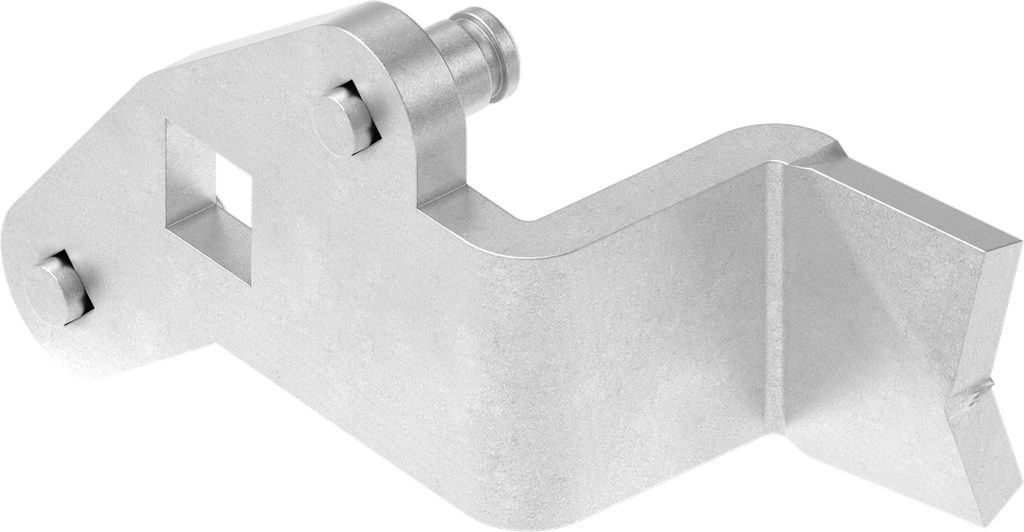

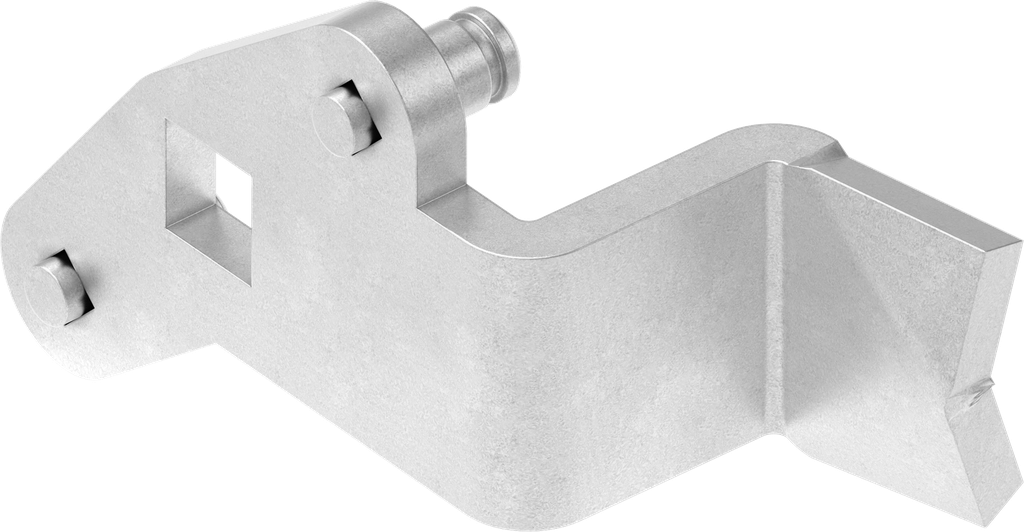

3-Point cam, left version, Steel zinc-plated; 1000-U674-38

https://www.emka.com/products/1000-u674-38-3-point-cam-left-version-steel-zinc-plated-60247 https://www.emka.com/web/image/product.template/60247/image_1920?unique=2e815ef

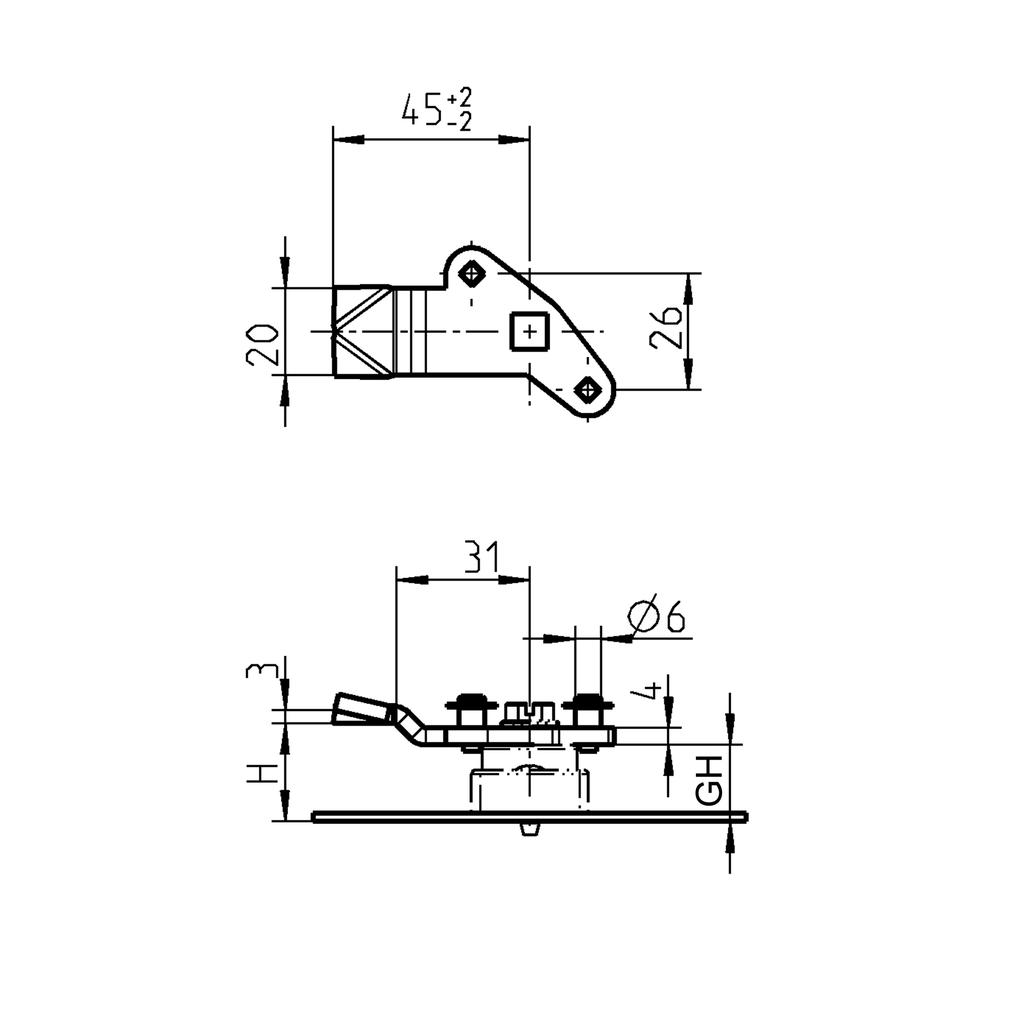

Offset h = 20 mm, see 1000-U662-38

    This combination does not exist.

    Inside the sealing
    Internal Reference: 1000-U674-38
    Barcode: 1000-U00674-0000038
    Product Type: Cam
    Program: 1000
    Material of the module : Steel
    Surface of the module: zinc-plated
    Number of Possible Locking Points: 3 point
    Mounting Positions : Inside the sealing
    Stroke of the drive: Stroke 26 mm
    Compression Value : 3 mm
    Offset: positive
    offset of cam: 20 mm
    Dimension L: 45 mm
    Spoon: Yes
    Dimension t: 4 mm
